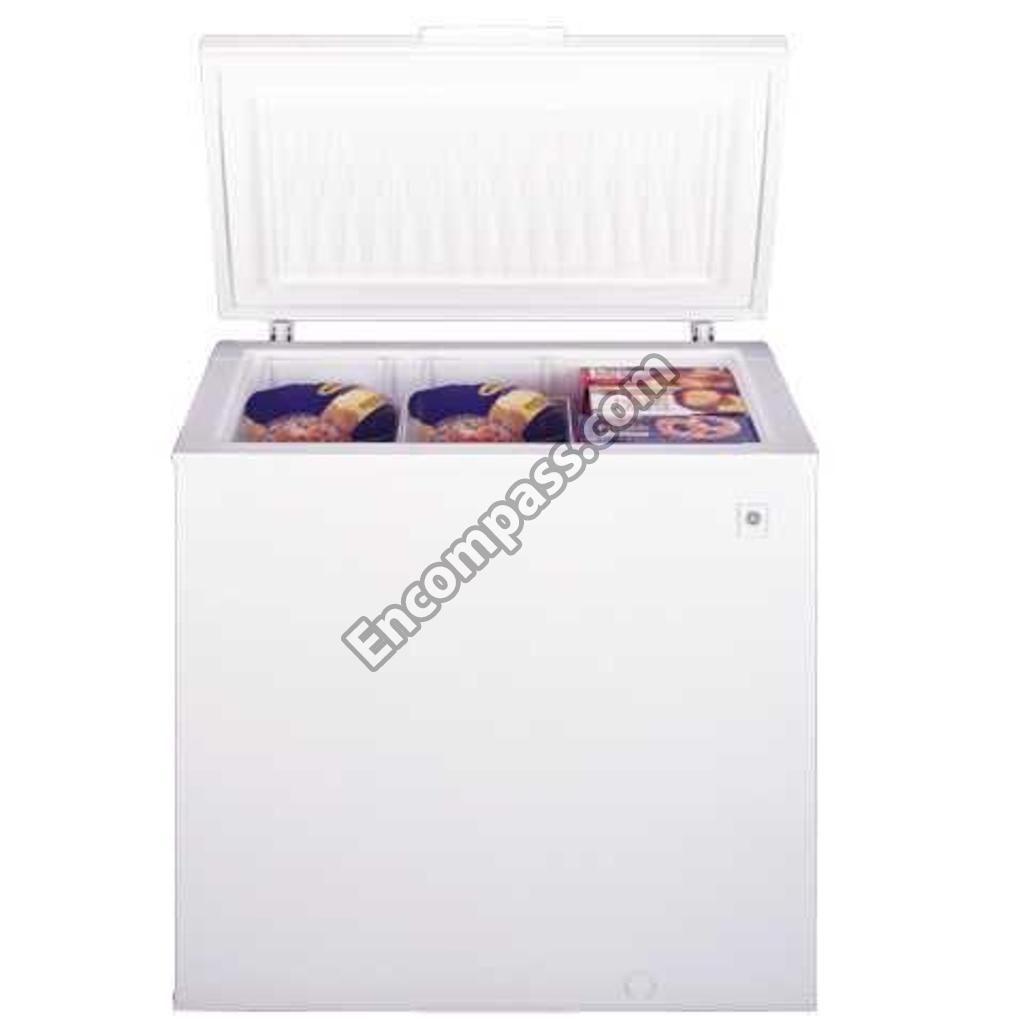

Model Image
Manufacturer

GE

Model Number

FCM7DMBWH

Description

Freezer

Interactive Exploded View

Parts List

Part Number Description
WR84X10006 WR84X10006 AUXILIARY CONDENSER
WR21X10001 WR21X10001 BASKET
WR40X10010 WR40X10010 BREAKER STRIP CORNERS
WR40X10045 WR40X10045 BREAKER-LOCK SIDE
WR62X10025 WR62X10025 CAPACITOR
WR02X10403 WR02X10403 CLAMP
WR01X1608 WR01X1608 CLIP
WR01X1909 WR01X1909 CLIP PANEL
WR1X1909 WR1X1909 CLIP PANEL
WR02X10860 WR02X10860 COLD CONTROL KNOB
WR87X10055 WR87X10055 COMPRESSOR
WR09X26146 WR09X26146 CONTROL TEMP
WR1X5134 WR1X5134 F59555
WR24X10007 WR24X10007 GASKET
WR01X5134 WR01X5134 GROMMET
WR23X10327 WR23X10327 HARNESS-LID/DEFROST
WR23X10325 WR23X10325 HARNESS-MAIN
WR13X10018 WR13X10018 HINGE
WR01X1965 WR01X1965 HOSE ADAPTER
WR1X1965 WR1X1965 HOSE ADAPTER
WR05X0093 WR05X0093 KEY
WR5X87 WR5X87 LOCK
WR05X0087 WR05X0087 LOCK ASS'Y
WR01X26468 WR01X26468 LOCK KEY
31-51369 31-51369 MINI MANUAL
WR04X10093 WR04X10093 NAME PLATE
WR78X10549 WR78X10549 PANEL OUTER DOOR WHIT
WR01X10398 WR01X10398 PANEL-ACCESS WHITE
WR77X10053 WR77X10053 PANEL-INNER DOOR/LID
WR02X12563 WR02X12563 PLUG BUTTON O D PANEL
WR02X10073 WR02X10073 PLUG DRAIN
WR02X12063 WR02X12063 PLUG DRAIN EXTERIOR
WR02X9508 WR02X9508 PLUG DRAIN INNER
WR23X10052 WR23X10052 POWER ON LIGHT
WR08X10036 WR08X10036 PTC RELAY
WR01X10165 WR01X10165 SCREW 8-32 X 1/2
WR01X10162 WR01X10162 SCREW HEX WASHER HEAD
WR01X1520D WR01X1520D SCREW INNER PANEL
WR1X2209 WR1X2209 SCREW TOE GR
WR01X1978 WR01X1978 SCREW-PANEL
WR02X11535 WR02X11535 SEALING CAP
WR02X10080 WR02X10080 SUPPORT LATCH
49-60040 49-60040 USE AND CARE MANUAL
WR40X10047 WR40X10047 WR40X10011
WR86X10005 WR86X10005 WR86X10005
