Model Image
Manufacturer

GE

Model Number

FCM7DUAWW

Description

Freezer

Interactive Exploded View

Parts List

Part Number Description
WR17X12345 WR17X12345 ACCESS PANEL

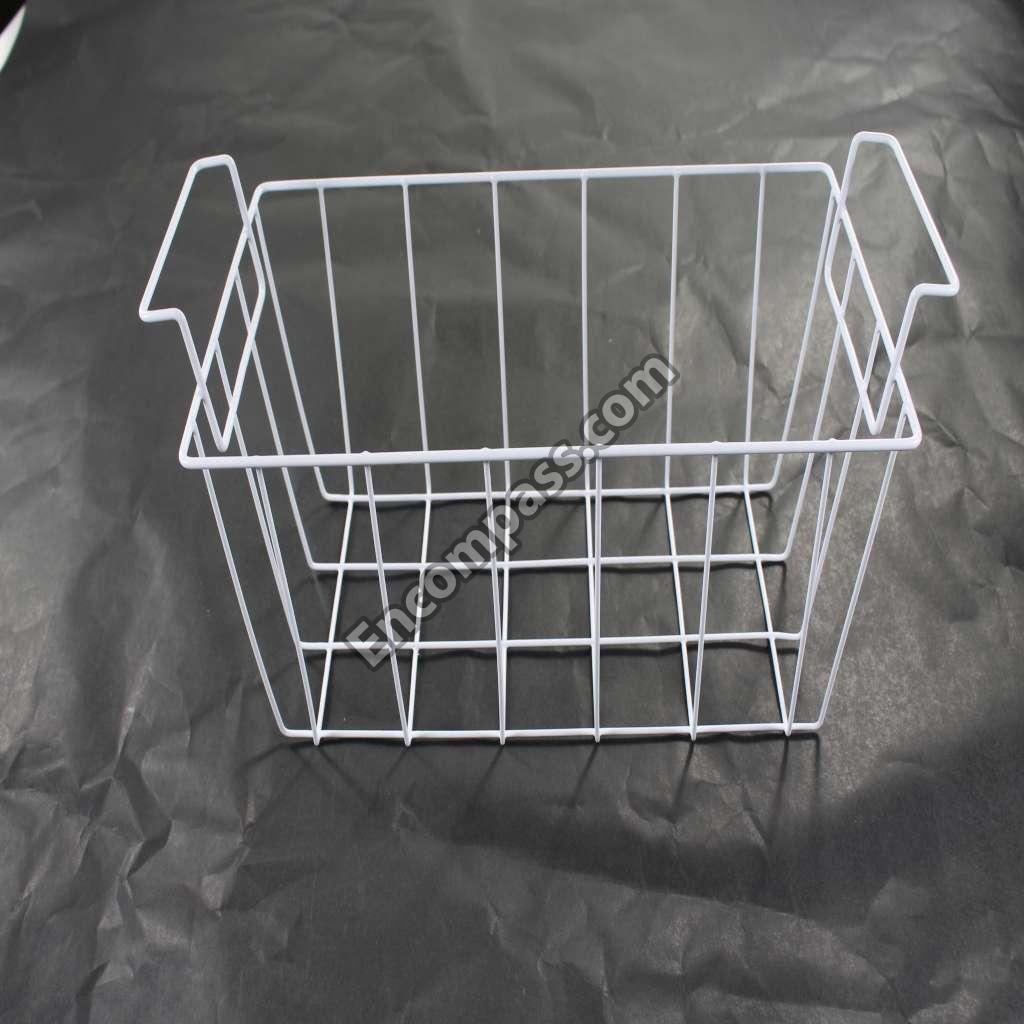

WR21X10208 WR21X10208 BASKET
WR02X12192 WR02X12192 CLAMP
WR87X10202 WR87X10202 COMPRESSOR KIT
WR01X10754 WR01X10754 COMPRESSOR SLEEVE
WR55X10540 WR55X10540 CONTROL PANEL
WR02X12191 WR02X12191 COVER BOARD

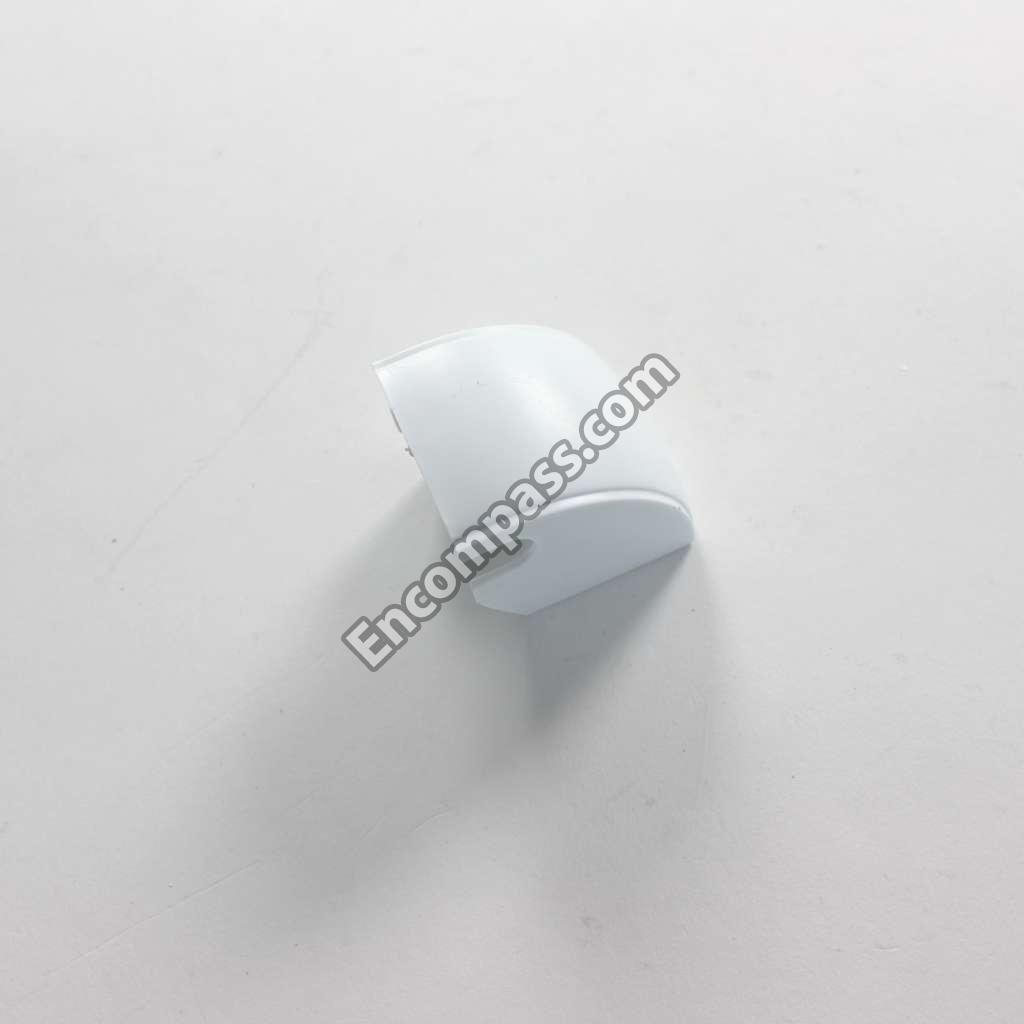

WR13X10370 WR13X10370 COVER HINGE - BOTTOM
WR13X10369 WR13X10369 COVER HINGE - TOP
WR17X12346 WR17X12346 DIVIDER
WR90X00044 WR90X00044 DOOR

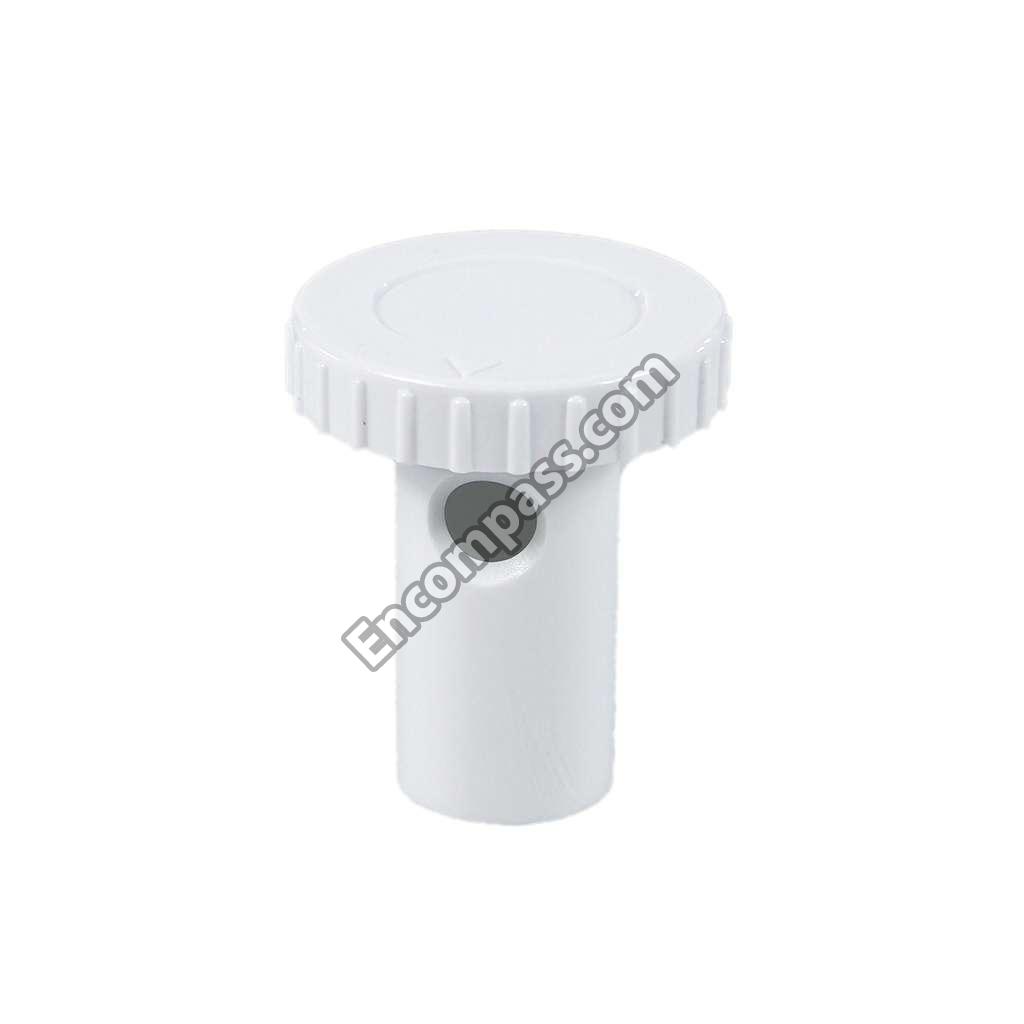

WR01X27970 WR01X27970 DRAIN PLUG
WR01X36306 WR01X36306 DRAIN PLUG
WR01X28051 WR01X28051 DRAIN STOPPER
WR86X10035 WR86X10035 FILTER DRIER
WR02X12562 WR02X12562 FREEZER GREEN INDICATOR LIGHT
WR02X11973 WR02X11973 GROMMENT - COMP
WR02X12194 WR02X12194 GROMMET RUBBER
WR13X10467 WR13X10467 HINGE

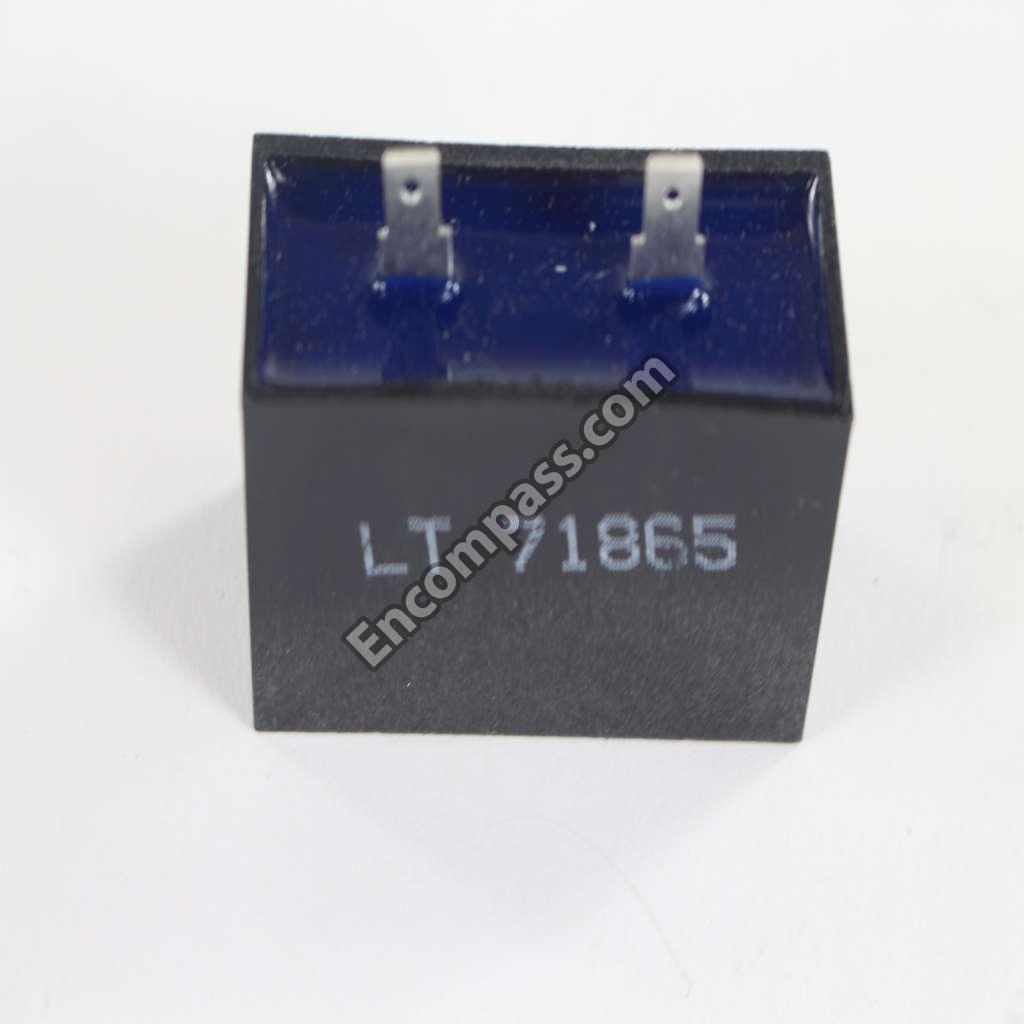

WR55X24065 WR55X24065 KIT CAPACITOR 15 UF
WR02X12048 WR02X12048 LIGHT COVER
WR01X28052 WR01X28052 LOCK ASM AND KEY
WR05X10032 WR05X10032 LOCK CLAW
WR02X12047 WR02X12047 LOGO
WR05X10033 WR05X10033 LOWER LOCK COVER
31-51650 31-51650 MINI MANUAL
WR09X20943 WR09X20943 OVERLOAD

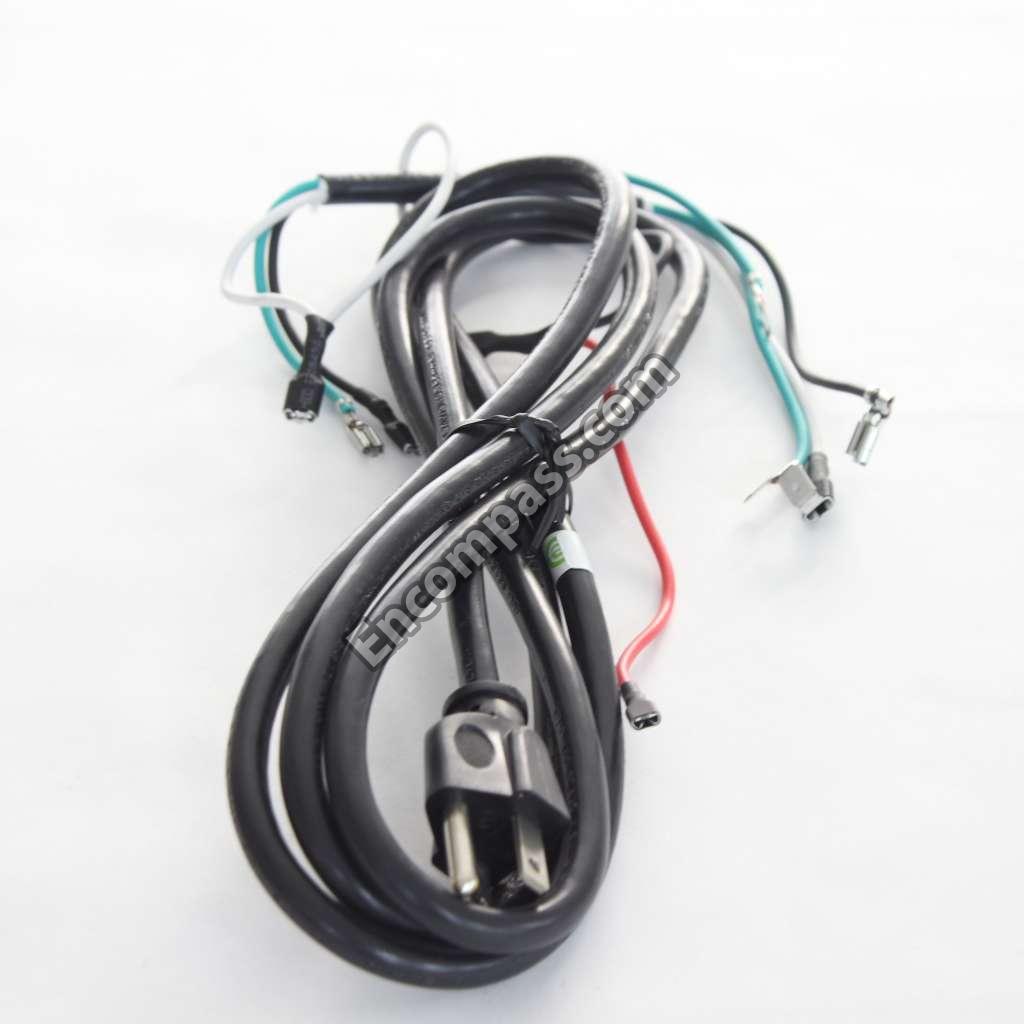

WR23X10458 WR23X10458 POWER CORD
WR01X10747 WR01X10747 POWER CORD CLAMP
WR01X10745 WR01X10745 POWER CORD FIX BELT

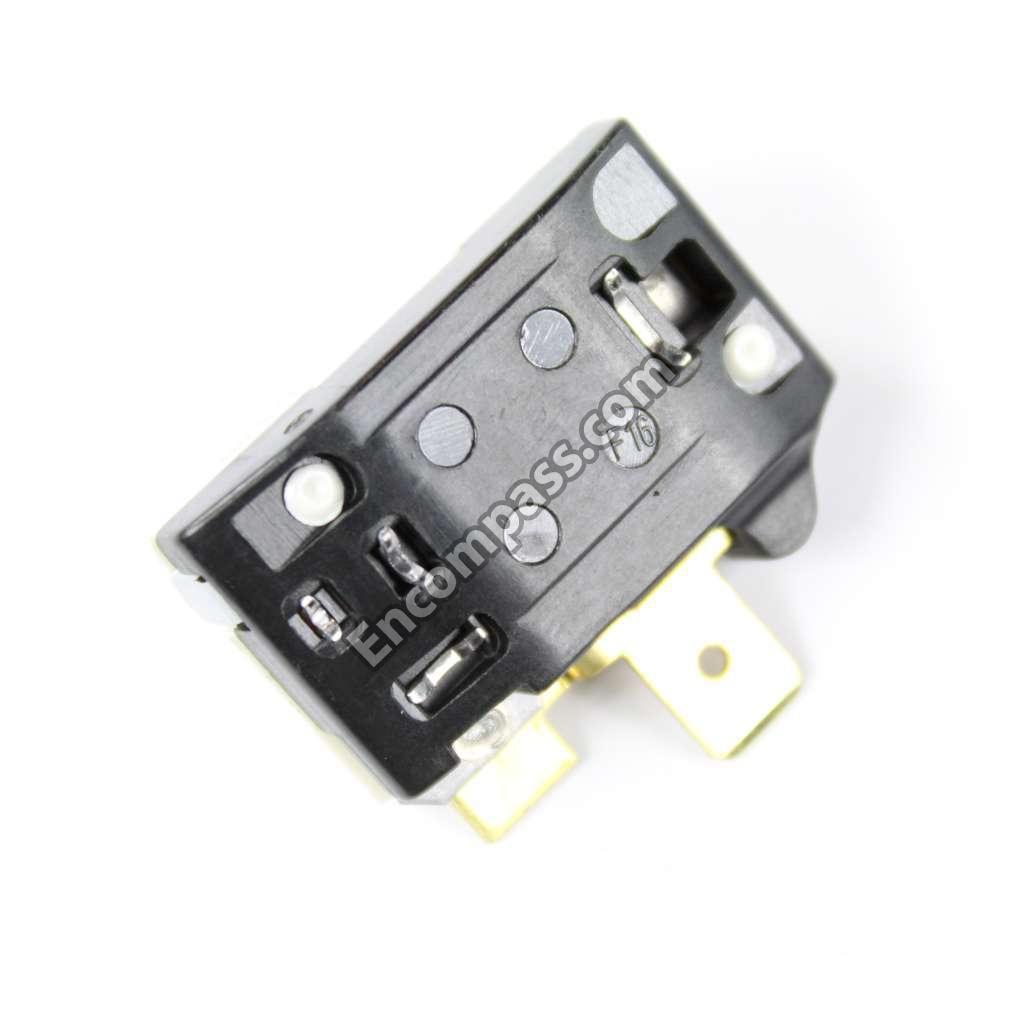

WR07X10089 WR07X10089 PTC-RELAY
WR01X35245 WR01X35245 SCREW
WR01X27825 WR01X27825 SCREW
WR01X10487 WR01X10487 SCREW
WR01X10746 WR01X10746 SCREW
WR01X10748 WR01X10748 SCREW
WR01X10569 WR01X10569 SCREW
WR01X27824 WR01X27824 SCREW
NCN NCN SCREW 8-16 B FLP 625 ZN
WR01X10570 WR01X10570 SPRING WASHER
WR01X10755 WR01X10755 SPRING WASHER
WR13X10469 WR13X10469 TERMINAL COVER

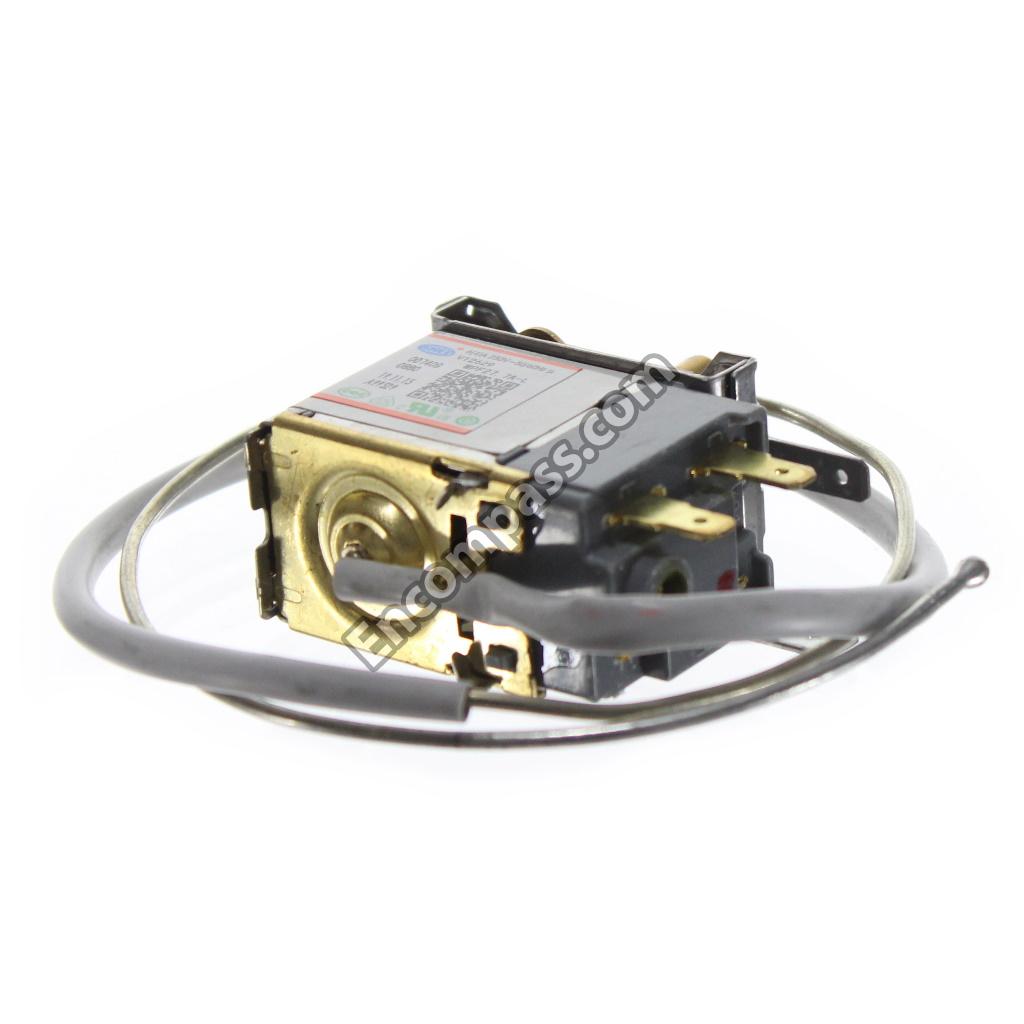

WR50X10085 WR50X10085 THERMOSTAT

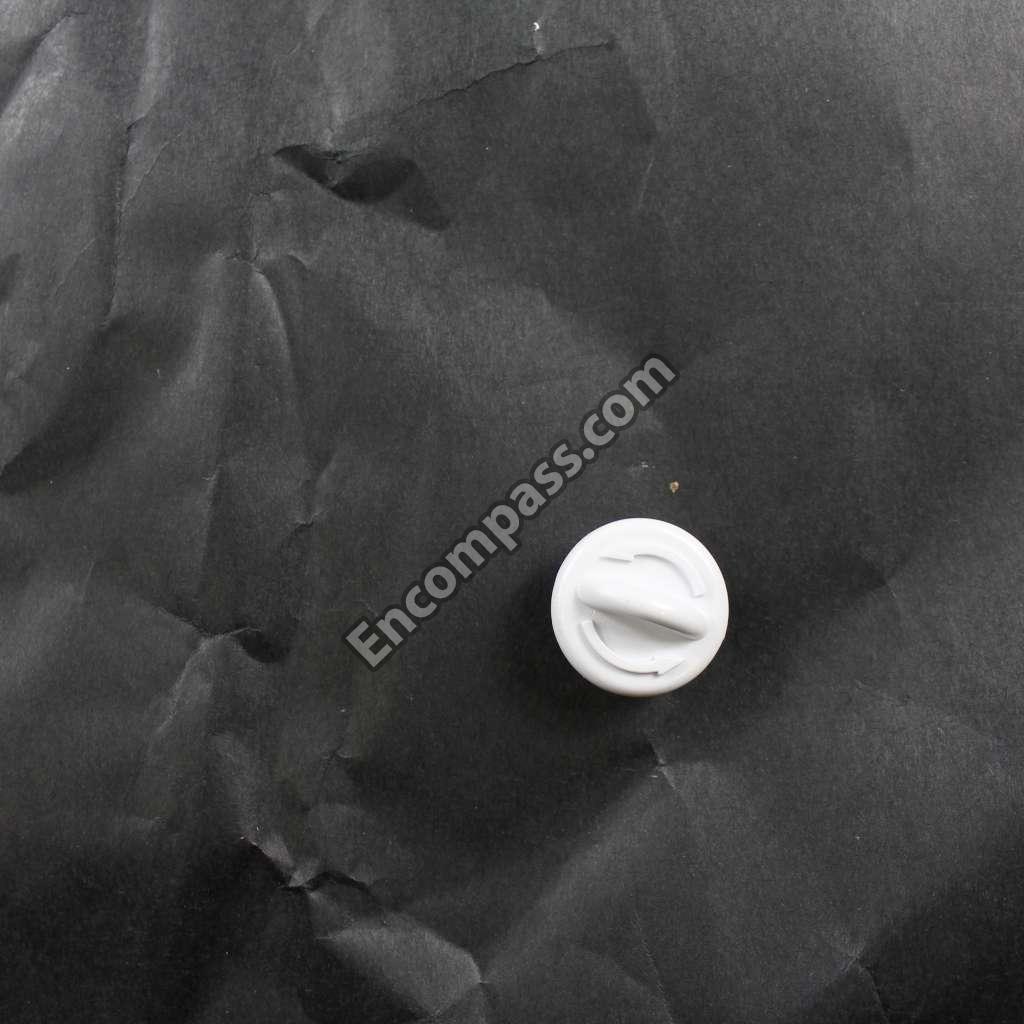

WR02X12190 WR02X12190 THERMOSTAT KNOB
WR01X10744 WR01X10744 TOOTHED WASHER
WR05X10031 WR05X10031 TOP LOCK COVER
49-60378 49-60378 USE AND CARE MANUAL
WR01X10756 WR01X10756 WASHER
WR01X10571 WR01X10571 WASHER
