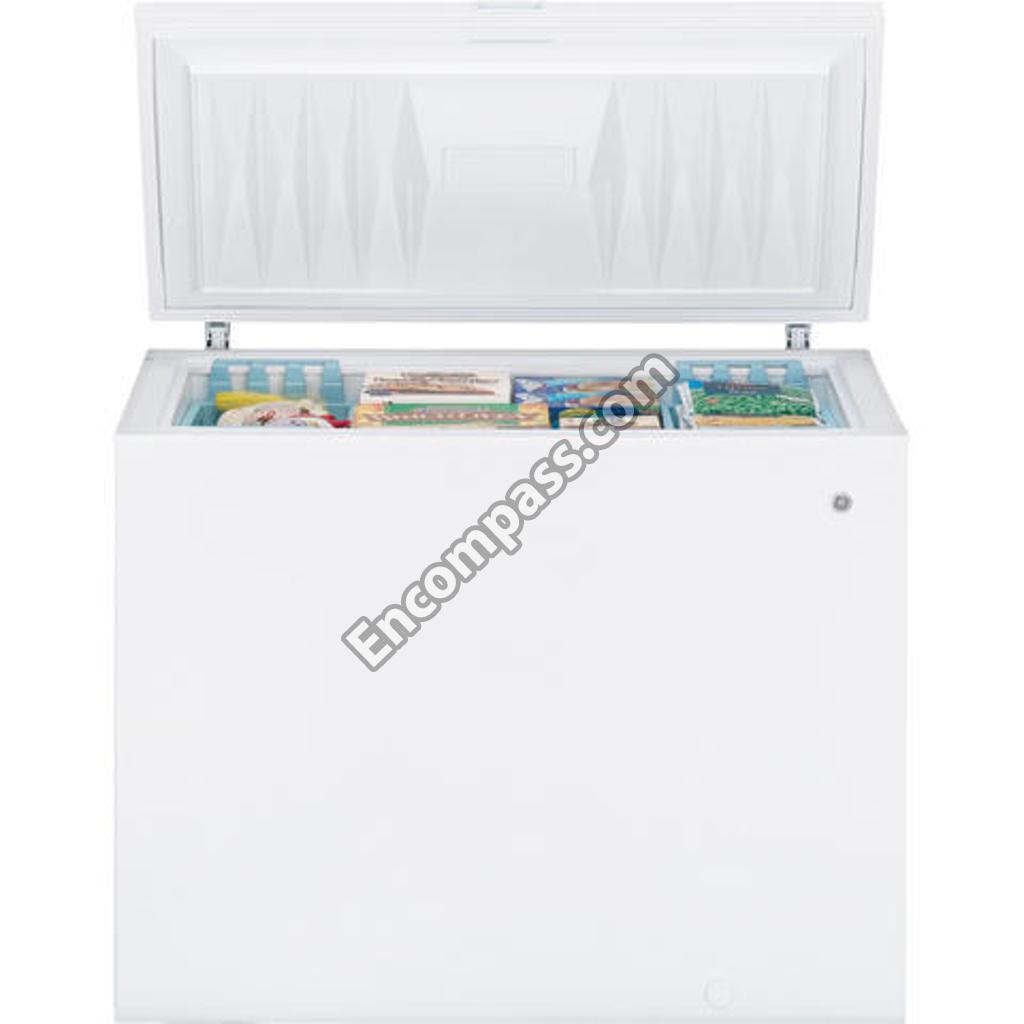

Model Image
Manufacturer

GE

Model Number

FCM9DTAWH

Description

Freezer

Interactive Exploded View

Parts List

Part Number Description
WR84X10005 WR84X10005 AUXILIARY CONDENSER
WR21X10135 WR21X10135 BASKET BLUE
WR40X10010 WR40X10010 BREAKER STRIP CORNERS
WR40X10047 WR40X10047 BREAKER-ENDS WH
WR55X30966 WR55X30966 CAPACITOR
WR62X10051 WR62X10051 CAPACITOR RUN 10MF
WR02X12338 WR02X12338 CATCH-LOCK WHITE
WR01X1608 WR01X1608 CLIP
WR02X12032 WR02X12032 CLIP CONTROLLER
WR1X2183 WR1X2183 CLIP LINER
WR01X2183 WR01X2183 CLIP PANEL
WR02X10860 WR02X10860 COLD CONTROL KNOB
WR87X10125 WR87X10125 COMPRESSOR W/O ELECTRICA
WR09X26146 WR09X26146 CONTROL TEMP
WR08X10072 WR08X10072 CONTROLLER COMPRESSOR 5
WR86X10005 WR86X10005 DRYER & FILTER
WR1X5134 WR1X5134 F59555
WR24X10006 WR24X10006 GASKET
WR01X5134 WR01X5134 GROMMET
WR12X10797 WR12X10797 HANDLE RECESSED
WR23X10461 WR23X10461 HARNESS-LID
WR13X10018 WR13X10018 HINGE
WR01X1965 WR01X1965 HOSE ADAPTER
WR1X1965 WR1X1965 HOSE ADAPTER
WR01X26468 WR01X26468 KEY
WR23X10690 WR23X10690 LIGHT SOCKET
WR5X87 WR5X87 LOCK
WR05X0087 WR05X0087 LOCK ASS'Y
31-51657 31-51657 MINI MANUAL
WR04X10159 WR04X10159 NAMEPLATE
49-60442 49-60442 OWNER'S MANUAL
WR78X11921 WR78X11921 PANEL OUTER DOOR WHITE
WR01X10398 WR01X10398 PANEL-ACCESS WHITE
WR77X10052 WR77X10052 PANEL-LID
WR02X10073 WR02X10073 PLUG DRAIN
WR02X12063 WR02X12063 PLUG DRAIN EXTERIOR
WR02X11935 WR02X11935 PLUGBUTTON1/4WHITE
WR23X10498 WR23X10498 POWER CORD
WR2X9494 WR2X9494 SCREW
WR02X12339 WR02X12339 SCREW 8-18 X 1/2
WR02X9494 WR02X9494 SCREW 8-18B X 0.31
WR01X10165 WR01X10165 SCREW 8-32 X 1/2
WR01X10162 WR01X10162 SCREW HEX WASHER HEAD
WR01X1520D WR01X1520D SCREW INNER PANEL
WR02X12203 WR02X12203 SHIELD LIGHT
WR23X10303 WR23X10303 SWITCH LIGHT
