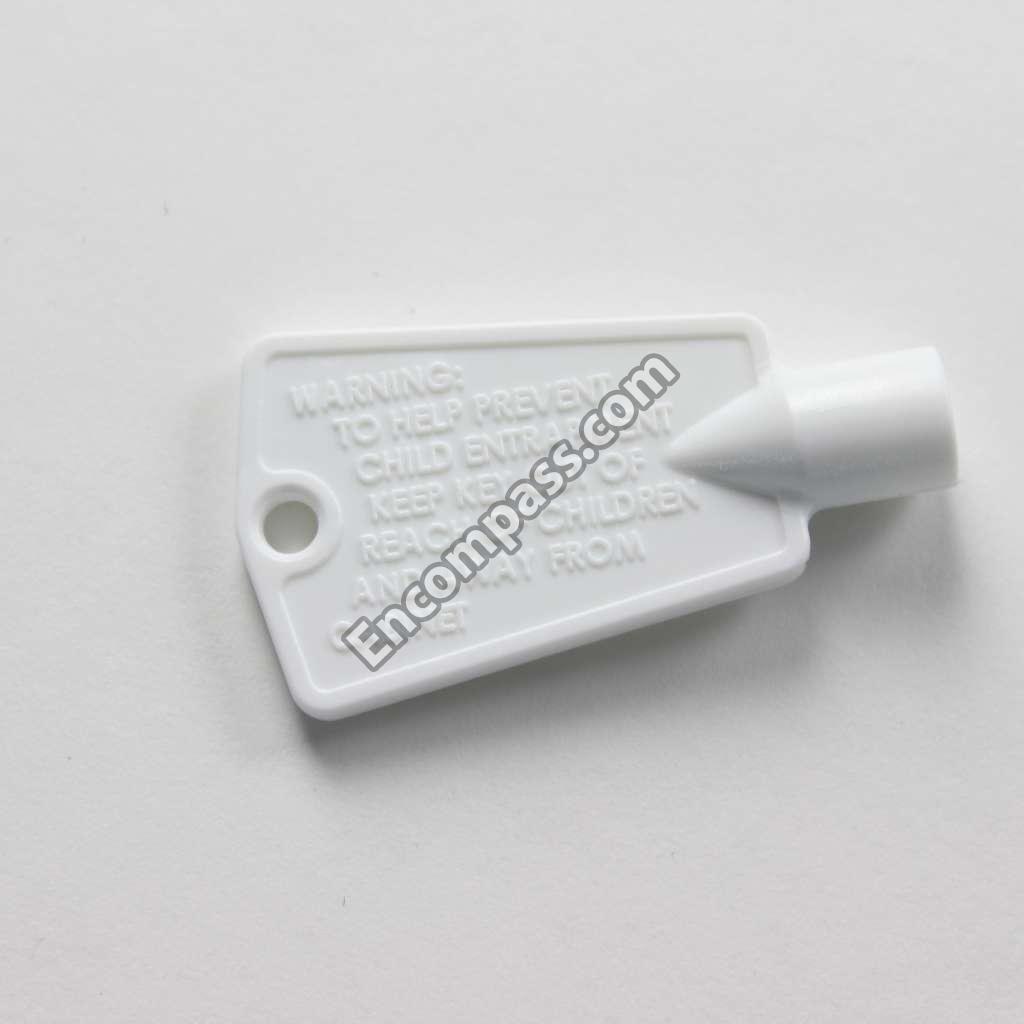

Model Image
Manufacturer

GE

Model Number

FP12SXBRWH

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WR02X8484 WR02X8484 BEARING BTM
WR02X9491 WR02X9491 BEARING TOP
WR2X9491 WR2X9491 BEARING TOP
WR02X12310 WR02X12310 BEARING-HINGE BOTTOM
WR85X322 WR85X322 BOTTOM SHELF
WR40X1707 WR40X1707 BREAKER BOTTOM
WR40X1710 WR40X1710 BREAKER HINGE
WR40X1704 WR40X1704 BREAKER HINGE
WR40X1769 WR40X1769 BREAKER HINGE SIDE
WR40X1708 WR40X1708 BREAKER HINGE SIDE
WR40X1706 WR40X1706 BREAKER STRIP TOP
WR17X6045 WR17X6045 BREATHER VALVE
WR01X5218 WR01X5218 CLAMP
WR02X9503 WR02X9503 CLAMP CAP. TUBE
WR2X9503 WR2X9503 CLAMP CAPILL
WR1X5368 WR1X5368 CLIP
WR01X5368 WR01X5368 CLIP BREAKER STRIP
WR02X8644 WR02X8644 CLIP DOOR LATCH
WR1X2181 WR1X2181 CLIP DR HOSE
WR01X2181 WR01X2181 CLIP DRAIN HOSE
WR84X5007 WR84X5007 CONDENSER EXT
WR09X0577 WR09X0577 CONTROL TEMP.
WR2X8360 WR2X8360 COVER - WH
WR2X9506 WR2X9506 COVER ELEC.
WR02X8868 WR02X8868 COVER HINGE WH
WR02X9506 WR02X9506 COVER TERMINAL
WR78X8839 WR78X8839 DOOR PANEL OUTER
WR02X5637 WR02X5637 DOOR STOP
WR2X5637 WR2X5637 DOOR STOP
WR02X6353 WR02X6353 DRAIN
WR2X6353 WR2X6353 DRAIN
WR02X9493 WR02X9493 END CAP L.H.
WR2X9493 WR2X9493 END CAP LH
WR02X9492 WR02X9492 END CAP R.H.
WR2X9492 WR2X9492 END CAP RH
WR85X320 WR85X320 FIRST SHELF
WR2X9485 WR2X9485 FOOT ADJ.
49-6786 49-6786 FP9-FP21 MAN DEF FRZR USE & CA
WR38X2019 WR38X2019 FRONT SHELF
WR24X0520 WR24X0520 GASKET
WR24X5139 WR24X5139 GASKET DOOR/LID
WR24X574 WR24X574 GASKET SEC.
WR24X0574 WR24X0574 GASKET SECONDARY
WR01X10020 WR01X10020 GROMMET COMPRESSOR
WR1X2182 WR1X2182 GROMMET SPAC
WR01X2182 WR01X2182 GROMMET SPACER
WR86X111 WR86X111 HEAT EXCH-ER
WR86X0111 WR86X0111 HEAT EXCHANGER
WR87X10006 WR87X10006 HI-SIDE
WR02X9139 WR02X9139 HINGE BOTTOM
WR2X9139 WR2X9139 HINGE BOTTOM
WR12X0947 WR12X0947 HINGE TOP
WR01X1965 WR01X1965 HOSE ADAPTER
WR1X1965 WR1X1965 HOSE ADAPTER
WR17X5367 WR17X5367 HOSE DRAIN
WR02X0746 WR02X0746 HOUSING COLD CONTROL
WR05X0093 WR05X0093 KEY
WR12X10617 WR12X10617 KIT-TOP HINGE
WR2X7470 WR2X7470 KNOB CONT
WR02X7470 WR02X7470 KNOB CONTROL
WR2X8644 WR2X8644 LATCH CLIP
WR2X8643 WR2X8643 LATCH SUPORT
WR02X9485 WR02X9485 LEVELING LEG ADJUSTABLE
WR2X5676 WR2X5676 LEVELNG JACK
WR5X87 WR5X87 LOCK
WR05X0087 WR05X0087 LOCK ASS'Y
WR05X1927 WR05X1927 LOCK HOOK
WR5X1927 WR5X1927 LOCK HOOK
WR01X26468 WR01X26468 LOCK KEY
WR2X9497 WR2X9497 MTG. SLEEVE
WR04X0210 WR04X0210 NAMEPLATE
WR4X215 WR4X215 NAMEPLATE
WR08X10003 WR08X10003 OVERLOAD
WR86X96 WR86X96 P/S DRYER KIT R134A
WR86X25269 WR86X25269 P/S DRYER KIT R134A
WR77X0637 WR77X0637 PANEL INNER DOOR
WR02X10073 WR02X10073 PLUG DRAIN
WR23X0108 WR23X0108 POWER CORD
WR23X10300 WR23X10300 POWER CORD
WR1X2171 WR1X2171 RET. BREAKER
WR01X2171 WR01X2171 RETAINER WIRE BREAKER
WR01X10623 WR01X10623 SCR 8-18 AB IHXW 9/16 S
WR1X5483 WR1X5483 SCREW
WR2X9494 WR2X9494 SCREW 8-18 X .31
WR02X9494 WR02X9494 SCREW 8-18B X 0.31
WR02X13481 WR02X13481 SCREW 818X50 AB 10
WR01X5776 WR01X5776 SCREW BOTTOM HINGE
WR1X2174 WR1X2174 SCREW COMP
WR01X2174 WR01X2174 SCREW COMP MTG
WR01X1520D WR01X1520D SCREW INNER PANEL
WR02X5105 WR02X5105 SCREW PANEL TO EVAP
WR1X5485 WR1X5485 SCREW STOP
WR01X5777 WR01X5777 SCREW TOP HINGE
WR01X5450 WR01X5450 SCREW,PH TRUS,8-18ABX.50
WR01X5405 WR01X5405 SCREW-I. D. PANEL
WR01X5483 WR01X5483 SCREW-KNOB
WR01X5485 WR01X5485 SCREW-STOP
WR85X321 WR85X321 SECOND SHELF
WR17X6451 WR17X6451 SHELF FRONT
WR17X4283 WR17X4283 SHELF FRONT
WR2X6250 WR2X6250 SHELF SUPT
WR85X0091 WR85X0091 SHELF-1ST
WR85X0147 WR85X0147 SHELF-2ND
WR85X0093 WR85X0093 SHELF-BOTTOM
WR85X0090 WR85X0090 SHELF-TOP
WR02X9497 WR02X9497 SLEEVE SCREW
WR07X10001 WR07X10001 STARTER PTC/RELAY
WR2X7621 WR2X7621 SUPPORT
WR2X7622 WR2X7622 SUPPORT
WR02X8643 WR02X8643 SUPPORT DOOR LATCH
WR2X4715 WR2X4715 SUPPORT R
WR02X7622 WR02X7622 SUPPORT-SHELF,FRONT LH
WR02X7621 WR02X7621 SUPPORT-SHELF,FRONT RH
31-51157 31-51157 TECHNICAL DATA SHEET
WR9X577 WR9X577 TEMP CONTROL
WR74X0250 WR74X0250 TOE GRILLE
WR74X250 WR74X250 TOE GRILLE
WR17X4280 WR17X4280 VALVE BREATHER
WR01X2180 WR01X2180 WASHER SEAL HINGE
