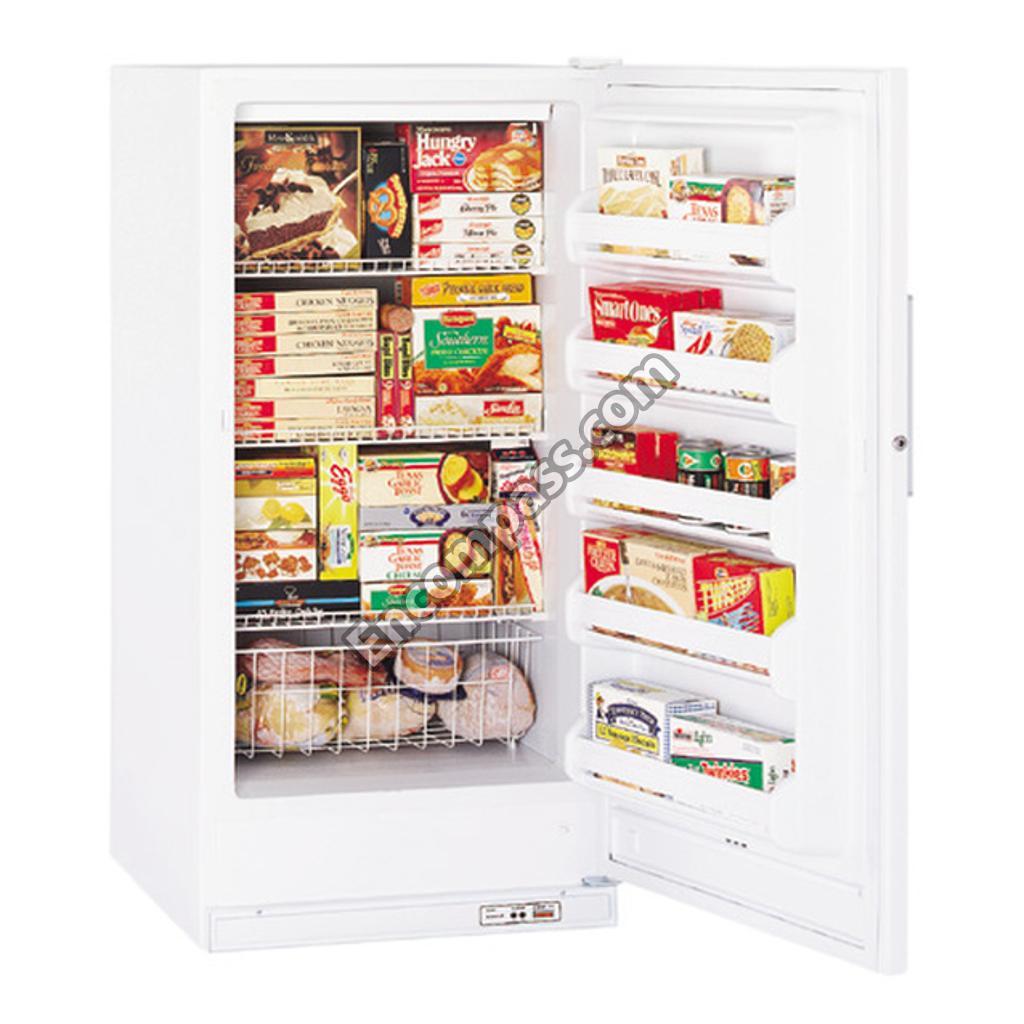

Model Image
Manufacturer

GE

Model Number

FUF14DABRWH

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WR17X3405 WR17X3405 GE BAFFLE
WR21X10003 WR21X10003 GE BASKET
WR02X9491 WR02X9491 GE BEARING TOP
WR2X9491 WR2X9491 GE BEARING TOP
WR02X12310 WR02X12310 GE BEARING-HINGE BOTTOM
WR02X6209 WR02X6209 GE BRACKET
WR02X7472 WR02X7472 GE BRACKET
WR2X8729 WR2X8729 GE BRACKET
WR2X7472 WR2X7472 GE BRACKET
WR2X6209 WR2X6209 GE BRACKET
WR02X8729 WR02X8729 GE BRACKET CONTROL TEMP
WR02X9496 WR02X9496 GE BRACKET FAN MOTOR
WR02X12686 WR02X12686 GE BRACKET FAN MOTOR MOUNT
WR40X10020 WR40X10020 GE BREAKER KIT TOP OR BTM
WR40X10021 WR40X10021 GE BREAKER KIT W/CORNERS
WR40X10022 WR40X10022 GE BREAKER KIT W/LOCK CATCH
WR17X6045 WR17X6045 GE BREATHER VALVE
WR2X6361 WR2X6361 GE BUMPER
WR02X6361 WR02X6361 GE BUMPER BASKET
WR23X5149 WR23X5149 GE BUZZER
WR23X5175 WR23X5175 GE BUZZER ALARM
WR62X0097 WR62X0097 GE CAPACITOR
WR62X10058 WR62X10058 GE CAPACITOR RUN 220 VAC
WR02X9498 WR02X9498 GE CLAMP CAP. TUBE
WR2X9498 WR2X9498 GE CLAMP CAPILL
WR2X8958 WR2X8958 GE CLAMP RELAY
WR2X6208 WR2X6208 GE CLIP
WR1X2208 WR1X2208 GE CLIP HARNESS
WR01X2208 WR01X2208 GE CLIP HARNESS/POWER CORD
WR02X6208 WR02X6208 GE CLIP HEATER TO COIL
WR9X544 WR9X544 GE COLD CONTROL
WR87X0493 WR87X0493 GE COMPRESSOR
WR87X10201 WR87X10201 GE COMPRESSOR REPL KIT
WR84X5007 WR84X5007 GE CONDENSER EXT
WR09X0544 WR09X0544 GE CONTROL TEMP.
WR2X8360 WR2X8360 GE COVER - WH
WR2X9495 WR2X9495 GE COVER CNTRL
WR17X3410 WR17X3410 GE COVER EVAPORATOR
WR02X8868 WR02X8868 GE COVER HINGE WH
WR02X9495 WR02X9495 GE COVER TEMP CONTROL
WR51X10016 WR51X10016 GE DEFROST HEATER
WR09X32390 WR09X32390 GE DEFROST TIMER
WR02X5637 WR02X5637 GE DOOR STOP
WR2X5637 WR2X5637 GE DOOR STOP
WR02X6353 WR02X6353 GE DRAIN
WR2X6353 WR2X6353 GE DRAIN
WR49X10002 WR49X10002 GE DRAIN PAN KIT
WR02X8156 WR02X8156 GE END CAP
WR2X8156 WR2X8156 GE END CAP
WR85X10015 WR85X10015 GE EVAPORATOR ASSEMBLY
WR60X139 WR60X139 GE FAN BLADE
WR2X9485 WR2X9485 GE FOOT ADJ.
WR14X27587 WR14X27587 GE GASKET DOOR
WR14X0489 WR14X0489 GE GASKET EVAP COVER
WR14X489 WR14X489 GE GASKET EVAP.
WR14X10314 WR14X10314 GE GASKET SECONDARY
WR02X11444 WR02X11444 GE GLIDE-BASKET
WR74X10014 WR74X10014 GE GRILLE/KICKPLATE
WR01X10020 WR01X10020 GE GROMMET COMPRESSOR
WR8X186 WR8X186 GE GUARDETTE
WR12X5207 WR12X5207 GE HANDLE
WR12X10075 WR12X10075 GE HANDLE WHITE
WR86X113 WR86X113 GE HEAT EXCH-ER
WR86X0113 WR86X0113 GE HEAT EXCHANGER
WR02X9139 WR02X9139 GE HINGE BOTTOM
WR2X9139 WR2X9139 GE HINGE BOTTOM
WR12X0947 WR12X0947 GE HINGE TOP
WR01X1965 WR01X1965 GE HOSE ADAPTER
WR1X1965 WR1X1965 GE HOSE ADAPTER
WR17X6454 WR17X6454 GE HOUSING-SENSOR
WR01X10030 WR01X10030 GE INSERT NUT
WR2X9500 WR2X9500 GE INSULATOR
WR02X9500 WR02X9500 GE INSULATOR TEMP SENSOR
WR05X0093 WR05X0093 GE KEY
WR12X10617 WR12X10617 GE KIT-TOP HINGE
WR02X9499 WR02X9499 GE KNOB CONTROL
WR2X9499 WR2X9499 GE KNOB CONTROL
WR02X9485 WR02X9485 GE LEVELING LEG ADJUSTABLE
PURCH_LOCA PURCH_LOCA GE LIGHT BULB
WR05X1927 WR05X1927 GE LOCK HOOK
WR5X1927 WR5X1927 GE LOCK HOOK
WR01X26468 WR01X26468 GE LOCK KEY
WR60X10014 WR60X10014 GE MOTOR EVAP FAN
WR2X9497 WR2X9497 GE MTG. SLEEVE
WR04X10016 WR04X10016 GE NAMEPLATE
WR01X2175 WR01X2175 GE NUT INSERT
WR1X2175 WR1X2175 GE NUT-INSERT
WR78X12548 WR78X12548 GE OUTER DOOR PANEL
WR08X0185 WR08X0185 GE OVERLOAD
WR86X96 WR86X96 GE P/S DRYER KIT R134A
WR86X25269 WR86X25269 GE P/S DRYER KIT R134A
WR77X10014 WR77X10014 GE PANEL INNER DOOR
WR02X10087 WR02X10087 GE PLUG BUTTON BASE DOOR
WR01X10031 WR01X10031 GE PLUG-DRAIN
WR23X0108 WR23X0108 GE POWER CORD
WR23X10300 WR23X10300 GE POWER CORD
WR23X10052 WR23X10052 GE POWER ON LIGHT
WR07X0225 WR07X0225 GE RELAY
WR7X225 WR7X225 GE RELAY
WR1X2178 WR1X2178 GE RET. EVAPOR.
WR1X1910 WR1X1910 GE RETAINER COR
WR01X1910 WR01X1910 GE RETAINER CORD
WR01X2178 WR01X2178 GE RETAINER EVAP.
WR01X10623 WR01X10623 GE SCR 8-18 AB IHXW 9/16 S
WR1X5749 WR1X5749 GE SCREW
WR1X5483 WR1X5483 GE SCREW
WR2X9494 WR2X9494 GE SCREW 8-18 X .31
WR02X9494 WR02X9494 GE SCREW 8-18B X 0.31
WR01X2179 WR01X2179 GE SCREW 8-32 X 1/2
WR02X13481 WR02X13481 GE SCREW 818X50 AB 10
WR01X5776 WR01X5776 GE SCREW BOTTOM HINGE
WR1X2179 WR1X2179 GE SCREW BRKT
WR1X2174 WR1X2174 GE SCREW COMP
WR01X2174 WR01X2174 GE SCREW COMP MTG
WR01X1520D WR01X1520D GE SCREW INNER PANEL
WR1X5485 WR1X5485 GE SCREW STOP
WR1X2209 WR1X2209 GE SCREW TOE GR
WR01X5777 WR01X5777 GE SCREW TOP HINGE
WR01X5450 WR01X5450 GE SCREW,PH TRUS,8-18ABX.50
WR01X5749 WR01X5749 GE SCREW-HANDLE
WR01X5405 WR01X5405 GE SCREW-I. D. PANEL
WR01X5483 WR01X5483 GE SCREW-KNOB
WR01X1978 WR01X1978 GE SCREW-PANEL
WR01X5485 WR01X5485 GE SCREW-STOP
WR50X5037 WR50X5037 GE SENSOR ALARM
WR71X10907 WR71X10907 GE SHELF
WR17X10201 WR17X10201 GE SHELF FRONT
WR71X10756 WR71X10756 GE SHELF LOWER
WR02X11533 WR02X11533 GE SHIELD LIGHT
WR02X9497 WR02X9497 GE SLEEVE SCREW
WR02X6808 WR02X6808 GE SLIDE BASKET
WR23X5156 WR23X5156 GE SOCKET LIGHT
WR02X6207 WR02X6207 GE SPACER
WR2X6207 WR2X6207 GE SPACER
WR1X2176 WR1X2176 GE SPACER BAFFL
WR01X2176 WR01X2176 GE SPACER BAFFLE PLATE
WR01X10032 WR01X10032 GE SPACER COMPRESSOR
WR02X6171 WR02X6171 GE STOP BASKET
WR2X6171 WR2X6171 GE STOP-BASKET
WR02X6206 WR02X6206 GE SUPPORT EVAPORATOR
WR23X10632 WR23X10632 GE SWITCH LIGHT/LAMP PLUN
WR23X5171 WR23X5171 GE SWITCH ROCKER
WR50X10004 WR50X10004 GE SWITCH TERMINATION
31-51172 31-51172 GE TECHNICAL DATA SHEET
WR09X10154 WR09X10154 GE TIMER DEFROST
WR17X4279 WR17X4279 GE TRAP DRAIN
49-6952 49-6952 GE USE & CARE BOOK
WR01X2172 WR01X2172 GE WASHER FLAT HANDLE
WR1X2172 WR1X2172 GE WASHER HANDL
WR01X2180 WR01X2180 GE WASHER SEAL HINGE
WR02X8958 WR02X8958 GE WIRE BALE
WR05X10001 WR05X10001 GE WR05X10001
