Model Image
Manufacturer

GE

Model Number

FUF14DHRBWW

Description

Freezer

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WR2X8729 WR2X8729 "BRACKET,CONTROL"
WR12X23534 WR12X23534 1/2-INCH PIN HINGE BOTTOM R
WR71X23546 WR71X23546 12.50 X 27.88 SHELF WIR
WR71X23547 WR71X23547 16.69 X 27.88 SHELF WIR
WR02X23535 WR02X23535 24-INCH INSULATION DRAIN TU
WR01X23544 WR01X23544 8-18 X .500 SCREW
WR17X12658 WR17X12658 BAFFLE AIR
WR21X23548 WR21X23548 BASKET
WR02X23518 WR02X23518 BEARING HINGE CLOSER
WR02X23506 WR02X23506 BEARING,HINGE ,BLACK ,TO
WR40X23549 WR40X23549 BOTTOM BREAKER
WR02X12686 WR02X12686 BRACKET FAN MOTOR MOUNT
WR2X6361 WR2X6361 BUMPER
WR62X23515 WR62X23515 CAPACITOR-RUN
WR02X11441 WR02X11441 CLAMP CAP TUBE
WR02X12032 WR02X12032 CLIP CONTROLLER
WR01X10916 WR01X10916 CLIP PANEL MTG
WR01X10870 WR01X10870 CLIP SPRING
WR01X10931 WR01X10931 CLIP WIRE
WR02X10860 WR02X10860 COLD CONTROL KNOB
WR07X23556 WR07X23556 COMPRESSOR CONTROLLER
WR84X52 WR84X52 CONDENSER
WR02X12689 WR02X12689 COVER-HINGE
WR09X32390 WR09X32390 DEFROST TIMER
WR02X23542 WR02X23542 DOOR BASE PLUG-BUTTON
WR02X23543 WR02X23543 DOOR CLOSER RAMP
WR24X27083 WR24X27083 DOOR GASKET WW
WR17X23565 WR17X23565 DOOR RACK
WR02X23525 WR02X23525 DOOR STOP
WR17X23526 WR17X23526 DRAIN
WR86X10005 WR86X10005 DRIER-FILTER
WR85X10032 WR85X10032 EVAPORATOR ASSEMBLY
WR17X23524 WR17X23524 EVAPORATOR COVER
WR60X23527 WR60X23527 FAN BLADE
WR60X139 WR60X139 FAN BLADE
WR2X9485 WR2X9485 FOOT ADJ.
WR77X23563 WR77X23563 FRZR PANEL-INNER DOOR
WR14X10293 WR14X10293 GASKET-EVAP COVER
WR12X23532 WR12X23532 GE HANDLE METAL
WR02X11444 WR02X11444 GLIDE-BASKET
WR74X27066 WR74X27066 GRILLE ASSEMBLY WW
WR2X9007 WR2X9007 GROMMET
WR01X10378 WR01X10378 GROMMET COMPRESSOR
WR86X10007 WR86X10007 HEAT EXCHANGER
WR51X23562 WR51X23562 HEATER-DEFROST
WR12X10891 WR12X10891 HINGE-UPPER
WR17X12652 WR17X12652 HOSE-DRAIN
WR01X10888 WR01X10888 HWH SCREW 10-24 X 0.50
WR12X23533 WR12X23533 INSTALL KIT H AND LE
WR2X9500 WR2X9500 INSULATOR
WR02X13242 WR02X13242 INSULATOREVAP STYROFOA
WR01X26468 WR01X26468 KEY
WR02X23509 WR02X23509 LH LEG LEVELOR BRACKET
WR01X23536 WR01X23536 LIGHT BULB/LAMP
WR23X10690 WR23X10690 LIGHT SOCKET
WR05X10038 WR05X10038 LOCK ASSEMBLY
WR60X10293 WR60X10293 MOTOR FAN 115 V
WR2X9497 WR2X9497 MTG. SLEEVE
WR04X23538 WR04X23538 NAMEPLATE
WR02X29336 WR02X29336 PANDRAIN
WR01X35245 WR01X35245 PH TRUSS HEAD SCREW 8-1
WR01X10031 WR01X10031 PLUG-DRAIN
WR23X23523 WR23X23523 POWER CORD
WR02X23510 WR02X23510 RH LEG LEVELOR BRACKET
WR23X23537 WR23X23537 ROUND LIGHT SIGNAL GREE
WR01X10915 WR01X10915 SCREW #8 18X.63 SELF
WR01X10958 WR01X10958 SCREW 8-18AB X.470 QX
WR01X10997 WR01X10997 SCREW BOTTOM HINGE
WR01X10999 WR01X10999 SCREW COMP. MTG
WR02X12989 WR02X12989 SCREW DOOR STOP MTG FH
WR01X10798 WR01X10798 SCREW HEX WASHER HEAD 8
WR01X11042 WR01X11042 SCREW HOURGLASS
WR02X13481 WR02X13481 SCREW PH TRUSS HEAD 8-1
WR02X12764 WR02X12764 SCREW RWHD 8-32A X 0.50
WR01X10796 WR01X10796 SCREW TYPE A 10-24 X 3/
WR01X23545 WR01X23545 SCREW-#8-32 X 3/8
WR01X10922 WR01X10922 SCREW-SET
WR14X23558 WR14X23558 SECONDARY GASKET
WR02X12994 WR02X12994 SHIELD-LIGHT

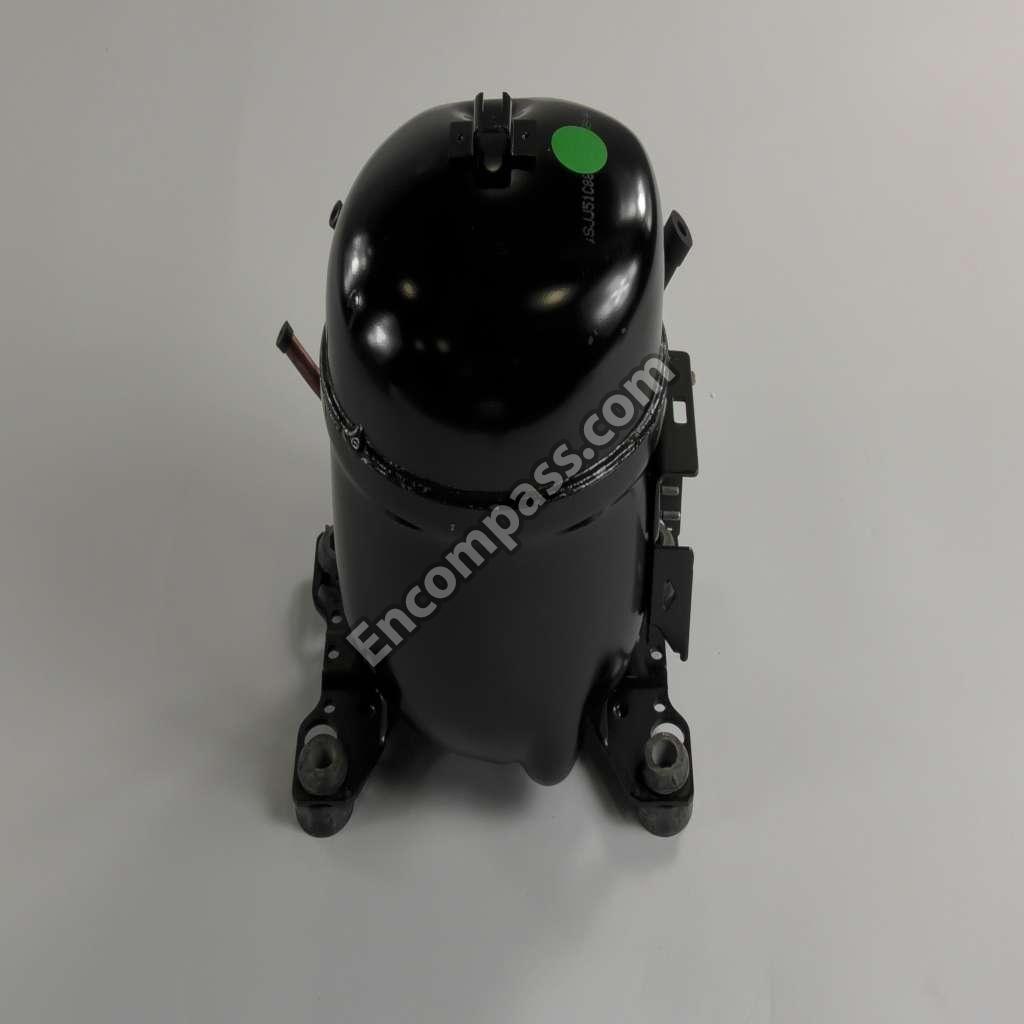

WR87X23553 WR87X23553 SJJ51C COMPRESSOR W/CLI
WR01X10664 WR01X10664 SPACER COMPRESSOR
WR02X11446 WR02X11446 STOP-BASKET
WR02X11458 WR02X11458 STRAP-EVAP/HEATER ALUMIN
WR02X13243 WR02X13243 STYROFOA INSULATOR-EVAP
WR02X12991 WR02X12991 SUPPORT EVAPORATOR MTG
WR23X10303 WR23X10303 SWITCH LIGHT
WR17X23557 WR17X23557 TEMP CONTROL COVER
WR55X30672 WR55X30672 TEMPERATURE CONTROL
WR09X10154 WR09X10154 TIMER-DEFROST
WR40X23550 WR40X23550 TOP BREAKER
WR01X23855 WR01X23855 TOUCH-UP PAINT WHITE
WR02X27082 WR02X27082 TRIM-CABINET CORNER WHI
WR40X23551 WR40X23551 U12/U14 BREAKER NO LOCK
WR40X23552 WR40X23552 U12/U14 BREAKER W/LOCK
WR86X10064 WR86X10064 VALVE BREATHER
WR23X23561 WR23X23561 W/SIG LEFT HARNESS
WR78X23564 WR78X23564 WHITE PANEL-OUTER DOOR
WR01X23517 WR01X23517 WIRE CLIP
