Model Image
Manufacturer

GE

Model Number

FUF14DMDRWH

Description

Freezer

Interactive Exploded View

Parts List

Part Number Description
WR17X10515 WR17X10515 GE BAFFLE-PLATE
WR21X10077 WR21X10077 GE BASKET
WR2X3812 WR2X3812 GE BEARING
WR02X3812 WR02X3812 GE BEARING, TOP
WR02X12310 WR02X12310 GE BEARING-HINGE BOTTOM
WR02X11439 WR02X11439 GE BRACKET
WR02X11440 WR02X11440 GE BRACKET CONTROL
WR02X9496 WR02X9496 GE BRACKET FAN MOTOR
WR02X12686 WR02X12686 GE BRACKET FAN MOTOR MOUNT
WR40X10020 WR40X10020 GE BREAKER KIT TOP OR BTM
WR40X10021 WR40X10021 GE BREAKER KIT W/CORNERS
WR40X10022 WR40X10022 GE BREAKER KIT W/LOCK CATCH
WR17X6045 WR17X6045 GE BREATHER VALVE
WR2X6361 WR2X6361 GE BUMPER
WR02X6361 WR02X6361 GE BUMPER BASKET
WR62X10025 WR62X10025 GE CAPACITOR
WR02X10403 WR02X10403 GE CLAMP
WR02X11441 WR02X11441 GE CLAMP CAP TUBE
WR1X2181 WR1X2181 GE CLIP DR HOSE
WR01X2181 WR01X2181 GE CLIP DRAIN HOSE
WR01X10368 WR01X10368 GE CLIP-HARNESS
WR02X10860 WR02X10860 GE COLD CONTROL KNOB
WR87X10054 WR87X10054 GE COMPRESSOR
WR84X5007 WR84X5007 GE CONDENSER EXT
WR09X10064 WR09X10064 GE CONTROL TEMP
WR08X10034 WR08X10034 GE CONTROLLER
WR2X9495 WR2X9495 GE COVER CNTRL
WR02X9495 WR02X9495 GE COVER TEMP CONTROL
WR17X11485 WR17X11485 GE COVER-EVAPORATOR
WR02X11442 WR02X11442 GE COVER-HINGE WHITE
WR02X11457 WR02X11457 GE CUP-DRAIN
WR09X32390 WR09X32390 GE DEFROST TIMER
WR09X10154 WR09X10154 GE DEFROST TIMER 12 HOUR
WR02X11443 WR02X11443 GE DOOR STOP
WR02X6353 WR02X6353 GE DRAIN
WR2X6353 WR2X6353 GE DRAIN
WR02X8156 WR02X8156 GE END CAP
WR2X8156 WR2X8156 GE END CAP
WR85X10032 WR85X10032 GE EVAPORATOR ASSEMBLY
WR1X5134 WR1X5134 GE F59555
WR60X139 WR60X139 GE FAN BLADE
WR2X9485 WR2X9485 GE FOOT ADJ.
WR14X27587 WR14X27587 GE GASKET DOOR
WR14X0489 WR14X0489 GE GASKET EVAP COVER
WR14X489 WR14X489 GE GASKET EVAP.
WR14X10314 WR14X10314 GE GASKET SECONDARY
WR02X11444 WR02X11444 GE GLIDE-BASKET
WR01X5134 WR01X5134 GE GROMMET
WR12X5207 WR12X5207 GE HANDLE
WR12X10075 WR12X10075 GE HANDLE WHITE CENTER
WR86X10007 WR86X10007 GE HEAT EXCHANGER
WR51X23562 WR51X23562 GE HEATER DEFROST
WR02X9139 WR02X9139 GE HINGE BOTTOM
WR2X9139 WR2X9139 GE HINGE BOTTOM
WR12X10616 WR12X10616 GE HINGE TOP
WR01X10030 WR01X10030 GE INSERT NUT
WR2X9500 WR2X9500 GE INSULATOR
WR02X9500 WR02X9500 GE INSULATOR TEMP SENSOR
WR05X0093 WR05X0093 GE KEY
WR12X10617 WR12X10617 GE KIT-TOP HINGE
WR02X9485 WR02X9485 GE LEVELING LEG ADJUSTABLE
WR23X10690 WR23X10690 GE LIGHT SOCKET
WR5X87 WR5X87 GE LOCK
WR05X0087 WR05X0087 GE LOCK ASS'Y
WR01X26468 WR01X26468 GE LOCK KEY
31-51374 31-51374 GE MINI MANUAL

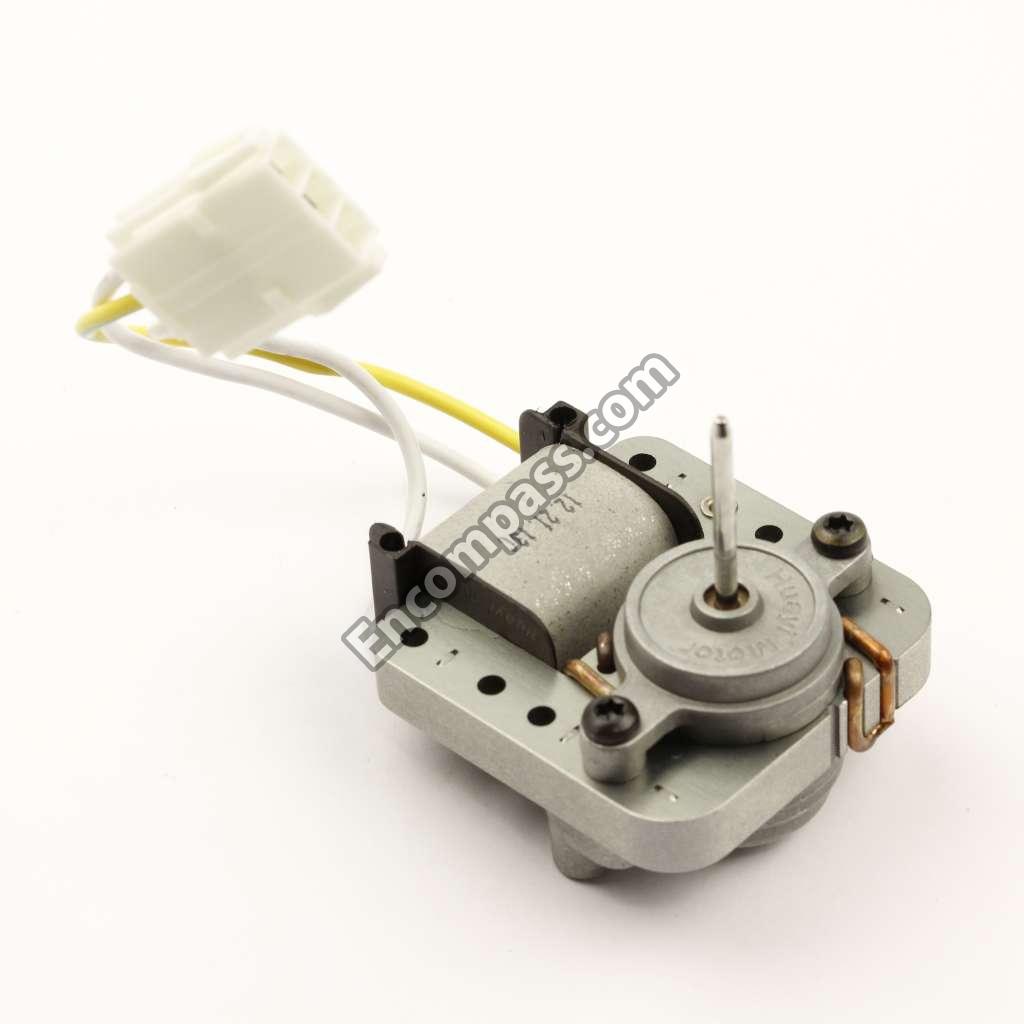

WR60X10066 WR60X10066 GE MOTOR EVAP FAN
WR2X9497 WR2X9497 GE MTG. SLEEVE
WR04X10093 WR04X10093 GE NAME PLATE
WR78X10293 WR78X10293 GE OUTER DOOR PANEL WHITE
WR49X10002 WR49X10002 GE PAN-DRAIN
WR77X10014 WR77X10014 GE PANEL INNER DOOR
WR02X10087 WR02X10087 GE PLUG BUTTON BASE DOOR
WR01X10031 WR01X10031 GE PLUG-DRAIN
WR17X11484 WR17X11484 GE RACK-DOOR
WR02X10393 WR02X10393 GE RAMP DOOR CLOSURE
WR01X2177 WR01X2177 GE SCREW
WR01X10033 WR01X10033 GE SCREW
WR01X10373 WR01X10373 GE SCREW 6-20AB X 3/8
WR02X13481 WR02X13481 GE SCREW 818X50 AB 10
WR01X5776 WR01X5776 GE SCREW BOTTOM HINGE
WR1X2174 WR1X2174 GE SCREW COMP
WR01X2174 WR01X2174 GE SCREW COMP MTG
WR08X10051 WR08X10051 GE SCREW DOOR STOP MTG 4.0
WR01X10369 WR01X10369 GE SCREW HI-LO BLUNT 8-18
WR01X1520D WR01X1520D GE SCREW INNER PANEL
WR02X5105 WR02X5105 GE SCREW PANEL TO EVAP
WR01X10374 WR01X10374 GE SCREW PH TRUSS HEAD 6-3
WR1X2177 WR1X2177 GE SCREW TOE GR
WR01X10372 WR01X10372 GE SCREW TOP HINGE
WR01X5450 WR01X5450 GE SCREW,PH TRUS,8-18ABX.50
WR01X10371 WR01X10371 GE SCREW-CLAMP
WR71X10907 WR71X10907 GE SHELF
WR71X10756 WR71X10756 GE SHELF LOWER
WR02X11533 WR02X11533 GE SHIELD-LIGHT
WR02X9497 WR02X9497 GE SLEEVE SCREW
WR23X10323 WR23X10323 GE SOCKET-LIGHT/LAMP
WR02X11446 WR02X11446 GE STOP-BASKET
WR02X11458 WR02X11458 GE STRAP-EVAP/HEATER ALUMIN
WR02X11447 WR02X11447 GE SUPPORT EVAPORATOR MTG
WR2X4715 WR2X4715 GE SUPPORT R
WR02X11528 WR02X11528 GE SUPPORT-EVAPORATOR
WR23X10303 WR23X10303 GE SWITCH LIGHT
WR50X10031 WR50X10031 GE THERMOSTAT
WR17X4279 WR17X4279 GE TRAP DRAIN
49-60040 49-60040 GE USE AND CARE MANUAL
WR01X2172 WR01X2172 GE WASHER FLAT HANDLE
WR1X2172 WR1X2172 GE WASHER HANDL
WR01X2180 WR01X2180 GE WASHER SEAL HINGE
WR23X10304 WR23X10304 GE WIRING HARNESS MAIN EXTE
WR17X5367 WR17X5367 GE WR17X5367
WR86X10005 WR86X10005 GE WR86X10005
