Model Image
Manufacturer

GE

Model Number

FUF20SUBRWW

Description

Freezer

Interactive Exploded View

Parts List

Part Number Description
WR17X10515 WR17X10515 GE BAFFLE-PLATE
WR21X10076 WR21X10076 GE BASKET
WR02X12067 WR02X12067 GE BEARING HINGE TOP
WR02X12310 WR02X12310 GE BEARING-HINGE BOTTOM
WR02X11439 WR02X11439 GE BRACKET
WR02X12447 WR02X12447 GE BRACKET ALARM 2 LIGHTS
WR02X11440 WR02X11440 GE BRACKET CONTROL
WR02X9496 WR02X9496 GE BRACKET FAN MOTOR
WR02X12686 WR02X12686 GE BRACKET FAN MOTOR MOUNT
WR40X10015 WR40X10015 GE BREAKER KIT TOP OR BTM
WR40X10018 WR40X10018 GE BREAKER KIT W/CORNERS
WR40X10019 WR40X10019 GE BREAKER KIT/LOCK CATCH
WR17X6045 WR17X6045 GE BREATHER VALVE
WR2X6361 WR2X6361 GE BUMPER
WR02X6361 WR02X6361 GE BUMPER BASKET
WR23X10544 WR23X10544 GE BUZZER ALARM
WR02X11441 WR02X11441 GE CLAMP CAP TUBE
WR02X12247 WR02X12247 GE CLAMP COVER
WR01X10665 WR01X10665 GE CLIP
WR01X10679 WR01X10679 GE CLIP SPRING
WR02X10860 WR02X10860 GE COLD CONTROL KNOB
WR87X10158 WR87X10158 GE COMPRESSOR W/GROMMETS W
WR84X5007 WR84X5007 GE CONDENSER EXT

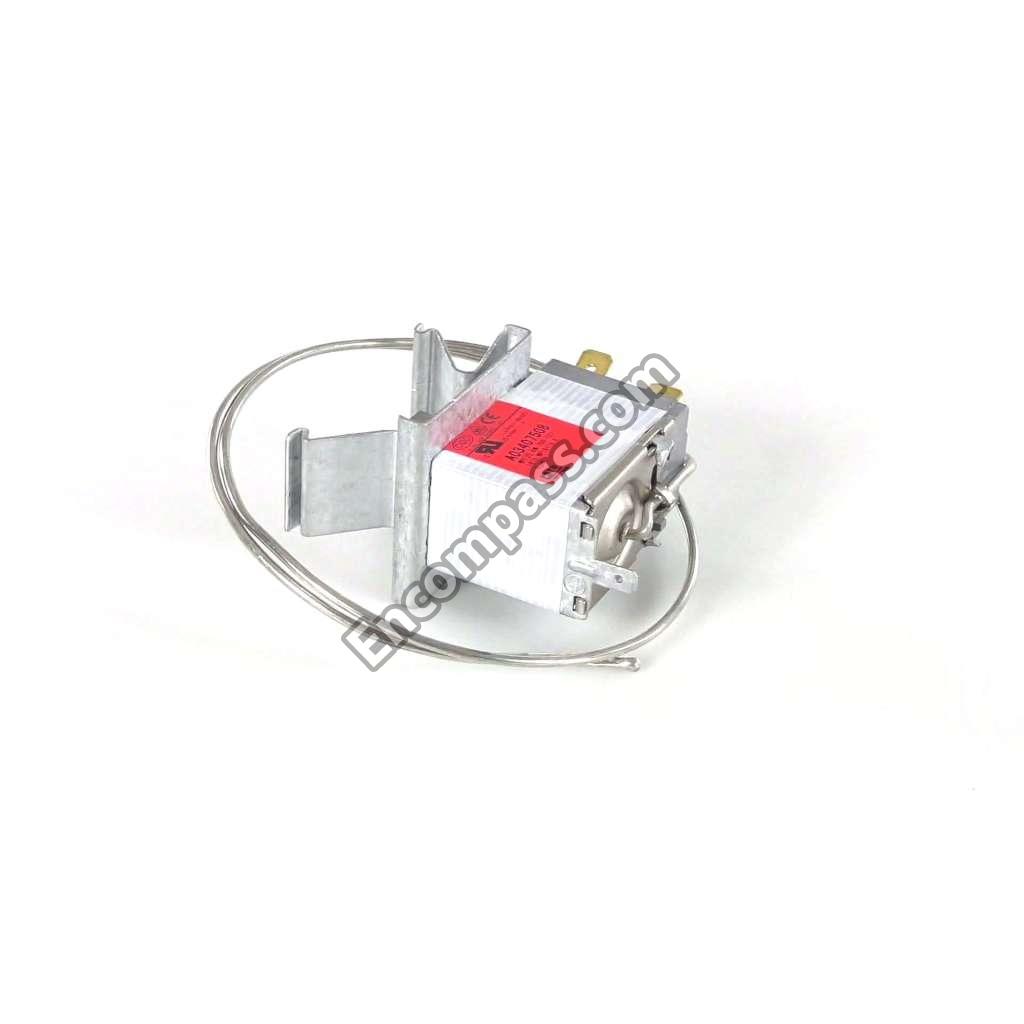

WR09X29511 WR09X29511 GE CONTROL TEMP
WR07X10105 WR07X10105 GE CONTROLLER COMPRESSOR
WR17X23557 WR17X23557 GE COVER TEMP CONTROL
WR17X12165 WR17X12165 GE COVER-EVAPORATOR
WR02X11442 WR02X11442 GE COVER-HINGE WHITE
WR51X10060 WR51X10060 GE DEFROST HEATER

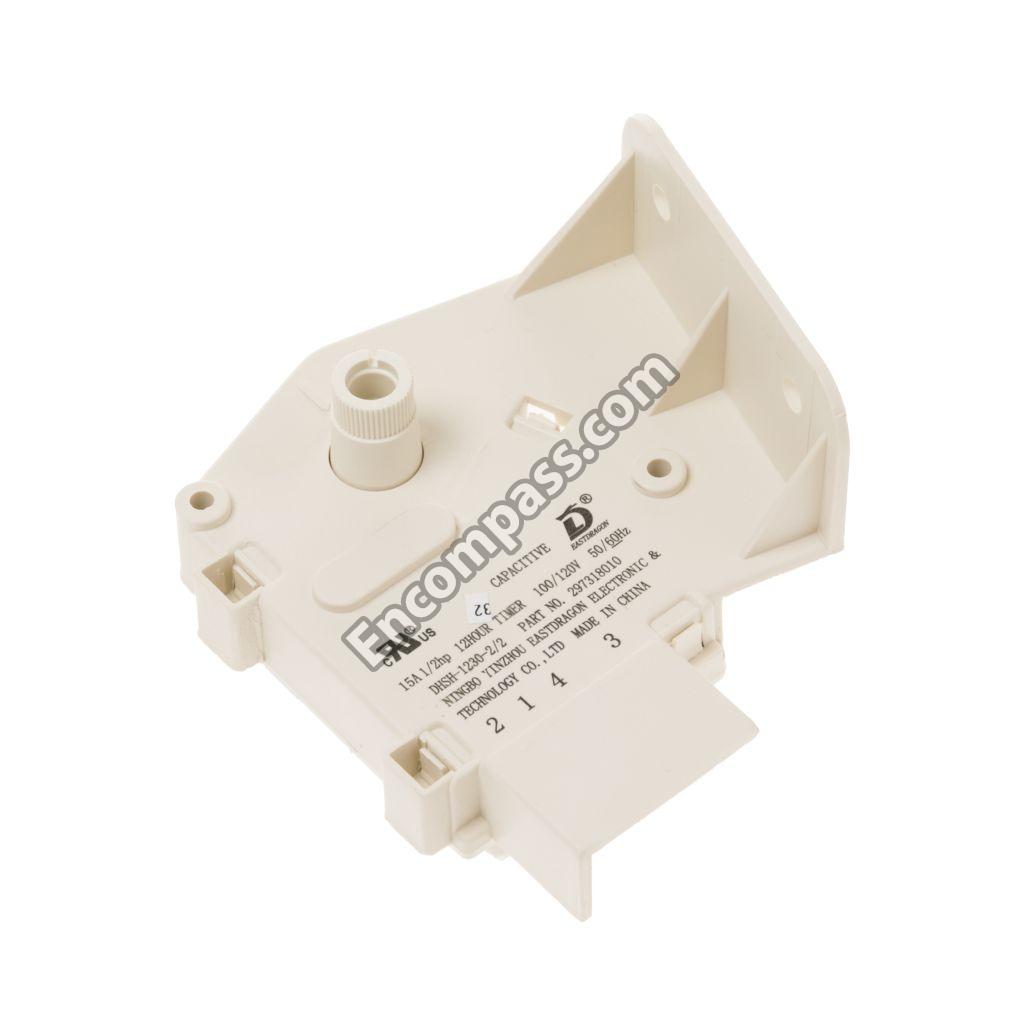

WR09X32390 WR09X32390 GE DEFROST TIMER
WR02X11443 WR02X11443 GE DOOR STOP
WR02X6353 WR02X6353 GE DRAIN
WR2X6353 WR2X6353 GE DRAIN
WR86X10005 WR86X10005 GE DRYER & FILTER
WR85X10033 WR85X10033 GE EVAPORATOR ASSEMBLY
WR1X5134 WR1X5134 GE F59555
WR60X139 WR60X139 GE FAN BLADE
WR2X9485 WR2X9485 GE FOOT ADJ.

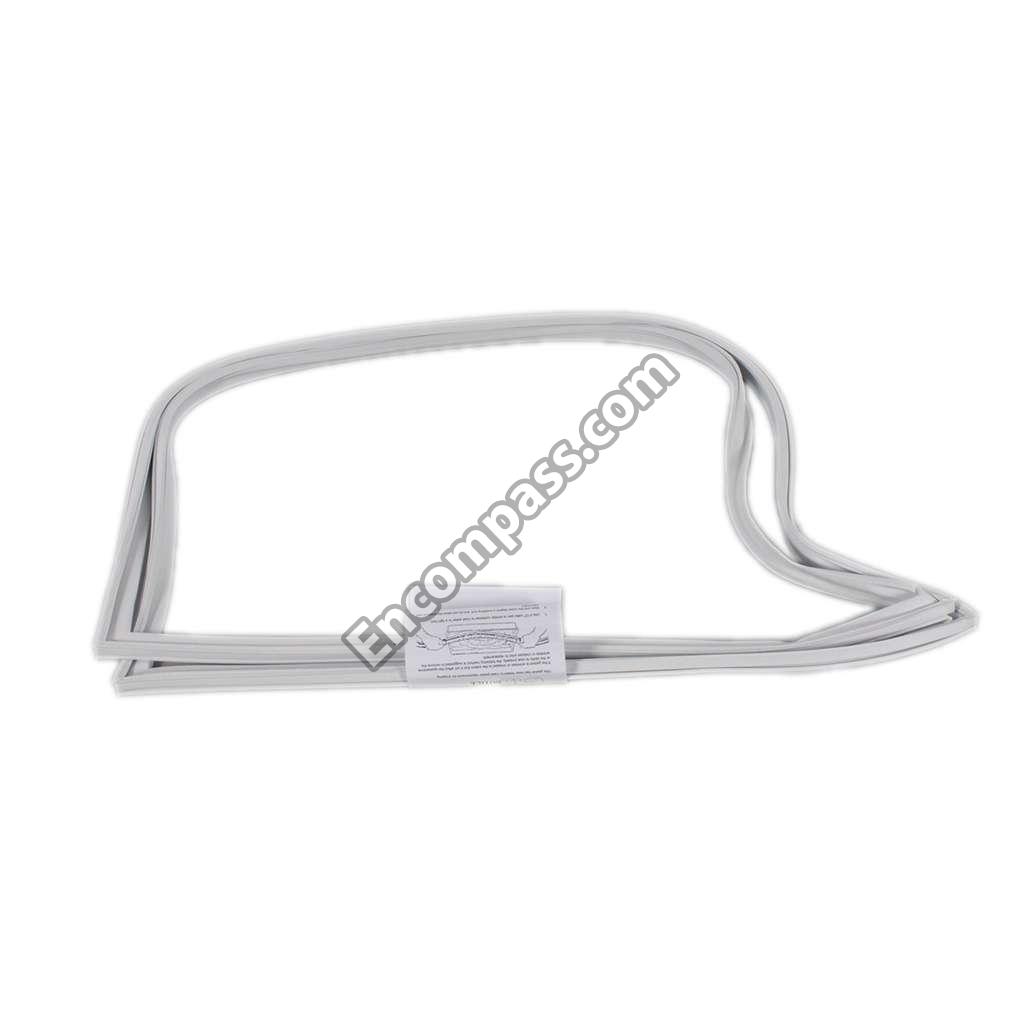

WR24X10010 WR24X10010 GE GASKET
WR14X10004 WR14X10004 GE GASKET SECONDARY
WR02X11444 WR02X11444 GE GLIDE-BASKET
WR74X10217 WR74X10217 GE GRILLE/KICKPLATE 32 WH
WR01X5134 WR01X5134 GE GROMMET
WR12X10843 WR12X10843 GE HANDLE-DOOR WHITE
WR23X10573 WR23X10573 GE HARNESS-MAIN
WR86X10028 WR86X10028 GE HEAT EXCHANGER
WR02X12581 WR02X12581 GE HINGE BOTTOM RH
WR13X10441 WR13X10441 GE HINGE LH TILT BASKET
WR13X10442 WR13X10442 GE HINGE RH TILT BASKET
WR12X10740 WR12X10740 GE HINGE-UPPER
WR17X5367 WR17X5367 GE HOSE-DRAIN 17 50-INCH
WR32X10646 WR32X10646 GE HOUSING-SENSOR
WR2X9500 WR2X9500 GE INSULATOR
WR02X9500 WR02X9500 GE INSULATOR TEMP SENSOR
WR02X12341 WR02X12341 GE INSULATOR-EVAP STYROFOAM
WR02X12342 WR02X12342 GE INSULATOR-EVAP STYROFOAM
WR01X26468 WR01X26468 GE KEY
WR02X9485 WR02X9485 GE LEVELING LEG ADJUSTABLE
WR23X10690 WR23X10690 GE LIGHT SOCKET

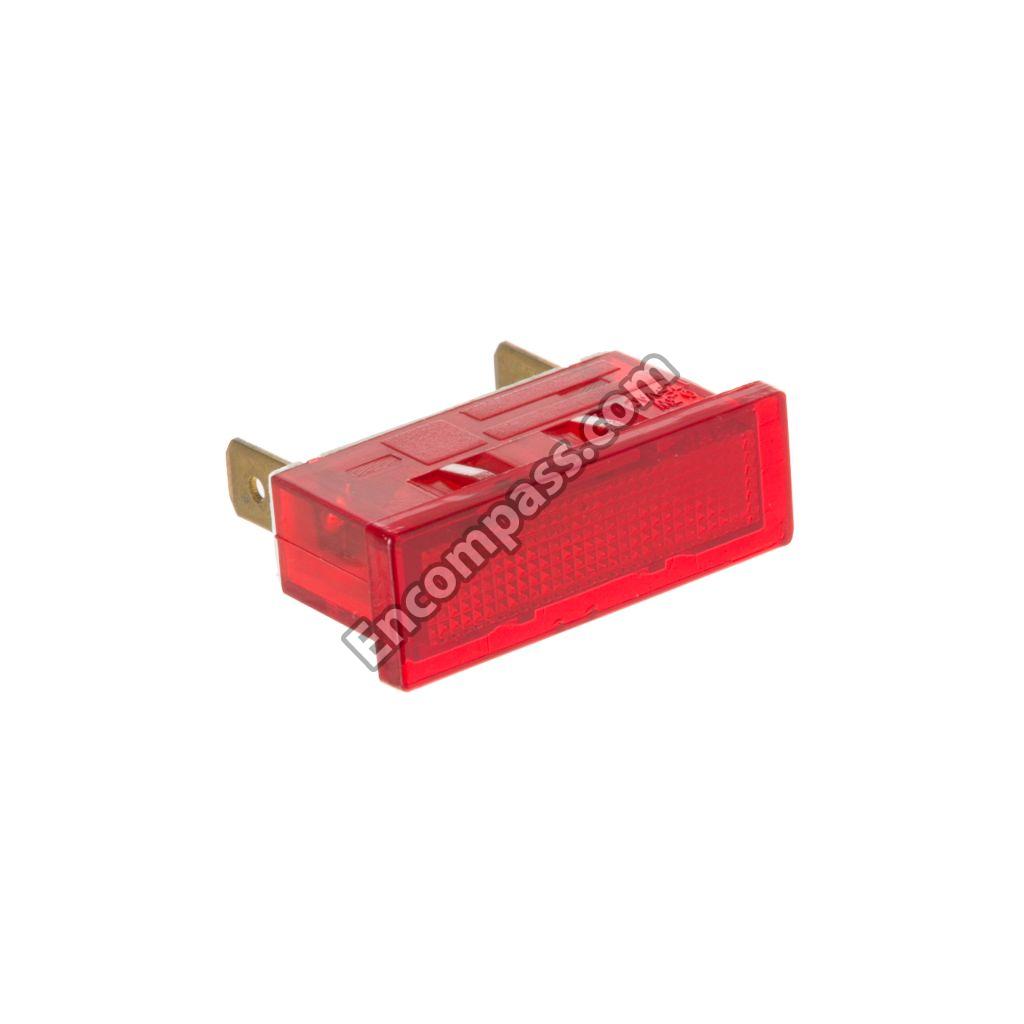

WR02X12448 WR02X12448 GE LIGHT-SIGNAL RED
WR05X10038 WR05X10038 GE LOCK ASM

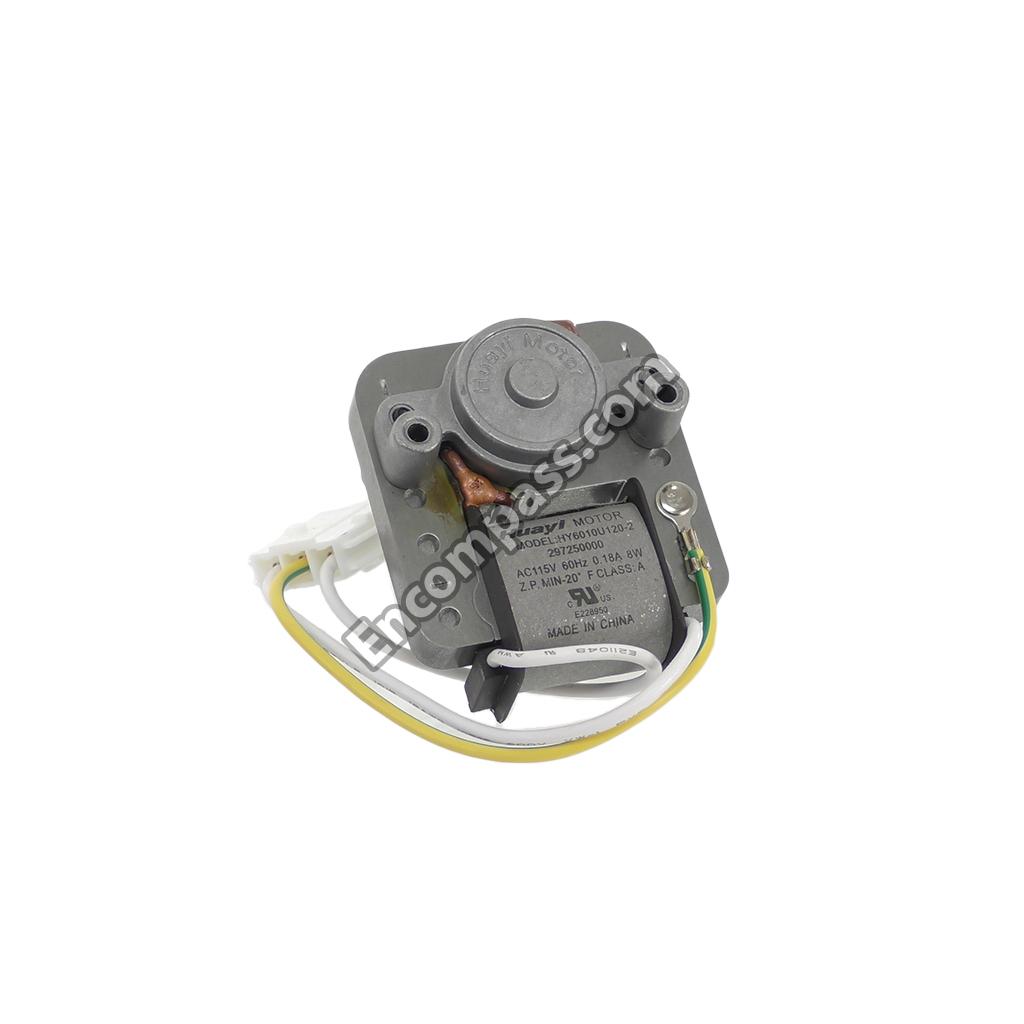

WR60X10235 WR60X10235 GE MOTOR FAN 115 V
WR2X9497 WR2X9497 GE MTG. SLEEVE
WR04X10159 WR04X10159 GE NAMEPLATE
WR02X30853 WR02X30853 GE PAN-DRAIN
WR77X10060 WR77X10060 GE PANEL-INNER DOOR FRZR
WR02X10087 WR02X10087 GE PLUG BUTTON BASE DOOR
WR01X10031 WR01X10031 GE PLUG-DRAIN
WR23X10698 WR23X10698 GE POWER ON LIGHT 1/4W125V
WR17X11913 WR17X11913 GE RACK-DOOR (6)
WR02X10393 WR02X10393 GE RAMP DOOR CLOSURE
WR01X10823 WR01X10823 GE SCREW -SUPPORT
WR01X10824 WR01X10824 GE SCREW 12-24 X.700 HWH H
WR01X10373 WR01X10373 GE SCREW 6-20AB X 3/8
WR02X13481 WR02X13481 GE SCREW 818X50 AB 10
WR1X2174 WR1X2174 GE SCREW COMP
WR01X2174 WR01X2174 GE SCREW COMP MTG
WR08X10051 WR08X10051 GE SCREW DOOR STOP MTG 4.0
WR01X10798 WR01X10798 GE SCREW HEX HEAD 8-32X.500
WR01X10369 WR01X10369 GE SCREW HI-LO BLUNT 8-18
WR01X1520D WR01X1520D GE SCREW INNER PANEL
WR02X5105 WR02X5105 GE SCREW PANEL TO EVAP
WR01X10444 WR01X10444 GE SCREW PH TRUSS HEAD 8-1
WR1X2209 WR1X2209 GE SCREW TOE GR
WR01X5450 WR01X5450 GE SCREW,PH TRUS,8-18ABX.50
WR01X10371 WR01X10371 GE SCREW-CLAMP
WR01X1978 WR01X1978 GE SCREW-PANEL
WR50X5037 WR50X5037 GE SENSOR ALARM
WR71X10919 WR71X10919 GE SHELF
WR21X10153 WR21X10153 GE SHELF TILT OUT WIRE
WR02X12445 WR02X12445 GE SHIELD-LIGHT
WR02X9497 WR02X9497 GE SLEEVE SCREW
WH49X24834 WH49X24834 GE SRV MODE SHIFTER ASM KIT
WR02X11446 WR02X11446 GE STOP-BASKET
WR02X11458 WR02X11458 GE STRAP-EVAP/HEATER ALUMIN
WR02X11447 WR02X11447 GE SUPPORT EVAPORATOR MTG
WR2X4715 WR2X4715 GE SUPPORT R
WR23X10303 WR23X10303 GE SWITCH LIGHT
WR02X12446 WR02X12446 GE SWITCH ROCKER

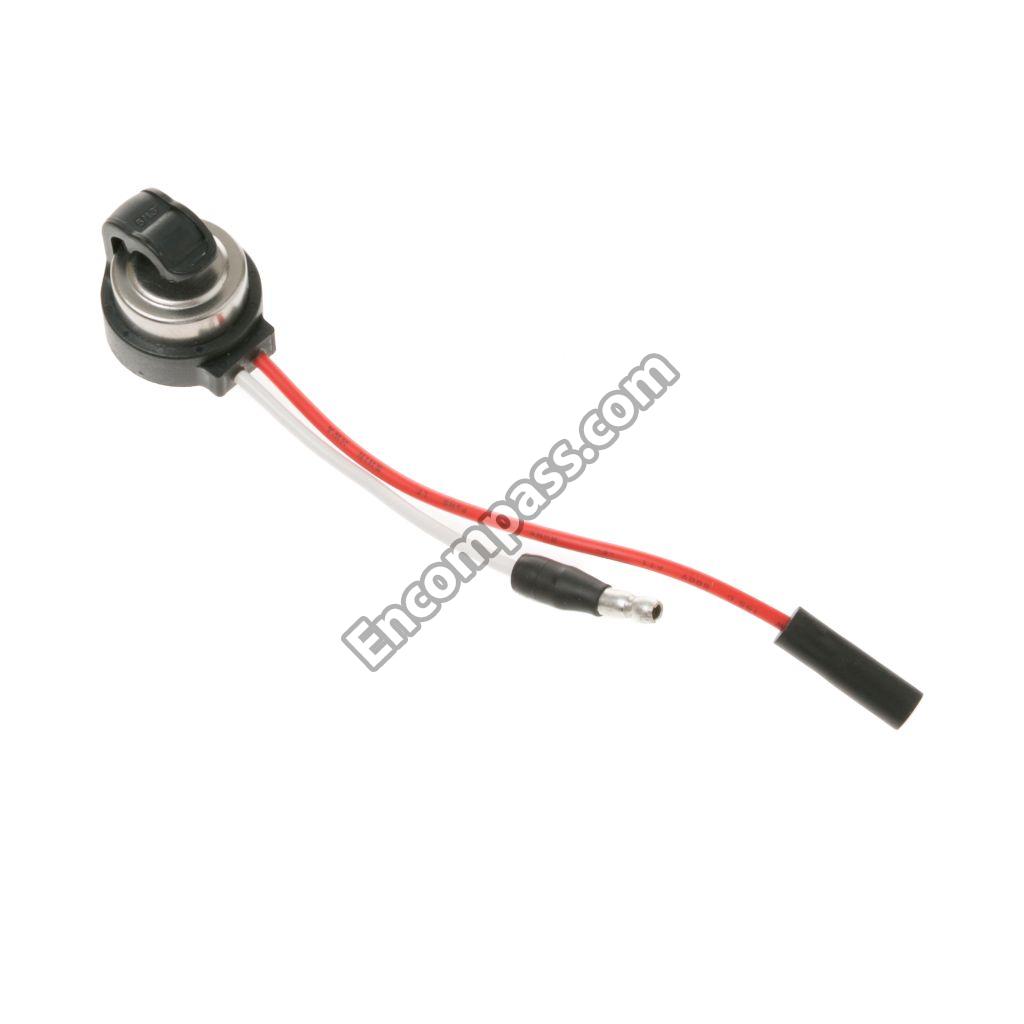

WR50X10031 WR50X10031 GE THERMOSTAT
WR09X10154 WR09X10154 GE TIMER-DEFROST
WR38X10392 WR38X10392 GE TRIM-HANDLE WHITE
WR87X10195 WR87X10195 GE W/GROMMETS COMPRESSOR W
WR49X10210 WR49X10210 GE WHITE PANEL-OUTER DOOR
WR71X10906 WR71X10906 GE WHITE WIRE SHELF
WR14X489 WR14X489 GE WR14X0489
