Model Image
Manufacturer

GE

Model Number

FUM17SMARWH

Description

Freezer

Interactive Exploded View

Parts List

Part Number Description
WR17X10199 WR17X10199 *NLA*WR17X10338
WR02X8484 WR02X8484 BEARING BTM
WR02X9491 WR02X9491 BEARING TOP
WR2X9491 WR2X9491 BEARING TOP
WR02X12310 WR02X12310 BEARING-HINGE BOTTOM
WR40X10015 WR40X10015 BREAKER KIT TOP OR BTM
WR40X10016 WR40X10016 BREAKER KIT W/CORNERS
WR62X10058 WR62X10058 CAPACITOR
WR02X9503 WR02X9503 CLAMP CAP. TUBE
WR2X9503 WR2X9503 CLAMP CAPILL
WR02X10394 WR02X10394 CLAMP COVER
WR1X2181 WR1X2181 CLIP DR HOSE
WR01X2181 WR01X2181 CLIP DRAIN HOSE
WR1X2208 WR1X2208 CLIP HARNESS
WR01X2208 WR01X2208 CLIP HARNESS/POWER CORD
WR02X10939 WR02X10939 COL CONTROL HOUSING
WR02X10860 WR02X10860 COLD CONTROL KNOB
WR87X10201 WR87X10201 COMPRESSOR
WR84X5007 WR84X5007 CONDENSER EXT
WR09X20946 WR09X20946 CONTROL TEMP
WR07X10020 WR07X10020 CONTROLLER
WR2X8360 WR2X8360 COVER - WH
WR02X8868 WR02X8868 COVER HINGE WH
WR02X5637 WR02X5637 DOOR STOP
WR2X5637 WR2X5637 DOOR STOP
WR02X6353 WR02X6353 DRAIN
WR2X6353 WR2X6353 DRAIN
WR21X0208 WR21X0208 DROP FRONT
WR21X208 WR21X208 DROP FRONT
WR85X10131 WR85X10131 EVAPORATOR TUBING ASM
WR1X5134 WR1X5134 F59555
WR86X25269 WR86X25269 FILTER AND DRYER ASSEMBLY
WR85X295 WR85X295 FIRST SHELF
WR2X9485 WR2X9485 FOOT ADJ.

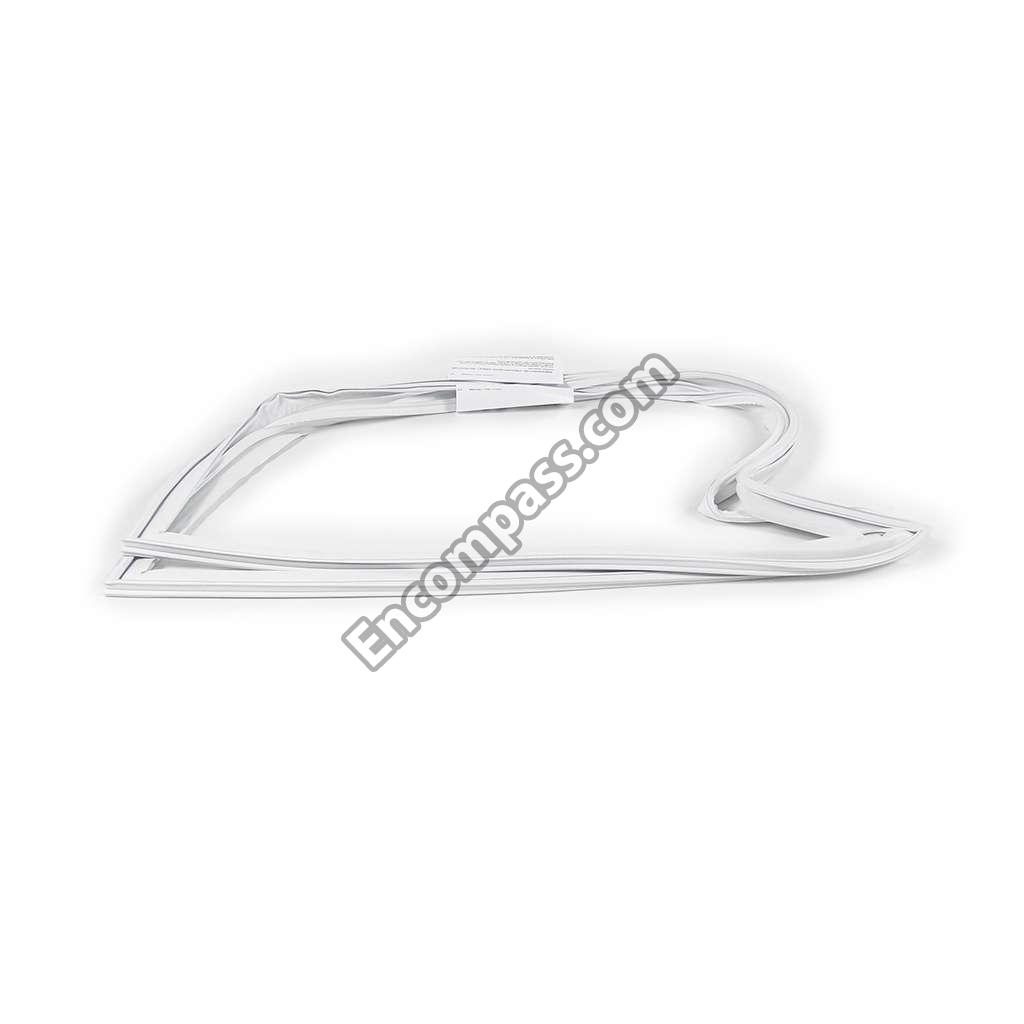

WR14X28402 WR14X28402 GASKET
WR14X10004 WR14X10004 GASKET SECONDARY
WR85X0294 WR85X0294 GRID TOP EVAP
WR01X5134 WR01X5134 GROMMET
WR1X2182 WR1X2182 GROMMET SPAC
WR01X2182 WR01X2182 GROMMET SPACER
WR02X9139 WR02X9139 HINGE BOTTOM
WR2X9139 WR2X9139 HINGE BOTTOM
WR12X0947 WR12X0947 HINGE TOP
WR01X1965 WR01X1965 HOSE ADAPTER
WR1X1965 WR1X1965 HOSE ADAPTER
WR01X10030 WR01X10030 INSERT NUT
WR12X10617 WR12X10617 KIT-TOP HINGE
WR02X9485 WR02X9485 LEVELING LEG ADJUSTABLE
31-51171 31-51171 MINI-MANUAL
WR2X9497 WR2X9497 MTG. SLEEVE
WR04X10093 WR04X10093 NAME PLATE
WR78X10095 WR78X10095 OUTER DOOR PANEL
WR78X12546 WR78X12546 OUTER DOOR PANEL KIT
WR86X96 WR86X96 P/S DRYER KIT R134A
WR77X10011 WR77X10011 PANEL INNER DOOR
WR02X10087 WR02X10087 PLUG BUTTON BASE DOOR
WR02X10073 WR02X10073 PLUG DRAIN LINER
WR23X0108 WR23X0108 POWER CORD
WR23X10300 WR23X10300 POWER CORD
WR02X10393 WR02X10393 RAMP DOOR CLOSURE
WR1X1910 WR1X1910 RETAINER COR
WR01X1910 WR01X1910 RETAINER CORD
WR01X10623 WR01X10623 SCR 8-18 AB IHXW 9/16 S
WR02X13481 WR02X13481 SCREW 818X50 AB 10
WR01X5776 WR01X5776 SCREW BOTTOM HINGE
WR1X2174 WR1X2174 SCREW COMP
WR01X2174 WR01X2174 SCREW COMP MTG
WR01X1520D WR01X1520D SCREW INNER PANEL
WR1X5485 WR1X5485 SCREW STOP
WR01X5777 WR01X5777 SCREW TOP HINGE
WR01X5450 WR01X5450 SCREW,PH TRUS,8-18ABX.50
WR01X5405 WR01X5405 SCREW-I. D. PANEL
WR01X5485 WR01X5485 SCREW-STOP
WR85X0297 WR85X0297 SHELF BOTTOM
WR17X10338 WR17X10338 SHELF FRONT
WR85X0296 WR85X0296 SHELF MIDDLE
WR2X6250 WR2X6250 SHELF SUPT
WR85X0295 WR85X0295 SHELF TOP
WR38X5290 WR38X5290 SHELF TRIM
WR02X9497 WR02X9497 SLEEVE SCREW
WR1X2170 WR1X2170 SPACER COMP.
WR01X2170 WR01X2170 SPACER COMPRESSOR
WR2X7622 WR2X7622 SUPPORT
WR2X7621 WR2X7621 SUPPORT
WR02X10086 WR02X10086 SUPPORT BOTTOM
WR02X6250 WR02X6250 SUPPORT REAR SHELF
WR02X10085 WR02X10085 SUPPORT TOP
WR02X7622 WR02X7622 SUPPORT-SHELF,FRONT LH
WR02X7621 WR02X7621 SUPPORT-SHELF,FRONT RH
WR23X5171 WR23X5171 SWITCH ROCKER
49-60040 49-60040 USE AND CARE MANUAL
WR17X4280 WR17X4280 VALVE BREATHER
WR01X2180 WR01X2180 WASHER SEAL HINGE
WR17X5367 WR17X5367 WR17X5367
