Model Image
Manufacturer

GE

Model Number

FVF16ELB

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WZ5X160D WZ5X160D 12PKSCREW
WR17X5756 WR17X5756 BAFFLE
WR21X10004 WR21X10004 BASKET
WR13X5101 WR13X5101 BEARING
WR2X3812 WR2X3812 BEARING
WR02X6209 WR02X6209 BRACKET
WR2X6209 WR2X6209 BRACKET
WR2X6988 WR2X6988 BRACKET FAN
WR02X6988 WR02X6988 BRACKET FAN MOTOR
WR02X6989 WR02X6989 BRACKET-REAR
WR40X5437 WR40X5437 BREAKER STRIP BOTTOM
WR40X5439 WR40X5439 BREAKER STRIP L/S
WR40X5559 WR40X5559 BREAKER STRIP R.SIDE
WR40X5436 WR40X5436 BREAKER STRIP TOP
WR2X6271 WR2X6271 BUMPER
WR2X6361 WR2X6361 BUMPER
WR02X6361 WR02X6361 BUMPER BASKET
WR02X6271 WR02X6271 BUMPER GRILLE
WR02X6990 WR02X6990 BUSHING
WR1X5278 WR1X5278 CABLE CLAMP
WR02X6316 WR02X6316 CATCH LOCK
WR01X5278 WR01X5278 CLAMP CABLE
WR01X5226 WR01X5226 CLAMP CAP TUBE
WR01X5660 WR01X5660 CLAMP COVER
WR02X6315 WR02X6315 CLIP
WR2X6208 WR2X6208 CLIP
WR1X5368 WR1X5368 CLIP
WR02X4817 WR02X4817 CLIP CABINET
WR02X6208 WR02X6208 CLIP HEATER TO COIL
WR01X5340 WR01X5340 CLIP SIDES BREAKER
WR1X1521D WR1X1521D CLIP-PKG 12
WR17X5863 WR17X5863 COIL COVER **NLA*
WR84X5007 WR84X5007 CONDENSER EXT
WR09X5135 WR09X5135 CONTROL
WR9X406 WR9X406 CONTROL PKG
WR02X6203 WR02X6203 COVER CONTROL
WR02X6201 WR02X6201 COVER CONTROL
WR02X8154 WR02X8154 COVER RELAY & GUARD.
WR2X8154 WR2X8154 CVV GUARDETE
WR9X482 WR9X482 DEF. CONTROL
WR51X5186 WR51X5186 DEFROST HEATER
WR09X0354 WR09X0354 DEFROST TIMER
WR02X5637 WR02X5637 DOOR STOP
WR2X5637 WR2X5637 DOOR STOP
WR02X6353 WR02X6353 DRAIN
WR2X6353 WR2X6353 DRAIN
WR32X5319 WR32X5319 DRAIN PAN
WR2X6054 WR2X6054 DUCT
WR02X6054 WR02X6054 DUCT-AIR
WR2X9486 WR2X9486 END CAP KIT
WR02X6053 WR02X6053 END CAP L. S.
WR02X6052 WR02X6052 END CAP R. S.
WR85X279 WR85X279 EVAP. ASM .
WR85X5205 WR85X5205 EVAPORATOR ASM
WR1X5134 WR1X5134 F59555

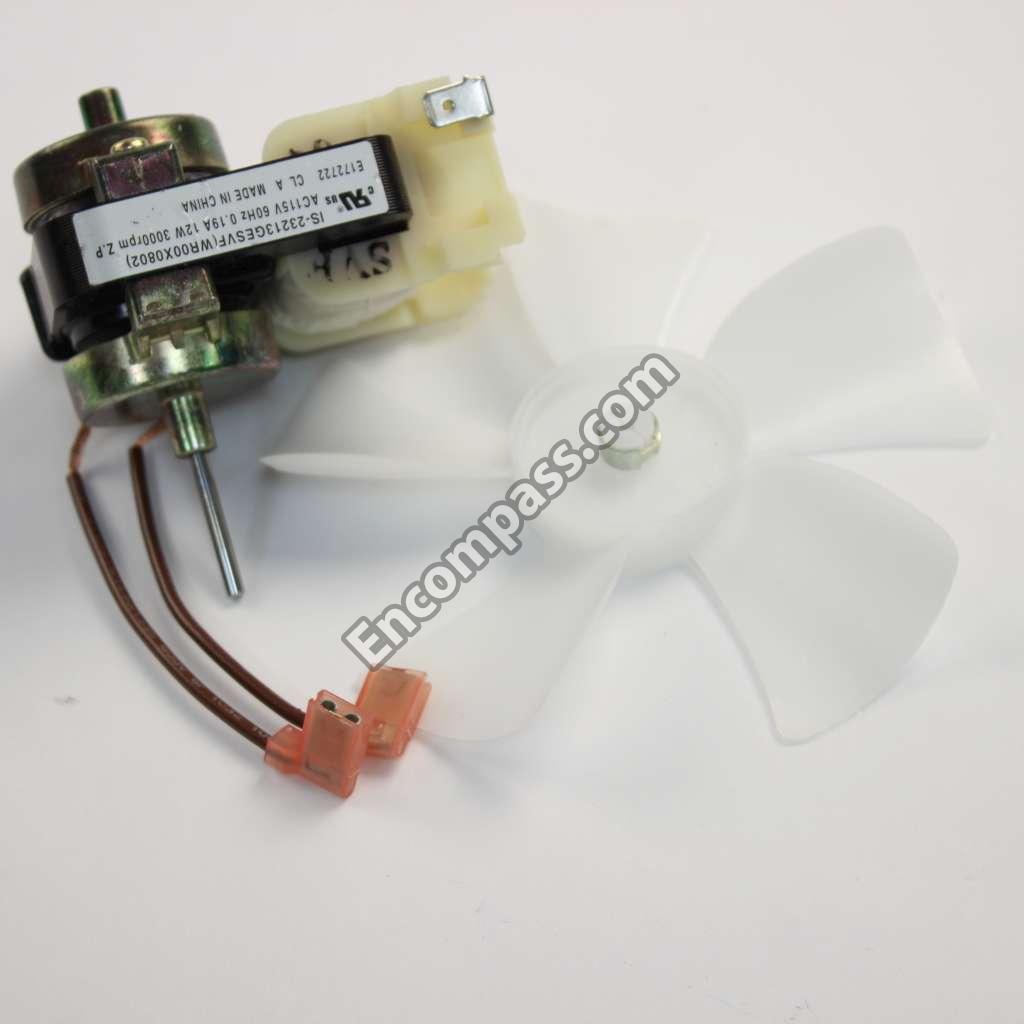

WR60X5067 WR60X5067 FAN BLADE **NLA*
WR02X3757 WR02X3757 FASTENER TUBULAR
WR24X5142 WR24X5142 GASKET
WR14X5097 WR14X5097 GASKET I D PANEL
WR02X11444 WR02X11444 GLIDE-BASKET
WR79X5153 WR79X5153 GRILLE
WR74X229 WR74X229 GRILLE TOE
WR01X5134 WR01X5134 GROMMET
WR01X5256 WR01X5256 GROMMET LINER
WR1X1326D WR1X1326D GROMMT 12 PK
WR08X5170 WR08X5170 GUARDETTE
WR86X0023 WR86X0023 HEAT EXCHANGER
WR87X197 WR87X197 HI SIDE
WR87X0197 WR87X0197 HI-SIDE
WR13X5100 WR13X5100 HINGE-BOTTOM
WR05X0066 WR05X0066 HOOK-LOCK
WR17X5367 WR17X5367 HOSE DRAIN
WR77X5633 WR77X5633 I D PANEL
WR2X9500 WR2X9500 INSULATOR
WR05X5050 WR05X5050 KEY
WR02X6360 WR02X6360 KNOB CONTROL
WR2X6360 WR2X6360 KNOB CONTROL
WR02X5523 WR02X5523 LEVELING LEG
WR2X5676 WR2X5676 LEVELNG JACK
WR5X87 WR5X87 LOCK
WR05X5049 WR05X5049 LOCK ASSEMBLY
WR86X0086 WR86X0086 MONGRAM SERIES P/S
WR02X6270 WR02X6270 MOUNTING PIN
WR2X5642 WR2X5642 MTG. SLEEVE
WR13X5208 WR13X5208 N/L/A 02/15/06
WR2X6270 WR2X6270 N/L/A 12/29/03
WR04X5064 WR04X5064 NAMEPLATE ASM DOOR HPT
WR4X5064 WR4X5064 NAMEPLATE OD
WR1X5255 WR1X5255 NUT
WR39X5003 WR39X5003 NUTSTRIP-HINGE
WR78X8195 WR78X8195 O.D.PANEL **NLA*
WR17X6135 WR17X6135 ORIFICE RING
WR8X5165 WR8X5165 OVERLOAD
WR2X6205 WR2X6205 PEG
WR13X5013 WR13X5013 PLATE-DOOR STOP
WR23X0108 WR23X0108 POWER CORD
WR23X10300 WR23X10300 POWER CORD
WR86X25269 WR86X25269 R134 DRIER
WR97X0155 WR97X0155 REFRIGERANT
WR07X5125 WR07X5125 RELAY
WR2X6241 WR2X6241 RETAINER
WR01X5406 WR01X5406 RIVET
WR01X10623 WR01X10623 SCR 8-18 AB IHXW 9/16 S
WR2X6203 WR2X6203 SCREEN
WR01X5197 WR01X5197 SCREW
WR1X5483 WR1X5483 SCREW
WR1X5656 WR1X5656 SCREW
WR1X5189 WR1X5189 SCREW **NLA*
WR02X13481 WR02X13481 SCREW 818X50 AB 10
WR01X5108 WR01X5108 SCREW CLAMP
WD02X5150 WD02X5150 SCREW COVER BOTTOM
WR01X5185 WR01X5185 SCREW GROMMET
WR01X5098 WR01X5098 SCREW HINGE
WR01X5451 WR01X5451 SCREW HINGE
WR01X5656 WR01X5656 SCREW HINGE-REAR
WR01X5189 WR01X5189 SCREW MOTOR TO BRACKET
WR01X5056 WR01X5056 SCREW SHIELD TO LINER
WR1X5485 WR1X5485 SCREW STOP
WZ05X0160 WZ05X0160 SCREW TIMER TO BRACKET
WR01X5450 WR01X5450 SCREW,PH TRUS,8-18ABX.50
WR01X5060 WR01X5060 SCREW-GROMMET
WR01X5405 WR01X5405 SCREW-I. D. PANEL
WR01X5483 WR01X5483 SCREW-KNOB
WR1X1249D WR1X1249D SCREW-PKG 12
WR1X5342D WR1X5342D SCREW-PKG 12
WZ4X284D WZ4X284D SCREW-PKG 12
WR01X5485 WR01X5485 SCREW-STOP
WR17X6452 WR17X6452 SHELF FRONT
WR17X6451 WR17X6451 SHELF FRONT
WR71X5899 WR71X5899 SHELF LOWER
WR01X5255 WR01X5255 SHELF SUPPORT GROMMET
WR02X5338 WR02X5338 SHELF SUPPORT REAR
WR02X5340 WR02X5340 SHELF SUPPORT TOP REAR
WR71X5898 WR71X5898 SHELF UPPER
WR17X6453 WR17X6453 SHIELD
WR24X5095 WR24X5095 SHIM HINGE
WR02X6354 WR02X6354 SHIM-HINGE
WR02X6309 WR02X6309 SLEEVE CAP TUBE
WR02X5642 WR02X5642 SLEEVE-SCREW
WR02X6808 WR02X6808 SLIDE BASKET
WR23X5156 WR23X5156 SOCKET LIGHT

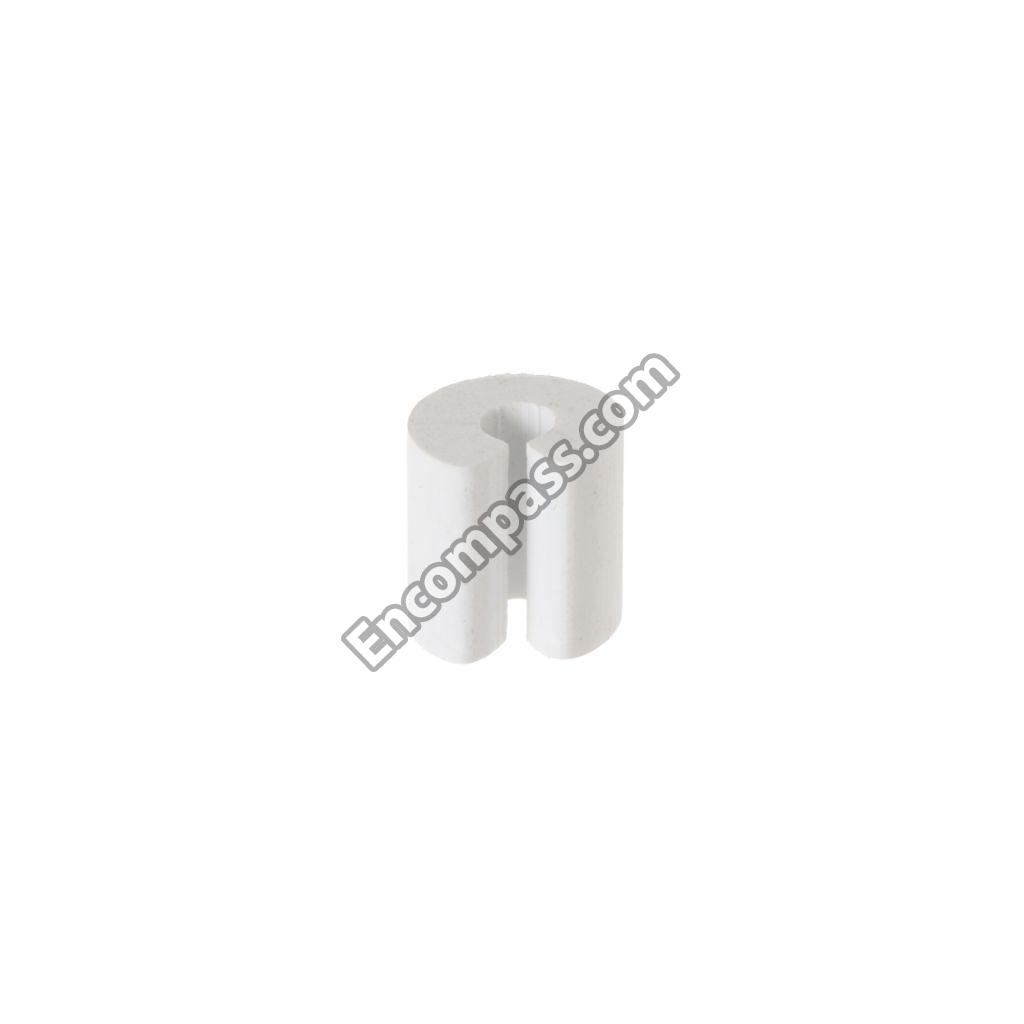

WR02X6207 WR02X6207 SPACER
WR02X6210 WR02X6210 SPACER
WR2X6354 WR2X6354 SPACER
WR2X8908 WR2X8908 SPACER
WR1X5482 WR1X5482 SPACER
WR2X6207 WR2X6207 SPACER
WR02X6314 WR02X6314 SPACER COVER REAR
WR01X5482 WR01X5482 SPACER TOP BREAKER
WR2X4817 WR2X4817 SPEED NUT **NLA*
WR5X66 WR5X66 SPRING CLIP
WR02X6241 WR02X6241 SPRING GUARDETTE
WR02X6171 WR02X6171 STOP BASKET
WR2X6171 WR2X6171 STOP-BASKET
WR2X8269 WR2X8269 SUPPORT
WR2X5340 WR2X5340 SUPPORT
WR2X6204 WR2X6204 SUPPORT
WR02X6206 WR02X6206 SUPPORT EVAPORATOR
WR02X6205 WR02X6205 SUPPORT LEFT FRONT
WR02X6204 WR02X6204 SUPPORT RIGHT FRONT
WR23X26573 WR23X26573 SWITCH
WR23X10725 WR23X10725 SWITCH LIGHT
WR17X5361 WR17X5361 TAPPING-PLATE
WR2X4990 WR2X4990 TUBULAR
39-6179-2 39-6179-2 USE & CARE BOOK
WR12X10072 WR12X10072 WR12X931
WR14X419 WR14X419 WR14X0419
WR14X489 WR14X489 WR14X0489
WR17X6045 WR17X6045 WR17X6045
WR50X118 WR50X118 WR50X118
WR60X5073 WR60X5073 WR60X5073
