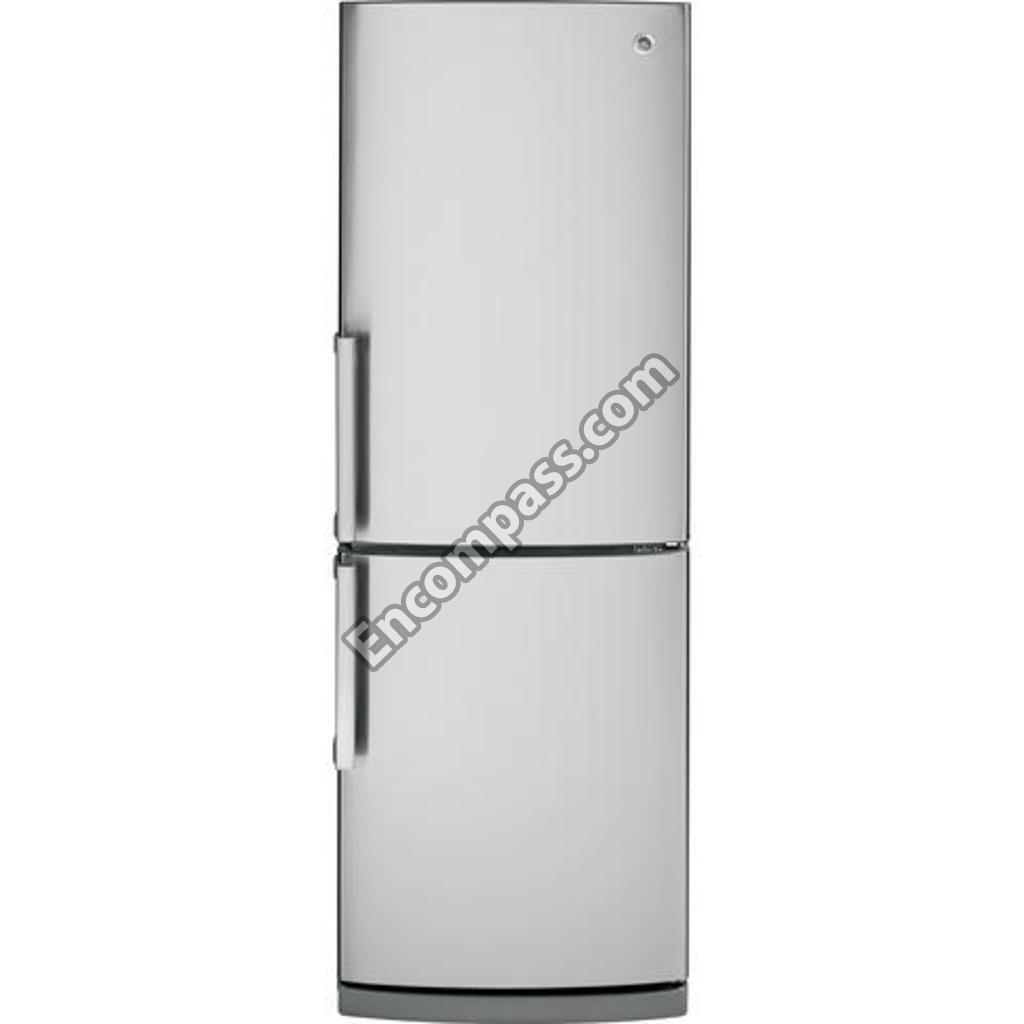

Model Image
Manufacturer

GE

Model Number

GBC12IAXBLSS

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WR02X13083 WR02X13083 ANTI TIP BRACKET
WR01X10887 WR01X10887 BASE ASM COMPRESSOR
WR21X10206 WR21X10206 BASKET DOOR
WR21X10204 WR21X10204 BASKET DOOR
WR21X10205 WR21X10205 BASKET DOOR
WR02X13130 WR02X13130 BOLT COMMON
WR02X11303 WR02X11303 BRACKET MOTOR
WR02X13074 WR02X13074 CAP COVER
WR02X13073 WR02X13073 CAP COVER
WR02X13077 WR02X13077 CAP HANDLE
WR02X13076 WR02X13076 CAP HINGE
WR62X10074 WR62X10074 CAPACITOR ELECTRIC RADIA
WR62X10092 WR62X10092 CAPACITOR-S
WR09X10183 WR09X10183 CASE ASSEMBLY CONTROL RE
WR13X10708 WR13X10708 CASE CONTROL REFRIGERATO
WR13X10698 WR13X10698 CASE PCB
WR87X10205 WR87X10205 COMPRESSOR SET ASSEMBLY
WR84X10094 WR84X10094 CONDENSER ASSEMBLY WIRE
WR60X10289 WR60X10289 CONDENSER FAN BLADE
WR60X10287 WR60X10287 CONDENSER FAN MOTOR
WR09X10184 WR09X10184 CONTROLLER ASSEMBLY
WR32X10733 WR32X10733 COVER ASM FRONT VEG
WR13X10702 WR13X10702 COVER ASSEMBLY MACHINERY
WR13X10699 WR13X10699 COVER ASSEMBLY TOP
WR32X10732 WR32X10732 COVER ASSEMBLY TV
WR02X13067 WR02X13067 COVER DEODORIZER
WR02X13065 WR02X13065 COVER FRONT
WR02X13066 WR02X13066 COVER HINGE
WR02X13082 WR02X13082 COVER LAMP
WR13X10700 WR13X10700 COVER LOWER
WR13X10701 WR13X10701 COVER PCB
WR02X13064 WR02X13064 COVER PTC
WR02X13063 WR02X13063 COVER SENSOR
WR02X13078 WR02X13078 DAMPER COMPRESSOR
WR01X10896 WR01X10896 DAMPER NOISE
WR13X10704 WR13X10704 DECOR ASSEMBLY DOOR
WR13X10703 WR13X10703 DECOR COVER
WR02X13080 WR02X13080 DISPLAY ASM
WR01X10899 WR01X10899 DOOR CLOSURE MECHANISM
WR78X12378 WR78X12378 DOOR FOAM ASSEMBLY FREEZ
WR78X12377 WR78X12377 DOOR FOAM ASSEMBLY REFRI
WR86X10056 WR86X10056 DRIER ASSEMBLY
WR60X10288 WR60X10288 EVAP FAN BLADE
WR60X10286 WR60X10286 EVAP FAN MOTOR
WR02X11359 WR02X11359 EVAP. MTR MTS - RUBBER
WR85X10119 WR85X10119 EVAPORATOR ASSEMBLY
WR24X10224 WR24X10224 GASKET FF DOOR
WR24X10223 WR24X10223 GASKET FZ DOOR
WR17X12814 WR17X12814 GRILL ASM FAN EVAP
WR17X12715 WR17X12715 GUIDE FAN
WR12X10954 WR12X10954 HANDLE ASSEMBLY REFRIGER
WR51X10114 WR51X10114 HEATER SHEATH
WR13X10706 WR13X10706 HINGE ASSEMBLY CENTER
WR13X10837 WR13X10837 HINGE ASSEMBLY LOWER
WR13X10705 WR13X10705 HINGE ASSEMBLY UPPER
WR02X13071 WR02X13071 HOLDER DRIER
WR02X13089 WR02X13089 LAMP INCANDESCENT
WR02X13344 WR02X13344 LEVELING LEG
31-51772 31-51772 MINI MANUAL
WR04X10171 WR04X10171 NAME PLATE
WR08X10114 WR08X10114 OVERLOAD PROTECT
WR55X10932 WR55X10932 PCB ASSEMBLY MAIN
WR23X10644 WR23X10644 POWER CORD ASSEMBLY
WR02X11741 WR02X11741 ROLLER PIN
WR02X13346 WR02X13346 ROLLER-B
WR01X10894 WR01X10894 SCREW ASM
WR01X10412 WR01X10412 SCREW CENTER HINGE
WR02X13072 WR02X13072 SCREW CUSTOMIZED
WR01X10895 WR01X10895 SCREW CUSTOMIZED
WR01X10893 WR01X10893 SCREW CUSTOMIZED
WR50X10099 WR50X10099 SENSOR FF TEMP
WR50X10100 WR50X10100 SENSOR FZ TEMP
WR71X10859 WR71X10859 SHELF ASSEMBLY REFRIGERA
WR17X12716 WR17X12716 SHROUD ASSEMBLY FREEZER
WR02X11306 WR02X11306 STOPPER COMP
WR02X13070 WR02X13070 STOPPER DOOR
WR02X13069 WR02X13069 SUPPORT CAB LEFT
WR02X13068 WR02X13068 SUPPORT CAB RIGHT
WR02X13081 WR02X13081 SUPPORTER ASSEMBLY LEG
WR23X10643 WR23X10643 SWITCH PUSH BUTTON
WR07X10128 WR07X10128 THERMISTOR ASSEMBLY PTC
WR30X10118 WR30X10118 TRAY ASSEMBLY DRAIN
WR30X10120 WR30X10120 TRAY ASSEMBLY DRAWER
WR30X10119 WR30X10119 TRAY ASSEMBLY DRAWER
WR30X10135 WR30X10135 TRAY ASSEMBLY DRAWER
WR30X10115 WR30X10115 TRAY DRIP
WR30X10116 WR30X10116 TRAY VEGETABLE
WR02X13079 WR02X13079 TUBE ASSEMBLY DRAIN
49-60570 49-60570 USE AND CARE MANUAL
