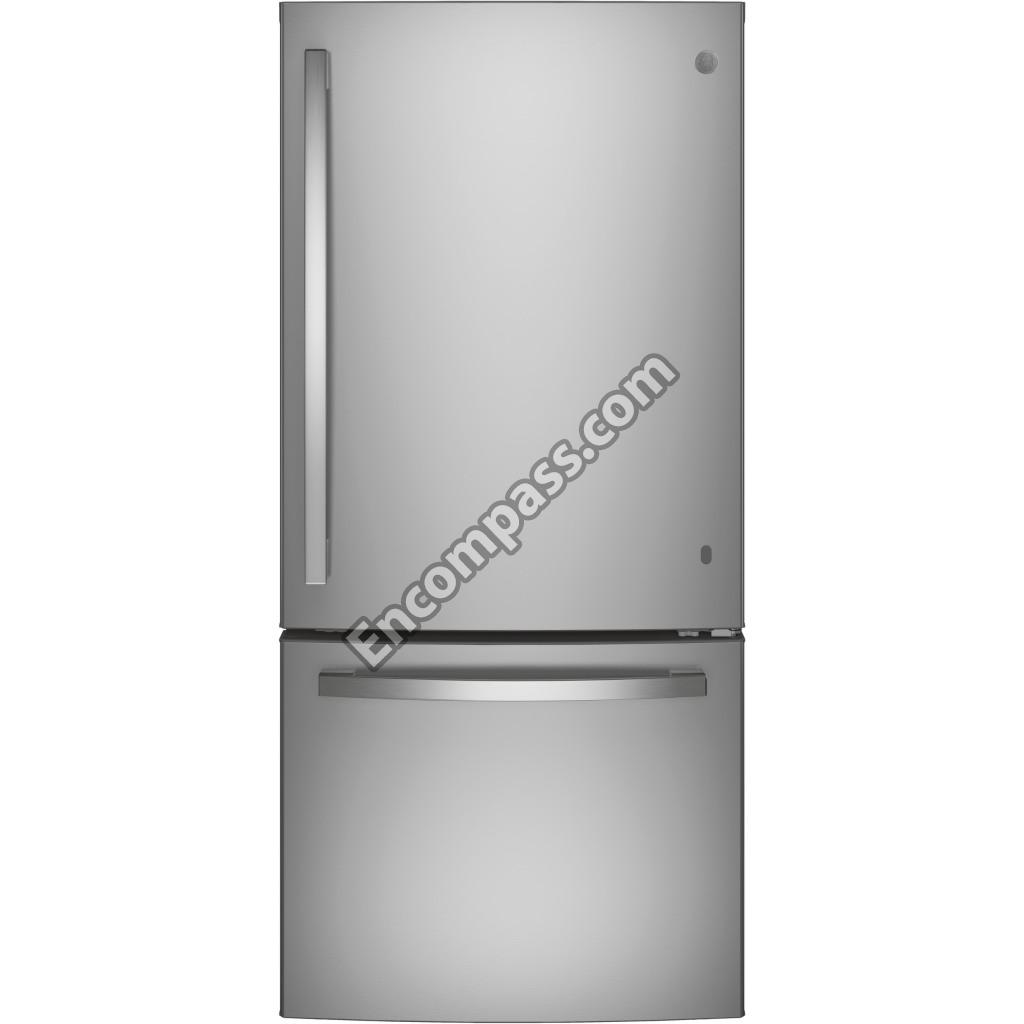

Model Image
Manufacturer

GE

Model Number

GBE21DSKBRSS

Description

Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WR02X4039 WR02X4039 ADHESIVE CLIP
WR21X25412 WR21X25412 BASKET LOWER
WR55X26827 WR55X26827 BOARD ASM MAIN CONTROL
WR55X24870 WR55X24870 BOARD LED LIGHT ASM
WR02X10593 WR02X10593 BRACKET COND FAN (REAR)
WR02X11863 WR02X11863 BRKT COND FAN (MTG)
WR30X30034 WR30X30034 BUCKET ICE
WR55X24064 WR55X24064 CAPACITOR 12 UF
WR01X10684 WR01X10684 CLAMP CABLE
WR2X8203 WR2X8203 CLIP
WR02X26735 WR02X26735 CLIP RETAINER MEI
WR01X10182 WR01X10182 CLIP U
WR87X10224 WR87X10224 COMPRESSOR
WR60X25869 WR60X25869 COND FAN & HOUSING ASM
WR84X25328 WR84X25328 CONDENSER ASM
WR17X25414 WR17X25414 COUPLER DUCT
WR82X22566 WR82X22566 COVER ACCESS ASM
WR02X40125 WR02X40125 COVER CONECTOR
WR49X40250 WR49X40250 COVER EVAP ASM 30
WR17X40007 WR17X40007 COVER EVAP FAN
WR02X25419 WR02X25419 COVER HINGE TOP LH DG
WR02X24848 WR02X24848 COVER HINGE TOP RH DG
WR13X38305 WR13X38305 COVER LED TOP
WR71X42027 WR71X42027 COVER VEG PAN ASM
WR29X31008 WR29X31008 CUP FILL IM
WR78X25406 WR78X25406 DOOR FOAM FF ASM SS
WR78X25420 WR78X25420 DOOR FOAM FZ ASM SS
WR02X25426 WR02X25426 DOOR STOP
WR17X25413 WR17X25413 DUCT AIR TOWER FF ASM
WR60X30922 WR60X30922 EVAPORATOR FAN BLADE
WR01X39781 WR01X39781 FASTENER HANDLE ASM
WR14X24804 WR14X24804 FOAM STRIP SE ADH
WR02X24877 WR02X24877 FORCE CLOSURE
WR14X40078 WR14X40078 FREEZER DOOR GASKET - GREY
WR14X40074 WR14X40074 FREEZER DRAWER GASKET - GREY
WR14X24747 WR14X24747 GASKET TOWER FF
WR04X29375 WR04X29375 GEA BADGE FLAT CHROME
WR02X22869 WR02X22869 GROMMET
WR29X24766 WR29X24766 GROMMET AND TUBE IM ASM
WR02X10520 WR02X10520 GROMMET FAN MOTOR
WR55X30889 WR55X30889 HARNESS EVAP
WR51X25156 WR51X25156 HEATER DEF ASM
WR13X25464 WR13X25464 HINGE BOTTOM
WR02X24875 WR02X24875 HINGE BUSHING BB
WR02X24876 WR02X24876 HINGE BUSHING BB
WR13X29171 WR13X29171 HINGE CENTER
WR13X24907 WR13X24907 HINGE TOP & PIN ASM
WR55X26507 WR55X26507 HOUSING CONTRL ASM
WR17X24894 WR17X24894 HOUSING LIGHT ASM
WR49X26391 WR49X26391 KIT HINGE CHANGEABLE SS
WR30X10093 WR30X10093 KIT RPLCMT WR30X10093
WR23X39269 WR23X39269 LIGHT SWITCH
WR85X25309 WR85X25309 LOW SIDE ASM
WR02X12025 WR02X12025 MAIN BOARD ENCLOSURE ASM
WR02X24943 WR02X24943 MOBILITY BACK ASM
WR60X10209 WR60X10209 MOTOR DC COND FAN
WR60X32614 WR60X32614 MOTOR DC EVAP FAN ASM
WR08X26736 WR08X26736 OVERLOAD PTCR COMBO
WR86X25269 WR86X25269 P/S DRYER KIT R134A
WR02X25421 WR02X25421 PIN HINGE
WR13X10951 WR13X10951 PIN HINGE METAL
WR02X25409 WR02X25409 PLUG BUTTON SS
WR02X27269 WR02X27269 PLUG BUTTON THIMBLE DG
31-51940 31-51940 PM MINI MANUAL WIRING
49-60755 49-60755 PM USE AND CARE MANUAL
WR23X30131 WR23X30131 POWER CORD
WR01X10611 WR01X10611 SCR 10-16
WR01X25308 WR01X25308 SCR 10-16 B HXW 1/4 S
WR1X1786 WR1X1786 SCR 10-32 TR 1/2
WR01X27994 WR01X27994 SCR 12-24 HXT20 .90 S
WR01X10606 WR01X10606 SCR 8-18 AB HXW 1/2 S
WZ4X416 WZ4X416 SCR 8-18 AB HXW 3/4
WR01X10654 WR01X10654 SCREW 10-32 TT HXW 5/16
WR01X10652 WR01X10652 SCREW 8-18 AB IHW 5/8 S
WR01X10379 WR01X10379 SCREW HINGE COVER
WR01X10850 WR01X10850 SCREW LEVELING
WR71X38288 WR71X38288 SHELF DOOR FULL
WR71X38301 WR71X38301 SHELF DOOR MODULE
WR72X25193 WR72X25193 SHELF FULL ASM
WR71X25418 WR71X25418 SHELF FULL WIRE FZ
WR02X38285 WR02X38285 SHIELD LIGHT
WR72X25465 WR72X25465 SLIDE BASKET FIXED
WR02X13573 WR02X13573 SOUND DAMPER
WR12X34305 WR12X34305 SS DOOR HANDLE
WR12X34311 WR12X34311 SS FREEZER DOOR HANDLE
WR02X24874 WR02X24874 STOP DOOR
WR29X10083 WR29X10083 STRIPPER IM
WR1X1779 WR1X1779 STUD MTG COMPR
WR02X13504 WR02X13504 SUPPORT VEG PAN ASM
WR55X28162 WR55X28162 SWITCH HOUSING ASM
WR23X29170 WR23X29170 SWITCH LIGHT FF
WR55X10025 WR55X10025 TEMPERATUR SENSOR FF
WR50X10069 WR50X10069 THERMOSTAT DEF
WR17X25157 WR17X25157 TROUGH DRAIN ASM
WR02X11426 WR02X11426 TUBE DRAIN
WR57X39965 WR57X39965 VALVE AND TUBE ASM
WR32X25405 WR32X25405 VEG PAN ASM
