Model Image
Manufacturer

GE

Model Number

GBS22KBNACC

Description

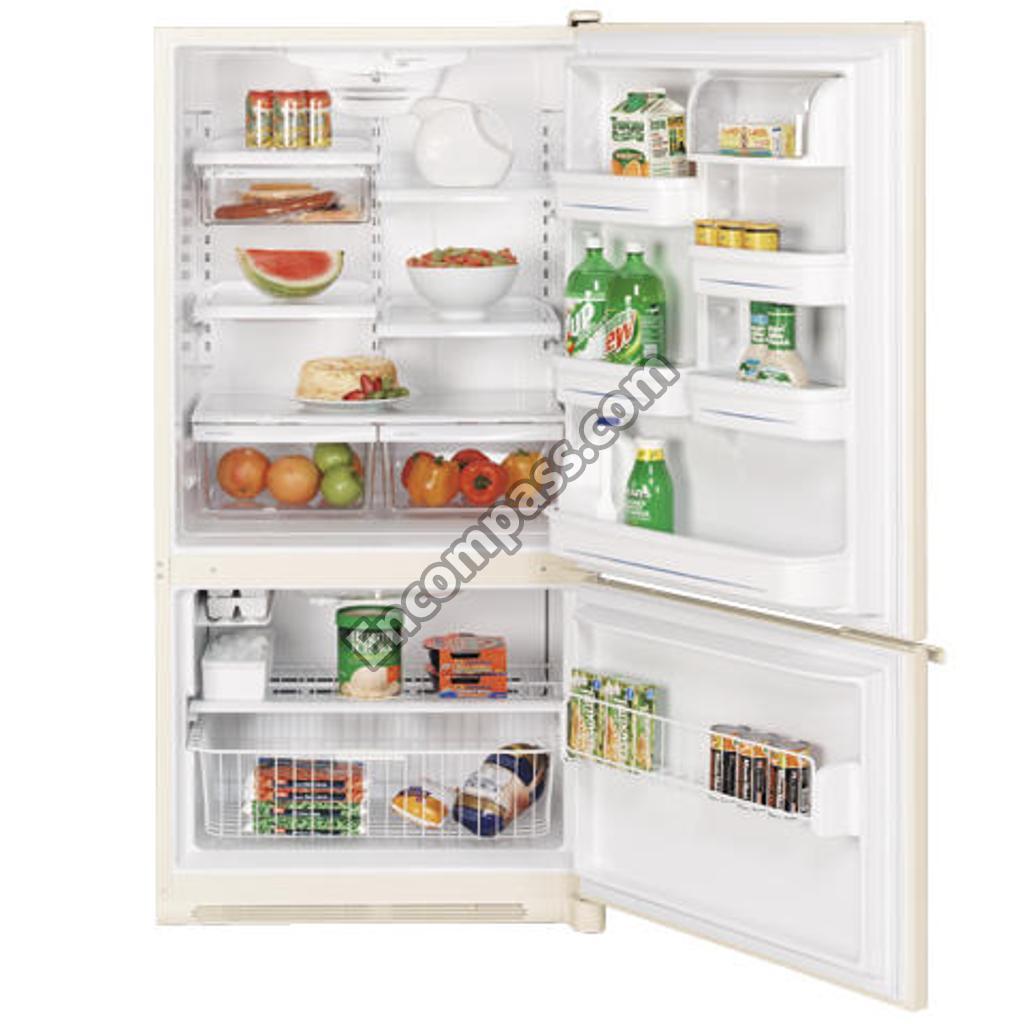

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WR02X11381 WR02X11381 ANTI KINK SPRING
WR29X10059 WR29X10059 ARM ICE MAKER
WR02X11385 WR02X11385 BARRIER LEFT
WR02X11386 WR02X11386 BARRIER RIGHT
WR21X10068 WR21X10068 BASKET LOWER FZ
WR38X10293 WR38X10293 BASKET/SHELF H AND LE
WR02X11390 WR02X11390 BELT DAMPER
WR60X10041 WR60X10041 BLADE EVAPORATOR FAN
WR01X10338 WR01X10338 BOLT ROLLER ADJ
WR14X10150 WR14X10150 BRACE CRISPER E-CT
WR02X11380 WR02X11380 BRACKET MODULE & HEATER
WR02X10361 WR02X10361 BUSHING DOOR FF WHITE
WR62X10023 WR62X10023 CAPACITOR
WR72X10115 WR72X10115 CENTER CRISPER RAIL
WR02X11368 WR02X11368 CLIP EVAP MOTOR
WR02X8773 WR02X8773 CLIP EVAPORATOR
WR02X8767 WR02X8767 CLIP EVAPORATOR HEATER
WR2X8773 WR2X8773 CLIP EVAPTR
WR2X8767 WR2X8767 CLP EVPR HTR
WR87X10176 WR87X10176 COMPRESSOR
WR02X11370 WR02X11370 COND MTR BRACKET
WR84X10043 WR84X10043 CONDENSER E-CT
WR60X10104 WR60X10104 CONDENSER FAN BLADE
WR84X10027 WR84X10027 CONDENSER FAN MOTOR
WR17X11364 WR17X11364 CONDENSER FAN SHROUD
WR02X11366 WR02X11366 CONDENSER GROMMET
WR09X10092 WR09X10092 CONTROL DAMPER
WR09X10091 WR09X10091 CONTROL FZ TEMPERATURE
WR02X11394 WR02X11394 COVER CORNER BISQUE
WR02X11354 WR02X11354 COVER DAMPER
WR17X11372 WR17X11372 COVER FF LIGHT
WR02X11373 WR02X11373 COVER ICE MAKER
WR02X11393 WR02X11393 COVER LWR HINGE BISQUE
WR02X11365 WR02X11365 COVER LWR HINGE WHITE
WR02X11377 WR02X11377 COVER PLATE
WR02X11392 WR02X11392 COVER TOP HINGE BISQUE
WR38X10294 WR38X10294 CRISPER PAN TRIM
WR22X10038 WR22X10038 DAIRY TRAY
WR02X11389 WR02X11389 DAMPER GEAR

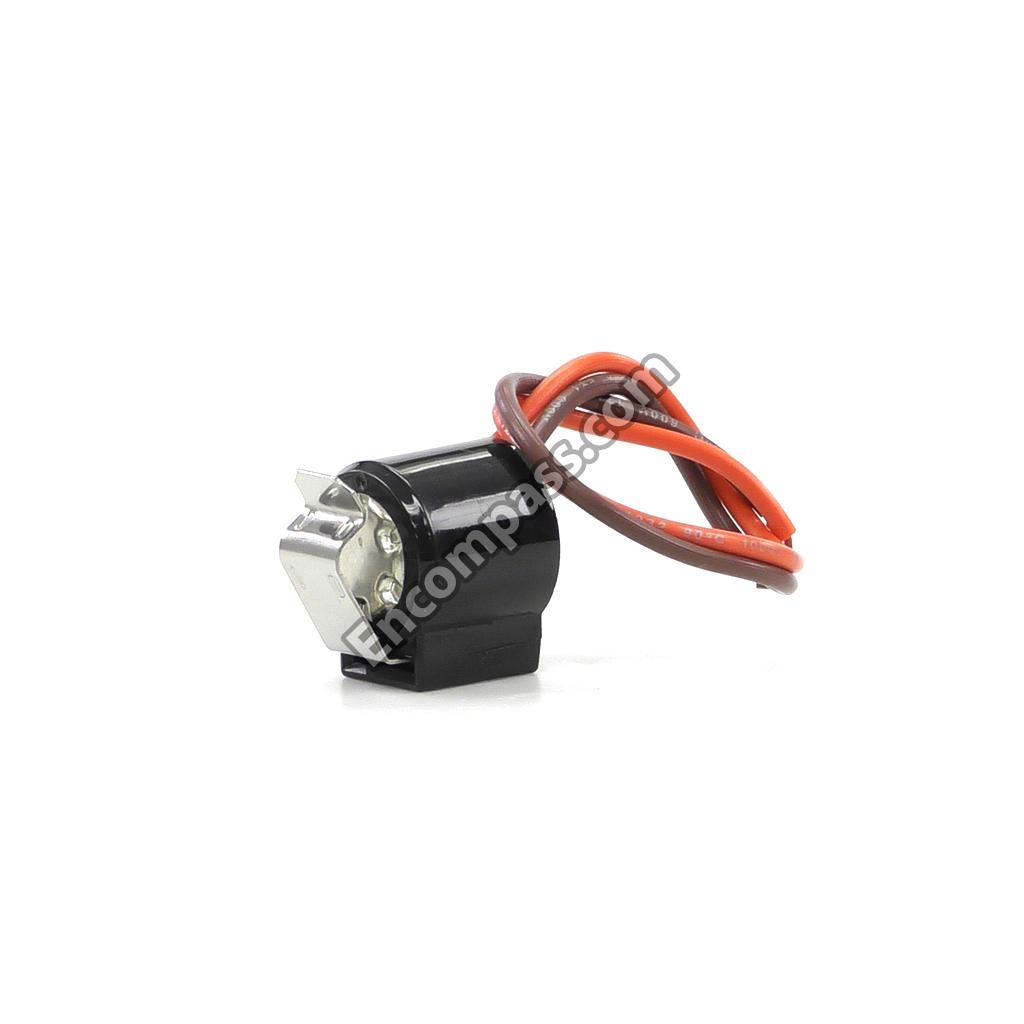

WR09X10087 WR09X10087 DEFROST THERMOSTAT
WR12X10587 WR12X10587 DELI PAN H AND LE
WR17X11377 WR17X11377 DELI SHELF ASSEMBLY.
WR17X11376 WR17X11376 DIVIDER BASKET (UPPER
WR22X10039 WR22X10039 DOOR DAIRY
WR17X11360 WR17X11360 DRAIN TUBE
WR01X10327 WR01X10327 DRAIN TUBE CLIP
WR86X96 WR86X96 DRIER, HI SIDE
WR86X25269 WR86X25269 DRIER, HI SIDE
WR17X11361 WR17X11361 DRIP E-CT TRAY
WR02X11391 WR02X11391 ELBOW FILL TUBE
WR02X11363 WR02X11363 END CAP FZ DR BSKT
WR02X11364 WR02X11364 END CAP FZ DR BSKT
WR17X11362 WR17X11362 EVAPORATOR COVER
WR02X11362 WR02X11362 FAN MOTOR GROMMET
WR78X10639 WR78X10639 FF DR FOAM ASSEMBLY BISQU
WR78X10637 WR78X10637 FF DR FOAM ASSEMBLY WHITE
WR02X11352 WR02X11352 FILL TUBE/PLUG COVER
WR14X10152 WR14X10152 FOAM GASKET
WR71X10460 WR71X10460 FRAME CRISPER
WR17X11378 WR17X11378 FRONT CRISPER EXTR
WR14X10147 WR14X10147 FRONT CRISPER SEAL
WR02X9531 WR02X9531 FUNNEL DRAIN
WR2X9531 WR2X9531 FUNNEL DRAIN
WR78X10638 WR78X10638 FZ DR FOAM ASSEMBLY BISQUE
WR21X10069 WR21X10069 FZ FIXED BASKET
WR17X11366 WR17X11366 FZ LIGHT COVER
WR17X11367 WR17X11367 GASKET
WR14X10149 WR14X10149 GASKET DAMPER
WR14X5161 WR14X5161 GASKET DRAIN TUBE
WR24X10118 WR24X10118 GASKET FF DOOR WHITE
WR24X10117 WR24X10117 GASKET FZ DOOR WH
WR14X10151 WR14X10151 GASKET PROTECTIVE
WR32X10373 WR32X10373 GLASS CRISPER
WR71X10465 WR71X10465 GLIDE FZ SHELF
WR74X10136 WR74X10136 GRILLE FZ AIR
WR2X9516 WR2X9516 GROMMET COMP
WR02X9516 WR02X9516 GROMMET COMPRESSOR
WR02X11367 WR02X11367 GROMMET FAN BRKT
WR01X10334 WR01X10334 GROMMET SCREW
WR12X10588 WR12X10588 HANDLE FF DR BISQUE
WR12X10589 WR12X10589 HANDLE FZ DR BISQUE
WR12X10580 WR12X10580 HANDLE REF DR WHITE
WR23X10288 WR23X10288 HARNESS EVAP HEATER
WR23X10287 WR23X10287 HARNESS ICE MAKER
WR51X10070 WR51X10070 HEATER EVAPORATOR
WR13X10269 WR13X10269 HINGE BOTTOM E-CT WHITE
WR13X10270 WR13X10270 HINGE CENTER WHITE
WR17X11374 WR17X11374 HOUSING LIGHT

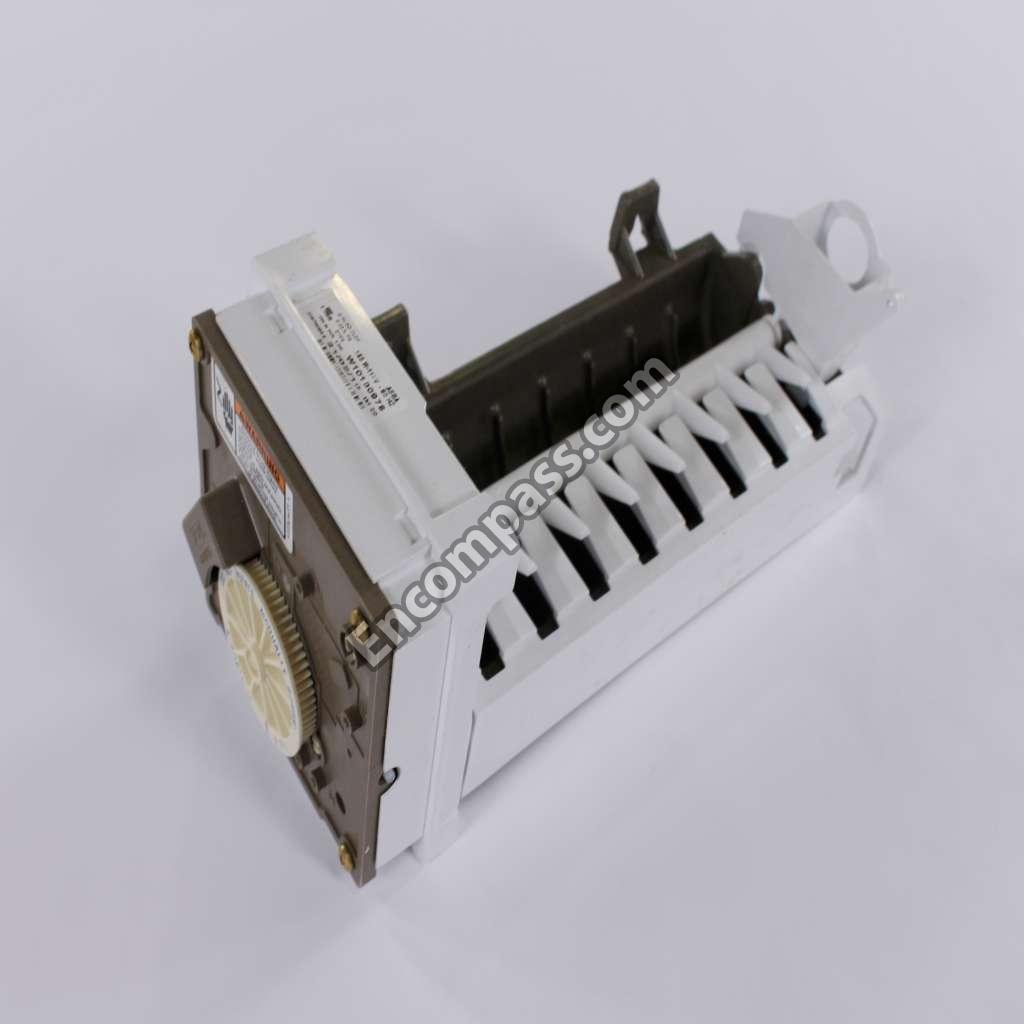

WR30X10039 WR30X10039 ICE MAKER
WR29X10061 WR29X10061 ICE MAKER HOUSEHOLD HOOK
UKKIT4N UKKIT4N ICE MAKET KIT
WR02X11375 WR02X11375 ICE RACK SPACER
WR29X10060 WR29X10060 INLET WATER
WR02X11349 WR02X11349 INSULATION DAMPER
WR02X11361 WR02X11361 KNOB FRONT DAMPER
WR02X11353 WR02X11353 KNOB FZ CONTROL
WR02X11379 WR02X11379 KNOB GEAR
WR72X10111 WR72X10111 LADDER CENTER
PUR_LOCAL5 PUR_LOCAL5 LAMP-40W/60HZ
WR01X1852 WR01X1852 LEVELING LEG
WR1X1852 WR1X1852 LEVELING LEG
WR02X11293 WR02X11293 LIGHT SOCKET
WR02X11384 WR02X11384 LOGO LIGHT MODULE
WR85X10043 WR85X10043 LOW SIDE ASM
WR82X10082 WR82X10082 MACH COMP BACK
WR71X10462 WR71X10462 MED REF DOOR BUCKET
31-51345 31-51345 MINI MANUAL
WR17X11379 WR17X11379 MODULE FZ CONTROL
WR17X11380 WR17X11380 MODULE LIGHT
WR60X10114 WR60X10114 MOTOR EVAP FAN
WR04X10122 WR04X10122 NAMEPLATE BISQUE
WR01X10341 WR01X10341 NUT SLEEVE
WR01X1890 WR01X1890 NUT SPEED
WR1X1890 WR1X1890 NUT SPEED
WR08X10047 WR08X10047 OVERLOAD/RELAY COMP
WR32X10374 WR32X10374 PAN CRISPER
WR17X11365 WR17X11365 PAN DRAIN
WR30X10038 WR30X10038 PAN ICE
WR32X10376 WR32X10376 PAN SNACK
WR13X0629 WR13X0629 PIN BOTTOM HINGE
WR13X629 WR13X629 PIN BTM HING
WR13X0631 WR13X0631 PIN CENTER HINGE
WR13X631 WR13X631 PIN CTR HING
WR2X8794 WR2X8794 PLG ICE MK
WR02X7847 WR02X7847 PLUG BUTTON
WR2X7847 WR2X7847 PLUG BUTTON
WR02X10506 WR02X10506 PLUG BUTTON BISQUE
WR02X10504 WR02X10504 PLUG BUTTON BISQUE
WR02X11360 WR02X11360 PLUG BUTTON WHITE
WR02X11348 WR02X11348 PLUG BUTTON WHITE
WR02X8794 WR02X8794 PLUG ICE MAKER TUNNEL
WR02X11148 WR02X11148 PLUG-WHITE BUTTON
WR02X11376 WR02X11376 POP RIVET
WR23X10279 WR23X10279 POWER CORD
WR17X11375 WR17X11375 RACK ICE TRAY
WR71X10461 WR71X10461 RETAINER DOOR
WR01X1891 WR01X1891 RIVET
WR1X1891 WR1X1891 RIVET
WR02X11372 WR02X11372 ROLLER
WR02X11371 WR02X11371 ROLLER
WR02X11351 WR02X11351 ROLLER AXLE
WR02X11374 WR02X11374 ROLLER BRACKET
WR02X11350 WR02X11350 ROLLER BRACKET ASSEMBLY
WR01X5608 WR01X5608 SCREW
WR01X5573 WR01X5573 SCREW
WR1X5573 WR1X5573 SCREW
WR01X10332 WR01X10332 SCREW
WR01X10335 WR01X10335 SCREW
WR01X10330 WR01X10330 SCREW
WR1X2190 WR1X2190 SCREW GLIDE
WR01X2190 WR01X2190 SCREW GLIDE SHELF
WR01X10179 WR01X10179 SCREW HANDLE DOOR BISQUE
WR01X10129 WR01X10129 SCREW HANDLE DOOR WHITE
WR1X1863 WR1X1863 SCREW HINGE
WR01X1863 WR01X1863 SCREW HINGE TOP
WR1X2191 WR1X2191 SCREW HSG
WR01X10126 WR01X10126 SCREW HSG LIGHTS
WR01X2191 WR01X2191 SCREW HSG. LIGHTS
WR01X10329 WR01X10329 SCREW MACH
WR1X2185 WR1X2185 SCREW SHLDR
WR01X2185 WR01X2185 SCREW SHLDR COMP MTG
WR01X1878 WR01X1878 SCREW SM
WR01X1862 WR01X1862 SCREW TF
WR1X1862 WR1X1862 SCREW TF
WR01X10340 WR01X10340 SCREW TF
WR01X10336 WR01X10336 SCREW TR
WZ4X338D WZ4X338D SCREW-PKG 12
WR02X7849 WR02X7849 SEAL
WR14X10148 WR14X10148 SEAL REAR CRISPER
WR32X10375 WR32X10375 SHELF CANTILEVER
WR02X8635 WR02X8635 SHIM NON METAL
WR2X8635 WR2X8635 SHIM NON/MET
WR17X11363 WR17X11363 SHROUD EVAP FAN
WR72X10112 WR72X10112 SIDES LADDER
WR02X11383 WR02X11383 SLIDE HUMIDITY CONTROL
WR72X10073 WR72X10073 SLIDE PAN LH
WR72X10072 WR72X10072 SLIDE PAN RH
WR01X10339 WR01X10339 SM SCREW
WR01X10333 WR01X10333 SM SCREW
WR01X10331 WR01X10331 SM SCREW
WR01X10328 WR01X10328 SM SCREW
WR02X24684 WR02X24684 STOP DOOR BISQUE
WR02X10368 WR02X10368 STOP DOOR WH
WR17X11096 WR17X11096 SWITCH FZ LIGHT KIT
WR23X10078 WR23X10078 SWITCH-NC LIGHT
WR02X11388 WR02X11388 TENSIONER BELT
WR01X10337 WR01X10337 TF SCREW
WR09X10090 WR09X10090 TIMER DEFROST
WR74X10137 WR74X10137 TOE GRILLE ASSEMBLY BISQUE
WR13X10268 WR13X10268 TOP HINGE ASSEMBLY
WR30X10037 WR30X10037 TRAY ICE CUBES
WR02X11387 WR02X11387 TUBE DISCHARGE
WR02X11382 WR02X11382 TUBE PLASTIC
49-60204-1 49-60204-1 USE & CARE MANUAL
WR57X10039 WR57X10039 VALVE WATER
WR02X11378 WR02X11378 WATER VALVE COVER
