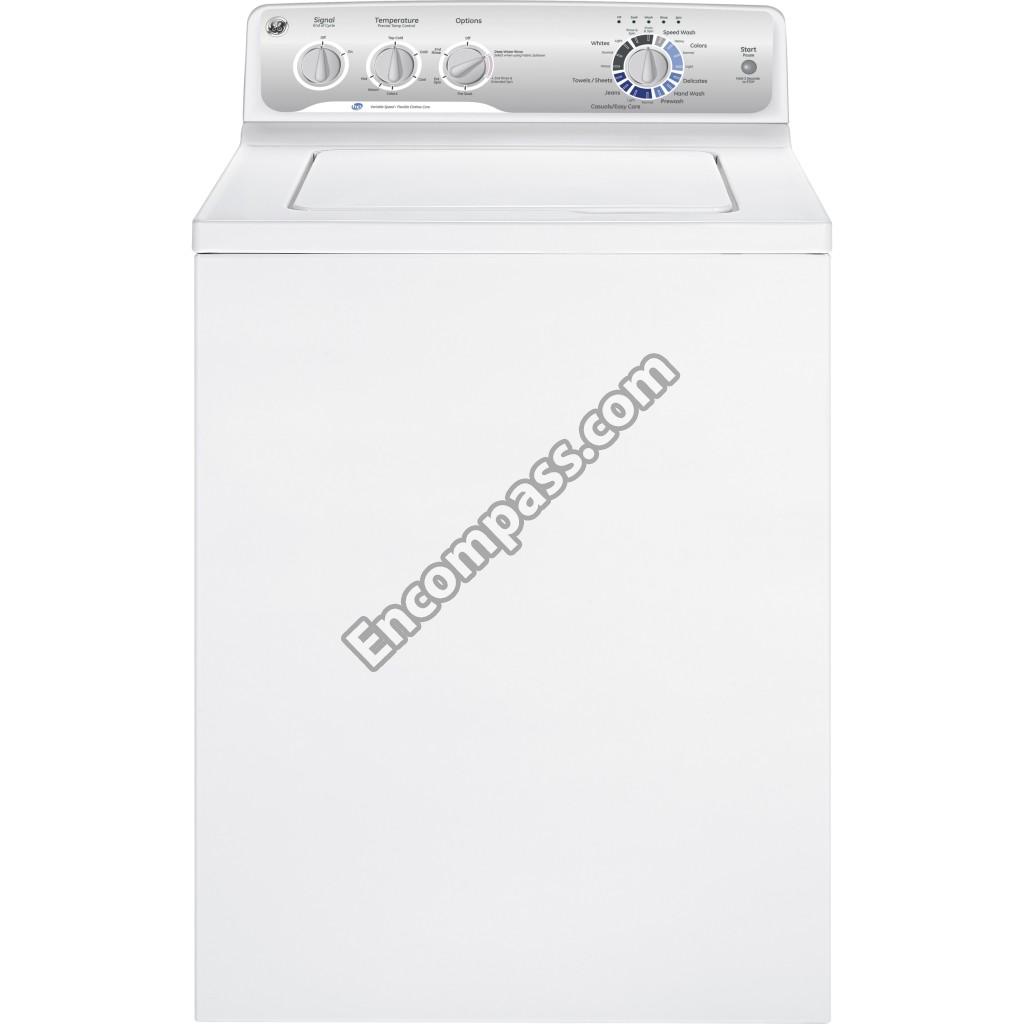

Model Image
Manufacturer

GE

Model Number

GCWN4950D0WS

Description

Washer

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WH46X10146 WH46X10146 GE BACK PANEL
WH42X22779 WH42X22779 GE BACKSPLASH ASM
WH01X10648 WH01X10648 GE BADGE
WH45X10114 WH45X10114 GE BALANCE RING
WH46X10094 WH46X10094 GE BAR SELF LEVELING
WH46X10145 WH46X10145 GE BASE ASM
WH45X20473 WH45X20473 GE BASKET & HUB ASM
WH45X10112 WH45X10112 GE BASKET HUB AND RING
WH01X10302 WH01X10302 GE BELT - 6 RIB
WH12X10614 WH12X10614 GE BOARD ASM MOUNTED
WH12X10614C WH12X10614C GE BOARD ASM MOUNTED
WH01X2742 WH01X2742 GE BUMPER HINGE
WH1X2742 WH1X2742 GE BUMPER HINGE
WH01X2722 WH01X2722 GE BUMPER LID
WH1X2722 WH1X2722 GE BUMPER LID
WH01X10025 WH01X10025 GE BUSHING HINGE
WH1X2741 WH1X2741 GE BUSHING HNGE.
WH1X2745 WH1X2745 GE BUTTON PLUG
WH01X10088 WH01X10088 GE BUTTON SWITCH
WH01X2730 WH01X2730 GE CLAMP - TUB
WH1X2730 WH1X2730 GE CLAMP - TUB
WH01X10134 WH01X10134 GE CLAMP HOSE
WH16X513 WH16X513 GE CLIP
WH1X2725 WH1X2725 GE CLIP ANT-SIP
WH01X2725 WH01X2725 GE CLIP ANTI-SIPHON
WH02X1207 WH02X1207 GE CLIP GROUND
WH2X1207 WH2X1207 GE CLIP GROUND
WH02X10279 WH02X10279 GE CLIP LOCKING
WH41X10036 WH41X10036 GE CONDUIT
WH12X10095 WH12X10095 GE CONNECTOR MODEL SELECT
WH19X10068 WH19X10068 GE CORD POWER ASM
WH43X10037 WH43X10037 GE COUPLING PULSATOR
WH44X21834 WH44X21834 GE COVER ASSEMBLY FINISHED
WH01X10422 WH01X10422 GE COVER CLIP
WH45X10134 WH45X10134 GE COVER TUB ASSEMBLY
WH43X10039 WH43X10039 GE DISPENSER ASM FS
WH41X25457 WH41X25457 GE DRAIN HOSE ASM
WH07X10019 WH07X10019 GE DRIVE PULLEY
WH42X22575 WH42X22575 GE ENDCAP WASHER LH
WH42X22576 WH42X22576 GE ENDCAP WASHER RH
WH02X1199 WH02X1199 GE FLAT WASHER
WH01X10057 WH01X10057 GE FUNNEL BLEACH
WH41X10299 WH41X10299 GE FUNNEL SHOWER HEAD ASSEMBLY
WH1X2729 WH1X2729 GE GASKET FL HD
WH19X10102 WH19X10102 GE HARNESS WASHER
WH02X10233 WH02X10233 GE HEX NUT OVERMOLD ASM
WH41X10096 WH41X10096 GE HOSE DRAIN EXTERNAL
WH41X22935 WH41X22935 GE HOSE DRAIN INLET
WH41X10297 WH41X10297 GE HOSE FLOOD
WH41X10207 WH41X10207 GE HOSE INLET ASSEMBLY
WH41X365 WH41X365 GE HOSE PRES SW
WH12X0538 WH12X0538 GE HOUSING TERMINAL
WH12X0497 WH12X0497 GE HOUSING TERMINAL
WH01X10650 WH01X10650 GE KNOB
WH02X1187 WH02X1187 GE LEG LEVELING
WH2X1187 WH2X1187 GE LEG LEVELING
WH44X20021 WH44X20021 GE LID ASM FINISHED
WH12X10334 WH12X10334 GE LID SWITCH ASM
WH12X10276 WH12X10276 GE MAGNET ASM
WH20X20229 WH20X20229 GE MOTOR AND INVERTER ASSEMBLY
WH02X1193 WH02X1193 GE NUT HUB
WH2X1193 WH2X1193 GE NUT HUB
WH02X1203 WH02X1203 GE NUT PULLEY
WH2X1203 WH2X1203 GE NUT PULLEY
WH46X10281 WH46X10281 GE PANEL AND BRACE ASSEMBLY WH
WH02X1189 WH02X1189 GE PIN ALIGNMENT
WH2X1189 WH2X1189 GE PIN ALIGNMNT
WH02X1188 WH02X1188 GE PIN ROLL
WH2X1188 WH2X1188 GE PIN ROLL
31-15441 31-15441 GE PM INSTRUCTION INSTALL
49-90433 49-90433 GE PM MANUAL U&C
31-16628-3 31-16628-3 GE PM MINI MANUAL
WH12X10410 WH12X10410 GE PROBE SENSOR ATC
WH43X10058 WH43X10058 GE PULSATOR
WH23X10043 WH23X10043 GE PUMP
WH16X0513 WH16X0513 GE RETAINER HOSE
WH1X2726 WH1X2726 GE RETAINER S
WH01X2726 WH01X2726 GE RETAINER STRAP
WH16X10158 WH16X10158 GE ROD AND SPRING ASM
WH16X10159 WH16X10159 GE ROD AND SPRING ASM
WH2X1201 WH2X1201 GE SCR 1/4-20 B
WH02X1201 WH02X1201 GE SCR 1/4-20 B HXW 3/4 SNS
WH02X10284 WH02X10284 GE SCR 1/4-20 MCH HXW 5/8 S
WH02X0694 WH02X0694 GE SCR 10-12 A HX 1/2 S
WR01X10619 WR01X10619 GE SCR 10-18 HI/LO HXW 1/2
WH02X10139 WH02X10139 GE SCR 10-32 B TRT-25 5/8
WH02X10267 WH02X10267 GE SCR 5/16-18 TPT IHW S N
WH01X10423 WH01X10423 GE SCR 6-20 B TRT 3/8 S
WH02X1217 WH02X1217 GE SCR 8-18 AB IHW 7/16 SN
WH2X1205 WH2X1205 GE SCR 8-18 B
WH02X1205 WH02X1205 GE SCR 8-18 B 1/2 HXW P
WH02X10282 WH02X10282 GE SCR 8-18 B IHW 1 S
WH2X1194 WH2X1194 GE SCREW
WH2X1211 WH2X1211 GE SCREW
WH2X1217 WH2X1217 GE SCREW
WE02X30757 WE02X30757 GE SCREW
WH02X10123 WH02X10123 GE SCREW 1/4-20 TPT 1H 1/2 SN
WH02X10002 WH02X10002 GE SCREW 8-18 AB IHWP 7/8 S
WH02X10126 WH02X10126 GE SCREW 8-18 B 1HW 1/2 SN
WH2X694D WH2X694D GE SCREW-PKG 12
WH02X10383 WH02X10383 GE SEAL TUB
WH12X10208 WH12X10208 GE SELF LOCKING STRAIN RELF
WH38X10019 WH38X10019 GE SHAFT AND TUBE ASSEMBLY
WH46X25157 WH46X25157 GE SHIPPING BAR ASM
WH01X10001 WH01X10001 GE SOCKET ROD SUPPORT
WH02X10265 WH02X10265 GE SPLIT RING
WH2X1190 WH2X1190 GE STUD GROUND
WH02X1190 WH02X1190 GE STUD GROUNDING
WH12X10412 WH12X10412 GE SWITCH PRESSURE
WH12X497 WH12X497 GE TERM HOUSING
WH12X538 WH12X538 GE TERM HSNG
WD21X10356 WD21X10356 GE TERM HSNG - W/VALVE
WH1X2036 WH1X2036 GE UNIV CLAMP
WH13X10053 WH13X10053 GE VALVE TRIPLE WATER
WH2X42D WH2X42D GE WASHER FLAT
WH2X1199 WH2X1199 GE WASHER HUB
WH2X1197 WH2X1197 GE WASHER TUB BEARING
WH2X1198 WH2X1198 GE WASHING MACHINE TUB BEARING
WH01X39337 WH01X39337 GE WASHING MACHINE TUB DAMPENING STRAP
WH46X10270 WH46X10270 GE WELD ASSEMBLY ROD SUPPORT
WH1X2727 WH1X2727 GE WH1X2727
WH1X2594 WH1X2594 GE WHITE CABLE TIE 17-INCH LONG X 3/16 WIDE
WH01X10704 WH01X10704 GE WIRE TIE/PLUG
WH01X2743 WH01X2743 GE WIREFORM HINGE
WH01X2740 WH01X2740 GE WIREFORM HINGE (SHORT)
WH1X2740 WH1X2740 GE WIREFRM HNGE
WH1X2743 WH1X2743 GE WIREFRM HNGE
