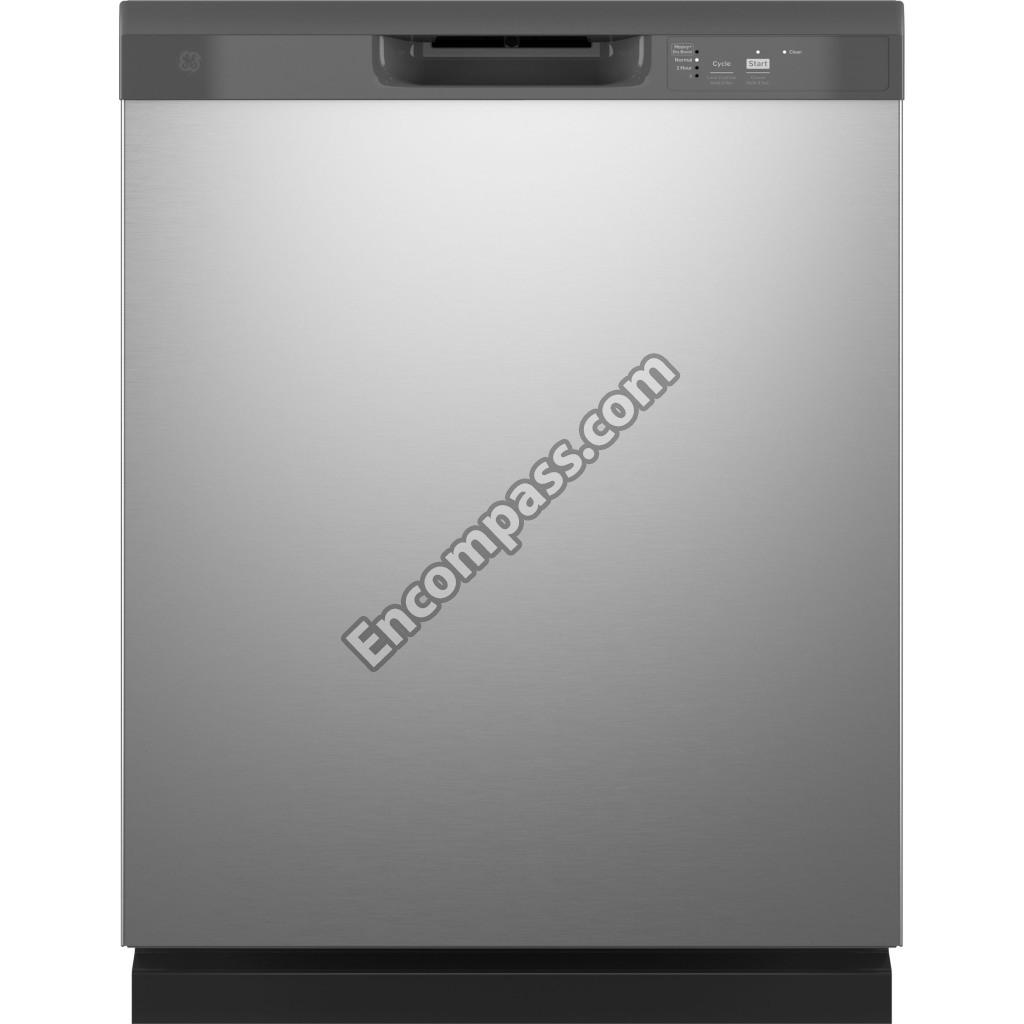

Model Image
Manufacturer

GE

Model Number

GDF450PSR6SS

Description

Dishwasher

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WD21X32679 WD21X32679 AC HARNESS
WD12X10408 WD12X10408 BALL FILTER - ORANGE
WD27X27752 WD27X27752 BLACK TOE KICK
WD01X27538 WD01X27538 CLAMP
WD01X24246 WD01X24246 CLAMP
WD01X22786 WD01X22786 CLAMP HOSE
WD12X10430 WD12X10430 CLIP BRACKET
WD01X24381 WD01X24381 CLIP HEATER TWIST LOCK
WD21X32938 WD21X32938 CONFIGURED MACHINE CONTROL BOARD
WD21X30319 WD21X30319 CONFIGURED UI CONTROL BOARD
WD30X29079 WD30X29079 CONTROL BOX BOTTOM
WD30X28638 WD30X28638 CONTROL BOX TOP
WD01X27759 WD01X27759 COUNTERTOP BRACKET
WD02X27760 WD02X27760 COUNTERTOP BRACKET SCREWS ASSEMBLY
WD12X10412 WD12X10412 COVER JUNCTION BOX
WD21X28978 WD21X28978 DC HARNESS
WD12X28239 WD12X28239 DETERGENT MODULE
WD19X25466 WD19X25466 DIVERTER ASM
WD01X29878 WD01X29878 DOOR DOOR LATCH
WD01X27721 WD01X27721 DOOR HINGE ASSEMBLY LEFT
WD01X27720 WD01X27720 DOOR HINGE ASSEMBLY RIGHT
WD02X29758 WD02X29758 DOOR SPRING
WD19X25461 WD19X25461 DRAIN PUMP ASM
WD12X10426 WD12X10426 END CAP
WD24X34763 WD24X34763 EXTENSION DRAIN HOSE
WD12X28478 WD12X28478 FILL FUNEL
WD24X27726 WD24X27726 FILL FUNNEL HOSE
WD12X25995 WD12X25995 FINE FILTER AND BASKET ASM
WD08X27458 WD08X27458 FLOATING SEAL ASM
WD01X20593 WD01X20593 FRICTION WASHER
WD08X21894 WD08X21894 GASKET BEACH PLASTIC
WD08X23476 WD08X23476 GASKET TUB PLASTIC
WD34X28028 WD34X28028 GRAY CONTROL PANEL ASSEMBLY
WD34X27846 WD34X27846 GRAY CONTROL PANEL OVERLAY
WD01X27718 WD01X27718 GROUNDING PLATE
WD02X28518 WD02X28518 HEATER NUT
WD05X35098 WD05X35098 HEATING ELEMENT
WD22X20688 WD22X20688 HUB
WD22X20689 WD22X20689 IMPELLER
WD27X28018 WD27X28018 INNER DOOR ASSEMBLY
165D9739P062 165D9739P062 INSERT MINI MANUAL
WD21X26318 WD21X26318 JUMPER HARNESS
WD02X31882 WD02X31882 LEVELING LEG
WD12X27747 WD12X27747 LOWER RACK ROLLER AND STUD ASSEMBLY
WD22X33499 WD22X33499 LOWER SPRAY ARM ASSEMBLY
WD12X35639 WD12X35639 MAIN CONDUIT
WD12X32041 WD12X32041 MAIN CONDUIT ASM
WD12X32040 WD12X32040 MAIN CONDUIT ASM
WD19X27178 WD19X27178 MAIN WASH PUMP ASM
WD22X10094 WD22X10094 MID CONDUIT ASM
WD22X10090 WD22X10090 MID CONDUIT ASM
WD12X32039 WD12X32039 MID CONDUIT DOCKING PORT
WD22X33498 WD22X33498 MID SPRAY ARM ASEMBLY
WD01X10070 WD01X10070 NUT TOWER HEATER
WD08X23817 WD08X23817 O-RING
WD22X25465 WD22X25465 PLASTIC COURSE FILTER
WD12X10420 WD12X10420 PLATE DETERGENT
31-4000220 31-4000220 PM INSTALL INSTRUCTIONS
31-4000286 31-4000286 PM MINI MANUAL AND WIRING
49-4000218 49-4000218 PM OWNERS MANUAL
49-4000219 49-4000219 PM QUICK OWNERS MANUAL
WD21X25468 WD21X25468 PRESSURE SENSOR ASM
WD01X30378 WD01X30378 PULLEY CABLE
WD16X21836 WD16X21836 PULLEY HINGE
WD02X28359 WD02X28359 PUMP ISOLATOR HANGER
WD12X22802 WD12X22802 RACK BRACKET - 2 WHEELS
WD28X26099 WD28X26099 RACK LOWER ASM COMPLETE
WD28X34744 WD28X34744 RACK LOWER ASM COMPLETE
WD30X27741 WD30X27741 RACK SLIDE
WD28X30219 WD28X30219 RACK UPPER ASM COATED
WD28X35779 WD28X35779 RACK UPPER ASM COATED
WD12X26146 WD12X26146 ROLLER
WD01X35298 WD01X35298 ROLLER CARRIER
WD12X27578 WD12X27578 ROLLER RACK
WD02X10220 WD02X10220 SCR 10-32 GX HXW 3/8
WD01X22514 WD01X22514 SCR 10-32 GX IHXW 9/16 S
WD01X21837 WD01X21837 SCR 10-32 TT CB 1/4 ZN
WR01X10065 WR01X10065 SCREW 10-32 GXTT FLP 595
WD02X10067 WD02X10067 SCREW 8-16 HXW 1/2 SS
WD02X27754 WD02X27754 SCREW 8-18 AB PNP 3/4 SS
WD01X27719 WD01X27719 SCREW 8-18 PL HXW 1/2
WD28X27753 WD28X27753 SILVERWARE BASKET
WD27X28038 WD27X28038 STAINLESS STEEL OUTER DOOR ASSEMBLY
WD13X10071 WD13X10071 STRIKER DOOR LATCH
WD01X28338 WD01X28338 SUMP DOOR LATCH
WD19X28199 WD19X28199 SUMP OVERMOLD AND GASKET
WD21X28958 WD21X28958 THERMISTOR
WD12X10433 WD12X10433 TUB ROLLER AND STUD ASM
WD21X32718 WD21X32718 UI HARNESS
WD12X27743 WD12X27743 UPPER RACK ROLLER AND STUD ASSEMBLY
WD01X28007 WD01X28007 VENT SPACER
WD15X27703 WD15X27703 WATER VALVE ASM
