Manufacturer
GE
Model Number
GDF570SGF6WW
Description

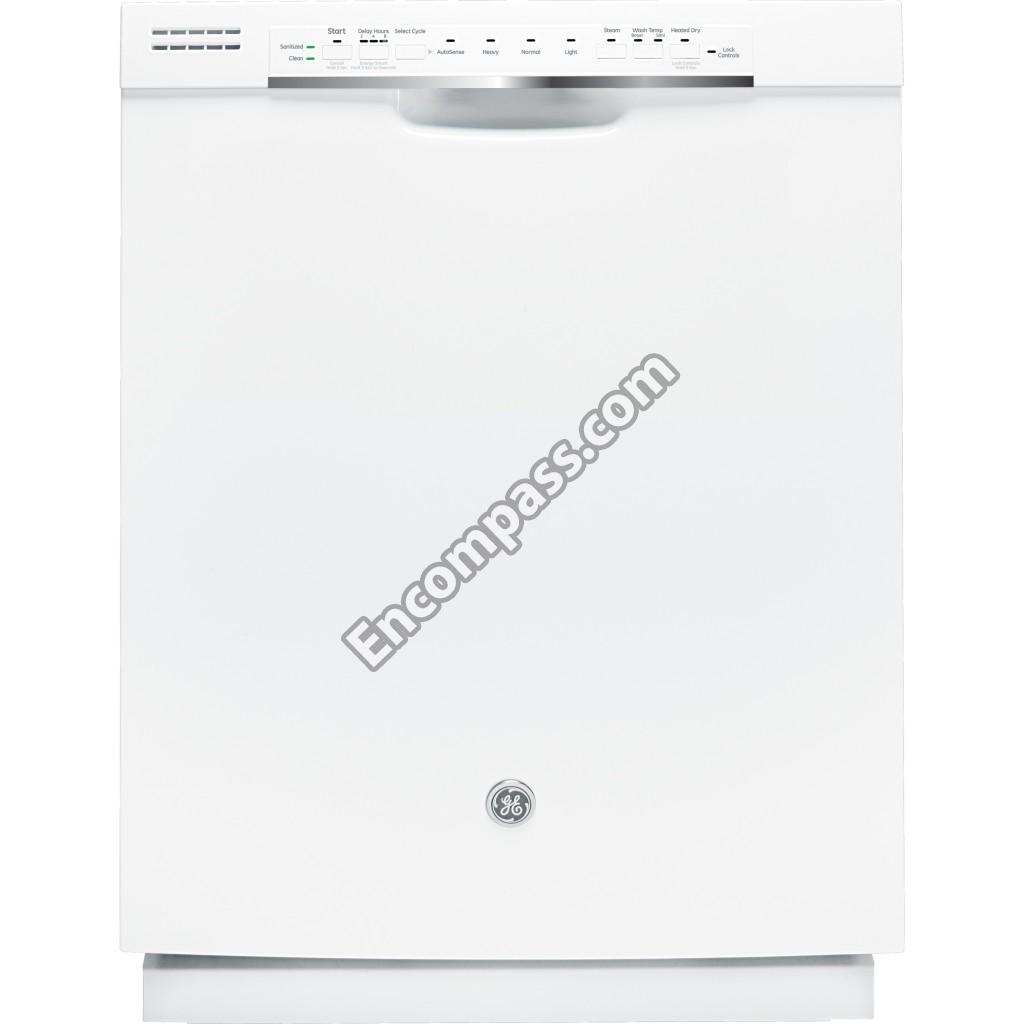

Dishwasher
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
3/8-INCH HEX HEAD SCREW 10-32 |
|
|
ADAPTER CONDUIT ASSEMBLY |
|
|
ADAPTOR FILTER |
|
|
ARM SPRAY LOWER ASM |
|
|
ARM SPRAY MID ASM |
|
|
ARM SPRAY MID ASSEMBLY |
|
|
ATTACHMENT STRIP TOP |
|
|
BAG INSULATION ASSEMBLY |
|
|
BASKET SILVERWARE |
|
|
BLOCK FOAM DOOR |
|
|
BRACE DOOR ASSEMBLY |
|
|
BRACKET ASSEMBLY UPPER RACK |
|
|
BRACKET ASSEMBLY UPPER RACK |
|
|
BRACKET COUNTERTOP |
|
|
BRACKET FIXED |
|
|
BRACKET FIXED |
|
|
BRACKET JUNCTION BOX |
|
|
BRACKET SUPPORT HINGE ASSEMBLY |
|
|
BRACKET SUPPORT HINGE ASSEMBLY |
|
|
BUTTON TREE |
|
|
CABLE ASSEMBLY PULLEY |
|
|
CAP FILL FUNNEL |
|
|
CARRIER ROLLER RH |
|
|
CLAMP |
|
|
CLAMP |
|
|
CLAMP |
|
|
CLIP CONTROL BOARD |
|
|
CLIP RACK |
|
|
COMPLETE SERVICE RACK |
|
|
CONDUIT MAIN ASSEMBLY |
|
|
CONDUIT MID ASSEMBLY |
|
|
CONFIGURED UI BOARD |
|
|
CONTROL BOX BOTTOM |
|
|
CONTROL BOX TOP |
|
|
COVER JUNCTION BOX |
|
|
COVER ROLLER LH |
|
|
DETERGENT MODULE |
|
|
DISHWASHER ARM HINGE - LH |
|
|
DISHWASHER ARM HINGE ASSEMBLY - RH |
|
|
DISHWASHER ATTACH STRIP - LH |
|
|
DISHWASHER ATTACH STRIP - RH |
|
|
DISHWASHER CONDUIT SHIELD |
|
|
DISHWASHER COUNTERTOP SCREW AND BUTTONPLUG |
|
|
DISHWASHER DOOR - WHITE |
|
|
DISHWASHER DRAIN HOSE |
|
|
DISHWASHER FLOOD SWITCH ASSEMBLY |
|
|
DISHWASHER INNER RAIL UPPER RACK ASSMBLY |
|
|
DISHWASHER LATCH AND SWITCH ASSEMBLY |
|
|
DISHWASHER LATCH CAM |
|
|
DISHWASHER LEVELING SCREW |
|
|
DISHWASHER PUMP GROMMET |
|
|
DISHWASHER TOE KICK INSULATION |
|
|
DISHWASHER TUB FRONT SPACER |
|
|
DISHWASHER VENT DOOR SEAL |
|
|
DIVERTER AIR ASSEMBLY |
|
|
DIVERTER ASSEMBLY KIT |
|
|
DOCKING PORT SS |
|
|
DOOR INNER SS |
|
|
DOOR INNER SS |
|
|
DRAIN PUMP HANGER |
|
|
ELEMENT HEATING ASM |
|
|
FILTER COARSE SS |
|
|
FILTER MANUAL ASSEMBLY |
|
|
FOAM VENT INSERT |
|
|
FUNNEL AND GASKET ASSEMBLY |
|
|
GASKET SUMP MANIFOLD |
|
|
GASKET TUB |
|
|
GASKET TUB |
|
|
GASKET VENT |
|
|
GE BADGE |
|
|
HARNESS ASSEMBLY DC |
|
|
HARNESS ASSEMBLY DOOR |
|
|
HARNESS ASSEMBLY JUMPER |
|
|
HOSE FILL |
|
|
HOSE HIGH DRAIN LOOP |
|
|
INSERT MINI MANUAL |
|
|
INSULATION TUB BLANKET |
|
|
INSULATION TUB BLANKET |
|
|
KIT DOOR INNER ASSEMBLY |
|
|
LATCH CAM |
|
|
LID BASKET MIDDLE |
|
|
LID BASKET SIDE RH |
|
|
LOWER RACK AND SWB REPLACEMENT |
|
|
MACHINE CONTROL GOOD |
|
|
NUT TOWER HEATER |
|
|
P2A WASH PUMP/HARNESS KIT |
|
|
PANEL CONTROL ASSEMBLY |
|
|
PLATE DETERGENT |
|
|
PLATE FLOOR MANUAL |
|
|
PM INSTALL INSTRUCTIONS |
|
|
PM MINI-MANUAL |
|
|
PM OWNERS MANUAL |
|
|
POCKET H AND LE |
|
|
PULLEY HINGE |
|
|
PULLEY SCREW |
|
|
PUMP DRAIN KIT |
|
|
RACK LOWER ASM COMPLETE |
|
|
ROLLER LOWER RACK |
|
|
SCR 10-16 AB HXW .532 |
|
|
SCR 10-16X1/2 AB HEXW S |
|
|
SCR 10-32 GX IHXW 9/16 S |
|
|
SCR 10-32 TT HXW 14/25 S |
|
|
SCR 8-18 B HXW .480 S. |
|
|
SCR10 - 16 AB HXW 3/4 SS |
|
|
SCREW |
|
|
SCREW 10-18 X 5/8 |
|
|
SCREW 8-16 HXW 1/2 SS |
|
|
SCREW 818 BA POR 5/8 SS |
|
|
SCREW-PKG 12 |
|
|
SEAL CONDUIT |
|
|
SENSOR TURBIDITY ASSEMBLY |
|
|
SERVICE KIT UPPER RACK |
|
|
SHELF CUP |
|
|
SHIELD DIELECTRIC |
|
|
SHIELD DRAIN PUMP |
|
|
SHIELD WASH PUMP |
|
|
SILICONE LIGHT PIPE |
|
|
SPRING DOOR |
|
|
SPRING DOOR |
|
|
STRIKER LATCH |
|
|
SUMP MANIFOLD |
|
|
SUPPORT HEATER SS |
|
|
TINE BLOCK |
|
|
TINE BLOCK |
|
|
TOE KICK ASM - WHITE |
|
|
TRAY UTILITY |
|
|
TRIM DOOR LH |
|
|
TRIM DOOR RH |
|
|
TRIM TUB SIDE WW/CC |
|
|
UNIV CLAMP |
|
|
UPPER SPRAY ARM KIT |
|
|
VALVE WATER ASSEMBLY |
|
|
VENT - DARK GREY |
|
|
VENT FILTER |
