Model Image
Manufacturer

GE

Model Number

GDF630PSM2SS

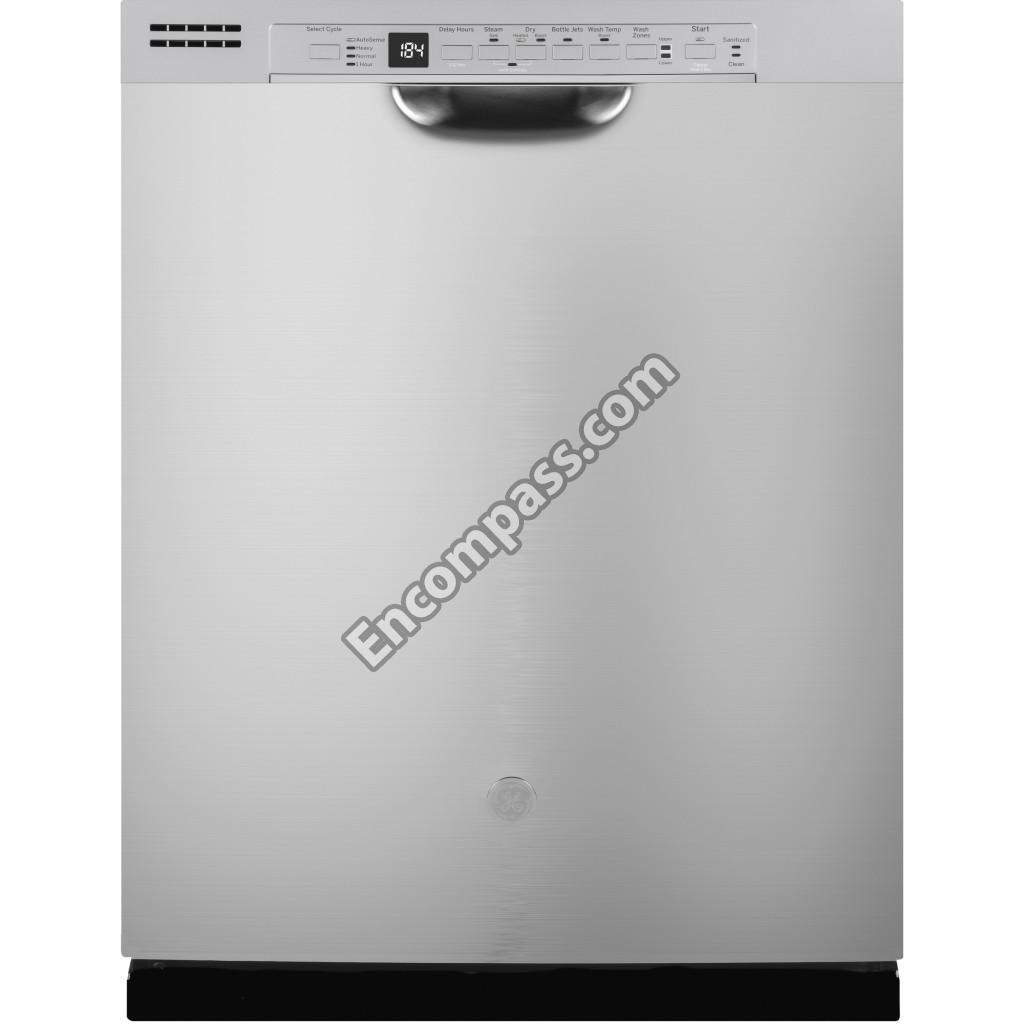

Description

Dishwasher

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WD21X24940 WD21X24940 GE AC HARNESS ASM
WD22X33499 WD22X33499 GE ARM SPRAY LOWER ASM
WD22X33498 WD22X33498 GE ARM SPRAY MID ASM
WD35X10393 WD35X10393 GE ARM SPRAY MID ASSEMBLY
WD01X23983 WD01X23983 GE BAG INSULATION ASM
WD28X24469 WD28X24469 GE BASKET SILVERWARE
WD01X10578 WD01X10578 GE BLOCK FOAM D
WD22X25478 WD22X25478 GE BOTTLE BLASTER ASM
WD12X25301 WD12X25301 GE BOTTLE WASHER CLIP
WD01X35298 WD01X35298 GE CARRIER ROLLER RH
WD35X10382 WD35X10382 GE CLAMP
WD01X24381 WD01X24381 GE CLIP HEATER TWIST LOCK
WD22X10093 WD22X10093 GE COARSE FILTER
WD28X35778 WD28X35778 GE COATED UPPER RACK ASSEMBLY
WD21X32165 WD21X32165 GE CONFIGURED SERVICE MACHINE CON

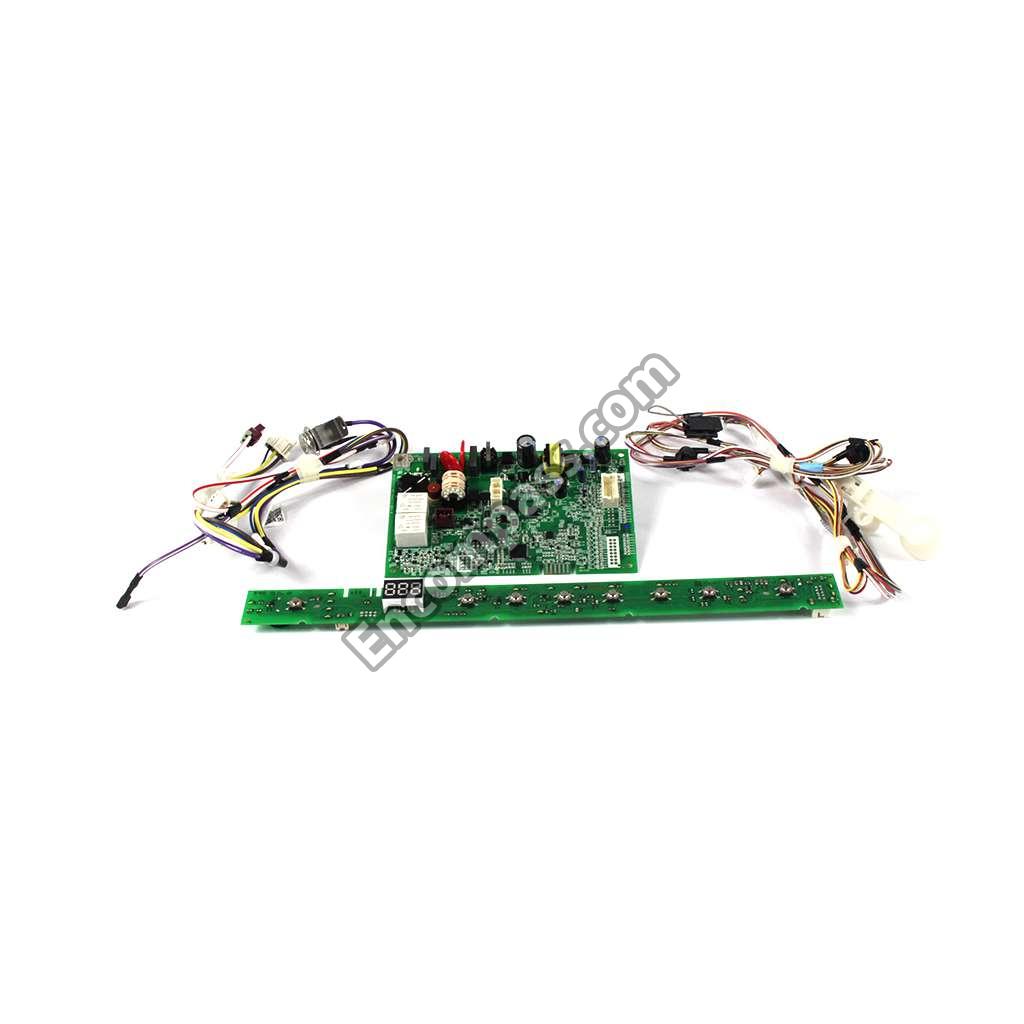

WD21X31898 WD21X31898 GE CONFIGURED UI BOARD

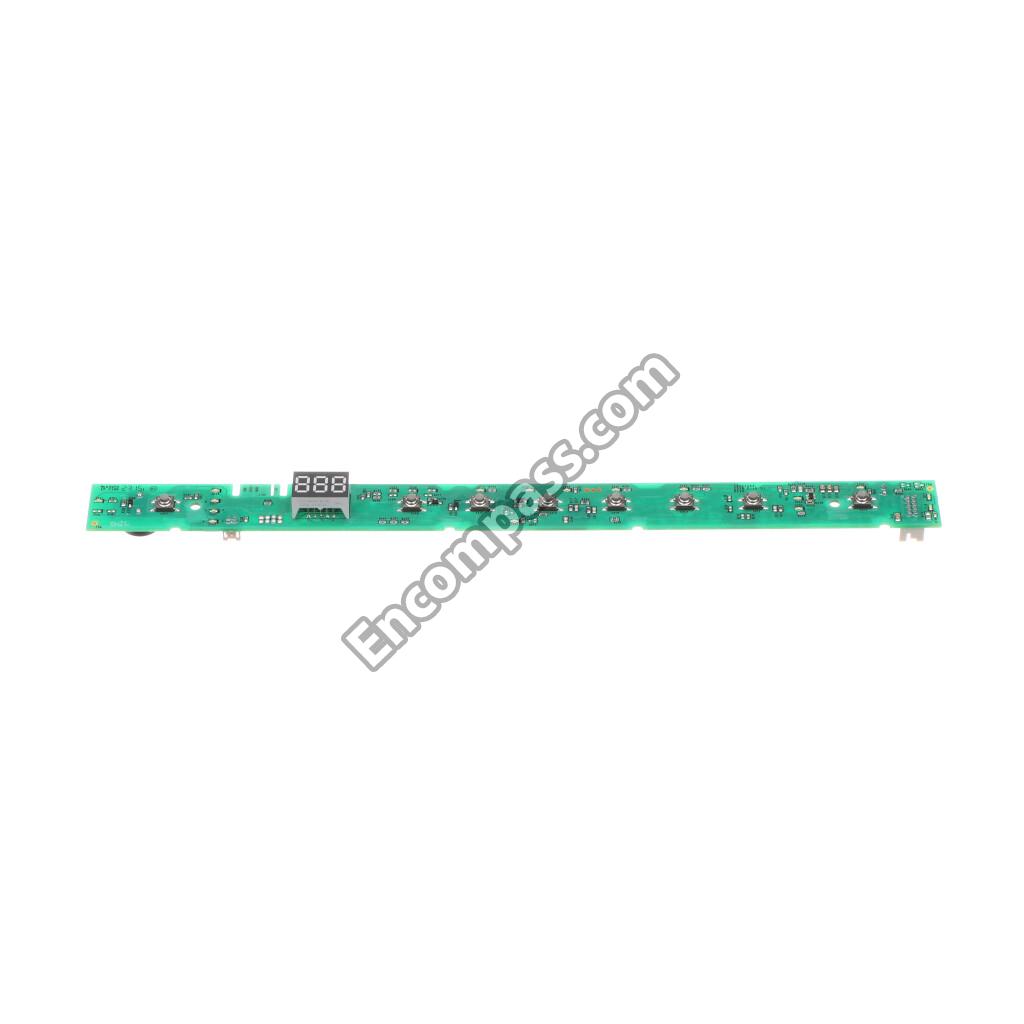

WD21X31908 WD21X31908 GE CONFIGURED UI CONTROL
WD21X25696 WD21X25696 GE CONTROL BOARD FUSE 4.1 AMP
WD30X24239 WD30X24239 GE CONTROL BOX BOTTOM
WD24X20263 WD24X20263 GE COVER BOTTLE
WD28X27241 WD28X27241 GE COVER ROLLER RH
WD12X32798 WD12X32798 GE DETERGENT DISP NO SENSOR
WD26X23258 WD26X23258 GE DISHWASHER CIRCULATION PUMP ASSEMBLY
WD12X10420 WD12X10420 GE DISHWASHER DETERGENT DISPENSER RETAINER
WD12X22801 WD12X22801 GE DISHWASHER DISHRACK ROLLER ASSEMBLY
WD12X10430 WD12X10430 GE DISHWASHER DISHRACK ROLLER BRACKET CLIP
WD12X10426 WD12X10426 GE DISHWASHER DISHRACK SLIDE RAIL STOP, UPPER
WD30X29858 WD30X29858 GE DISHWASHER DISHRACK SLIDE RAIL, LEFT
WD28X34744 WD28X34744 GE DISHWASHER DISHRACK, LOWER
WD01X10569 WD01X10569 GE DISHWASHER DOOR CABLE
WD16X21836 WD16X21836 GE DISHWASHER DOOR CABLE ROLLER
WD14X20129 WD14X20129 GE DISHWASHER DOOR HINGE ARM, LEFT
WD14X20128 WD14X20128 GE DISHWASHER DOOR HINGE ARM, RIGHT
WD01X22512 WD01X22512 GE DISHWASHER DOOR HINGE SUPPORT BRACKET, LEFT
WD01X22513 WD01X22513 GE DISHWASHER DOOR HINGE SUPPORT BRACKET, RIGHT
WD21X10490 WD21X10490 GE DISHWASHER DOOR LATCH LOCK
WD13X10071 WD13X10071 GE DISHWASHER DOOR LATCH STRIKE
WD34X25752 WD34X25752 GE DISHWASHER DOOR OUTER PANEL ASSEMBLY (STAINLESS)
WD08X10092 WD08X10092 GE DISHWASHER DOOR VENT SEAL
WD24X10062 WD24X10062 GE DISHWASHER DRAIN HOSE
WD24X29378 WD24X29378 GE DISHWASHER DRAIN HOSE
WD01X10104 WD01X10104 GE DISHWASHER DRAIN HOSE CLAMP
WD19X24829 WD19X24829 GE DISHWASHER DRAIN PUMP KIT
WD27X32298 WD27X32298 GE DISHWASHER ELECTRONIC CONTROL BOARD COVER
WD21X26186 WD21X26186 GE DISHWASHER ELECTRONIC CONTROL BOARD KIT
WD49X23818 WD49X23818 GE DISHWASHER FILL FUNNEL ASSEMBLY
WD24X27659 WD24X27659 GE DISHWASHER FILL HOSE
WD12X10419 WD12X10419 GE DISHWASHER FILTER ADAPTER
WD21X22822 WD21X22822 GE DISHWASHER FLOAT DOME
WD21X22838 WD21X22838 GE DISHWASHER FLOAT STEM
WD01X23496 WD01X23496 GE DISHWASHER FLOOD SWITCH HOUSING
WD05X35098 WD05X35098 GE DISHWASHER HEATING ELEMENT
WD01X24246 WD01X24246 GE DISHWASHER HOSE CLAMP
WD01X21740 WD01X21740 GE DISHWASHER INSTALLATION BRACKET
WD35X10383 WD35X10383 GE DISHWASHER INSTALLATION SCREW SET
WD21X23559 WD21X23559 GE DISHWASHER JUMPER WIRE HARNESS
WD02X31882 WD02X31882 GE DISHWASHER LEVELING LEG
WD12X26146 WD12X26146 GE DISHWASHER LOWER DISHRACK ROLLER
WD01X10101 WD01X10101 GE DISHWASHER PUMP GROMMET
WD02X10220 WD02X10220 GE DISHWASHER SCREW
WD02X10067 WD02X10067 GE DISHWASHER SCREW
WD01X22514 WD01X22514 GE DISHWASHER SCREW, 10-32 X 9/16-IN
WD08X22758 WD08X22758 GE DISHWASHER SUMP GASKET
WD12X10412 WD12X10412 GE DISHWASHER TERMINAL BLOCK COVER
WD28X24462 WD28X24462 GE DISHWASHER THIRD LEVEL DISHRACK
WD27X34579 WD27X34579 GE DISHWASHER TOE PANEL
WD27X21334 WD27X21334 GE DISHWASHER TOE PANEL INSULATION
WD01X29479 WD01X29479 GE DISHWASHER TRIM, SIDE
WD08X21894 WD08X21894 GE DISHWASHER TUB CORNER BAFFLE
WD08X23476 WD08X23476 GE DISHWASHER TUB GASKET
WD30X35299 WD30X35299 GE DISHWASHER TUB INSULATION
WD21X22830 WD21X22830 GE DISHWASHER TURBIDITY SENSOR
WD30X29859 WD30X29859 GE DISHWASHER UPPER DISHRACK SLIDE RAIL, RIGHT
WD12X34182 WD12X34182 GE DISHWASHER UPPER SPRAY ARM MANIFOLD
WD35X20855 WD35X20855 GE DISHWASHER VENT ASSEMBLY
WD12X21681 WD12X21681 GE DISHWASHER WATER FEED TUBE
WD15X26140 WD15X26140 GE DISHWASHER WATER INLET VALVE
WD21X10545 WD21X10545 GE DISHWASHER WIRE HARNESS
WD19X25278 WD19X25278 GE DIVERTER ASM
WD03X20445 WD03X20445 GE DOOR SPRING
WD01X25218 WD01X25218 GE DRAIN PUMP HANGER
WD02X22342 WD02X22342 GE END CAP THIR
WD16X23497 WD16X23497 GE FLOOD SWITCH LEVER
WD08X21954 WD08X21954 GE FOAM VENT IN
WD30X24457 WD30X24457 GE FRAME WIRE COATED ASM
WR04X29375 WR04X29375 GE GEA BADGE FLAT CHROME
WD02X26579 WD02X26579 GE GROUNDING PLATE
WD21X24459 WD21X24459 GE HARNESS ASSEMBLY
WD24X20262 WD24X20262 GE HOSE BOTTLE
WD01X22786 WD01X22786 GE HOSE CLAMP
WD22X20688 WD22X20688 GE HUB
WD22X20689 WD22X20689 GE IMPELLER
165D9739P039 165D9739P039 GE INSERT MINI MANUAL
WD01X24440 WD01X24440 GE INSULATION BOTTOM FRONT
WD12X25060 WD12X25060 GE JUNCTION BOX BRACKET
WD01X10575 WD01X10575 GE LATCH CAM
WD01X10632 WD01X10632 GE LATCH CAM
WD12X32039 WD12X32039 GE MID CONDUIT DOCKING PORT
WD30X24460 WD30X24460 GE MOUNT TUB ASM
WD01X22825 WD01X22825 GE O-RING
WD08X23817 WD08X23817 GE O-RING
WD12X21677 WD12X21677 GE PLATE FLOOR MANUAL
31-31586 31-31586 GE PM INSTALL INSTRUCTIONS
31-30905 31-30905 GE PM MINI-MANUAL
49-55122 49-55122 GE PM OWNERS MANUAL
49-55121 49-55121 GE PM QUICK START GUIDE
WD12X22787 WD12X22787 GE POCKET HANDLE
WD19X29159 WD19X29159 GE PUMP WASH MAIN ASM
WD28X26099 WD28X26099 GE RACK LOWER ASM COMPLETE
WD12X27578 WD12X27578 GE RACK ROLLER
WD28X26105 WD28X26105 GE RACK UPPER ASM COATED
WD27X22351 WD27X22351 GE RAIL AND END
WD27X22350 WD27X22350 GE RAIL AND END CAP ASM
WB01T10103 WB01T10103 GE RANGE SCREW, #10-16 X 0.532-IN
WR01X10380 WR01X10380 GE REFRIGERATOR SCREW, 8-18 X 5/8-IN
WD30X22347 WD30X22347 GE ROLLER AND BRACKET ASM
WD02X22781 WD02X22781 GE SCR 10-18 X 5/8
WD01X21837 WD01X21837 GE SCR 10-32 TT
WB02T10324 WB02T10324 GE SCR 6-20 GXB
WD02X22736 WD02X22736 GE SCR10 - 16 A
WZ5X158D WZ5X158D GE SCREW 8-32 X 3/8 GRD SCR
WD02X10160 WD02X10160 GE SCREW, #8-18
WD31X24834 WD31X24834 GE SERVICE INNE
WD34X25439 WD34X25439 GE SILVER CONTROL PANEL ASM
WD09X25440 WD09X25440 GE SILVER PAIN
WD18X21680 WD18X21680 GE SUMP MANIFOL
WD21X23498 WD21X23498 GE SWITCH FLOOD
WD01X10070 WD01X10070 GE TOWER NUT
WD12X10433 WD12X10433 GE TUB ROLLER A
WD12X25241 WD12X25241 GE UI BOARD HOUSING
WD49X24057 WD49X24057 GE ULTRA FINE F
WD22X25463 WD22X25463 GE USER CLEANABLE FINE FILTER
WD12X10471 WD12X10471 GE VENT (GRAY)
WD24X10057 WD24X10057 GE VENT FILTER
WD08X22476 WD08X22476 GE VENT GASKET
WD02X28518 WD02X28518 GE WASHER HEATER ASM
