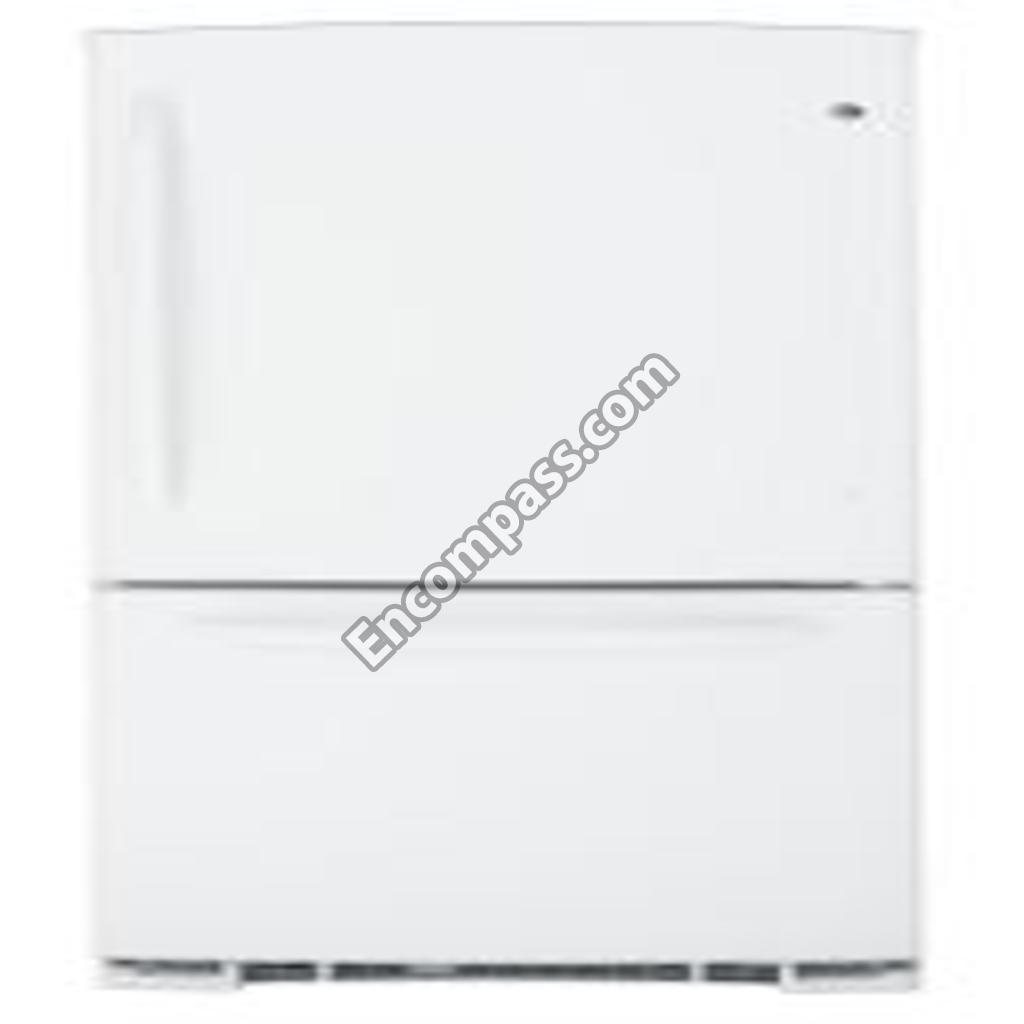

Model Image
Manufacturer

GE

Model Number

GDSC0KCXERWW

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WR09X10105 WR09X10105 GE 5SP OVERLOAD/PTC
WR87X20798 WR87X20798 GE A ASSEMBLY HI SIDE
WR82X10115 WR82X10115 GE ACCESS COVER
WR04X10169 WR04X10169 GE BADGE ASM
WR17X12508 WR17X12508 GE BAFFLE COND AIR
WR21X10182 WR21X10182 GE BASKET LOWER
WR21X10181 WR21X10181 GE BASKET UPPER
WR02X12882 WR02X12882 GE BEAM SUPPORT
WR60X24484 WR60X24484 GE BLADE CONF FAN ASSEMBLY
WR60X30922 WR60X30922 GE BLADE EVAP FAN ASM
WR55X10832 WR55X10832 GE BOARD ASM MAIN CONTROL
WR55X10831 WR55X10831 GE BOARD ASM TEMP CONTROL
WR02X11863 WR02X11863 GE BRACKET COND FAN (MTG)
WR02X10593 WR02X10593 GE BRACKET COND FAN (REAR)
WR17X12576 WR17X12576 GE BRACKET CONDENSER BAR
WR02X10764 WR02X10764 GE BRACKET EVAP FAN BTM
WR17X12507 WR17X12507 GE BRACKET FAN EVAP FRONT
WR02X12874 WR02X12874 GE BRACKET LEG ASM
WR72X10300 WR72X10300 GE BRACKET LOWER
WR72X10299 WR72X10299 GE BRACKET LOWER
WR02X12870 WR02X12870 GE BRACKET SUPPORT
WR02X10540 WR02X10540 GE BUMPER
WR02X12362 WR02X12362 GE CAM CLOSURE FZ LH
WR02X12409 WR02X12409 GE CAM CLOSURE FZ LH
WR02X12408 WR02X12408 GE CAM CLOSURE FZ RH
WR02X12361 WR02X12361 GE CAM CLOSURE FZ RH
WR02X10781 WR02X10781 GE CAP CORNER OC BLACK
WR02X10640 WR02X10640 GE CAP CORNER OC WHITE
WR62X0079 WR62X0079 GE CAPACITOR
WR55X24064 WR55X24064 GE CAPACITOR
WR01X10684 WR01X10684 GE CLAMP CABLE
WR02X10522 WR02X10522 GE CLAMP TUBE
WR02X8203 WR02X8203 GE CLIP COMPRESSOR MOUNT
WR02X11999 WR02X11999 GE CLIP RETAINER MEI
WR84X10104 WR84X10104 GE CONDENSER BRKT ASM
WR55X10830 WR55X10830 GE CONTROL CUSTOMER ASM
WR82X22566 WR82X22566 GE COVER ACCESS ASM
WR17X12839 WR17X12839 GE COVER DAMPER DUCT
WR17X12564 WR17X12564 GE COVER DRAWER ICE
WR17X12817 WR17X12817 GE COVER EVAP
WR17X12575 WR17X12575 GE COVER EVAP FAN
WR02X12806 WR02X12806 GE COVER HINGE TOP
WR02X12879 WR02X12879 GE COVER HINGE TOP
WR02X12027 WR02X12027 GE COVER MAIN BOARD ASM
WR02X12381 WR02X12381 GE COVER MULLION SCREW
WR02X12421 WR02X12421 GE COVER MULLION SCREW
WR17X10796 WR17X10796 GE COVER WATER LINE
WR29X10092 WR29X10092 GE CUP FILL IM
WR22X10073 WR22X10073 GE DAIRY BIN
WR17X12573 WR17X12573 GE DAMPER DUCT ASM
WR17X12570 WR17X12570 GE DAMPER HUMIDITY CTRL
WR17X12569 WR17X12569 GE DAMPER HUMIDITY CTRL
WR50X10068 WR50X10068 GE DEFROST THERMOSTAT
WR02X13594 WR02X13594 GE DIVIDER GUIDE RAIL
WR78X27163 WR78X27163 GE DOOR FOAM FF ASM
WR78X12244 WR78X12244 GE DOOR FOAM FF ASM
WR78X12249 WR78X12249 GE DOOR FOAM FZ DRAWER ASM
WR78X12245 WR78X12245 GE DOOR FOAM FZ DRAWER ASM
WR17X12566 WR17X12566 GE DUCT FF ASM
WR01X10838 WR01X10838 GE FASTENER HANDLE
WR14X10272 WR14X10272 GE FOAM COVER EVAP
WR14X10262 WR14X10262 GE FOAM STRIP SE ADH
WR14X10264 WR14X10264 GE FOAM STRIP SE ADH
WR14X10276 WR14X10276 GE FOAM STRIP SE ADH
WR14X10053 WR14X10053 GE FOAM STRIP SE ADH
WR72X10331 WR72X10331 GE FRAME COVER VEG PAN
WR14X10345 WR14X10345 GE GASKET
WR14X10346 WR14X10346 GE GASKET
WR14X10326 WR14X10326 GE GASKET
WR14X10324 WR14X10324 GE GASKET
WR14X10269 WR14X10269 GE GASKET BACK DUCT
WR14X10275 WR14X10275 GE GASKET COVER VEG
WR14X10270 WR14X10270 GE GASKET DELI PAN
WR14X10268 WR14X10268 GE GASKET FF INLET
WR32X10696 WR32X10696 GE GLASS COVER VEG PAN
WR72X10301 WR72X10301 GE GLIDE LH
WR72X27367 WR72X27367 GE GLIDE UPPER BASKET
WR72X27368 WR72X27368 GE GLIDE UPPER BASKET
WR72X10302 WR72X10302 GE GLIDE UPPER BASKET
WR74X10266 WR74X10266 GE GRILLE BASE
WR74X10264 WR74X10264 GE GRILLE BASE
WR02X10647 WR02X10647 GE GRILLE SENSOR
WR02X22869 WR02X22869 GE GROMMET
WR17X12563 WR17X12563 GE GROMMET AND TUBE ASM
WR02X11331 WR02X11331 GE GROMMET EVAP FAN
WR02X10520 WR02X10520 GE GROMMET FAN MOTOR
WR12X10926 WR12X10926 GE HANDLE TUBULAR ASM
WR12X10927 WR12X10927 GE HANDLE TUBULAR ASM
WR12X10910 WR12X10910 GE HANDLE TUBULAR ASM
WR12X10911 WR12X10911 GE HANDLE TUBULAR ASM
WR23X10506 WR23X10506 GE HARNESS BOARD INDIV
WR23X10637 WR23X10637 GE HARNESS CONTROL FF
WR14X10267 WR14X10267 GE HARNESS INSULATION
WR51X10038 WR51X10038 GE HEATER CONDUCTION
WR13X10597 WR13X10597 GE HINGE AND PIN STOP ASM
WR13X10631 WR13X10631 GE HINGE AND PIN STOP ASM
WR02X13406 WR02X13406 GE HINGE BUSHING
WR13X10596 WR13X10596 GE HINGE TOP & PIN ASM
WR13X10630 WR13X10630 GE HINGE TOP & PIN ASM
WR30X10140 WR30X10140 GE ICE DRAWER
WR30X10093 WR30X10093 GE ICEMAKER ASSEMBLY
WR49X10185 WR49X10185 GE KIT HINGE CHANGEABLE
WR49X10184 WR49X10184 GE KIT HINGE CHANGEABLE
WR49X20767 WR49X20767 GE KIT SLIDE HOLDER 20-22 B
WR17X12571 WR17X12571 GE KNOB HUMIDITY CTRL
WR17X12572 WR17X12572 GE KNOB HUMIDITY CTRL
40A15-2PK 40A15-2PK GE LAMP
40A15 40A15 GE LAMP
WR11X10019 WR11X10019 GE LEVER ARM FZ CLOSURE ASM
WR11X10018 WR11X10018 GE LEVER ARM FZ CLOSURE ASM
WR11X10016 WR11X10016 GE LEVER ARM FZ CLOSURE ASM
WR11X10017 WR11X10017 GE LEVER ARM FZ CLOSURE ASM
WR17X12567 WR17X12567 GE LIGHT SHIELD FF
WR85X10113 WR85X10113 GE LOW SIDE ASM
WR02X12807 WR02X12807 GE MOBILITY FRONT ASM
WR60X10277 WR60X10277 GE MOTOR DC EVAP FAN ASM
WR01X10212 WR01X10212 GE NUT 8-32
WR86X96 WR86X96 GE P/S DRYER KIT R134A
WR86X25269 WR86X25269 GE P/S DRYER KIT R134A
WR32X10698 WR32X10698 GE PAN SNACK
WR32X10697 WR32X10697 GE PAN VEG
WR02X12875 WR02X12875 GE PIN HINGE CENTER
WR02X13056 WR02X13056 GE PLUG BUTTON
WR02X13058 WR02X13058 GE PLUG BUTTON
WR02X13017 WR02X13017 GE PLUG COVER
49-60539 49-60539 GE PM GUIDE OWNERS
31-51740 31-51740 GE PM MINI WIRING MANUAL
WR23X0108 WR23X0108 GE POWER CORD
WR23X10300 WR23X10300 GE POWER CORD
WR02X12873 WR02X12873 GE REFLECTOR LAMP FF
WR2X8203 WR2X8203 GE REFRIGERATOR CLIP
WR2X9000 WR2X9000 GE REFRIGERATOR CONDENSER CLIP
WR60X10209 WR60X10209 GE REFRIGERATOR CONDENSER FAN MOTOR
WR22X10063 WR22X10063 GE REFRIGERATOR DAIRY DOOR
WR23X10725 WR23X10725 GE REFRIGERATOR LIGHT SWITCH
WR55X10025 WR55X10025 GE REFRIGERATOR TEMPERATURE SENSOR
WR02X12149 WR02X12149 GE RING COMPRESSION
WR01X10843 WR01X10843 GE SCR 1/4 - 20 UNC -2A
WR01X10885 WR01X10885 GE SCR 1/4-20 RT FLAT 3/4 S
WR01X10611 WR01X10611 GE SCR 10-16
WR01X10620 WR01X10620 GE SCR 10-32
WR01X10622 WR01X10622 GE SCR 10-32 B IHXW 1/2
WR01X10792 WR01X10792 GE SCR 12-24 TT HX 7/8 S
WR01X10683 WR01X10683 GE SCR 12-24 TT HXT20 .90 S
WR01X10690 WR01X10690 GE SCR 12-24 TT HXT20 .90 S
WR01X10606 WR01X10606 GE SCR 8-18 AB HXW 1/2 S
WR01X10626 WR01X10626 GE SCR 8-18 AB HXW 5/4 S
WR01X10685 WR01X10685 GE SCR 8-18 AB IHW
WR01X10588 WR01X10588 GE SCR 8-18 AB IHXW 9/16 S
WR01X10607 WR01X10607 GE SCR 8-18 AB PHR 1/2 S
WR01X10858 WR01X10858 GE SCR 8-18 AB PNP 5/8 S
WR01X10621 WR01X10621 GE SCR 8-18 DG TRT20 5/8 S
WR01X10844 WR01X10844 GE SCR 8-32 AB IHWS 3/8 S
WR1X1466 WR1X1466 GE SCR 8-32 T HXW 3/8 S
WZ5X158D WZ5X158D GE SCR 8-32 T HXW 3/8 S
WR01X1792 WR01X1792 GE SCREW
WR1X1786 WR1X1786 GE SCREW
WR02X10994 WR02X10994 GE SCREW & COVER BLACK
WR02X10992 WR02X10992 GE SCREW & COVER WHITE
WR01X10654 WR01X10654 GE SCREW 10-32 TT HXW 5/16 S
WR01X10652 WR01X10652 GE SCREW 8-18 AB IHW 5/8 S
WD02X0323 WD02X0323 GE SCREW 8-32 X 3/8 SPH
WR01X10850 WR01X10850 GE SCREW LEVELING
WD2X323D WD2X323D GE SCREW-PKG 12
WR17X12295 WR17X12295 GE SEPARATOR AIR HISIDE
WR01X10450 WR01X10450 GE SET SCREW
WR30X10143 WR30X10143 GE SHELF CHILLER
WR71X10925 WR71X10925 GE SHELF FIXED
WR71X10823 WR71X10823 GE SHELF FIXED & CANT ASM
WR71X20333 WR71X20333 GE SHELF MODULE
WR02X13341 WR02X13341 GE SHIELD LIGHT FZ
WR17X12668 WR17X12668 GE SHROUD CONDENSER
WR02X10668 WR02X10668 GE SHUNT SENSOR
WR72X10073 WR72X10073 GE SLIDE PAN LH
WR72X10072 WR72X10072 GE SLIDE PAN RH
WR02X10582 WR02X10582 GE SNUGGER MODULE
WR02X9391 WR02X9391 GE SOCKET & TERMINAL ASM
WR2X9391 WR2X9391 GE SOCKET AND TERM
WR02X10892 WR02X10892 GE SPACER TRACK
WR1X2027 WR1X2027 GE SPRING CLOSU
WR02X10663 WR02X10663 GE STAND OFF
WR02X12880 WR02X12880 GE STOP DOOR FF
WR02X12802 WR02X12802 GE STOP DOOR FF
WR1X1779 WR1X1779 GE STUD MTGCOMP
WR02X10588 WR02X10588 GE SUPPORT CONDENSER
WR02X10587 WR02X10587 GE SUPPORT CONDENSER
WR02X13504 WR02X13504 GE SUPPORT VEGETABLE PAN ASSEMBLY
WR02X12804 WR02X12804 GE THIMBLE DOOR FF
WR02X12881 WR02X12881 GE THIMBLE DOOR FF
WR72X10304 WR72X10304 GE TRACK CENTER FF
WR72X10305 WR72X10305 GE TRACK SIDE FF
WR12X10928 WR12X10928 GE TRIM BASKET
WR17X12577 WR17X12577 GE TROUGH DRAIN ASM
WR02X11426 WR02X11426 GE TUBE DRAIN
WR57X10086 WR57X10086 GE VALVE AND TUBE ASM
WR17X12568 WR17X12568 GE VENT AIR ASM
WR02X10695 WR02X10695 GE WHEEL MOBILITY
WR02X11607 WR02X11607 GE WIRE TIE
WR02X11027 WR02X11027 GE WIRE TIE
WR1X1749 WR1X1749 GE WR1X1749
