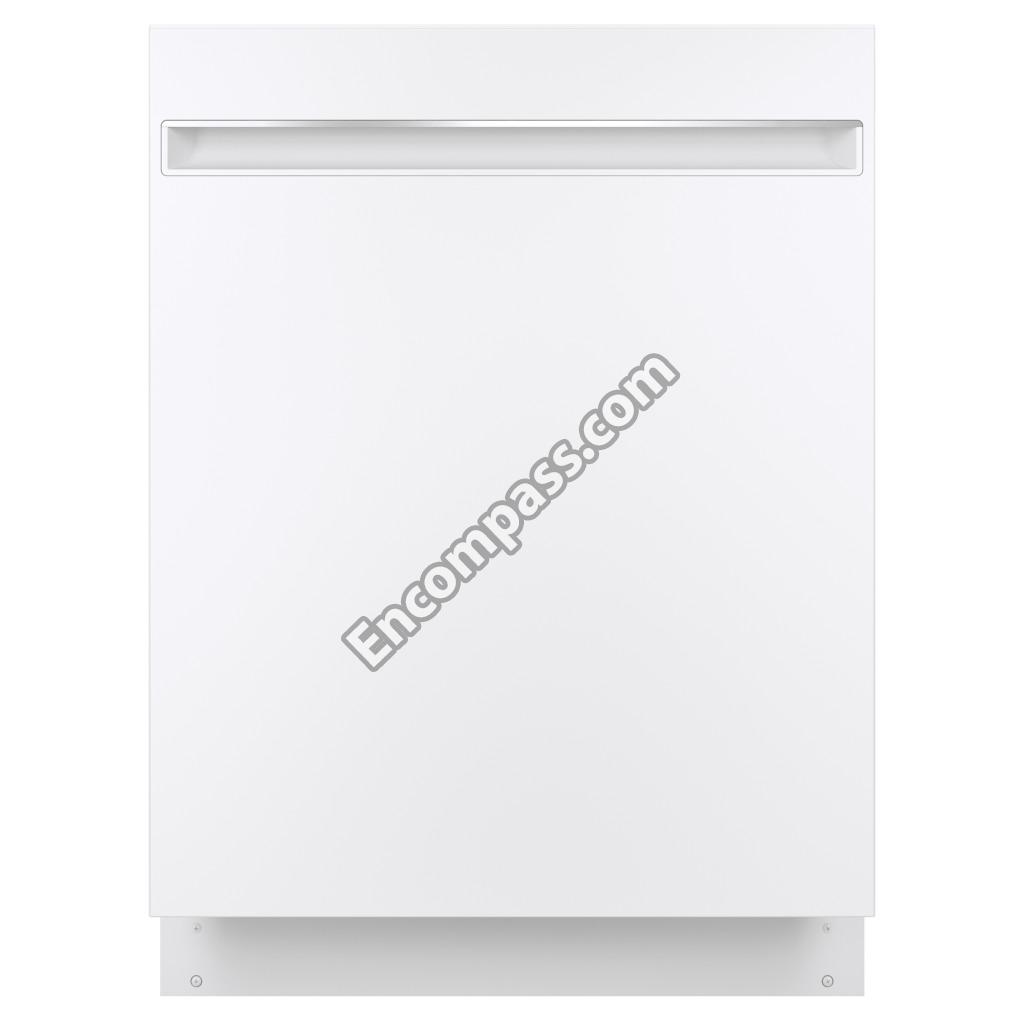

Model Image
Manufacturer

GE

Model Number

GDT225SGL2WW

Description

Dishwasher

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WD02X25400 WD02X25400 GE "24"" MOUNTING BRACKETS KIT"
WD27X24728 WD27X24728 GE ADJUSTABLE TOE KICK WHITE
WD24X24729 WD24X24729 GE AIR BREAK TO SUMP FILL HOSE
WD12X24598 WD12X24598 GE AIRBREAK FLOW METER ASM
WD09X24603 WD09X24603 GE BUTTONS WHITE
WD15X24624 WD15X24624 GE CHECK VALVE AND HOUSING
WD01X27538 WD01X27538 GE CLAMP
WD35X10382 WD35X10382 GE CLAMP
WD12X26198 WD12X26198 GE CONSOLE
WD34X24733 WD34X24733 GE CONSOLE COVER GDT WW
WD02X24632 WD02X24632 GE CONTROL BOARD CLIP
WD01X24633 WD01X24633 GE CONTROL BOX BACK
WD01X24634 WD01X24634 GE CONTROL BOX BRACKET
WD01X24635 WD01X24635 GE CONTROL BOX FRONT
WD12X24636 WD12X24636 GE CUP SHELF
WD12X32801 WD12X32801 GE DETERGENT MODULE
WD12X24644 WD12X24644 GE DOOR DOOR LATCH
WD02X24734 WD02X24734 GE DOOR SPRING
WD12X24648 WD12X24648 GE DOOR STRIKER ASM
WD01X26238 WD01X26238 GE DOOR SUPPORTING BLOCK
WD01X25807 WD01X25807 GE DOOR SUPPORTING FOAM
WD24X24649 WD24X24649 GE DRAIN HOSE
WD01X25898 WD01X25898 GE DRAIN HOSE CLAMP
WD24X10062 WD24X10062 GE DRAIN HOSE EXTENSION
WD19X24651 WD19X24651 GE DRAIN PUMP ASM
WD24X24717 WD24X24717 GE DRAIN PUMP DISCHARGE HOSE
WD24X24599 WD24X24599 GE FILL HOSE
WD12X24656 WD12X24656 GE FINE FILTER
WD12X24657 WD12X24657 GE FLOOD FLOAT & SWITCH ASM
WD12X24658 WD12X24658 GE FLOOD FLOAT COVER
WD12X24659 WD12X24659 GE FLOOD FLOAT STEM
WD08X24660 WD08X24660 GE FLOOD FLOAT STEM GASKET
WD30X24737 WD30X24737 GE FRONT FRAME BRACE
WD12X24663 WD12X24663 GE GLASS TRAP
WD01X24738 WD01X24738 GE HINGE MECHANISM LH
WD01X24739 WD01X24739 GE HINGE MECHANISM RH
WD27X32800 WD27X32800 GE INNER DOOR ASM
WD01X24665 WD01X24665 GE JUNCTION BOX COVER
WD02X25806 WD02X25806 GE LEVELING LEG
WD02X26240 WD02X26240 GE LIGHT PIPE 1
WD02X26241 WD02X26241 GE LIGHT PIPE 2
WD02X26239 WD02X26239 GE LIGHT PIPE 3
WD28X32802 WD28X32802 GE LOWER RACK ASM
WD22X24672 WD22X24672 GE LOWER SPRAY ARM
WD12X24673 WD12X24673 GE LOWER SPRAY ARM BASE
WD21X25696 WD21X25696 GE MACHINE CONTROL FUSE
WD12X24719 WD12X24719 GE MAIN CONDUIT
WD08X24720 WD08X24720 GE MAIN CONDUIT GASKET
WD24X24675 WD24X24675 GE MAIN CONDUIT HOSE
WD21X24676 WD21X24676 GE MAIN CONTROL BOARD
WD22X28059 WD22X28059 GE MID SPRAY ARM AND GASKET ASM
WD22X25158 WD22X25158 GE MID SPRAY ARM CONDUIT ASSEMBLY
WD22X24722 WD22X24722 GE MID SPRAY DOCKING PORT
WD27X24745 WD27X24745 GE OUTER DOOR PANEL ASM GDT WW
WD12X26378 WD12X26378 GE PLASTIC COARSE FILTER
31-4000247 31-4000247 GE PM INSTALL INSTRUCTIONS
49-55124 49-55124 GE PM OWNERS MANUAL
31-4000295 31-4000295 GE PRINTED ONLYMINI MANUAL AND WIRING
WD02X24746 WD02X24746 GE PULLEY CABLE ASSEMBLY
WD01X24620 WD01X24620 GE QUEEZE CLAMP SMALL
WD12X24354 WD12X24354 GE RACK SLIDE END CAP
WD30X24688 WD30X24688 GE RACK SLIDE SUPPORT
WD02X24690 WD02X24690 GE SCREW
WD02X27558 WD02X27558 GE SCREW
WJ01X23759 WJ01X23759 GE SCREW
WD02X24697 WD02X24697 GE SCREW DOOR LATCH ASSEMBLY
WD02X24614 WD02X24614 GE SCREW GROUND
WD02X24610 WD02X24610 GE SCREW TOE KICK WHITE
WD02X24617 WD02X24617 GE SCREW WATER VALVE
WD28X24747 WD28X24747 GE SILVERWARE BASKET AND LID
WD01X24723 WD01X24723 GE SQUEEZE CLAMP LARGE
WD19X24692 WD19X24692 GE SUMP ASM
WD08X28058 WD08X28058 GE SUMP GASKET
WD08X24694 WD08X24694 GE SUMP INSERT
WD01X24695 WD01X24695 GE SUMP PORT PLUG
WD08X24696 WD08X24696 GE SUMP PORT PLUG GASKET

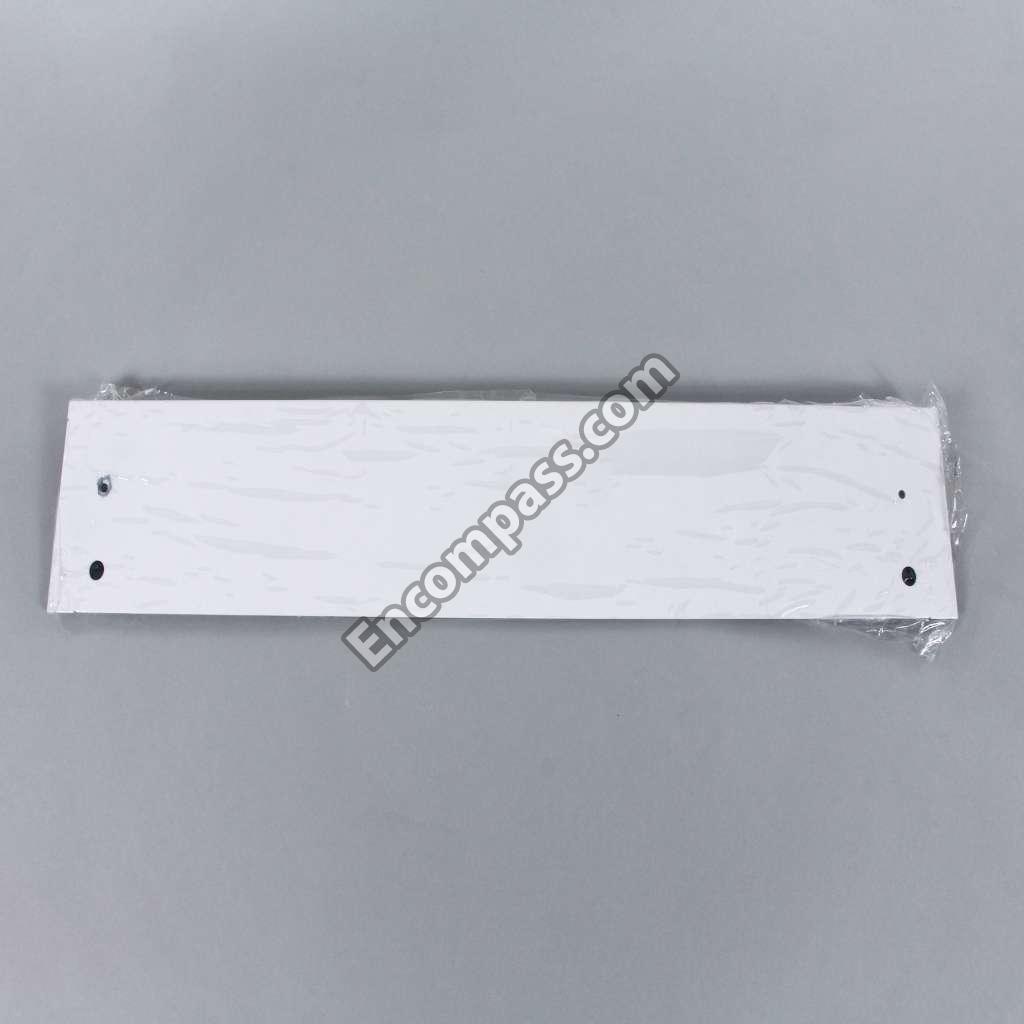

WD27X24749 WD27X24749 GE TOE KICK WHITE
WD01X27198 WD01X27198 GE TRIM KIT
WD08X24750 WD08X24750 GE TUB GASKET
WD30X26201 WD30X26201 GE TUB INSULATION BLANKET
WD21X24700 WD21X24700 GE TURBIDITY SENSOR
WD21X32839 WD21X32839 GE UI CONTROL ASM
WD28X25179 WD28X25179 GE UPPER RACK ASM
WD30X25805 WD30X25805 GE UPPER RACK SLIDE
WD22X24753 WD22X24753 GE UPPER SPRAY ASM
WD22X24704 WD22X24704 GE UPPER SPRAY NOZZLE
WD24X27560 WD24X27560 GE VENT FUNNEL ASM
WD08X27559 WD08X27559 GE VENT FUNNEL GASKET
WD12X27561 WD12X27561 GE VENT FUNNEL INLET NUT
WD19X24705 WD19X24705 GE WASH PUMP ASM
WD24X31318 WD24X31318 GE WASH PUMP DISCHARGE HOSE
WD01X24707 WD01X24707 GE WASH PUMP HANGER
WD01X24708 WD01X24708 GE WASH PUMP SHIELD
WD02X24709 WD02X24709 GE WATER INLET NUT
WD08X24710 WD08X24710 GE WATER INLET NUT GASKET
WD15X24711 WD15X24711 GE WATER VALVE
WD12X24712 WD12X24712 GE WHEEL STUD ASM LOWER RACK
WD12X24713 WD12X24713 GE WHEEL STUD ASM UPPER RACK
