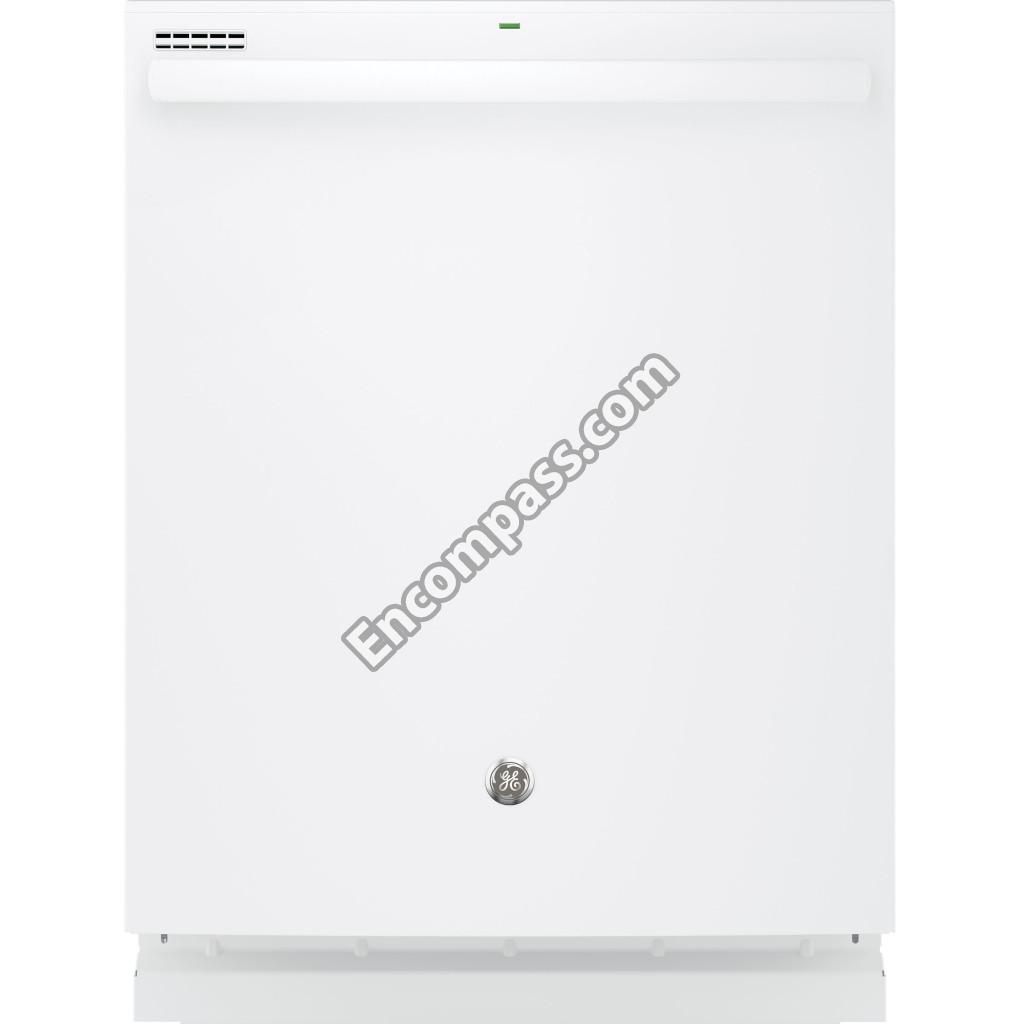

Model Image
Manufacturer

GE

Model Number

GDT545PGJ2WW

Description

Dishwasher

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WD02X10220 WD02X10220 GE 3/8-INCH HEX HEAD SCREW 10-32
WD12X10419 WD12X10419 GE ADAPTOR FILTER
WD22X33499 WD22X33499 GE ARM SPRAY LOWER ASM
WD22X33498 WD22X33498 GE ARM SPRAY MID ASM
WD35X10393 WD35X10393 GE ARM SPRAY MID ASSEMBLY
WD30X28098 WD30X28098 GE BAG INSULATION ASSEMBLY
WD28X22621 WD28X22621 GE BASKET SILVERWARE
WD01X10578 WD01X10578 GE BLOCK FOAM DOOR
WD01X20135 WD01X20135 GE BRACKET H AND LE
WD12X25060 WD12X25060 GE BRACKET JUNCTION BOX
WD01X22513 WD01X22513 GE BRACKET SUPPORT HINGE
WD01X22512 WD01X22512 GE BRACKET SUPPORT HINGE
WD09X21693 WD09X21693 GE BUTTON AND GRAPHIC ASSEMBLY
WD01X10569 WD01X10569 GE CABLE ASSEMBLY PULLEY
WD01X35298 WD01X35298 GE CARRIER ROLLER RH
WD35X10382 WD35X10382 GE CLAMP
WD01X24246 WD01X24246 GE CLAMP
WD01X10104 WD01X10104 GE CLAMP
WD12X10430 WD12X10430 GE CLIP BRACKET
WD01X21975 WD01X21975 GE CLIP CONTROL BOARD
WD12X21681 WD12X21681 GE CONDUIT MAIN
WD22X10094 WD22X10094 GE CONDUIT MID ASSEMBLY
WD21X31910 WD21X31910 GE CONFIGURED UI CONTROL
WD34X22261 WD34X22261 GE CONSOLE CVR GRAPHIC ASSEMBLY
WD12X10469 WD12X10469 GE CONSOLE TOP CONTROL
WD30X21714 WD30X21714 GE CONTROL BOX BOTTOM
WD27X10390 WD27X10390 GE CONTROL BOX TOP
WD12X10412 WD12X10412 GE COVER JUNCTION BOX
WD28X27241 WD28X27241 GE COVER ROLLER LH
WD12X32798 WD12X32798 GE DETERGENT MODULE
WD14X20129 WD14X20129 GE DISHWASHER ARM HINGE - LH
WD14X20128 WD14X20128 GE DISHWASHER ARM HINGE ASSEMBLY - RH
WD01X23982 WD01X23982 GE DISHWASHER CONDUIT CLIP
WD21X24900C WD21X24900C GE DISHWASHER CONTROL BOARD
WD01X21740 WD01X21740 GE DISHWASHER COUNTERTOP BRACKET
WD35X10383 WD35X10383 GE DISHWASHER COUNTERTOP SCREW AND BUTTONPLUG
WD08X21894 WD08X21894 GE DISHWASHER DOOR GASKET
WD24X10062 WD24X10062 GE DISHWASHER DRAIN HOSE
WD12X10426 WD12X10426 GE DISHWASHER END CAP
WD21X10519 WD21X10519 GE DISHWASHER FLOOD SWITCH ASSEMBLY
WD01X22786 WD01X22786 GE DISHWASHER HOSE CLAMP
WD21X10490 WD21X10490 GE DISHWASHER LATCH AND SWITCH ASSEMBLY
WD01X10632 WD01X10632 GE DISHWASHER LATCH CAM
WD28X34744 WD28X34744 GE DISHWASHER LOWER RACK
WD12X32039 WD12X32039 GE DISHWASHER MID CONDUIT DOCKING PORT
WD08X23476 WD08X23476 GE DISHWASHER PLASTIC TUB GASKET
WD01X10101 WD01X10101 GE DISHWASHER PUMP GROMMET
WD12X27578 WD12X27578 GE DISHWASHER RACK ROLLER
WD28X22600 WD28X22600 GE DISHWASHER SMALL ITEMS BASKET
WD18X21680 WD18X21680 GE DISHWASHER SUMP MANIFOLD
WD27X21334 WD27X21334 GE DISHWASHER TOE KICK INSULATION
WD08X10092 WD08X10092 GE DISHWASHER VENT DOOR SEAL
WD35X20855 WD35X20855 GE DIVERTER AIR ASM
WD19X25278 WD19X25278 GE DIVERTER ASSEMBLY KIT
WD09X10100 WD09X10100 GE DOOR HANDLE ASSEMBLY WH
WD27X29398 WD27X29398 GE DOOR INNER PLASTIC
WD34X11857 WD34X11857 GE DOOR OUTER PAINTED
WD01X25218 WD01X25218 GE DRAIN PUMP HANGER
WD05X30818 WD05X30818 GE ELEMENT HEATING ASM
WD24X27659 WD24X27659 GE FILL FUNNEL HOSE
WD22X10093 WD22X10093 GE FILTER COARSE SS
WD08X10102 WD08X10102 GE FOAM VENT INSERT
WD12X22158 WD12X22158 GE FUNNEL FILL
WD08X22758 WD08X22758 GE GASKET SUMP MANIFOLD
WD08X22476 WD08X22476 GE GASKET VENT
WR04X10181 WR04X10181 GE GE BADGE
WD02X26579 WD02X26579 GE GROUNDING PLATE
WD21X21690 WD21X21690 GE HARNESS ASSEMBLY AC
WD21X23416 WD21X23416 GE HARNESS ASSEMBLY DC
WD21X10545 WD21X10545 GE HARNESS ASSEMBLY DOOR
WD21X23559 WD21X23559 GE HARNESS ASSEMBLY JUMPER
WD24X29378 WD24X29378 GE HIGH LOOP DRAIN HOSE
WD12X10470 WD12X10470 GE HOUSING BOTTOM
WD22X20688 WD22X20688 GE HUB
WD22X20689 WD22X20689 GE IMPELLER
165D9739P026 165D9739P026 GE INSERT MINI MANUAL
WD01X22620 WD01X22620 GE INSULATION BOTTOM FRONT
WD01X10575 WD01X10575 GE LATCH CAM
WD09X20066 WD09X20066 GE LENS AND ADHESIVE ASSEMBLY
WD02X31882 WD02X31882 GE LEVELING SCREW
WD28X28918 WD28X28918 GE LOWER RACK AND SWB REPLACEMENT
WD21X24900 WD21X24900 GE MACHINE CONTROL
WD01X21977 WD01X21977 GE MOUNTING BASKET DOOR
WD01X10070 WD01X10070 GE NUT TOWER HEATER
WD12X10420 WD12X10420 GE PLATE DETERGENT
WD12X21677 WD12X21677 GE PLATE FLOOR MANUAL
31-31555 31-31555 GE PM INSTALL INSTRUCTIONS
31-30743 31-30743 GE PM MINI-MANUAL
49-55096 49-55096 GE PM OWNERS MANUAL
WD16X21836 WD16X21836 GE PULLEY HINGE
WD19X25187 WD19X25187 GE PUMP DRAIN
WD19X29159 WD19X29159 GE PUMP WASH MAIN ASM
WD26X23258 WD26X23258 GE PUMP WASH MAIN ASSEMBLY
WD12X22801 WD12X22801 GE RACK BRACKET - 3 WHEELS
WD28X30219 WD28X30219 GE RACK UPPER ASM
WD28X35779 WD28X35779 GE RACK UPPER ASSEMBLY
WD12X26146 WD12X26146 GE ROLLER LOWER RACK
WD01X20934 WD01X20934 GE SCR 1/4-TPI FL HXW 9/10
WB01T10103 WB01T10103 GE SCR 10-16 AB HXW .532
WD01X22514 WD01X22514 GE SCR 10-32 GX IHXW 9/16 S
WB02T10324 WB02T10324 GE SCR 6-20 GXB IHXW 3/8 NI.
WR01X10380 WR01X10380 GE SCR 8-18 AB TSQ 5/8 SS
WD02X10160 WD02X10160 GE SCR 8-18 B HXW .480 S
WD02X22736 WD02X22736 GE SCR10 - 16 AB HXW 3/4 SS
WD2X295 WD2X295 GE SCREW
WD02X10093 WD02X10093 GE SCREW 10-18 X 5/8
WD01X21837 WD01X21837 GE SCREW 10-32
WD02X10067 WD02X10067 GE SCREW 8-16 HXW 1/2 SS
WD21X22598 WD21X22598 GE SENSOR TURBIDITY ASSEMBLY
WD28X10350 WD28X10350 GE SHELF CUP
WD01X21974 WD01X21974 GE SHIELD DIELECTRIC
WD12X10456 WD12X10456 GE SILICONE LIGHT PIPE
WD30X24251 WD30X24251 GE SLIDE RACK
WD30X27741 WD30X27741 GE SLIDE RACK
WD03X20446 WD03X20446 GE SPRING DOOR
WD13X10071 WD13X10071 GE STRIKER LATCH
WD01X22507 WD01X22507 GE SUPPORT HEATER
WD27X26120 WD27X26120 GE TOE KICK ASM - WHITE
WD08X10096 WD08X10096 GE TRIM TUB WH
WD30X35299 WD30X35299 GE TUB INSULATION
WD12X10433 WD12X10433 GE TUB ROLLER AND STUD ASSEMBLY
WD49X24057 WD49X24057 GE ULTRA FINE FILTER KIT
WD15X26140 WD15X26140 GE VALVE WATER ASSEMBLY
WD12X10471 WD12X10471 GE VENT - GREY/ HYBRID
WD12X24082 WD12X24082 GE VENT ADAPTER
WD24X10057 WD24X10057 GE VENT FILTER
WD02X28518 WD02X28518 GE WASHER HEATER ASSEMBLY
