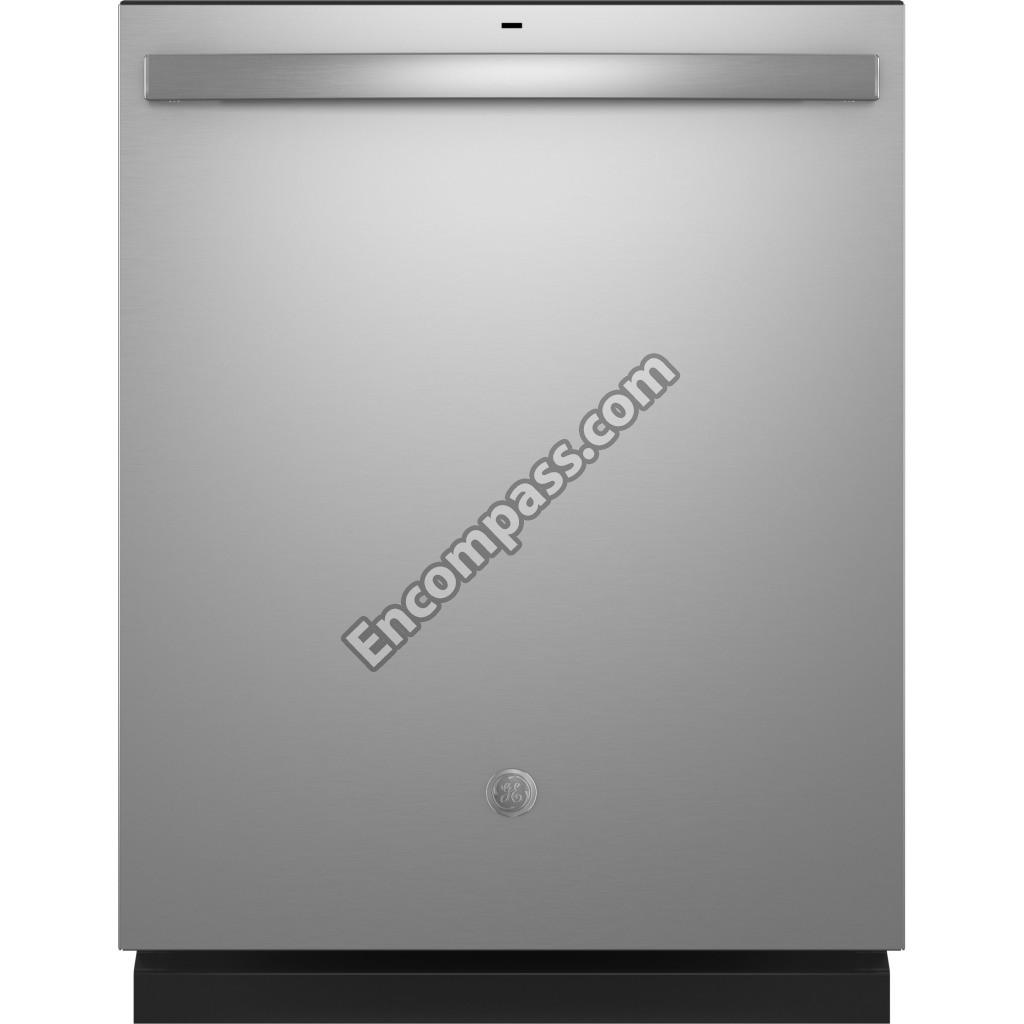

Model Image
Manufacturer

HOT

Model Number

GDT635HSR0SS

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part WD02X10220
GE
WD02X10220
3/8-INCH HEX HEAD SCREW 10-32
Checking…
View Product
Part WD21X32680
GE
WD21X32680
AC HARNESS ASSEMBLY
Checking…
View Product
Part WD28X24469
GE
WD28X24469
BASKET ASSEMBLY SILVERWARE
Checking…
View Product
Part WD27X27752
GE
WD27X27752
BLACK TOE KICK
Checking…
View Product
Part WD22X29899
GE
WD22X29899
BOTTLE BLASTER
Checking…
View Product
Part WD12X25301
GE
WD12X25301
BOTTLE WASHER CLIP
Checking…
View Product
Part WD01X24246
GE
WD01X24246
CLAMP
Checking…
View Product
Part WD01X27538
GE
WD01X27538
CLAMP
Checking…
View Product
Part WD12X10430
GE
WD12X10430
CLIP BRACKET
Checking…
View Product
Part WD01X24381
GE
WD01X24381
CLIP HEATER TWIST LOCK
Checking…
View Product
Part WD12X34182
GE
WD12X34182
CONDUIT MID BLASTER ASSEMBLY
Checking…
View Product
Part WD21X32938
GE
WD21X32938
CONFIGURED MACHINE CONTROL BOARD
Checking…
View Product
Part WD21X33551
GE
WD21X33551
CONSOLE COVER AND CONFIGURED UI BOARD
Checking…
View Product
Part WD21X25696
GE
WD21X25696
CONTROL BOARD FUSE 4.0 AMP
Checking…
View Product
Part WD30X29079
GE
WD30X29079
CONTROL BOX BOTTOM
Checking…
View Product
Part WD30X28638
GE
WD30X28638
CONTROL BOX TOP
Checking…
View Product
Part WD01X27759
GE
WD01X27759
COUNTERTOP BRACKET
Checking…
View Product
Part WD02X27760
GE
WD02X27760
COUNTERTOP BRACKET SCREWS ASSEMBLY
Checking…
View Product
Part WD24X20263
GE
WD24X20263
COVER BOTTLE BLASTER
Checking…
View Product
Part WD12X10412
GE
WD12X10412
COVER JUNCTION BOX
Checking…
View Product
Part WD12X30218
GE
WD12X30218
CUP SHELF
Checking…
View Product
Part WD21X29752
GE
WD21X29752
DC HARNESS
Checking…
View Product
Part WD12X28239
GE
WD12X28239
DETERGENT MODULE
Checking…
View Product
Part WD01X34879
GE
WD01X34879
DISHWASHER ATTACH STRIP - LH
Checking…
View Product
Part WD01X22836
GE
WD01X22836
DISHWASHER ATTACH STRIP - RH
Checking…
View Product
Part WD24X10062
GE
WD24X10062
DISHWASHER DRAIN HOSE
Checking…
View Product
Part WD12X10426
GE
WD12X10426
DISHWASHER END CAP
Checking…
View Product
Part WD02X22342
GE
WD02X22342
DISHWASHER END CAP - REAR THIRD RACK
Checking…
View Product
Part WD12X10408
GE
WD12X10408
DISHWASHER FILTER BALL - ORANGE
Checking…
View Product
Part WD01X22786
GE
WD01X22786
DISHWASHER HOSE CLAMP
Checking…
View Product
Part WD12X32039
GE
WD12X32039
DISHWASHER MID CONDUIT DOCKING PORT
Checking…
View Product
Part WD08X23476
GE
WD08X23476
DISHWASHER PLASTIC TUB GASKET
Checking…
View Product
Part WD27X22351
GE
WD27X22351
DISHWASHER RAIL AND END CAP
Checking…
View Product
Part WD30X22347
GE
WD30X22347
DISHWASHER ROLLER AND BRACKET
Checking…
View Product
Part WD13X22837
GE
WD13X22837
DISHWASHER TOP STRIP ATTACHMENT
Checking…
View Product
Part WD19X25466
GE
WD19X25466
DIVERTER ASSEMBLY
Checking…
View Product
Part WD01X29918
GE
WD01X29918
DOOR FOAM BLOCK
Checking…
View Product
Part WD02X30678
GE
WD02X30678
DOOR HANDLE BRACKET
Checking…
View Product
Part WD02X30020
GE
WD02X30020
DOOR HANDLE FASTENER
Checking…
View Product
Part WD01X27721
GE
WD01X27721
DOOR HINGE ASSEMBLY LEFT
Checking…
View Product
Part WD01X27720
GE
WD01X27720
DOOR HINGE ASSEMBLY RIGHT
Checking…
View Product
Part WD01X29878
GE
WD01X29878
DOOR LATCH
Checking…
View Product
Part WD01X29998
GE
WD01X29998
DOOR LENS
Checking…
View Product
Part WD01X26419
GE
WD01X26419
DOOR TRIM LH
Checking…
View Product
Part WD01X26418
GE
WD01X26418
DOOR TRIM RH
Checking…
View Product
Part WD19X25461
GE
WD19X25461
DRAIN PUMP ASSEMBLY
Checking…
View Product
Part WD24X33918
GE
WD24X33918
ELBOW HOSE AND CLAMPS KIT
Checking…
View Product
Part WD30X29858
GE
WD30X29858
END CAP AND RACK SLIDE LH
Checking…
View Product
Part WD30X29859
GE
WD30X29859
END CAP AND RACK SLIDE RH
Checking…
View Product
Part WD12X28478
GE
WD12X28478
FILL FUNEL
Checking…
View Product
Part WD24X27726
GE
WD24X27726
FILL FUNNEL HOSE
Checking…
View Product
Part WD08X27458
GE
WD08X27458
FLOATING SEAL ASSEMBLY
Checking…
View Product
Part WD30X24457
GE
WD30X24457
FRAME WIRE COATED ASSEMBLY
Checking…
View Product
Part WD01X20593
GE
WD01X20593
FRICTION WASHER
Checking…
View Product
Part WR04X29375
GE
WR04X29375
GEA BADGE FLAT CHROME
Checking…
View Product
Part WD01X27718
GE
WD01X27718
GROUNDING PLATE
Checking…
View Product
Part WD02X28518
GE
WD02X28518
HEATER NUT
Checking…
View Product
Part WD05X35098
GE
WD05X35098
HEATING ELEMENT
Checking…
View Product
Part WD24X29378
GE
WD24X29378
HIGH LOOP DRAIN HOSE
Checking…
View Product
Part WD24X20262
GE
WD24X20262
HOSE BOTTLE BLASTER
Checking…
View Product
Part WD22X20688
GE
WD22X20688
HUB
Checking…
View Product
Part WD22X20689
GE
WD22X20689
IMPELLER
Checking…
View Product
Part WD30X28098
GE
WD30X28098
INSULATION BAG ASSEMBLY
Checking…
View Product
Part WD21X26318
GE
WD21X26318
JUMPER HARNESS
Checking…
View Product
Part WD02X31882
GE
WD02X31882
LEVELING SCREW
Checking…
View Product
Part WD02X25303
GE
WD02X25303
LOCK NUT 5/16-18 HX 1/2 S
Checking…
View Product
Part WD12X26146
GE
WD12X26146
LOWER RACK ROLLER
Checking…
View Product
Part WD22X33499
GE
WD22X33499
LOWER SPRAY ARM ASSEMBLY
Checking…
View Product
Part WD12X35639
GE
WD12X35639
MAIN CONDUIT
Checking…
View Product
Part WD12X32041
GE
WD12X32041
MAIN CONDUIT ASSEMBLY
Checking…
View Product
Part WD22X33498
GE
WD22X33498
MID SPRAY ARM ASEMBLY
Checking…
View Product
Part WD30X24460
GE
WD30X24460
MOUNT TUB ASSEMBLY
Checking…
View Product
Part WD01X10070
GE
WD01X10070
NUT TOWER HEATER
Checking…
View Product
Part WD08X23817
GE
WD08X23817
O-RING
Checking…
View Product
Part WD22X25465
GE
WD22X25465
PLASTIC COURSE FILTER
Checking…
View Product
Part WD12X10462
GE
WD12X10462
PLATE DETERGENT
Checking…
View Product
Part 31-4000220
GE
31-4000220
PM INSTALL INSTRUCTIONS
Checking…
View Product
Part 49-4000218
GE
49-4000218
PM OWNERS MANUAL
Checking…
View Product
Part 49-4000219
GE
49-4000219
PM QUICK OWNERS MANUAL
Checking…
View Product
Part WD21X25468
GE
WD21X25468
PRESSURE SENSOR ASSEMBLY
Checking…
View Product
Part WD01X30378
GE
WD01X30378
PULLEY CABLE
Checking…
View Product
Part WD16X21836
GE
WD16X21836
PULLEY HINGE
Checking…
View Product
Part WD02X28798
GE
WD02X28798
PUMP ISOLATOR HANGER
Checking…
View Product
Part WD12X22801
GE
WD12X22801
RACK BRACKET - 3 WHEELS
Checking…
View Product
Part WD28X26099
GE
WD28X26099
RACK LOWER ASM COMPLETE
Checking…
View Product
Part WD28X34744
GE
WD28X34744
RACK LOWER ASM COMPLETE
Checking…
View Product
Part WD12X27578
GE
WD12X27578
RACK ROLLER
Checking…
View Product
Part WD28X26105
GE
WD28X26105
RACK UPPER ASM COATED
Checking…
View Product
Part WD28X35778
GE
WD28X35778
RACK UPPER ASM COATED
Checking…
View Product
Part WD27X22350
GE
WD27X22350
RAIL AND END CAP ASSEMBLY
Checking…
View Product
Part WD01X35298
GE
WD01X35298
ROLLER CARRIER
Checking…
View Product
Part WD01X22514
GE
WD01X22514
SCR 10-32 GX IHXW 9/16 S
Checking…
View Product
Part WD01X21837
GE
WD01X21837
SCREW 10-32
Checking…
View Product
Part WD02X31158
GE
WD02X31158
SCREW 11-16 PL PNP 2 SS
Checking…
View Product
Part WD02X10067
GE
WD02X10067
SCREW 8-16 HXW 1/2 SS
Checking…
View Product
Part WD02X27754
GE
WD02X27754
SCREW 8-18 AB PNP 3/4 SS
Checking…
View Product
Part WD01X27719
GE
WD01X27719
SCREW 8-18 PL HXW 1/2
Checking…
View Product
Part WR01X10065
GE
WR01X10065
SCREW 818 BA POR 5/8 SS
Checking…
View Product
Part WR01X11014
GE
WR01X11014
SET SCREW
Checking…
View Product
Part WD01X10104
GE
WD01X10104
SPRING CLAMP
Checking…
View Product
Part WD03X20445
GE
WD03X20445
SPRING DOOR
Checking…
View Product
Part WD27X30353
GE
WD27X30353
STAINLES STEEL INNER DOOR
Checking…
View Product
Part WD09X30021
GE
WD09X30021
STAINLESS STEEL DOOR H AND LE
Checking…
View Product
Part WD27X30338
GE
WD27X30338
STAINLESS STEEL OUTER DOOR PANEL
Checking…
View Product
Part WD13X10071
GE
WD13X10071
STRIKER LATCH
Checking…
View Product
Part WD01X28338
GE
WD01X28338
SUMP LATCH
Checking…
View Product
Part WD19X28199
GE
WD19X28199
SUMP OVERMOLD AND GASKET
Checking…
View Product
Part WD28X24462
GE
WD28X24462
TRAY THIRD RACK
Checking…
View Product
Part WD30X28658
GE
WD30X28658
TUB INSULATION BLANKET
Checking…
View Product
Part WD12X10433
GE
WD12X10433
TUB ROLLER AND STUD ASSEMBLY
Checking…
View Product
Part WD21X29818
GE
WD21X29818
TURBIDITY SENSOR
Checking…
View Product
Part WD21X32718
GE
WD21X32718
UI HARNESS
Checking…
View Product
Part WD12X25995
GE
WD12X25995
USER CLEANABLE FINE FILTER AND BASKET ASSEMBLY
Checking…
View Product
Part WD19X25700
GE
WD19X25700
WASH PUMP MAIN ASSEMBLY
Checking…
View Product
Part WD15X27703
GE
WD15X27703
WATER VALVE ASSEMBLY
Checking…
View Product
Part WD21X29754
GE
WD21X29754
WI-FI BOARD HARNESS
Checking…
View Product
Part WD21X30138
GE
WD21X30138
WIFI BOARD AND ENCLOSURE
Checking…
View Product
