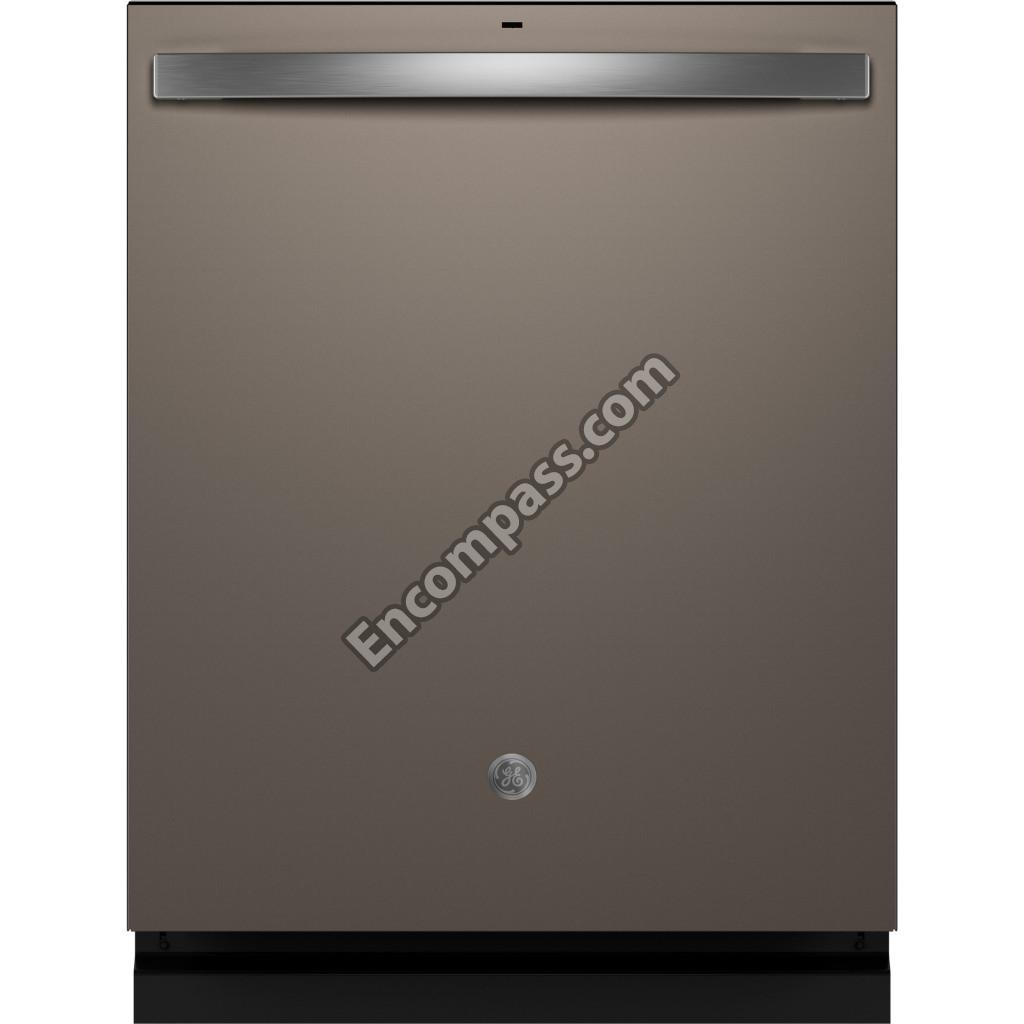

Model Image
Manufacturer

HOT

Model Number

GDT650SMV2ES

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part WD21X32678
GE
WD21X32678
AC HARNESS
Checking…
View Product
Part WD01X34879
GE
WD01X34879
ATTACH STRIP
Checking…
View Product
Part WD01X22836
GE
WD01X22836
ATTACH STRIP RH
Checking…
View Product
Part WD13X22837
GE
WD13X22837
ATTACHMENT STRIP TOP
Checking…
View Product
Part WD12X10408
GE
WD12X10408
BALL FILTER - ORANGE
Checking…
View Product
Part WD28X24469
GE
WD28X24469
BASKET ASM SILVERWARE
Checking…
View Product
Part WD27X27752
GE
WD27X27752
BLACK TOE KICK
Checking…
View Product
Part WD22X29899
GE
WD22X29899
BOTTLE BLASTER
Checking…
View Product
Part WD12X25301
GE
WD12X25301
BOTTLE WASHER CLIP
Checking…
View Product
Part WD01X24246
GE
WD01X24246
CLAMP
Checking…
View Product
Part WD01X27538
GE
WD01X27538
CLAMP
Checking…
View Product
Part WD01X22786
GE
WD01X22786
CLAMP HOSE
Checking…
View Product
Part WD12X10430
GE
WD12X10430
CLIP BRACKET
Checking…
View Product
Part WD21X35478
GE
WD21X35478
CONFIGURED MACHINE CONTROL BOARD
Checking…
View Product
Part WD21X35479
GE
WD21X35479
CONFIGURED MACHINE CONTROL BOARD
Checking…
View Product
Part WD21X35462
GE
WD21X35462
CONFIGURED UI CONTROL WITH COVER
Checking…
View Product
Part WD30X31504
GE
WD30X31504
CONTROL BOX BOTTOM
Checking…
View Product
Part WD12X31503
GE
WD12X31503
CONTROL BOX SPACER AND SILPAD
Checking…
View Product
Part WD27X32298
GE
WD27X32298
CONTROL BOX TOP
Checking…
View Product
Part WD01X27759
GE
WD01X27759
COUNTERTOP BRACKET
Checking…
View Product
Part WD35X35958
GE
WD35X35958
COUNTERTOP SCREWS AND PLUG BUTTONS
Checking…
View Product
Part WD24X20263
GE
WD24X20263
COVER BOTTLE BLASTER
Checking…
View Product
Part WD12X10412
GE
WD12X10412
COVER JUNCTION BOX
Checking…
View Product
Part WD21X31502
GE
WD21X31502
DC HARNESS
Checking…
View Product
Part WD12X28239
GE
WD12X28239
DETERGENT MODULE
Checking…
View Product
Part WD19X25466
GE
WD19X25466
DIVERTER ASM
Checking…
View Product
Part WD12X35640
GE
WD12X35640
DOCKING PORT
Checking…
View Product
Part WD01X29998
GE
WD01X29998
DOOR CAMERA LENS
Checking…
View Product
Part WD01X29878
GE
WD01X29878
DOOR DOOR LATCH
Checking…
View Product
Part WD01X29918
GE
WD01X29918
DOOR FOAM BLOCK
Checking…
View Product
Part WD02X30020
GE
WD02X30020
DOOR HANDLE MOUNTING STUD
Checking…
View Product
Part WD01X27721
GE
WD01X27721
DOOR HINGE ASSEMBLY LEFT
Checking…
View Product
Part WD01X27720
GE
WD01X27720
DOOR HINGE ASSEMBLY RIGHT
Checking…
View Product
Part WD01X26419
GE
WD01X26419
DOOR TRIM LH
Checking…
View Product
Part WD01X26418
GE
WD01X26418
DOOR TRIM RH
Checking…
View Product
Part WD19X25461
GE
WD19X25461
DRAIN PUMP ASM
Checking…
View Product
Part WD24X10062
GE
WD24X10062
DRAIN TUBE ASM
Checking…
View Product
Part WD02X22342
GE
WD02X22342
END CAP THIRD RACK REAR
Checking…
View Product
Part WD12X34218
GE
WD12X34218
FILL FUNNEL AND GASKET
Checking…
View Product
Part WD12X25080
GE
WD12X25080
FILL FUNNEL CAP
Checking…
View Product
Part WD24X27726
GE
WD24X27726
FILL FUNNEL HOSE
Checking…
View Product
Part WD08X27458
GE
WD08X27458
FLOATING SEAL ASM
Checking…
View Product
Part WD01X20593
GE
WD01X20593
FRICTION WASHER
Checking…
View Product
Part WD08X22095
GE
WD08X22095
GASKET TUB SS
Checking…
View Product
Part WR04X29375
GE
WR04X29375
GEA BADGE FLAT CHROME
Checking…
View Product
Part WD21X31520
GE
WD21X31520
GROUND HARNESS
Checking…
View Product
Part WD02X30678
GE
WD02X30678
HANDLE BRACKET
Checking…
View Product
Part WD02X33462
GE
WD02X33462
HEATER NUT
Checking…
View Product
Part WD05X35098
GE
WD05X35098
HEATING ELEMENT
Checking…
View Product
Part WD24X29378
GE
WD24X29378
HIGH LOOP DRAIN HOSE
Checking…
View Product
Part WD24X20262
GE
WD24X20262
HOSE BOTTLE BLASTER
Checking…
View Product
Part WD27X30353
GE
WD27X30353
INNER DOOR
Checking…
View Product
Part 165D9739P060
GE
165D9739P060
INSERT MINI MANUAL
Checking…
View Product
Part WD21X26318
GE
WD21X26318
JUMPER HARNESS
Checking…
View Product
Part WD01X32638
GE
WD01X32638
JUNCTION BOX BRACKET
Checking…
View Product
Part WD02X31882
GE
WD02X31882
LEVELING LEG
Checking…
View Product
Part WD28X34479
GE
WD28X34479
LOWER RACK
Checking…
View Product
Part WD12X26146
GE
WD12X26146
LOWER RACK ROLLER
Checking…
View Product
Part WD22X33499
GE
WD22X33499
LOWER SPRAY ARM
Checking…
View Product
Part WD12X35639
GE
WD12X35639
MAIN CONDUIT
Checking…
View Product
Part WD12X34182
GE
WD12X34182
MID CONDUIT BLASTER
Checking…
View Product
Part WD22X33498
GE
WD22X33498
MID SPRAY ARM
Checking…
View Product
Part WD22X25465
GE
WD22X25465
PLASTIC COURSE FILTER
Checking…
View Product
Part WD12X10462
GE
WD12X10462
PLATE DETERGENT
Checking…
View Product
Part 31-4000282
GE
31-4000282
PM MINI MANUAL AND WIRING
Checking…
View Product
Part 49-4000283
GE
49-4000283
PM OWNERS MANUAL
Checking…
View Product
Part WD21X25468
GE
WD21X25468
PRESSURE SENSOR ASM
Checking…
View Product
Part WD01X30378
GE
WD01X30378
PULLEY CABLE
Checking…
View Product
Part WD16X21836
GE
WD16X21836
PULLEY HINGE
Checking…
View Product
Part WD02X28359
GE
WD02X28359
PUMP ISOLATOR HANGER
Checking…
View Product
Part WD12X22801
GE
WD12X22801
RACK BRACKET - 3 WHEELS
Checking…
View Product
Part WD12X27578
GE
WD12X27578
RACK ROLLER
Checking…
View Product
Part WD30X29859
GE
WD30X29859
RACK SLIDE LH
Checking…
View Product
Part WD30X29858
GE
WD30X29858
RACK SLIDE RH
Checking…
View Product
Part WD27X22351
GE
WD27X22351
RAIL AND END CAP ASM LH
Checking…
View Product
Part WD27X22350
GE
WD27X22350
RAIL AND END CAP ASM RH
Checking…
View Product
Part WD12X34282
GE
WD12X34282
REAR END CAP
Checking…
View Product
Part WD30X22347
GE
WD30X22347
ROLLER AND BRACKET ASM
Checking…
View Product
Part WD01X35298
GE
WD01X35298
ROLLER CARRIER
Checking…
View Product
Part WD02X10220
GE
WD02X10220
SCR 10-32 GX HXW 3/8
Checking…
View Product
Part WD01X22514
GE
WD01X22514
SCR 10-32 GX IHXW 9/16 S
Checking…
View Product
Part WD01X21837
GE
WD01X21837
SCR 10-32 TT CB 1/4 ZN
Checking…
View Product
Part WD02X27754
GE
WD02X27754
SCREW 8-18 AB PNP 3/4 SS
Checking…
View Product
Part WR01X10065
GE
WR01X10065
SCREW 8-18 BA POR 5/8 SS
Checking…
View Product
Part WD01X27719
GE
WD01X27719
SCREW 8-18 PL HXW 1/2
Checking…
View Product
Part WZ5X158D
GE
WZ5X158D
SCREW 8-32X3/8 GRD SCR
Checking…
View Product
Part WD02X32338
GE
WD02X32338
SCREW AND WASHER ASSEMBLY
Checking…
View Product
Part WD02X22628
GE
WD02X22628
SCREW T15 8-16 PLASTITE 60-1
Checking…
View Product
Part WR01X11014
GE
WR01X11014
SET SCREW
Checking…
View Product
Part WD27X34480
GE
WD27X34480
SLATE OUTER DOOR PANEL
Checking…
View Product
Part WD01X23558
GE
WD01X23558
SPACER TUB FRONT
Checking…
View Product
Part WD12X34262
GE
WD12X34262
SPRAY ARM HUB
Checking…
View Product
Part WD01X10104
GE
WD01X10104
SPRING CLAMP
Checking…
View Product
Part WD03X20446
GE
WD03X20446
SPRING DOOR
Checking…
View Product
Part WD03X20445
GE
WD03X20445
SPRING DOOR
Checking…
View Product
Part WD09X30021
GE
WD09X30021
STAINLESS STEEL DOOR HANDLE
Checking…
View Product
Part WD13X10071
GE
WD13X10071
STRIKER DOOR LATCH
Checking…
View Product
Part WD30X23280
GE
WD30X23280
STUD TUB
Checking…
View Product
Part WD01X28338
GE
WD01X28338
SUMP DOOR LATCH
Checking…
View Product
Part WD19X28199
GE
WD19X28199
SUMP OVERMOLD AND GASKET
Checking…
View Product
Part WD28X29960
GE
WD28X29960
THIRD RACK TRAY
Checking…
View Product
Part WD01X32858
GE
WD01X32858
THIRD RACK TUB MOUNT ASM
Checking…
View Product
Part WD01X32859
GE
WD01X32859
THIRD RACK TUB MOUNT BRACE
Checking…
View Product
Part WD01X35158
GE
WD01X35158
TUB TRIMS KIT
Checking…
View Product
Part WD21X29818
GE
WD21X29818
TURBIDITY SENSOR
Checking…
View Product
Part WD21X32718
GE
WD21X32718
UI HARNESS
Checking…
View Product
Part WD28X34478
GE
WD28X34478
UPPER RACK
Checking…
View Product
Part WD22X20688
GE
WD22X20688
UPPER SPRAY HUB
Checking…
View Product
Part WD22X20689
GE
WD22X20689
UPPER SPRAY IMPELLER
Checking…
View Product
Part WD12X25995
GE
WD12X25995
USER CLEANABLE FINE FILTER AND BASKET AS
Checking…
View Product
Part WD19X32518
GE
WD19X32518
WASH PUMP
Checking…
View Product
Part WD3X767
GE
WD3X767
WASHER
Checking…
View Product
Part WD02X34219
GE
WD02X34219
WATER INLET NUT
Checking…
View Product
Part WD15X27703
GE
WD15X27703
WATER VALVE ASM
Checking…
View Product
Part WD01X34281
GE
WD01X34281
WHEELS ON RAIL BRACKET
Checking…
View Product
