Manufacturer
GE
Model Number

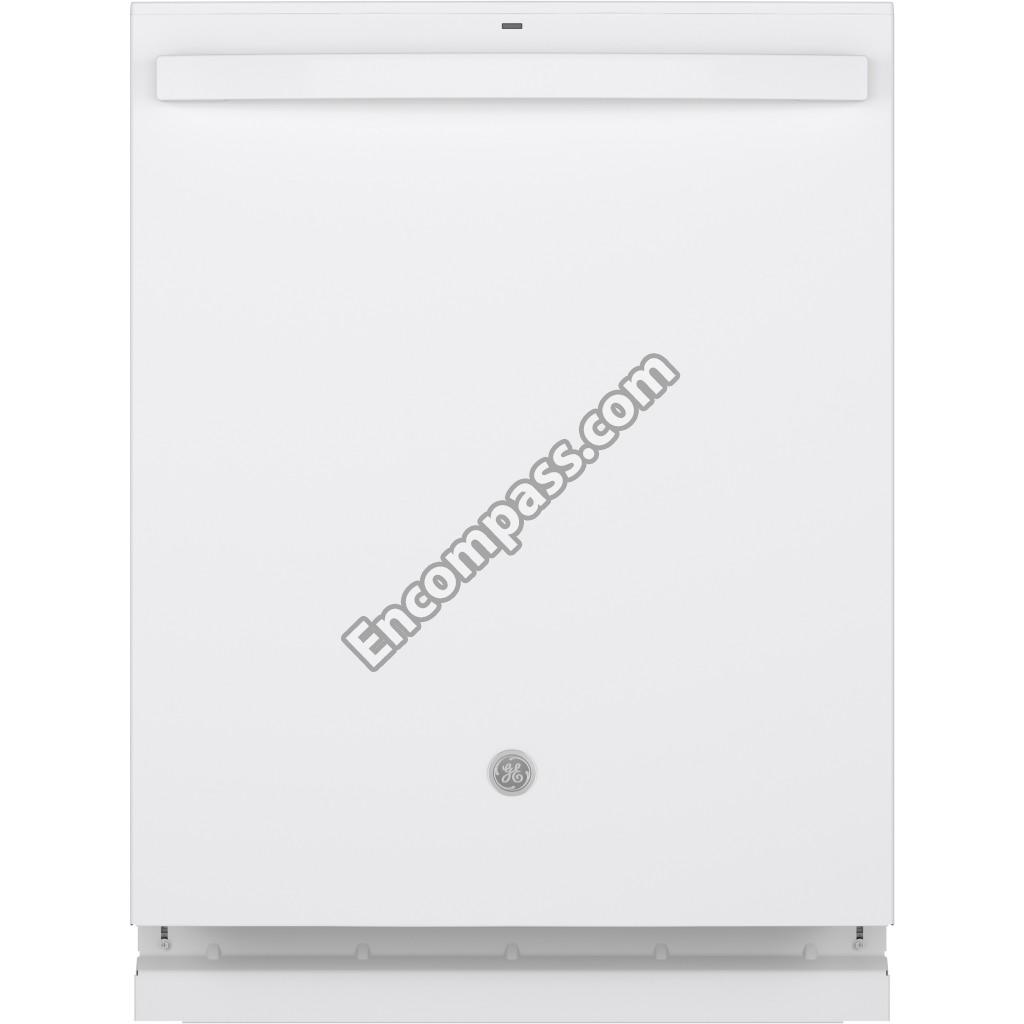

GDT665SGN8WW
Description
Dishwasher
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
AC HARNESS |
|
|
ARM HINGE ASM LH |
|
|
ARM HINGE ASM RH |
|
|
ATTACH STRIP |
|
|
ATTACH STRIP RH |
|
|
ATTACHMENT STRIP TOP |
|
|
BASKET ASM SILVERWARE |
|
|
BLOCK FOAM DOOR |
|
|
BOTTLE BLASTER |
|
|
BOTTLE WASHER CLIP |
|
|
BRACE TUB MOUNT |
|
|
BRACKET ASM UPPER RACK |
|
|
BRACKET ASM UPPER RACK |
|
|
BRACKET CABLE LH |
|
|
BRACKET CABLE RH |
|
|
BRACKET FIXED |
|
|
BRACKET FIXED |
|
|
CAMERA LENS AND ADHESIVE ASM |
|
|
CLAMP |
|
|
CLAMP |
|
|
CLAMP HOSE |
|
|
CLIP LOWER RACK |
|
|
COATED FOLD DOWN TINE |
|
|
COATED FOLD DOWN TINE |
|
|
COATED LOWER RACK ASM |
|
|
COATED WIRE FRAME ASM |
|
|
CONDUIT MID BLASTER ASM |
|
|
CONFIGURED MACHINE CONTROL BOARD |
|
|
CONFIGURED MACHINE CONTROL BOARD |
|
|
CONFIGURED TOP UI CONTROL WITH COVER |
|
|
CONTROL BOX BOTTOM |
|
|
CONTROL BOX SPACER AND SILPAD |
|
|
CONTROL BOX TOP |
|
|
COUNTERTOP BRACKET |
|
|
COUNTERTOP SCREWS AND PLUG BUTTONS |
|
|
COVER BOTTLE BLASTER |
|
|
COVER JUNCTION BOX |
|
|
COVER VENT |
|
|
DC HARNESS |
|
|
DETERGENT MODULE |
|
|
DIVERTER DISC AND MAGNET ASM |
|
|
DIVERTER HARNESS |
|
|
DOCKING PORT SS |
|
|
DOOR DOOR LATCH |
|
|
DOOR TRIM LH |
|
|
DOOR TRIM RH |
|
|
DOOR VENT SEAL |
|
|
DRAIN PUMP ASM |
|
|
DRAIN TUBE ASM |
|
|
END CAP THIRD RACK REAR |
|
|
FAN VENT ASM |
|
|
FILL FUNNEL CAP |
|
|
FILL FUNNEL HOSE |
|
|
FLOATING SEAL ASM |
|
|
FRICTION WASHER |
|
|
FUNNEL AND GASKET ASM |
|
|
GASKET TUB SS |
|
|
GEA BADGE FLAT CHROME |
|
|
GROUND HARNESS |
|
|
HANDLE BRACKET |
|
|
HEATING ELEMENT |
|
|
HIGH LOOP DRAIN HOSE |
|
|
HOSE BOTTLE BLASTER |
|
|
HUB |
|
|
IMPELLER |
|
|
INDEXER |
|
|
INNER DOOR |
|
|
INNER RAIL UPR RACK ASM |
|
|
INSERT MINI MANUAL |
|
|
JUMPER HARNESS |
|
|
JUNCTION BOX BRACKET |
|
|
LOWER SPRAY ARM ASSEMBLY |
|
|
MAIN CONDUIT |
|
|
MID SPRAY ARM ASEMBLY |
|
|
NUT TOWER HEATER |
|
|
PLASTIC COURSE FILTER |
|
|
PLATE DETERGENT |
|
|
PM MINI MANUAL AND WIRING |
|
|
PM OWNERS AND INSTALL |
|
|
PM OWNERS MANUAL |
|
|
PRESSURE SENSOR ASM |
|
|
PULLEY CABLE |
|
|
PULLEY HINGE |
|
|
PUMP ISOLATOR HANGER |
|
|
RACK HANDLE |
|
|
RAIL AND END CAP ASM |
|
|
RAIL AND END CAP ASM |
|
|
ROLLER |
|
|
ROLLER AND BRACKET ASM |
|
|
ROLLER CARRIER |
|
|
ROLLER TUB |
|
|
S ARM ADAPTER |
|
|
SCR 1/4-28 FL IHXW 15/16 |
|
|
SCR 10-32 GX HXW 3/8 |
|
|
SCR 10-32 GX IHXW 9/16 S |
|
|
SCR 10-32 TT CB 1/4 ZN |
|
|
SCR 6-20 GXB IHXW 3/8 NI |
|
|
SCR B-16 HXW 1/2 SS |
|
|
SCREW 10-32 GXTT FLP 595 |
|
|
SCREW 8-16 HXW 1/2 SS |
|
|
SCREW 8-18 AB PNP 3/4 SS |
|
|
SCREW 8-32X3/8 GRD SCR |
|
|
SCREW AND WASHER ASSEMBLY |
|
|
SCREW LEVELING |
|
|
SCREW T15 8-16 PLASTITE |
|
|
SILVERWARE BASKET DIVERTER PLUG |
|
|
SLEEVE TUB MOUNT |
|
|
SPACER TUB FRONT |
|
|
SPRING CLAMP |
|
|
SPRING DOOR |
|
|
SPRING DOOR |
|
|
STRIKER DOOR LATCH |
|
|
SUMP DOOR LATCH |
|
|
SUMP OVERMOLD AND GASKET |
|
|
TRANSITION PIECE ASM |
|
|
TRAY THIRD RACK |
|
|
TUB INSULATION BLANKET |
|
|
TUB TRIMS KIT |
|
|
TURBIDITY SENSOR |
|
|
UI HARNESS |
|
|
UPPER RACK ASSEMBLY |
|
|
USER CLEANABLE FINE FILTER |
|
|
VENT CONDUIT ASM |
|
|
VENT SPACER |
|
|
WASH PUMP |
|
|
WASHER |
|
|
WATER VALVE ASM |
|
|
WHITE HANDLE ASM |
|
|
WHITE OUTER DOOR ASM |
|
|
WHITE TOE KICK ASM |
