Manufacturer
GE
Model Number
GDWT608V55WW

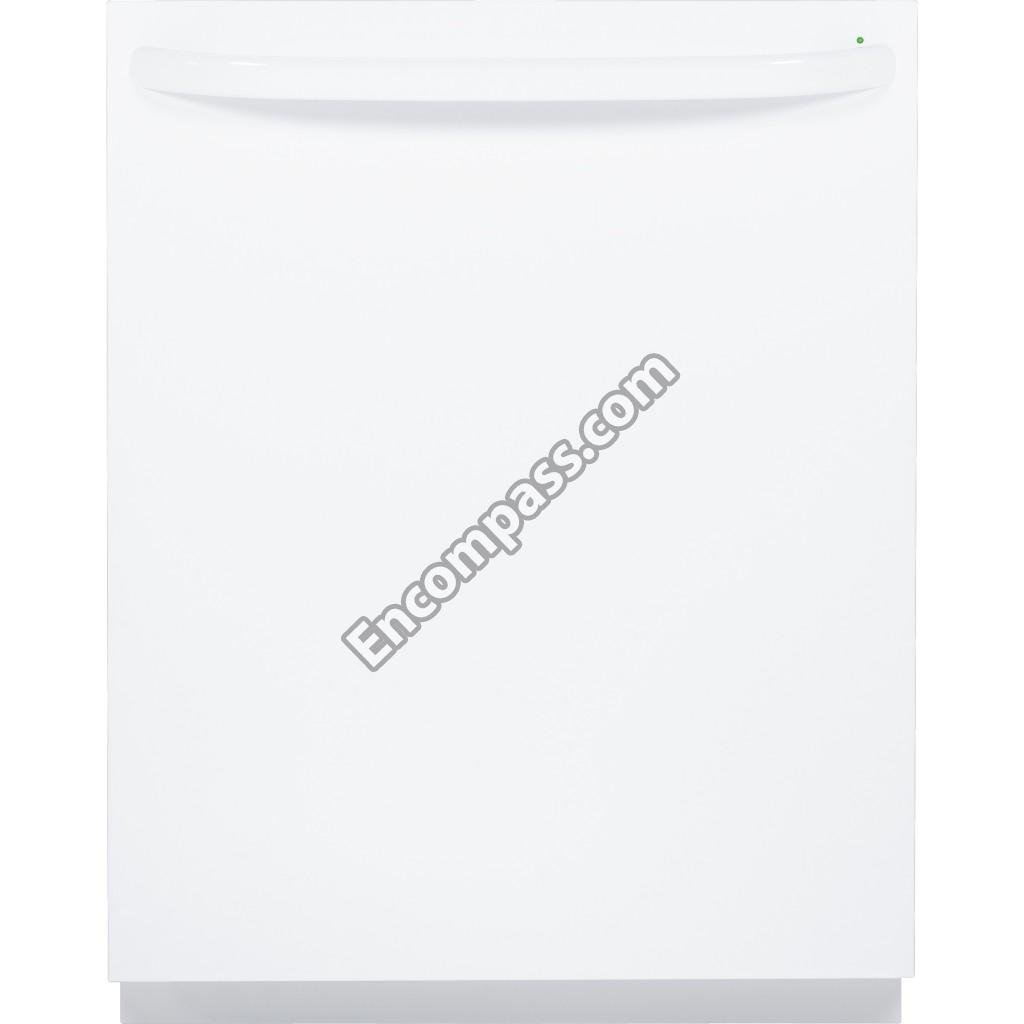

Description
Dishwasher
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ARM HINGE |
|
|
ARM HINGE |
|
|
ARM SPRAY LOW ASM |
|
|
ARM SPRAY MID ASM |
|
|
ARM SPRAY UPPER ASSEMBLY. |
|
|
BAG AND BRACKET ASSEMBLY |
|
|
BASE FLOOD SWITCH |
|
|
BASKET SILVERWARE ASM |
|
|
BASKET SILVERWARE LONG |
|
|
BEARING HINGE ARM |
|
|
BEARING SPRAY ARM LOW |
|
|
BEARING SPRAY ARM UP |
|
|
BLOWER DISHWASHER |
|
|
BOARD CNTRL SHIELD |
|
|
BRACKET DETERGENT DISPLAY |
|
|
BRACKET J BOX |
|
|
BRACKET SPRAY ARM MID |
|
|
BRACKET TCO |
|
|
BUTTON ASSEMBLY SLICONE |
|
|
CAP RINSE ASM |
|
|
CLAMP |
|
|
CLAMP |
|
|
CLAMP |
|
|
CLAMP SUMP |
|
|
COMB ASM LOWER RACK |
|
|
COMB ASM LOWER RACK |
|
|
COMPLETE LOWER SERVICE RACK ASSEMBLY |
|
|
CONDUIT CARRIER MID |
|
|
CONDUIT MAIN |
|
|
CONDUIT SPRAY ARM MID |
|
|
CONNECTOR PUMP ASSEMBLY |
|
|
CONSOLE AND COVER ASSEMBLY |
|
|
CONSOLE COVER ASM |
|
|
COVER INLET |
|
|
COVER JUNCTION BOX. |
|
|
COVER VENT |
|
|
COVER WATER INLET |
|
|
CUP HINGE |
|
|
DISHWASHER HINGE CABLE |
|
|
DISHWASHER HOSE CLAMP |
|
|
DISHWASHER LOWER STUD ROLLER |
|
|
DOME FLOAT |
|
|
DOOR INNER & GASKET |
|
|
DRAIN TUBE ASSEMBLY |
|
|
ELEMENT HEATING ASM |
|
|
FILTER COARSE |
|
|
FILTER FINE ASM |
|
|
FILTER SUMP & COVER ASM |
|
|
FINGER INDEXER |
|
|
FINGER INDEXER |
|
|
FLAPPER VENT |
|
|
FLOAT |
|
|
FUNNEL AND GASKET ASM |
|
|
GASKET CONDUIT |
|
|
GASKET TUB |
|
|
GASKET WATER INLET |
|
|
GRIPPER STEMWARE |
|
|
GROMMET |
|
|
GROMMET |
|
|
GROMMET HEATER |
|
|
HANDLE BRACKET |
|
|
HANDLE WW |
|
|
HANGER MECH ASSEMBLY |
|
|
HARNESS HMI ASM |
|
|
HINGE WELD SRVICE KIT SS |
|
|
HOSE FILL |
|
|
HSNG SPECIAL-WATER VALVE |
|
|
HUB SPRAY ARM MID |
|
|
HUB VENTURI ASM |
|
|
INLET TRANSITION |
|
|
INNER RAIL UPR RACK |
|
|
INSULATED EXHAUST VENT |
|
|
INSULATION TUB |
|
|
KIT - IMPELLER ASM |
|
|
KIT - IMPELLER ASM |
|
|
LATCH |
|
|
LATCH |
|
|
LATCH BRACKET |
|
|
LENS INDICATOR |
|
|
LEVELING LEG |
|
|
LINK HINGE ARM |
|
|
LOCKNUT |
|
|
LOWER RACK WHEEL |
|
|
MECHANISM ASSEMBLY |
|
|
MODEL SELECTOR PLUG ASM |
|
|
MODULE CONTROL ASSEMBLY KIT |
|
|
MODULE RINSE AND CAP ASM |
|
|
NUT HUB FINE FILTER |
|
|
NUT TOWER HEATER ASM |
|
|
NUT WATER INLET |
|
|
PANEL ASSEMBLY OUTER KIT -GE (WW) |
|
|
PLATE SUMP |
|
|
PLUG BUTTON |
|
|
PM INSTALL INSTRUCTIONS |
|
|
PM MANUAL USE & CARE |
|
|
PM SHEET MINI MANUAL |
|
|
PULLEY HINGE |
|
|
PUMP DRAIN ASM |
|
|
RACK FIXED ASSEMBLY UPPER |
|
|
RACK UPPER ROLL |
|
|
RETAINER COMB |
|
|
RETAINER COMB |
|
|
RETAINER COMB |
|
|
SCR 10-16X1/2 AB HEXW S |
|
|
SCR 10-24X3/8 TT HEX |
|
|
SCR 10-32 2A HEX 3/4S NI |
|
|
SCR 10-32 C HX 7/16 S |
|
|
SCR 10-32 GX FLT25.615 S |
|
|
SCR 1024 TAP RNO 1/2 |
|
|
SCR 1032 TT HXW 7/16 S |
|
|
SCR 8-10 PL TRP 1/2 S |
|
|
SCR 8-18 AB HW 1/2 SS |
|
|
SCR 8-18 AB TR 7/8S |
|
|
SCR 8-18 B 1HW 1/2 SN WH. |
|
|
SCR 8-18 B HXW .480 S. |
|
|
SCR 8-18 VA TRT 7/16 S N |
|
|
SCR 8-32 B HXW 1.13 SS |
|
|
SCR 816X1/2 STN STL |
|
|
SCR 818 AB OV 655 |
|
|
SCR B-16 HXW 1/2 SS |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW 8-16 HXW 1/2 SS |
|
|
SCREW 8-18AB TR 7/8S |
|
|
SCREW 818 BA POR 5/8 SS |
|
|
SCREW LEVEL |
|
|
SEAL FLOOD SWITCH. |
|
|
SEAT CHECK VALVE |
|
|
SENSOR TURBIDITY |
|
|
SHELF MULTI PURPOSE |
|
|
SPRING DOOR |
|
|
SPRING GASKET |
|
|
STEM FLOAT |
|
|
STRIP HARDNESS TESTER |
|
|
SUMP CLAMP |
|
|
SUMP INLET |
|
|
SWITCH FLOOD ASSEMBLY |
|
|
TACTILE ASM HOUSING |
|
|
TCO ASSEMBLY |
|
|
THERMOSTAT |
|
|
TOEKICK ASM |
|
|
TRIM GASKET |
|
|
TRIM GASKET |
|
|
VALVE FLAPPER DUAL PUMP |
|
|
VENT ASM |
|
|
VENT DRIVER ASM |
|
|
WASHER HOSE CLAMP KIT |
|
|
WATER VALVE |
