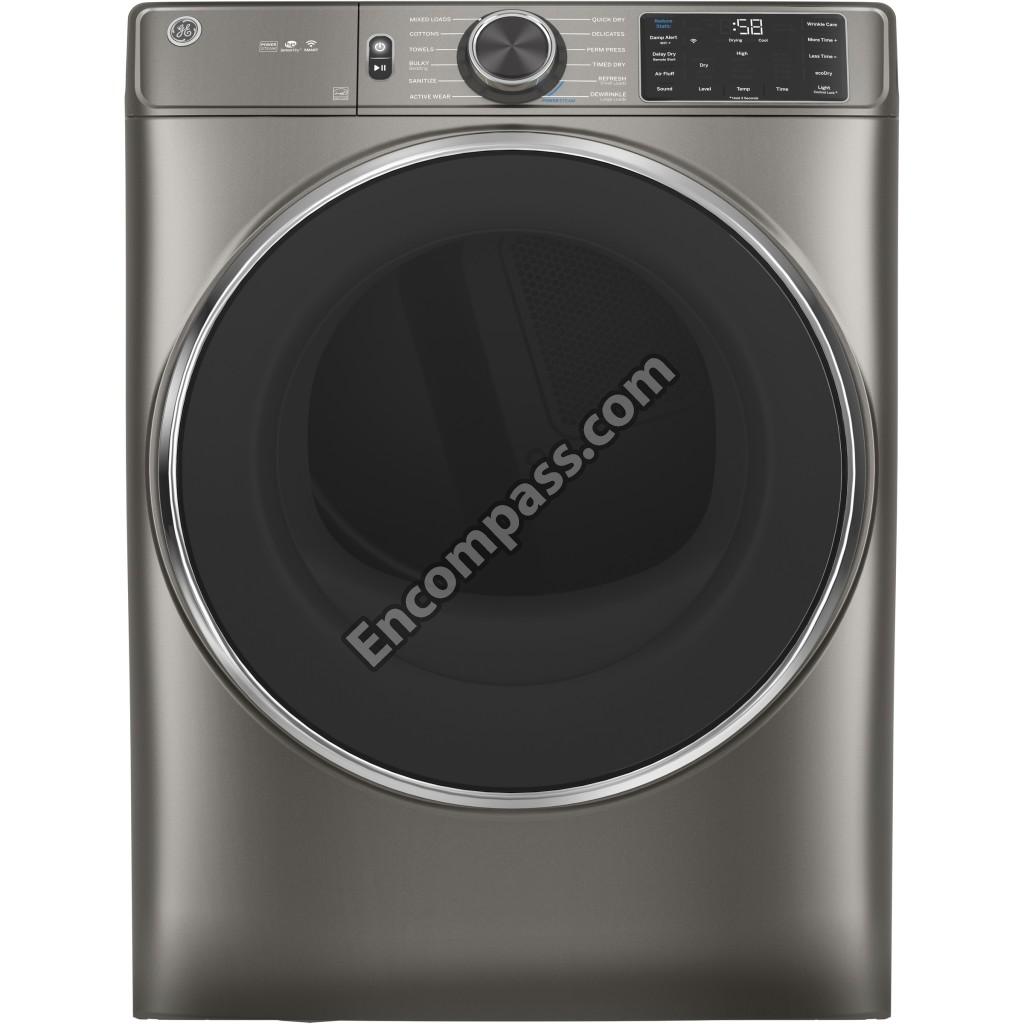

Model Image
Manufacturer

GE

Model Number

GFD65ESPN1SN

Description

Electric Dryer

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WE13X29699 WE13X29699 ACCESS PANEL
WE02X29717 WE02X29717 BELLEVILLE NUT
WE16X29713 WE16X29713 BLOWER HOUSING
WE16X33977 WE16X33977 BLOWER WHEEL
WE01X10376 WE01X10376 CLIP RESILIENT MOUNT
WH22X29461 WH22X29461 CONNECTED WIFI BOARD
WE13X29585 WE13X29585 CONTROL PANEL FRONT BRACKET
WE13X29755 WE13X29755 CONTROL PANEL SATIN NICKEL
WE10X29749 WE10X29749 DOOR COVER
WE01X34017 WE01X34017 DOOR HINGE
WE01X29738 WE01X29738 DOOR LATCH
WE13X29720 WE13X29720 DOOR PROTECT COVER
WE05X34278 WE05X34278 DOOR SEAL
WE05X29737 WE05X29737 DOOR SEAL
WE01X34284 WE01X34284 DOOR STRIKE GRAY
WE04X34281 WE04X34281 DOOR SWITCH
WE03X29704 WE03X29704 DRIVE BELT
WE21X29724 WE21X29724 DRUM
WE13X29725 WE13X29725 DRUM BAFFLE
WE10X29748 WE10X29748 DRYER DOOR HE
WE16X38737 WE16X38737 DUCT TRAP
WE13X29698 WE13X29698 DUCT TRAP BRACKET
WE13X30590 WE13X30590 DUCT TRAP SHIELD
WE11X29790 WE11X29790 ELECTRIC HEATER
WE11X29734 WE11X29734 EXHAUST DUCT
WE09X10025 WE09X10025 FAN SEAL
WE13X29593 WE13X29593 FRONT DRUM SUPPORT
WE10X29778 WE10X29778 FRONT PANEL SATIN NICKEL
WH01X29417 WH01X29417 GE BADGE
WE13X29598 WE13X29598 GRILLE HOUSING
WE01X35017 WE01X35017 HANDLE SPACER FL DRYER
WE04X29793 WE04X29793 HIGH LIMIT THERMOSTAT
WE03X30657 WE03X30657 IDLER ARM
WE03X29702 WE03X29702 IDLER SPRING
WE04X29792 WE04X29792 INLET BACKUP THERMOSTAT
WE13X29716 WE13X29716 INLET RING
WE01X29697 WE01X29697 LEVELING LEG
WE16X32537 WE16X32537 LINT FILTER
WE22X39117 WE22X39117 MAIN BOARD
WE13X29701 WE13X29701 MAIN BOARD BRACKET
WE22X38277 WE22X38277 MAIN CONTROL BOARD & HOUSING
WE08X32439 WE08X32439 MAIN HARNESS ELECTRIC
WE23X35037 WE23X35037 MIST NOZZLE AND HOSE
WE13X29712 WE13X29712 MOTOR BRACKET
WH03X32157 WH03X32157 MOTOR DRIVE
WE05X29706 WE05X29706 MOTOR GASKET
WH02X24417 WH02X24417 NUT PULLEY
WE04X29714 WE04X29714 OUTLET THERMISTOR
WE02X29690 WE02X29690 PANEL CLIP
WE01X29600 WE01X29600 PANEL CLIP
WE02X29732 WE02X29732 PIVOT SHOULDER BOLD+T
31-3000220 31-3000220 PM MINI MANUAL AND WIRING
49-3000206 49-3000206 PM OWNERS AND INSTALL
31-3000216 31-3000216 PM QUICK INSTALL
WE13X29586 WE13X29586 POWER/START BUTTON BRACKET
WE13X29735 WE13X29735 REAR DRUM SUPPORT
WE13X30588 WE13X30588 REAR PANEL
WH01X30838 WH01X30838 RJ45 ACCESS PANEL SATIN NICKEL
WE03X10016 WE03X10016 ROLLER ASSEMBLY WHEEL
WH02X32237 WH02X32237 SCR 10-16 PL TRQ 3/8 S
WH02X10139 WH02X10139 SCR 10-32 B TRT-25 5/8
WH02X31877 WH02X31877 SCR 10-32 GX HXW 7/16 S
WE02X10107 WE02X10107 SCR 10-32 GX HXW 7/16 S
WR01X11012 WR01X11012 SCR 8-18 AB HXW 9/16 S
WE02X20373 WE02X20373 SCR 8-18 AB PNT-15 1/2 S
WH02X10394 WH02X10394 SCR 8-18 AB TRQ 5/8 SS
WH2X1217 WH2X1217 SCREW
WH2X930 WH2X930 SCREW
WE02X30757 WE02X30757 SCREW 10-18 PL
WR01X10196 WR01X10196 SCREW 8-18 HI/LO 5/8
WH02X31377 WH02X31377 SCREW AND BUSH GUIDE
WE01X29754 WE01X29754 SCREW COVER SATIN NICKEL
WE01X29707 WE01X29707 SELECTOR KNOB
WE08X29688 WE08X29688 SENSOR ROD HARNESS
WH02X30177 WH02X30177 SHOULDER SCREW M4
WE10X29759 WE10X29759 SIDE PANEL SATIN NICKEL LEFT
WE10X29760 WE10X29760 SIDE PANEL SATIN NICKEL RIGHT
WE23X33897 WE23X33897 STEAM VALVE
WE01X10379 WE01X10379 STEEL WASHER
WE16X29789 WE16X29789 SUPPLY DUCT
WE05X39077 WE05X39077 SUPPLY DUCT SEAL FL DRYER
WE04X31779 WE04X31779 TERMINAL BLOCK
WE13X29740 WE13X29740 TERMINAL BLOCK COVER
WE02X34498 WE02X34498 TERMINAL BLOCK NUT
WE02X34497 WE02X34497 TERMINAL BLOCK SCREW
WE04X20252 WE04X20252 THERMISTOR INLET
WE04X10190 WE04X10190 THERMOSTAT 2
WE10X30586 WE10X30586 TOP PANEL SATIN NICKEL
WE08X32438 WE08X32438 TUB LIGHT
WE22X37339 WE22X37339 USER INTERFACE BOARD 65
WE04X10186 WE04X10186 VALVE STEAM
WE01X20693 WE01X20693 WASHER BAFFLE
WE08X29753 WE08X29753 WATER VALVE HARNESS
WH22X36577 WH22X36577 WIFI & BLUETOOTH BOARD W/INSTRUCTIONS
WE08X29733 WE08X29733 WIFI JUMPER HARNESS
WH01X10704 WH01X10704 WIRE TIE
