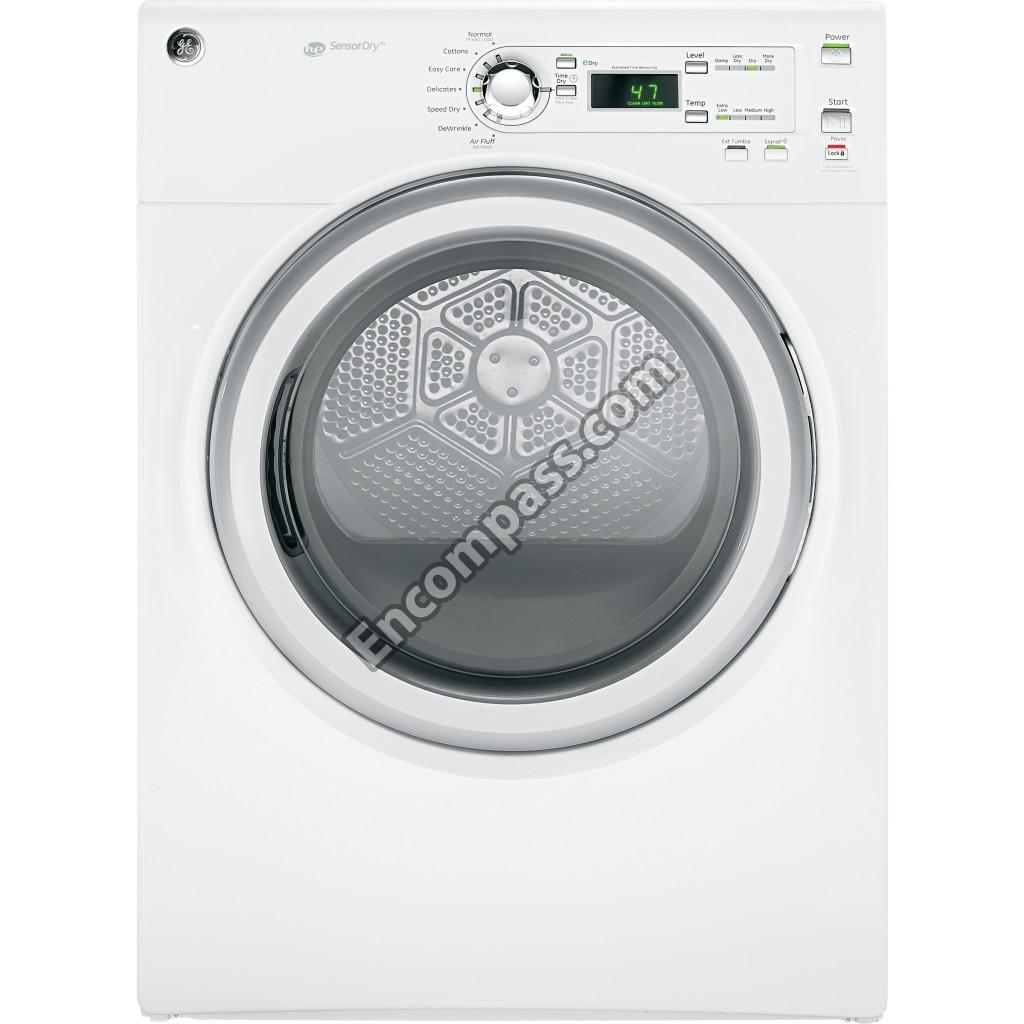

Model Image
Manufacturer

GE

Model Number

GFDN120GD1WW

Description

Dryer Gas

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WE10X20222 WE10X20222 BADGE
WE14M75 WE14M75 BAFFLE
WE1M300 WE1M300 BEARING RETAINER
WE03X34318 WE03X34318 BEARING SLIDE
WE03X37319 WE03X37319 BEARING SLIDE
WE03X37320 WE03X37320 BEARING SLIDE
WE16X20393 WE16X20393 BLOWER WHEEL
WE20M429 WE20M429 BOTTOM CHASSIS BASE
WE13X169 WE13X169 BRACKET COIL
WE13X20405 WE13X20405 BRACKET GAS VALVE
WE1M468 WE1M468 BRKT LVL SCREW REAR
WE13X0169 WE13X0169 BRKT. COIL
WE14M104 WE14M104 BURNER ASM.
WE20X27600 WE20X27600 BUTTON KIT
WE14M177 WE14M177 CHAMBER COMBUSTION
WE04X0692 WE04X0692 COIL DUAL
WE04X0693 WE04X0693 COIL MAIN
WE49X33638 WE49X33638 CONTROL BOARD W/ DISPLAY
WE1M1007 WE1M1007 COVER FUSE TERMINAL
WE01M10005 WE01M10005 COVER HINGE
WE04X0448 WE04X0448 DETECTOR ASM
WE11X29438 WE11X29438 DIFFUSER
WE11X29443 WE11X29443 DIFFUSER GAS
WE10M10002 WE10M10002 DOOR ASM
WE9M48 WE9M48 DOOR GASKET
WE1M755 WE1M755 DOOR GUIDE
WE01X10361 WE01X10361 DRUM ASM
WE14M239 WE14M239 DRYER BLOWER HOUSING
WE1M1011 WE1M1011 DRYER DOOR LATCH
WE4M415 WE4M415 DRYER DOOR SWITCH
WE17X22217 WE17X22217 DRYER DRIVE MOTOR
WE03X29897 WE03X29897 DRYER DRUM DRIVE BELT
WE1X921 WE1X921 DRYER MOTOR STRAP
WE1M575 WE1M575 DRYER SENSOR ROD
WE4X692 WE4X692 DUAL COIL
WE1M758 WE1M758 ENCLOSED SCREW GROMMET
WE14M107 WE14M107 EXHAUST DUCT
WE04X24814 WE04X24814 FELT TRAP DUCT
WE18X25098 WE18X25098 FILTER AND MESH ASSEMBLY
WE4X448 WE4X448 FLAME DETECTOR
WE1M1002 WE1M1002 FUSE CCMR 30 AMP 120V
WE14X20401 WE14X20401 GAS DIFFUSER
WE25X217 WE25X217 GAS DRYER LP CONVERSION K
WE14M114 WE14M114 GAS VALVE & PIPE ASM. NG
WE09X20569 WE09X20569 GASKET
WE09X22578 WE09X22578 GASKET DOOR
WE1M1015 WE1M1015 GROUND STRAP ASM
WE5M54 WE5M54 HARNESS SENSORS
WE15X20250 WE15X20250 HARNESS TOP BEARING ASSEMBLY
WE01M10004 WE01M10004 HINGE ASM
WE1M1003 WE1M1003 HOLDER FUSE
WE03X20434 WE03X20434 IDLER ARM
WE04X25996 WE04X25996 IGNITER
WE04X0739 WE04X0739 IGNITER ASM
WE4M398 WE4M398 INLET CONTROL THERMOSTAT
WE01M10006 WE01M10006 INSERT HANDLE
WE2M176 WE2M176 INSULATED WASHER
WE25X0218 WE25X0218 KIT NAT GAS ORIFICE CONV
WE25X218 WE25X218 KIT-NATL GAS
WE01M10008 WE01M10008 KNOB
WE05X20431 WE05X20431 LAMP
WE01X1076 WE01X1076 LEAK LIMITER
WE1X1076 WE1X1076 LEAK LIMITER
WE1M642 WE1M642 LEVELLING SCREW GRAY
WE4X693 WE4X693 MAIN COIL
WE04M10013 WE04M10013 MAIN POWER BOARD ASM
WE1M864 WE1M864 MAIN POWER BOARD SUPPORT
WE01X0921 WE01X0921 MOTOR BRACKET
WE03X27285 WE03X27285 MOTOR PLATE
WE13M39 WE13M39 MOTOR SUPPORT
WE2M213 WE2M213 NUT-STRIP DOOR GUIDE
WE1M461 WE1M461 O RING
WE20M10005 WE20M10005 PANEL FRONT WW
WE20X20443 WE20X20443 PANEL REAR
WE20M10004 WE20M10004 PANEL TOP
WE01X0617 WE01X0617 PIPE CLAMP
WE1X617 WE1X617 PIPE CLAMP
WE1M934 WE1M934 PLUG BUTTON WHITE
WE26M345 WE26M345 POWER CORD (120V GAS)
WE12X83 WE12X83 PULLEY IDLER
WE1M528 WE1M528 REAR BRACKET LEVEL LEG
WE1M585 WE1M585 REAR PLATE
WE01M10014 WE01M10014 RING OUTER
WE1M584 WE1M584 SCR 10-16 B FLQ2 1-1/8 S
WE2M281 WE2M281 SCR 8-18 AB 1/2
WE2M278 WE2M278 SCR 8-18 AB PNQ2 1/4 S Z
WR01X10317 WR01X10317 SCR 8-32 CA HXW 1/2
WE2M223 WE2M223 SCREW
WE2M180 WE2M180 SCREW
WE2M202 WE2M202 SCREW
WR2X9260 WR2X9260 SCREW
WE2M173 WE2M173 SCREW
WE1M280 WE1M280 SCREW
WD2M101 WD2M101 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WE2M196 WE2M196 SCREW #8
WE1M583 WE1M583 SCREW #8-32 X 1/2 HINGE
WE02X0333 WE02X0333 SCREW (COIL MTG BRKT)
WD02X10057 WD02X10057 SCREW 10-16X1/2 AB HXW S
WE2M264 WE2M264 SCREW CENTER KNOB AREA
WE2M211 WE2M211 SCREW FRONT
WE2M200 WE2M200 SCREW GROUND
WE2M302 WE2M302 SCREW HINGE TO FRONT
WE2M225 WE2M225 SCREW WHITE #10-16 3/4
WZ5X158D WZ5X158D SCREW-PKG 12
WE14M119 WE14M119 SENSOR RODS
WE3M33 WE3M33 SHAFT & BRACKET ASSEMBLY
WE01M10003 WE01M10003 SHIELD FRONT
WE20M400 WE20M400 SIDE PANEL WH
WE1M462 WE1M462 SLEEVE DRUM
WE01X20424 WE01X20424 STRAIN RELIEF BRACKET GA
WE13X0200 WE13X0200 STRAP MOTOR
WE13X200 WE13X200 STRAP MOTOR
WE01M10007 WE01M10007 STRIKE
WE1M569 WE1M569 STRIKE PLATE
WE1M570 WE1M570 STRIKE PLATE W/STRK HOLE
WD21X0557 WD21X0557 SWITCH INTERLOCK
WD21X10261 WD21X10261 SWITCH INTERLOCK
WE4M300 WE4M300 T-STAT OUTLET BKUP ORG
WE04X20685 WE04X20685 THERMISTOR
WE4M137 WE4M137 THERMOSTAT HI-LIMIT
WE4M80 WE4M80 THERMOSTAT SAFETY
WE03X25097 WE03X25097 TOP BEARING ASSEMBLY
WE11X29441 WE11X29441 TRANSITION DUCT
WE14X25085 WE14X25085 TRAP DUCT ASM
WE04M10012 WE04M10012 USER INTERFACE BOARD ASM
WE1X1091 WE1X1091 WE1X1091
WE2X263D WE2X263D WE2X263D
WE2M96 WE2M96 WE2X329
WE01M10002 WE01M10002 WINDOW OUTER
