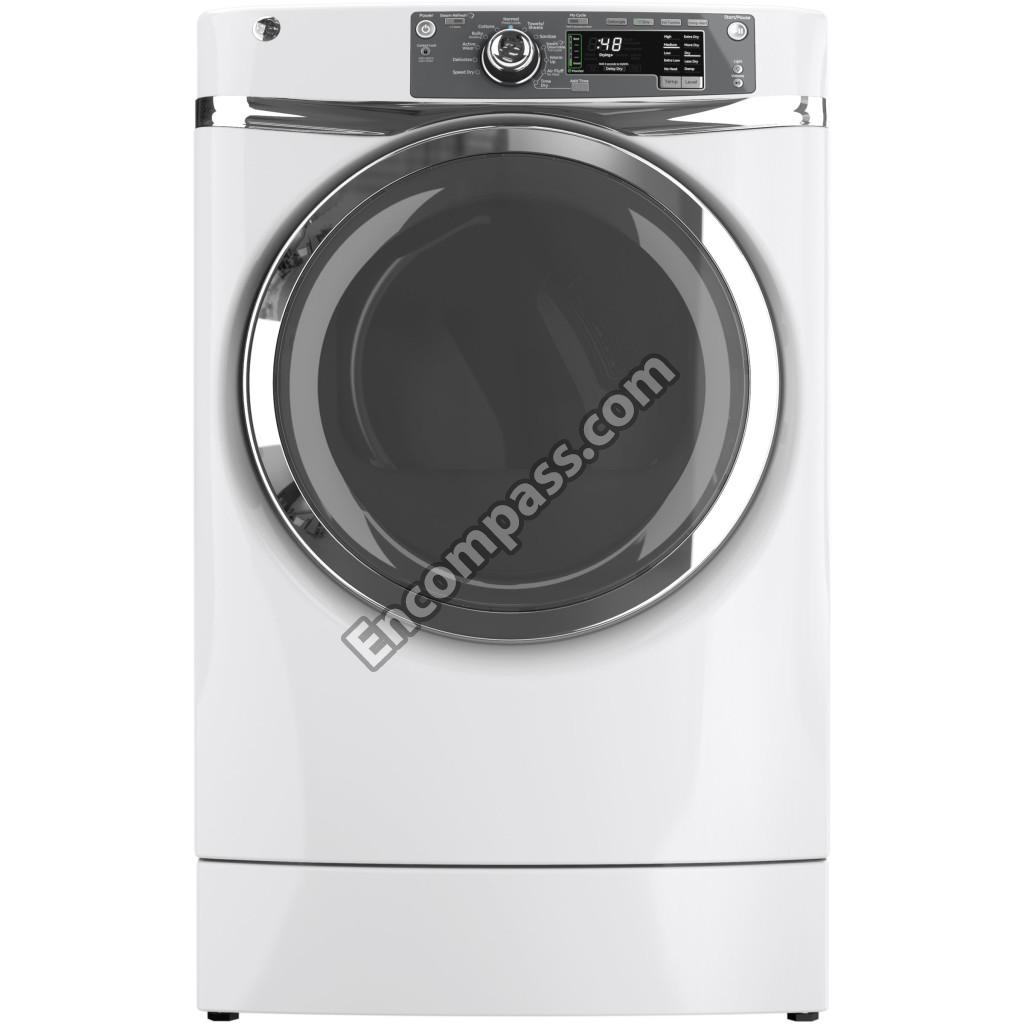

Model Image
Manufacturer

GE

Model Number

GFDR480EF0WW

Description

Dryer Electric

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WE03X10016 WE03X10016 AXLE ROLLER
WE19M10949 WE19M10949 BADGE GE
WE14X10112 WE14X10112 BAFFLE
WE20X20471 WE20X20471 BASE
WE12X10020 WE12X10020 BELT DRIVE
WE04X10193 WE04X10193 BLOCK TERMINAL ASM
WE13X10051 WE13X10051 BRACKET DRIVE MOTOR
WE13X10056 WE13X10056 BRACKET HEATER
WE13X21096 WE13X21096 BRACKET HINGE
WE13X10057 WE13X10057 BRACKET STRAIN RELIEF
WE13X10053 WE13X10053 BRACKET STRIKER
WH01X10735 WH01X10735 BUSH GUIDE PIN
WH01X10722 WH01X10722 BUSHING HINGE

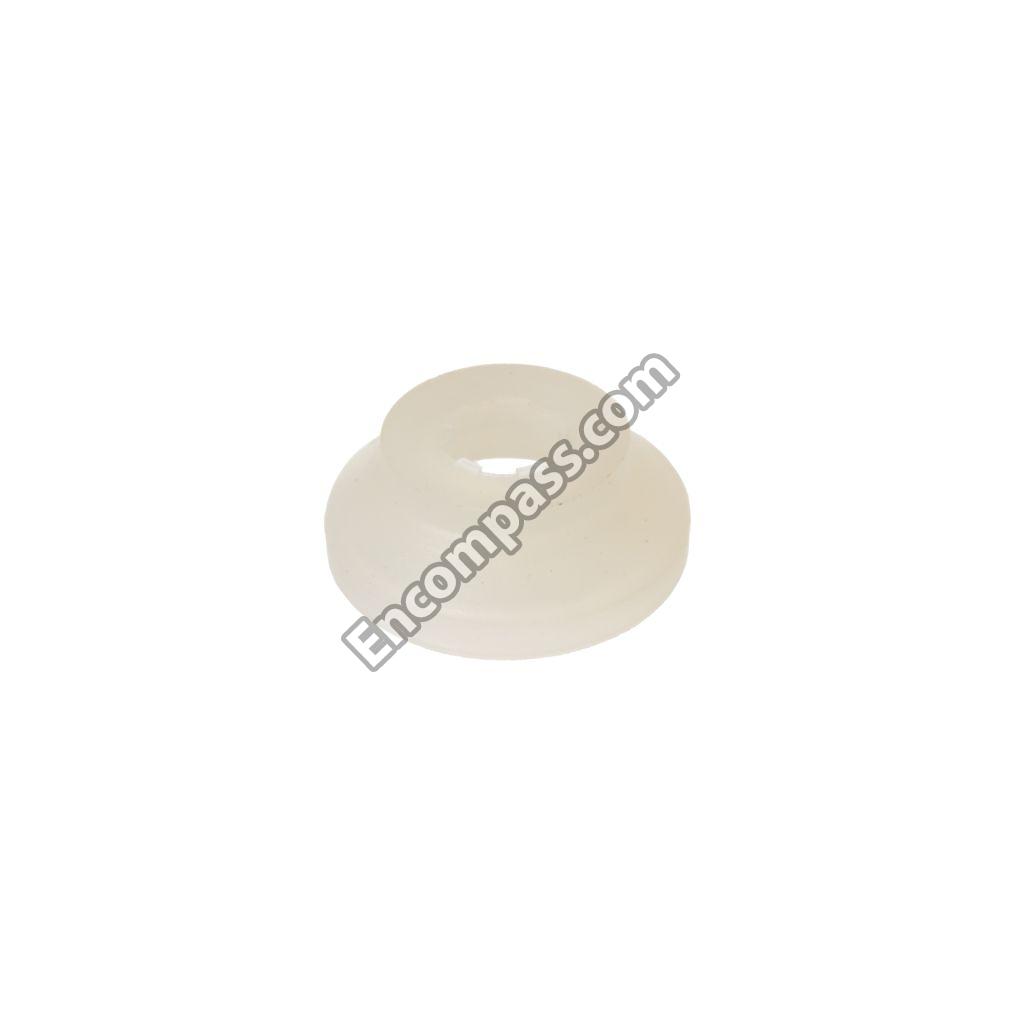

WE01X10407 WE01X10407 BUSHING TOP PANEL
WE01X10389 WE01X10389 BUTTON TREE ASMEDRY
WE01X10387 WE01X10387 BUTTON TREE ASMPOWER
WE01X10391 WE01X10391 BUTTON TREE ASMTIME
WE01X10390 WE01X10390 BUTTON TREE ASSEMBLY-START
WE01X10388 WE01X10388 BUTTON TREE ASSEMBLY-TEMP
WE01X10376 WE01X10376 CLIP RESILIENT MOUNT
WH46X10284 WH46X10284 COVER DOOR
WE01X10396 WE01X10396 COVER NOZZLE
WE01X10411 WE01X10411 COVER TERMINAL BLOCK
WE01X10392 WE01X10392 COVER UIMC
WE10X10030 WE10X10030 DOOR ASM
WE10X10029 WE10X10029 DOOR FRAME GLASS ASM
WE21X10026 WE21X10026 DRUM ASSEMBLY
WE14X10111 WE14X10111 DUCT EXHAUST
WE14X10114 WE14X10114 DUCT SUPPLY SUB ASM
WE01X10395 WE01X10395 ELBOW STEAM
WE14X20691 WE14X20691 FAN SCROLL SUB ASSEMBLY
WE09X10032 WE09X10032 FAN SEAL
WE09X10031 WE09X10031 FAN SEAL
WE09X10029 WE09X10029 FAN SEAL
WE09X10025 WE09X10025 FAN SEAL

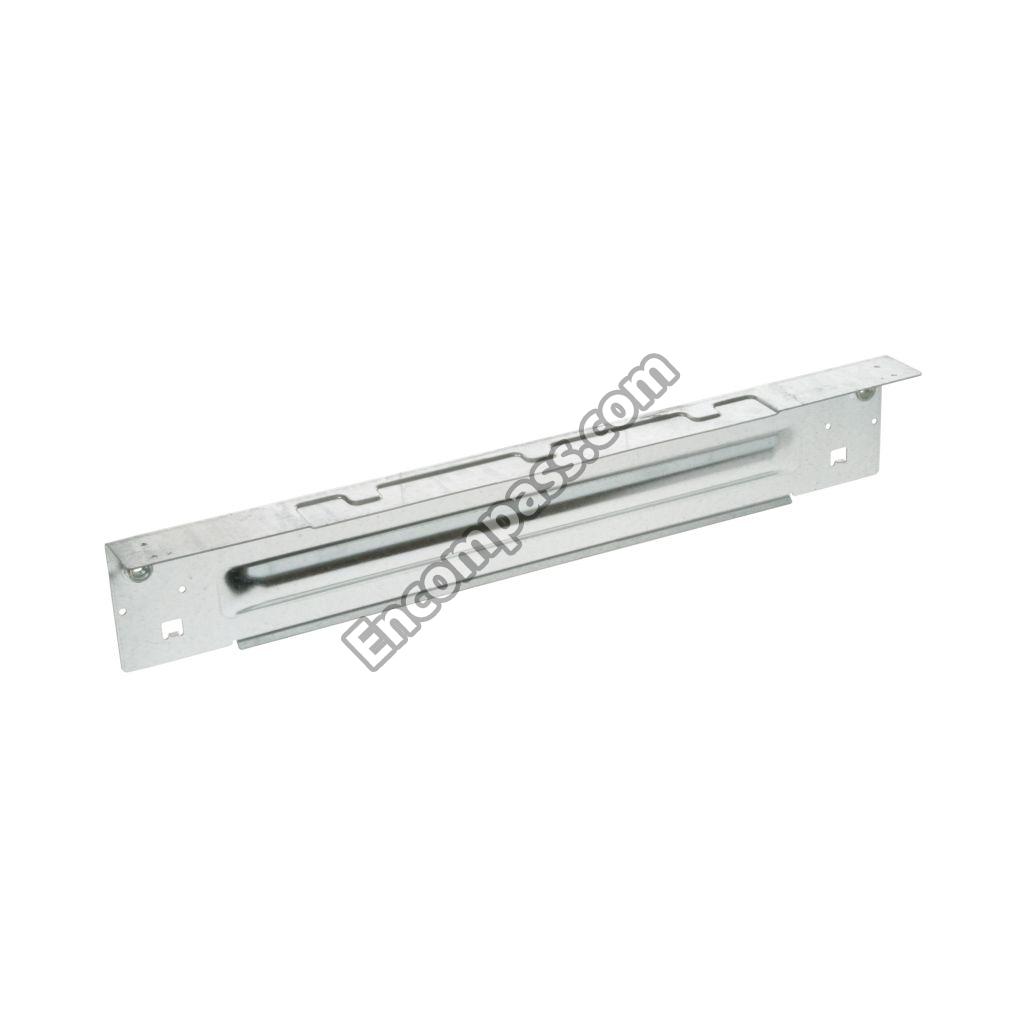

WE13X10049 WE13X10049 FRONT CONTROL ASM BRKT
WE18X10021 WE18X10021 GRILL ASSEMBLY
WE01X10403 WE01X10403 GROMMET
WR2X8349 WR2X8349 GROMMET SCR CLOSED
WE01X10405 WE01X10405 GUIDE DOOR

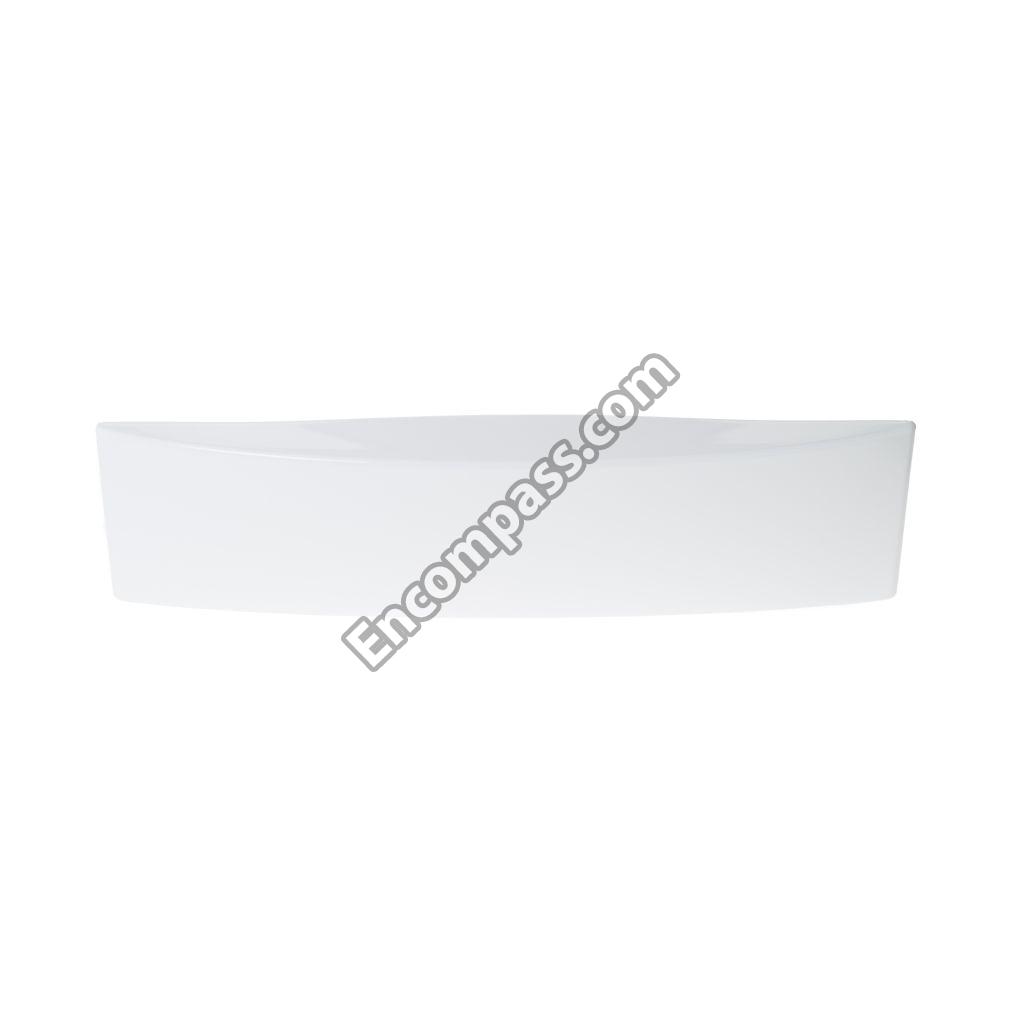

WH01X10725 WH01X10725 HANDLE DOOR
WE08X22856 WE08X22856 HARNESS MAIN ELEC
WE08X10087 WE08X10087 HARNESS ROD SENSOR
WE08X10085 WE08X10085 HARNESS SWITCH DOOR
WE11X10025 WE11X10025 HEATER ASM REMOTE ELEC
WE04X10187 WE04X10187 HIGH LIMIT T-STAT
WH01X10723 WH01X10723 HINGE
WH01X10724 WH01X10724 HINGE PLATE

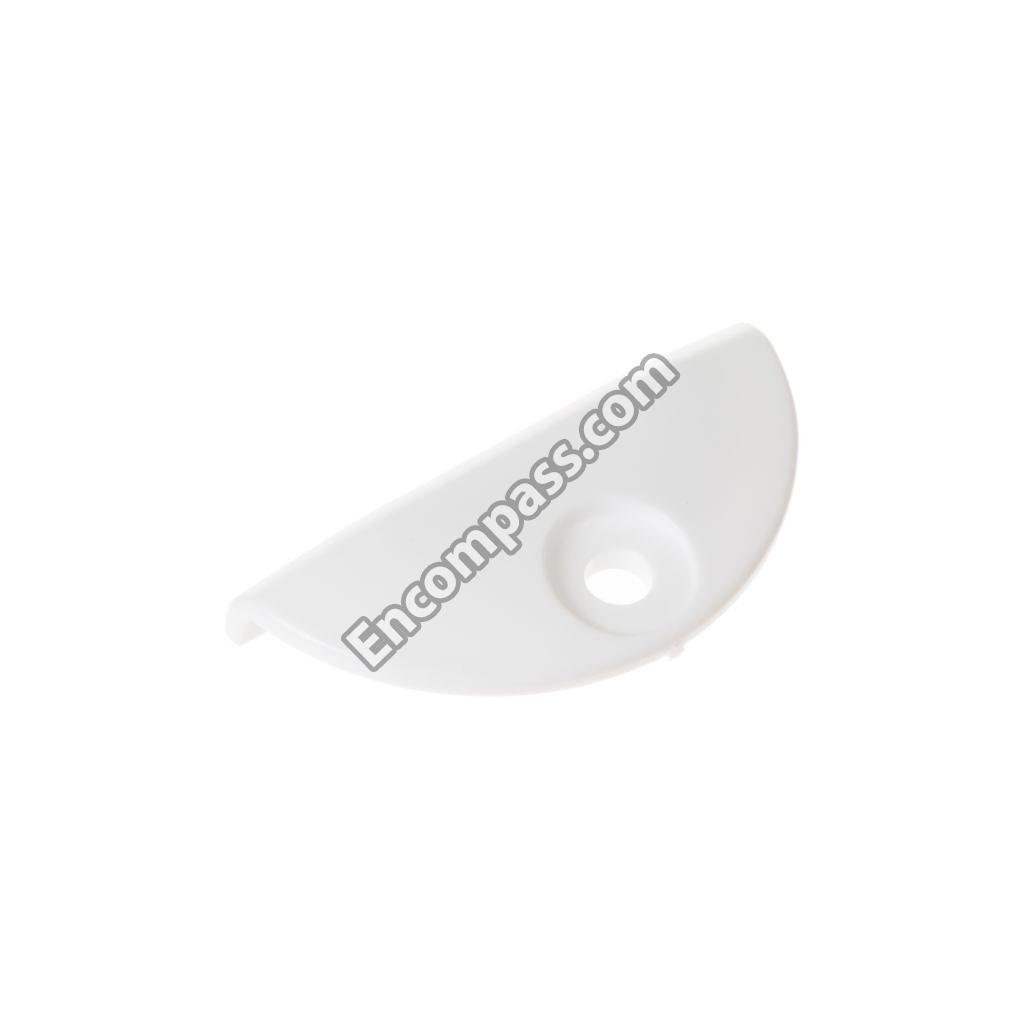

WE01X10408 WE01X10408 HOLDER TOP PANEL
WH41X10357 WH41X10357 HOSE INTAKE ASM
WH41X10356 WH41X10356 HOSE INTAKE ASM
WE12X10018 WE12X10018 IDLER ASM LH
WE12X10019 WE12X10019 IDLER ASM RH
WE14X10107 WE14X10107 INLET RING ASSEMBLY
WH01X10748 WH01X10748 KNOB RUBBER ASM
WE01X10409 WE01X10409 LATCH DOOR

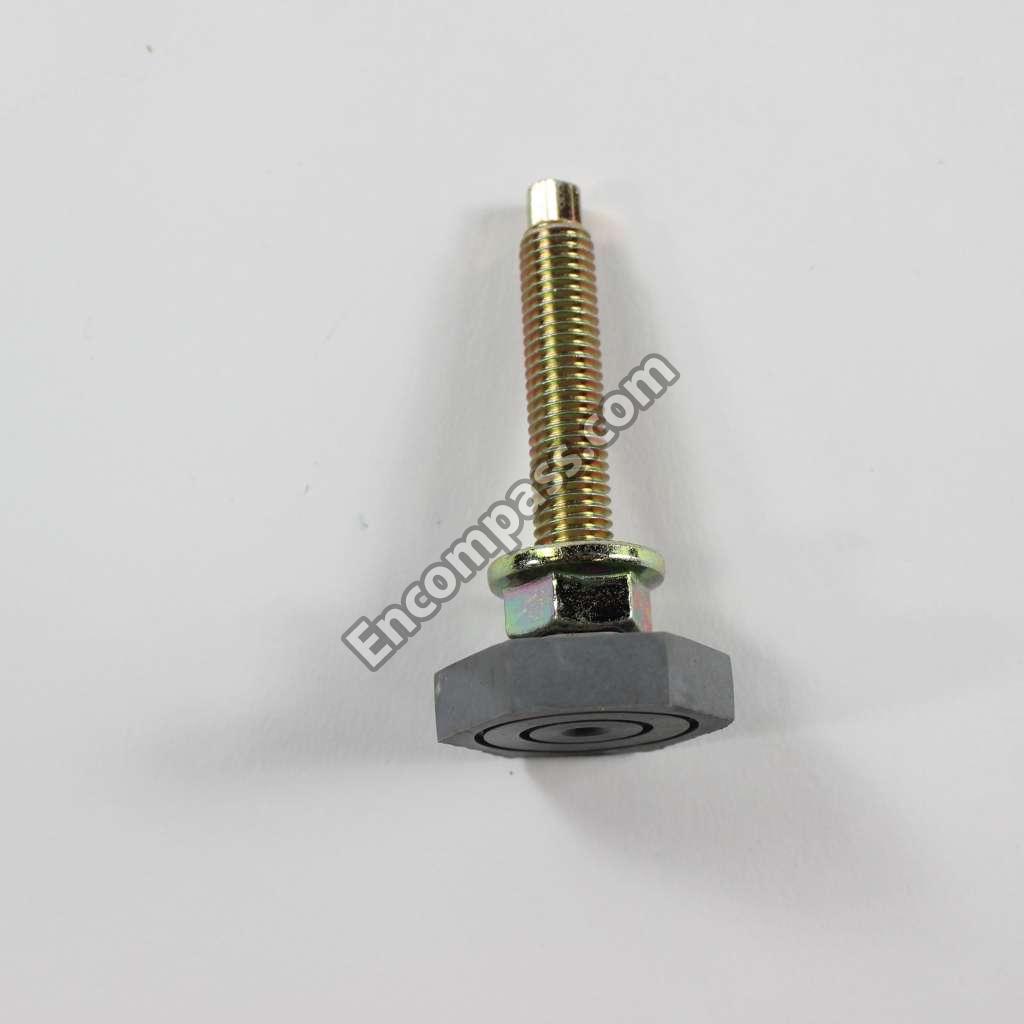

WH02X10401 WH02X10401 LEVELING LEG ASM
WE18X20428 WE18X20428 LINT SCREEN ASM
WE10X10031 WE10X10031 MASK DOOR
WE17X25555 WE17X25555 MOTOR DRIVE
WE01X10394 WE01X10394 NOZZLE MIST

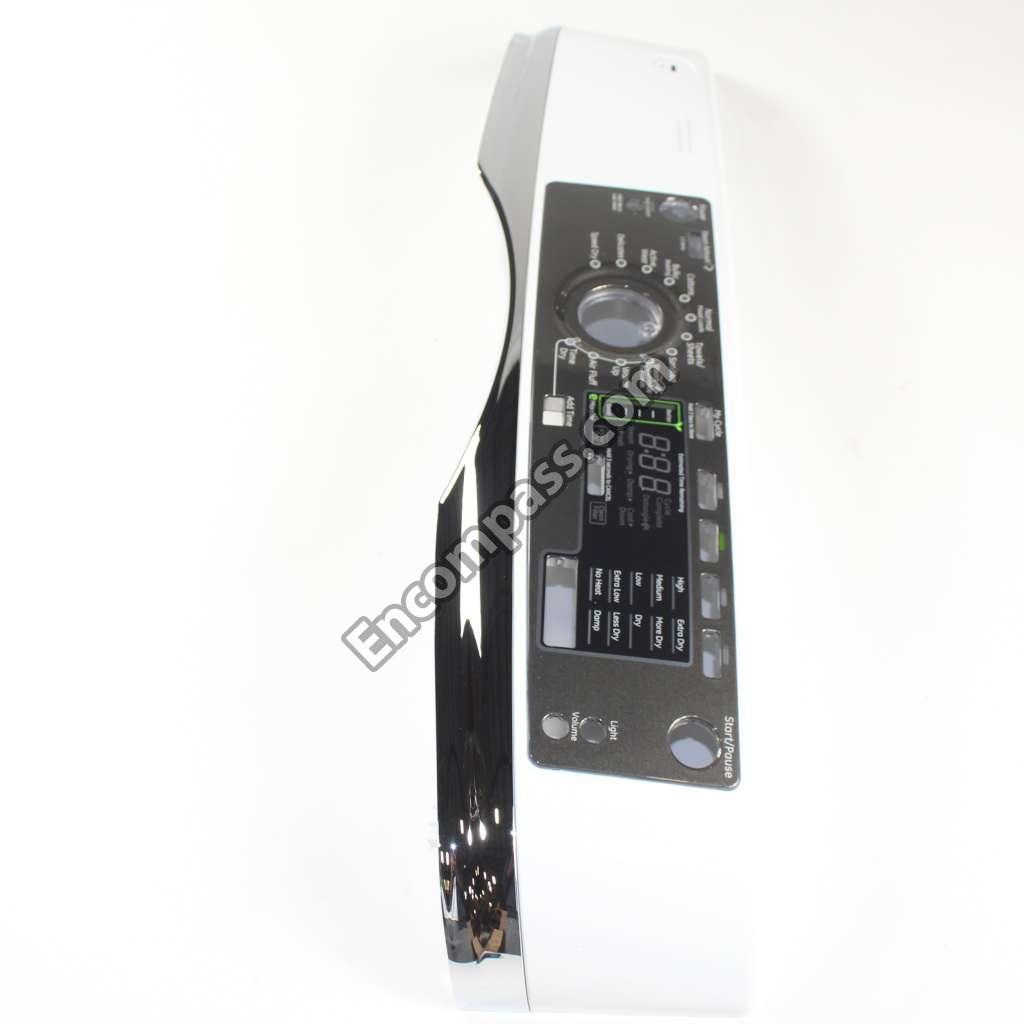

WE19X10088 WE19X10088 PANEL ASM CONTROL BEZEL

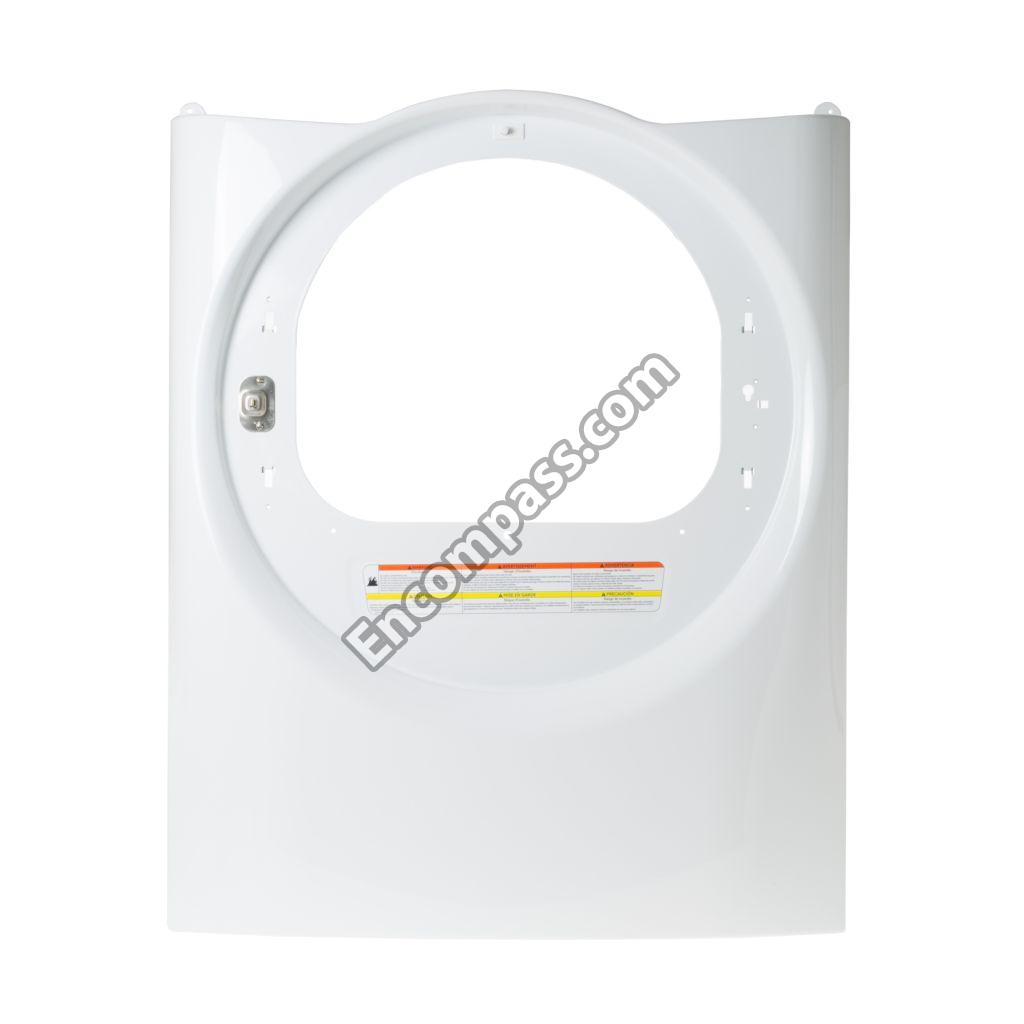

WE20X10149 WE20X10149 PANEL FRONT ASM WH
WH46X10291 WH46X10291 PANEL FRONT RISER ASM WH
WE20X10156 WE20X10156 PANEL REAR
WE20X10151 WE20X10151 PANEL SIDE
WH46X10290 WH46X10290 PANEL SIDE RISER

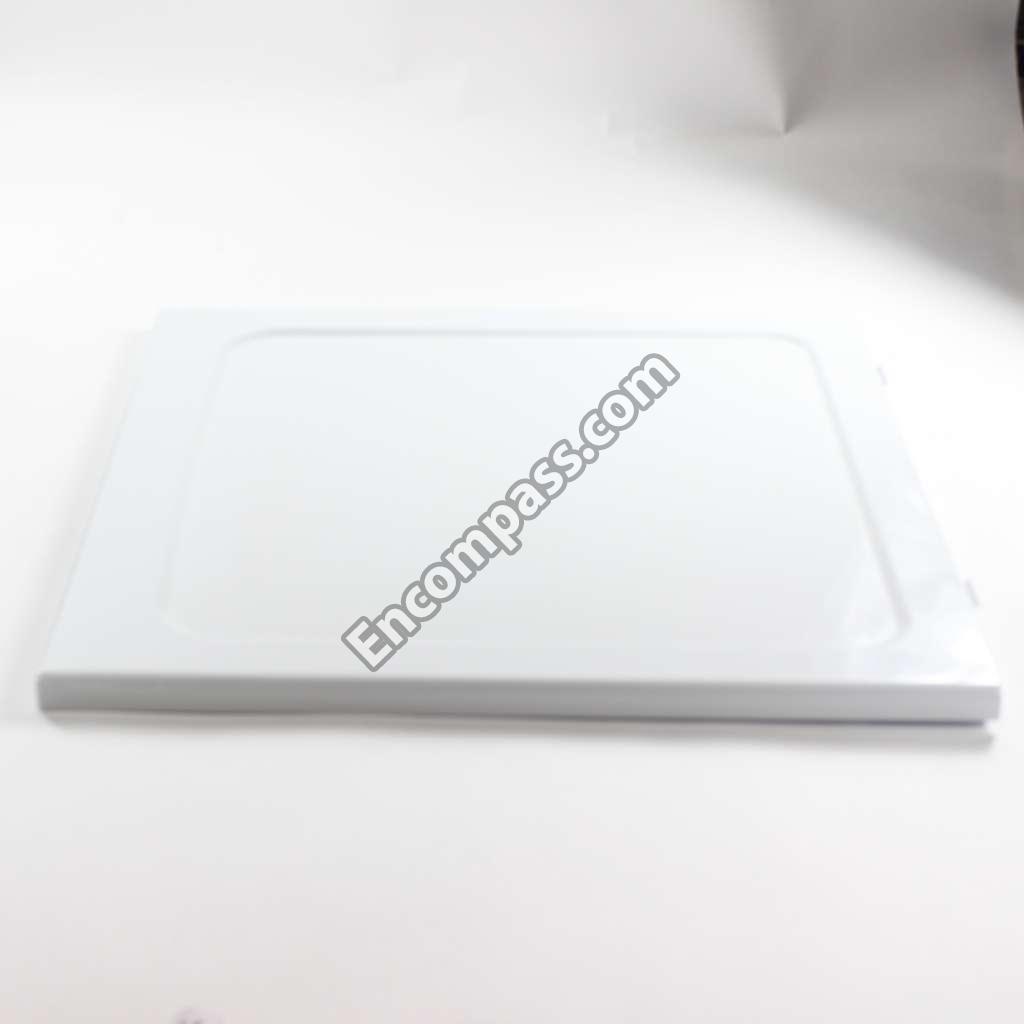

WH44X10324 WH44X10324 PANEL TOP ASM
WE04X23220 WE04X23220 PCB ASSEMBLY UI-MC AND SW
WH01X10733 WH01X10733 PIN SUPPORT FRONT
WE01X10375 WE01X10375 PIVOT SHOULDER BOLT
WE01X10406 WE01X10406 PLUG PANEL
31-16707 31-16707 PM GUIDE QUICK START
49-90470P 49-90470P PM OWNERS MANUAL
31-16859 31-16859 PM SHEET MINI MANUAL
WH44X21159 WH44X21159 PROTECT COVER DOOR

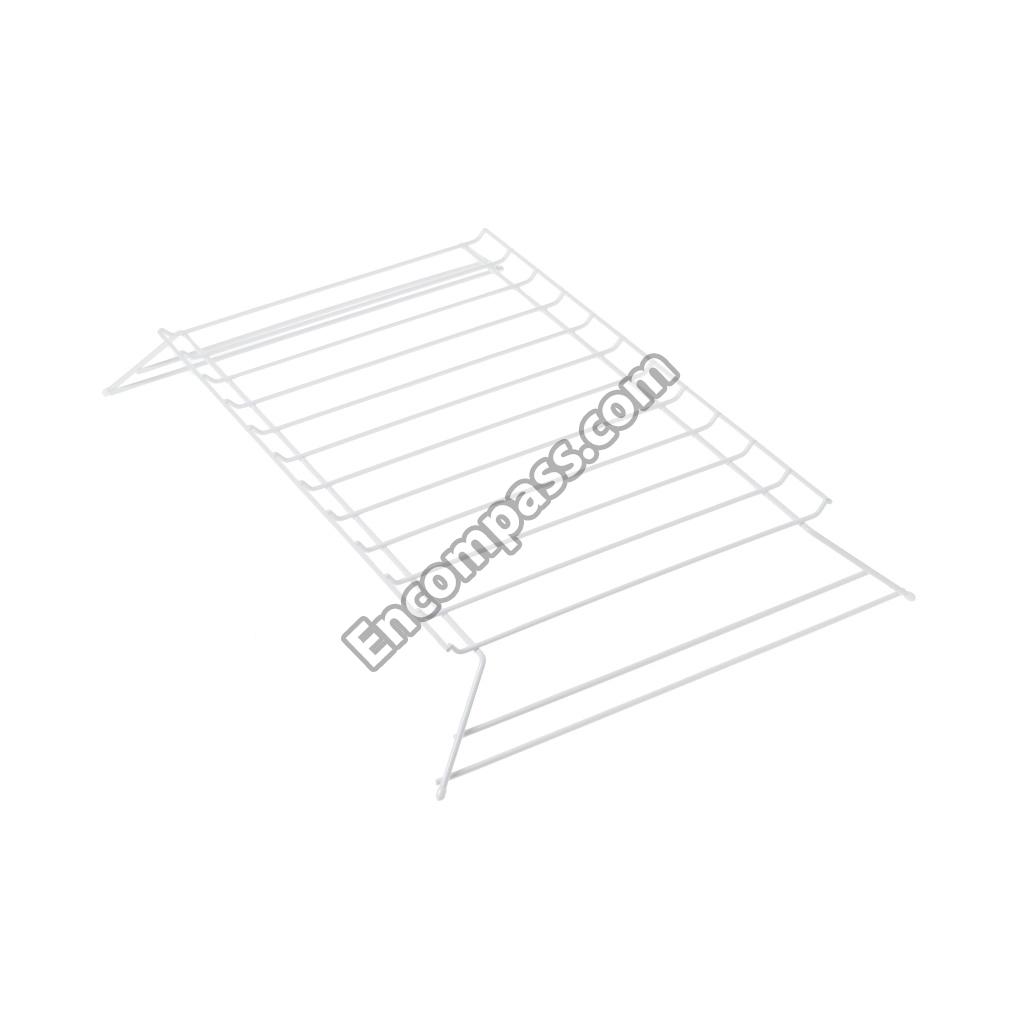

WE01X22274 WE01X22274 RACK DRYER ASSEMBLY
WE01X10398 WE01X10398 RETAINER COVER NOZZLE

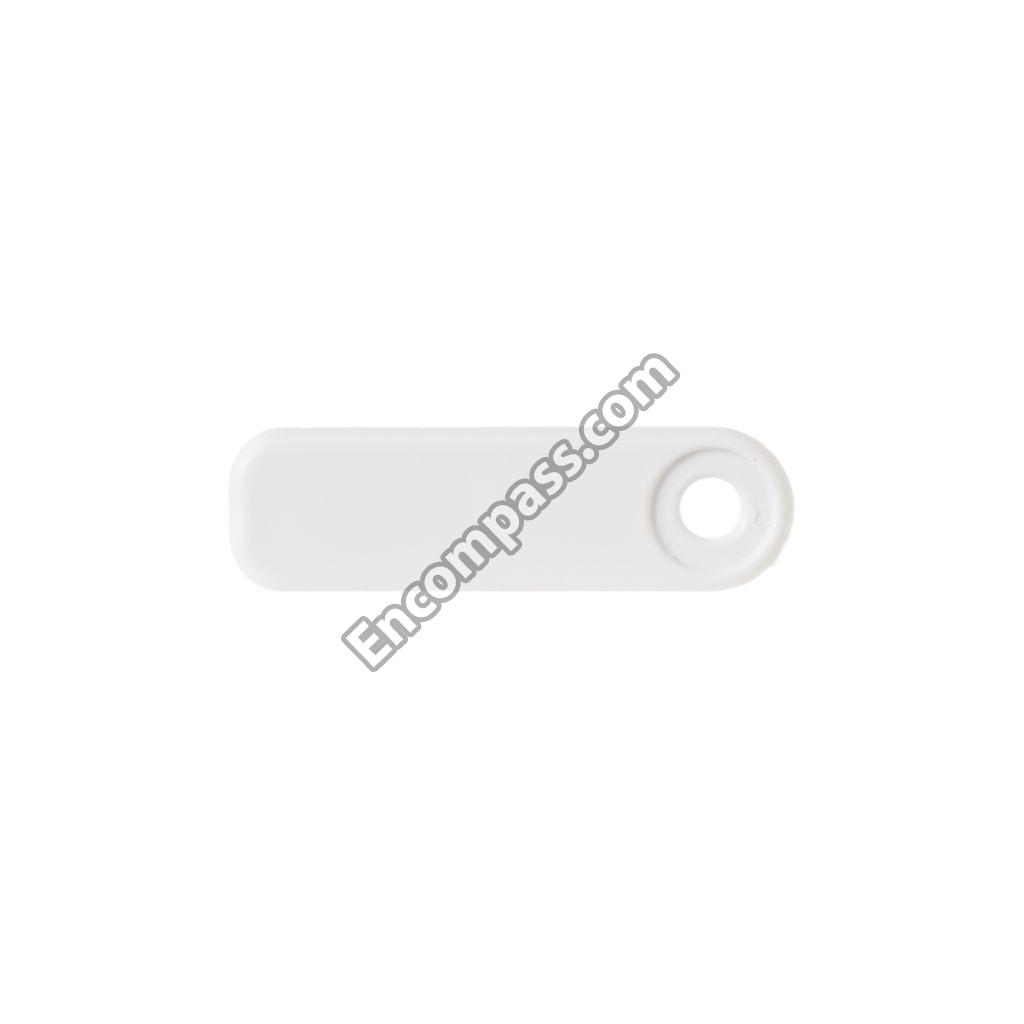

WH01X10743 WH01X10743 RETAINER KNOB
WH10X20754 WH10X20754 RISER ASSEMBLY WH
WH02X10397 WH02X10397 RISER ATTACHMENT BOLT

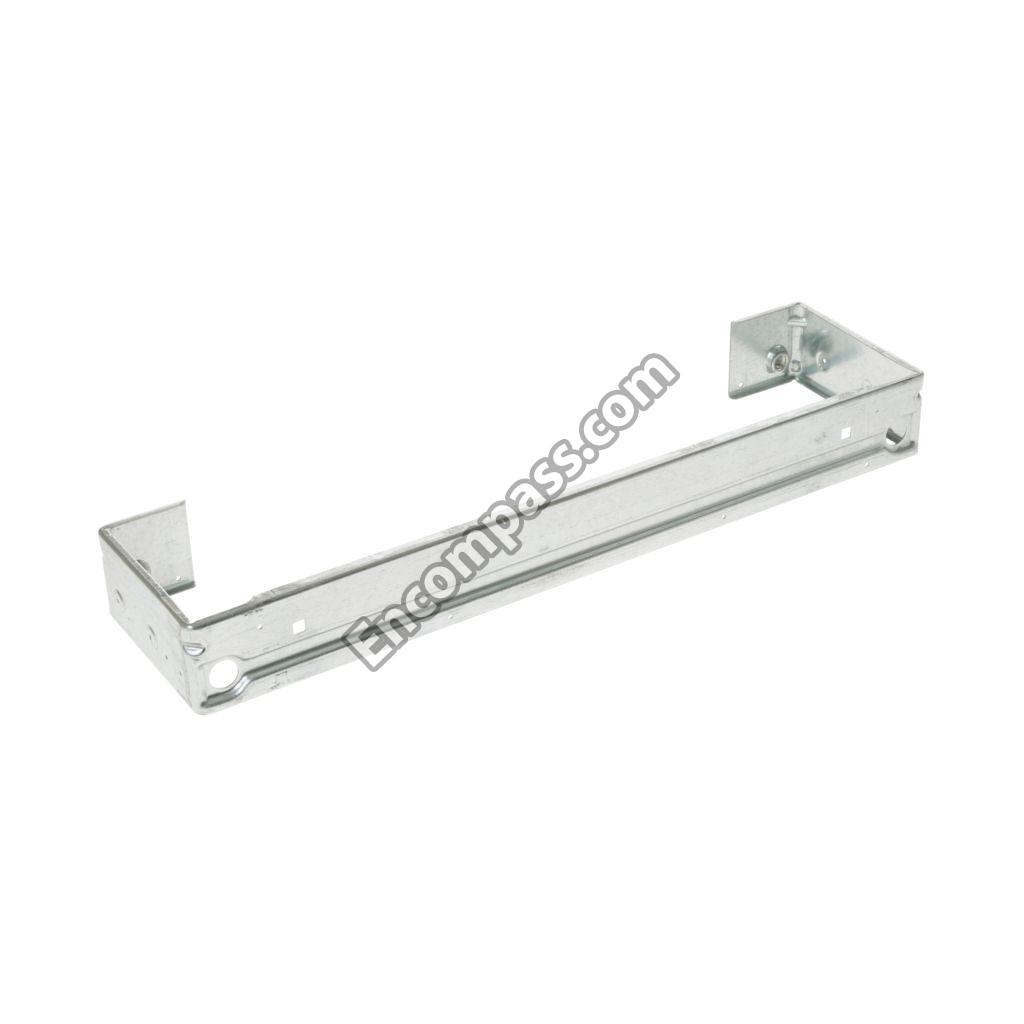

WH10X10017 WH10X10017 RISER BRACKET NUT ASM
WH10X10016 WH10X10016 RISER BRACKET NUT ASM
WH12X28437 WH12X28437 RJ 45 ASSEMBLY
WE01X22114 WE01X22114 ROD SENSOR
WE01X22074 WE01X22074 ROD SENSOR
WD02X10151 WD02X10151 SCR 10-16 AB 43WHEX 5/8
WE02X10108 WE02X10108 SCR 10-16 B HXW 3/8 S
WR01X10619 WR01X10619 SCR 10-18 HI/LO HXW 1/2
WH02X10139 WH02X10139 SCR 10-32 B TRT-25 5/8

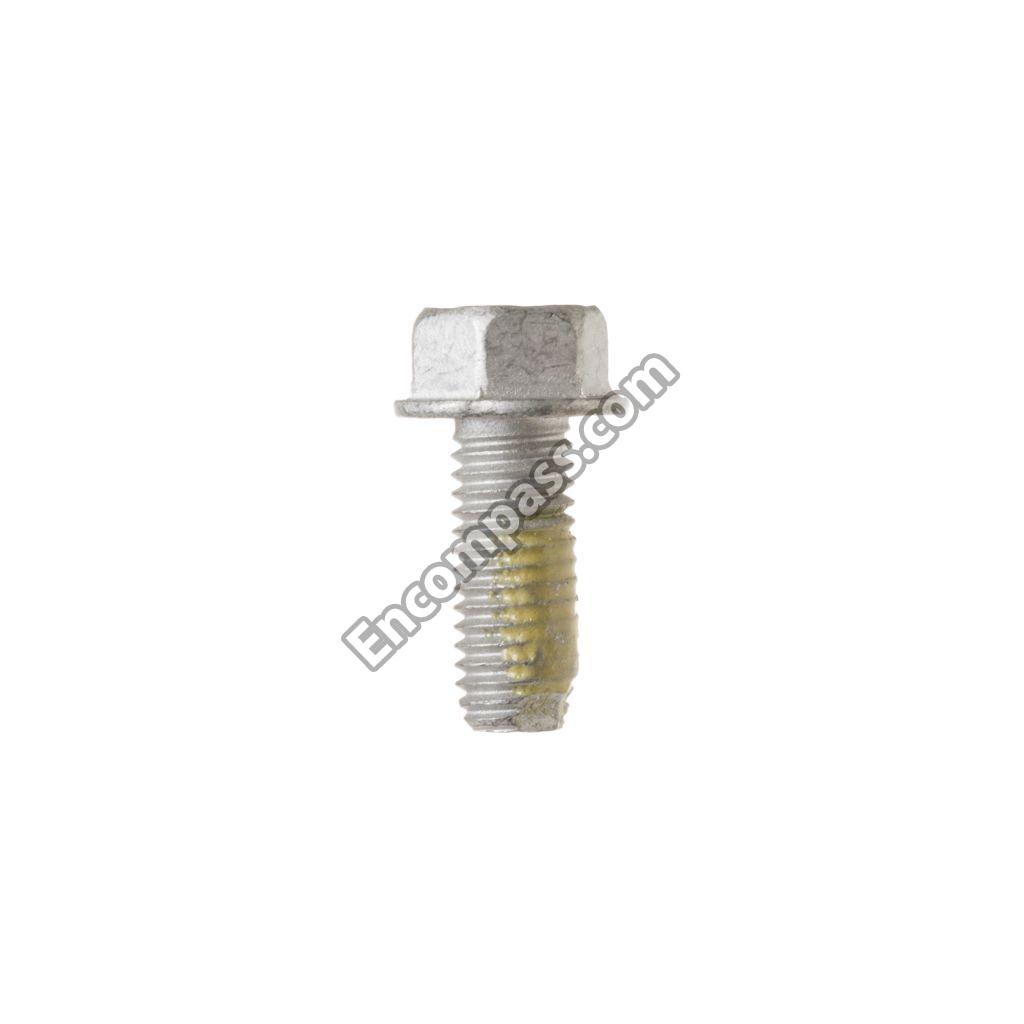

WE02X10107 WE02X10107 SCR 10-32 GX HXW 7/16 S
WH02X10396 WH02X10396 SCR 1016 B HXW 3/8 S
WE02X10105 WE02X10105 SCR 4-24 AB PNP .682 SS
WB01T10115 WB01T10115 SCR 8-18 AB HW 1/2 S

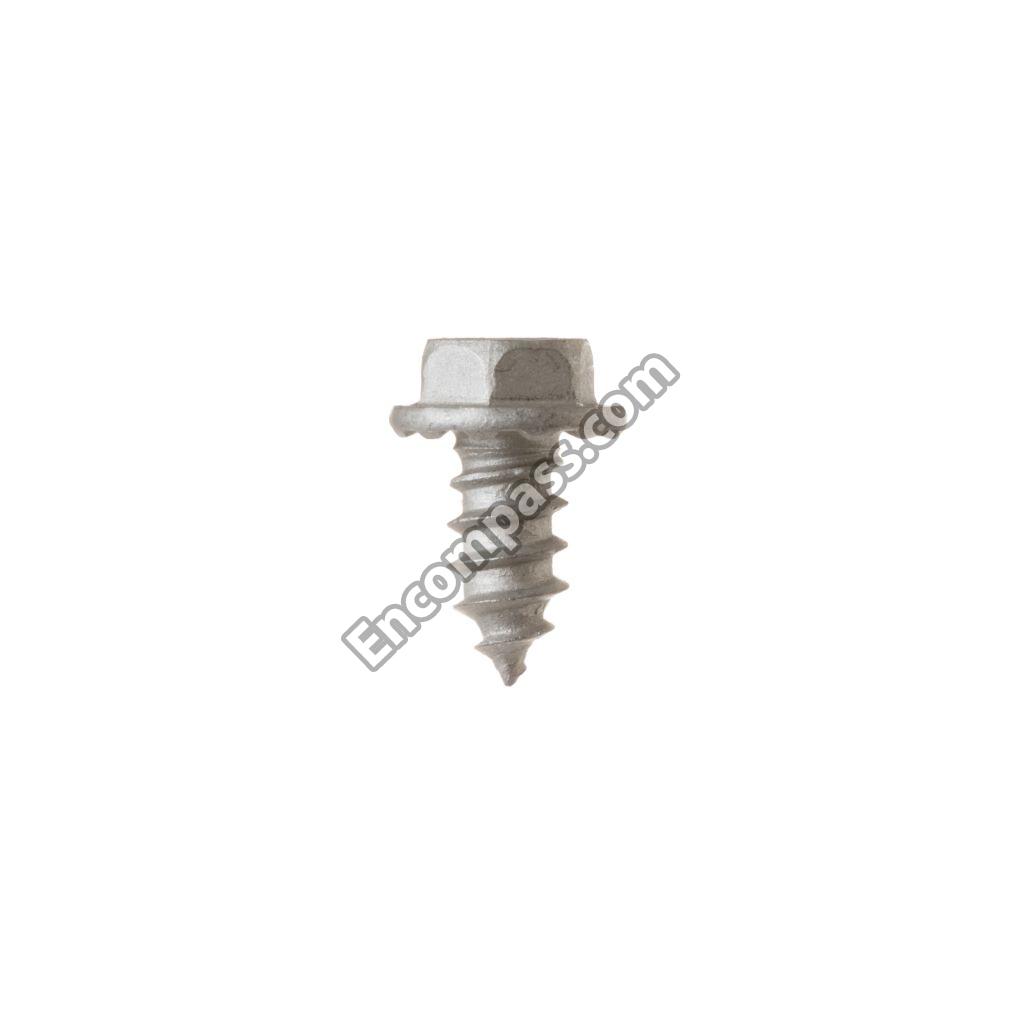

WE02X10106 WE02X10106 SCR 8-18 AB HXW 3/8 S
WH02X1217 WH02X1217 SCR 8-18 AB IHW 7/16 SN
WH02X10403 WH02X10403 SCR 8-18 AB PNP 1-1/4 S
WH02X10408 WH02X10408 SCR 8-18 AB PNP 2-1/8 S
WE02X20373 WE02X20373 SCR 8-18 AB PNT-15 1/2 S
WH02X10394 WH02X10394 SCR 8-18 AB TRQ 5/8 SS
WH2X1205 WH2X1205 SCR 8-18 B
WH02X1205 WH02X1205 SCR 8-18 B 1/2 HXW P
WH2X1194 WH2X1194 SCREW
WH2X930 WH2X930 SCREW
WH2X1217 WH2X1217 SCREW
WE02X30757 WE02X30757 SCREW
WH02X10398 WH02X10398 SCREW 10-16 SHLDR TYPE A
WH02X10090 WH02X10090 SCREW 8-18 B HXW 5/16 S
WR01X10379 WR01X10379 SCREW HINGE COVER
WB1K5157 WB1K5157 SCREW-BLK
WZ5X158D WZ5X158D SCREW-PKG 12
WE09X10030 WE09X10030 SEAL - TRAP DUCT ASSEMBLY
WE09X10026 WE09X10026 SEAL BLOWER
WE09X23434 WE09X23434 SEAL DOOR
WE09X10027 WE09X10027 SEAL FRONT PANEL
WE13X10058 WE13X10058 SHIELD ELECTRIC RADIANT
WE02X20690 WE02X20690 SHIELD THERMOSTAT
WE01X10383 WE01X10383 SHIELD WATER VALVE
WE01X10381 WE01X10381 SPACER DOOR
WE01X10374 WE01X10374 SPRING IDLER
WE01X10393 WE01X10393 STEEL HEX NUT
WE01X10372 WE01X10372 STEEL HEX NUT
WE01X10379 WE01X10379 STEEL WASHER
WE13X20233 WE13X20233 STIFFENER HINGE
WE13X20689 WE13X20689 STRAP MOTOR BRACKET
WE01X10377 WE01X10377 STRIKER DOOR
WE20X10150 WE20X10150 SUPPORT DRUM FRONT
WE20X10154 WE20X10154 SUPPORT DRUM REAR
WE04X10180 WE04X10180 SWITCH DOOR
WE04X10184 WE04X10184 SWITCH IDLER
WE04X20252 WE04X20252 THERMISTOR INLET
WE04X22054 WE04X22054 THERMISTOR OUTLET
WE04X10192 WE04X10192 THERMOSTAT 2
WE04X10190 WE04X10190 THERMOSTAT 2
WE18X10022 WE18X10022 TRAP DUCT ASM
WH12X10574 WH12X10574 TUB LIGHT
WE01X10397 WE01X10397 TUBE STEAM
WE04X10186 WE04X10186 VALVE STEAM
WE01X20693 WE01X20693 WASHER BAFFLE
WE16X33977 WE16X33977 WHEEL BLOWER ASM
WH01X10704 WH01X10704 WIRE TIE
WE01X10401 WE01X10401 Y ADAPTER
