Model Image
Manufacturer

GE

Model Number

GFDS255EF0MC

Description

Dryer Electric

Interactive Exploded View

Parts List

Part Number Description
WE14X10112 WE14X10112 BAFFLE
WE12X10020 WE12X10020 BELT DRIVE
WE04X10193 WE04X10193 BLOCK TERMINAL ASM
WE13X10051 WE13X10051 BRACKET DRIVE MOTOR
WE13X10056 WE13X10056 BRACKET HEATER
WE13X21096 WE13X21096 BRACKET HINGE
WE13X10054 WE13X10054 BRACKET HINGE
WE13X10057 WE13X10057 BRACKET STRAIN RELIEF
WE13X10053 WE13X10053 BRACKET STRIKER
WH01X10722 WH01X10722 BUSHING HINGE
WE01X10407 WE01X10407 BUSHING TOP PANEL
WE01X10421 WE01X10421 BUTTON TREE ASM EDRY
WE01X10388 WE01X10388 BUTTON TREE ASM-TEMP
WE01X10387 WE01X10387 BUTTON TREE ASMPOWER
WE01X10418 WE01X10418 BUTTON TREE ASMSTART
WE01X10391 WE01X10391 BUTTON TREE ASMTIME
WE01X10376 WE01X10376 CLIP RESILIENT MOUNT
WH46X10284 WH46X10284 COVER DOOR
WE01X10419 WE01X10419 COVER LIGHT
WE01X10396 WE01X10396 COVER NOZZLE
WE01X10411 WE01X10411 COVER TERMINAL BLOCK
WE01X10392 WE01X10392 COVER UIMC
WE10X10030 WE10X10030 DOOR ASM
WE10X10029 WE10X10029 DOOR FRAME GLASS ASM
WE01X10417 WE01X10417 DOOR GUIDE GREY
WE21X10026 WE21X10026 DRUM ASSEMBLY
WE14X10111 WE14X10111 DUCT EXHAUST
WE14X10114 WE14X10114 DUCT SUPPLY SUB ASM
WE01X10395 WE01X10395 ELBOW STEAM
WE09X10031 WE09X10031 FAN SEAL
WE09X10025 WE09X10025 FAN SEAL
WE09X10029 WE09X10029 FAN SEAL
WE09X10032 WE09X10032 FAN SEAL

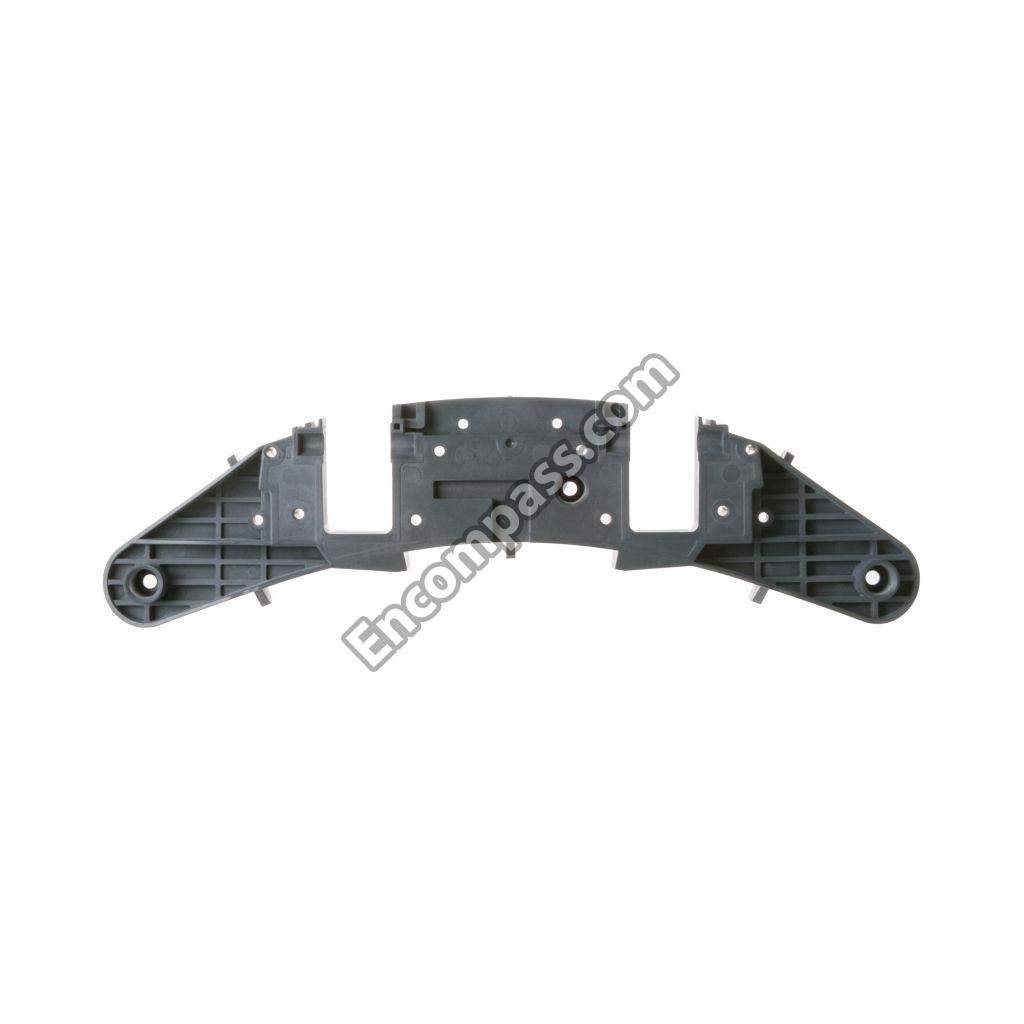

WE13X10049 WE13X10049 FRONT CONTROL ASM BRKT
WE18X10021 WE18X10021 GRILL ASSEMBLY
WE01X10403 WE01X10403 GROMMET
WE08X10087 WE08X10087 HARNESS AND ROD SENSOR
WE08X22857 WE08X22857 HARNESS MAIN ELEC
WE08X10086 WE08X10086 HARNESS SWITCH DOOR
WE11X10025 WE11X10025 HEATER ASM REMOTE ELEC

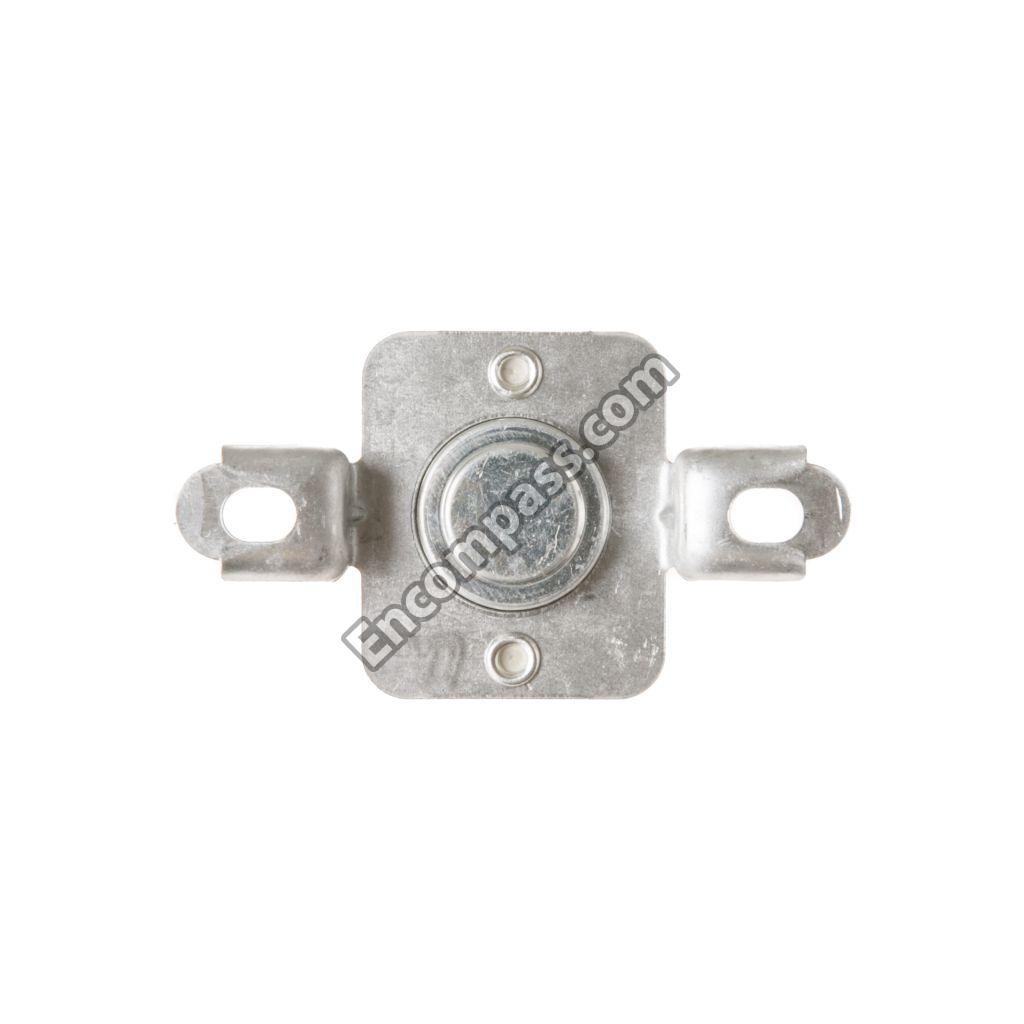

WE04X10187 WE04X10187 HIGH LIMIT THERMOSTAT
WH01X10723 WH01X10723 HINGE
WH01X10724 WH01X10724 HINGE PLATE
WE01X10408 WE01X10408 HOLDER TOP PANEL
WH41X10356 WH41X10356 HOSE INTAKE ASM
WH41X10357 WH41X10357 HOSE INTAKE ASM
WE01X10414 WE01X10414 HOUSING LAMP
WE12X10018 WE12X10018 IDLER ASM LH
WE12X10019 WE12X10019 IDLER ASM RH
WE14X10107 WE14X10107 INLET RING ASM
WE01X10415 WE01X10415 KNOB
WE04X10195 WE04X10195 LAMP
WE01X10409 WE01X10409 LATCH DOOR
WE18X20428 WE18X20428 LINT SCREEN ASM
WE10X10031 WE10X10031 MASK DOOR
WE17X25555 WE17X25555 MOTOR DRIVE
WE01X10394 WE01X10394 NOZZLE MIST
WE19X10097 WE19X10097 PANEL ASM CONTROL
WE20X26095 WE20X26095 PANEL FRONT ASM MC
WE20X10156 WE20X10156 PANEL REAR
WE20X10159 WE20X10159 PANEL SIDE MC
275D1018P001 275D1018P001 PANEL TOP
WH44X20003 WH44X20003 PANEL TOP ASM MC
WE04X23220 WE04X23220 PCB ASM-UI-MC
WH01X10733 WH01X10733 PIN SUPPORT FRONT
WE01X10375 WE01X10375 PIVOT SHOULDER BOLT
WE01X10416 WE01X10416 PLUG PANEL - GREY
31-16707 31-16707 PM GUIDE QUICK START
49-90470P 49-90470P PM OWNERS MANUAL
31-16859 31-16859 PM SHEET MINI MANUAL
WH44X21159 WH44X21159 PROTECT COVER DOOR
WE01X10398 WE01X10398 RETAINER COVER
WH01X10743 WH01X10743 RETAINER KNOB
WH12X28437 WH12X28437 RJ 45 ASM
WE01X10399 WE01X10399 ROD SENSOR
WE01X22114 WE01X22114 ROD SENSOR
WE03X10016 WE03X10016 ROLLER ASM WHEEL
WH02X10139 WH02X10139 SCR 10-32 B TRT-25 5/8
WE02X10107 WE02X10107 SCR 1032 GX HXW 7/16 S
WE02X10106 WE02X10106 SCR 8-18 AB HXW 3/8 S
WH02X1217 WH02X1217 SCR 8-18 AB IHW 7/16 SN
WH02X10403 WH02X10403 SCR 8-18 AB PNP 1-1/4 S
WH02X10408 WH02X10408 SCR 8-18 AB PNP 2-1/8 S
WE01X10413 WE01X10413 SCR 8-32 T PNP 1/2 SS
WH02X10394 WH02X10394 SCREW
WH2X1217 WH2X1217 SCREW
WH02X10398 WH02X10398 SCREW 10-16 SHLDR TYPE A
WE09X10030 WE09X10030 SEAL - TRAP DUCT ASM
WE09X10026 WE09X10026 SEAL BLOWER
WE09X10027 WE09X10027 SEAL FRONT PANEL
WE13X10058 WE13X10058 SHIELD ELECTRIC RADIANT
WE01X10383 WE01X10383 SHIELD WATER VALVE
WE04X10194 WE04X10194 SOCKET LIGHT
WE01X10381 WE01X10381 SPACER DOOR
WE01X10374 WE01X10374 SPRING IDLER
WE01X10372 WE01X10372 STEEL HEX NUT
WE01X10393 WE01X10393 STEEL HEX NUT
WE01X10379 WE01X10379 STEEL WASHER

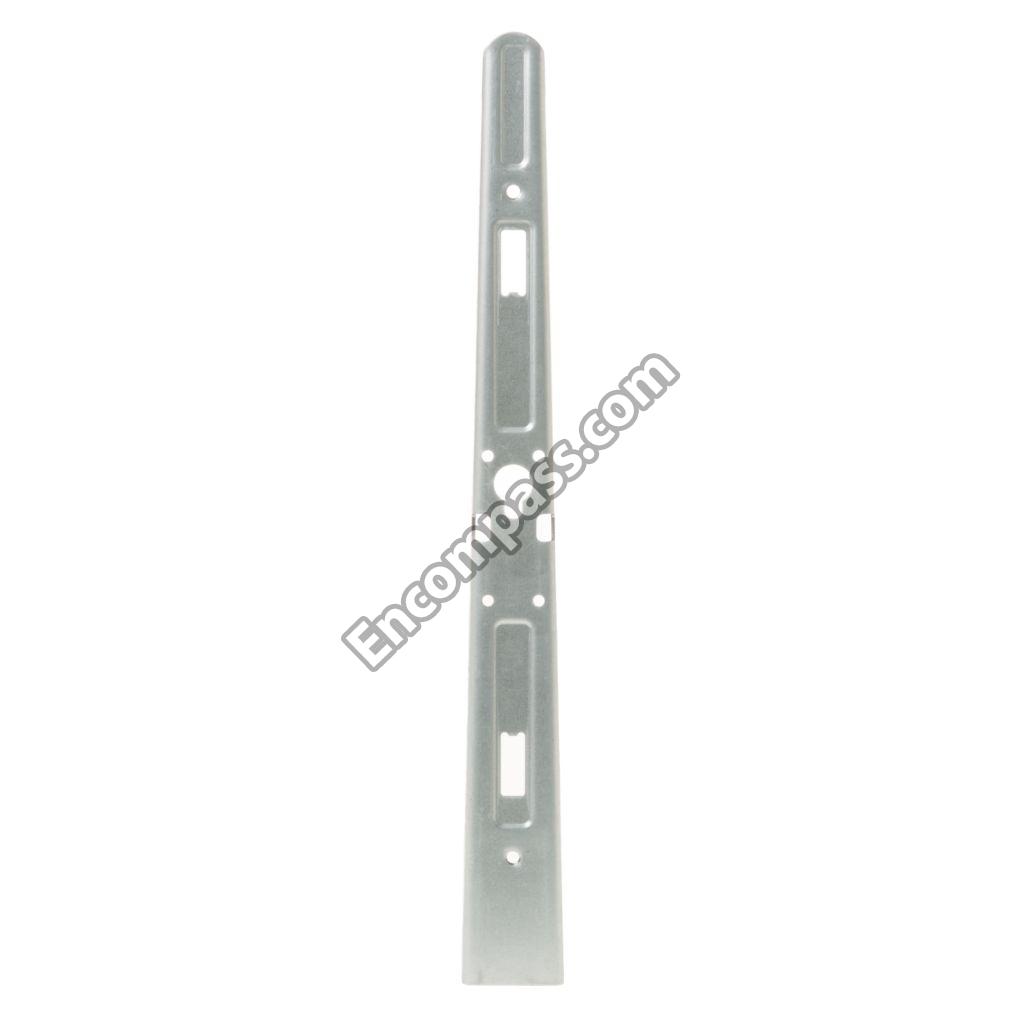

WE13X20233 WE13X20233 STIFFENER HINGE
WE13X10052 WE13X10052 STIFFENER HINGE
WE01X10377 WE01X10377 STRIKER DOOR
WE20X10162 WE20X10162 SUPPORT DRUM REAR
WE04X10180 WE04X10180 SWITCH DOOR
WE04X10184 WE04X10184 SWITCH IDLER
WE04X10181 WE04X10181 THERMISTOR INLET
WE04X22054 WE04X22054 THERMISTOR OUTLET
WE04X10191 WE04X10191 THERMOSTAT 1
WE04X10190 WE04X10190 THERMOSTAT 2
WE04X10192 WE04X10192 THERMOSTAT 2
WE18X10022 WE18X10022 TRAP DUCT ASM
WE01X10420 WE01X10420 TUBE STEAM
WE04X10186 WE04X10186 VALVE STEAM
WE16X33977 WE16X33977 WHEEL BLOWER ASM
WH01X10704 WH01X10704 WIRE TIE
WE01X10401 WE01X10401 Y ADAPTER
