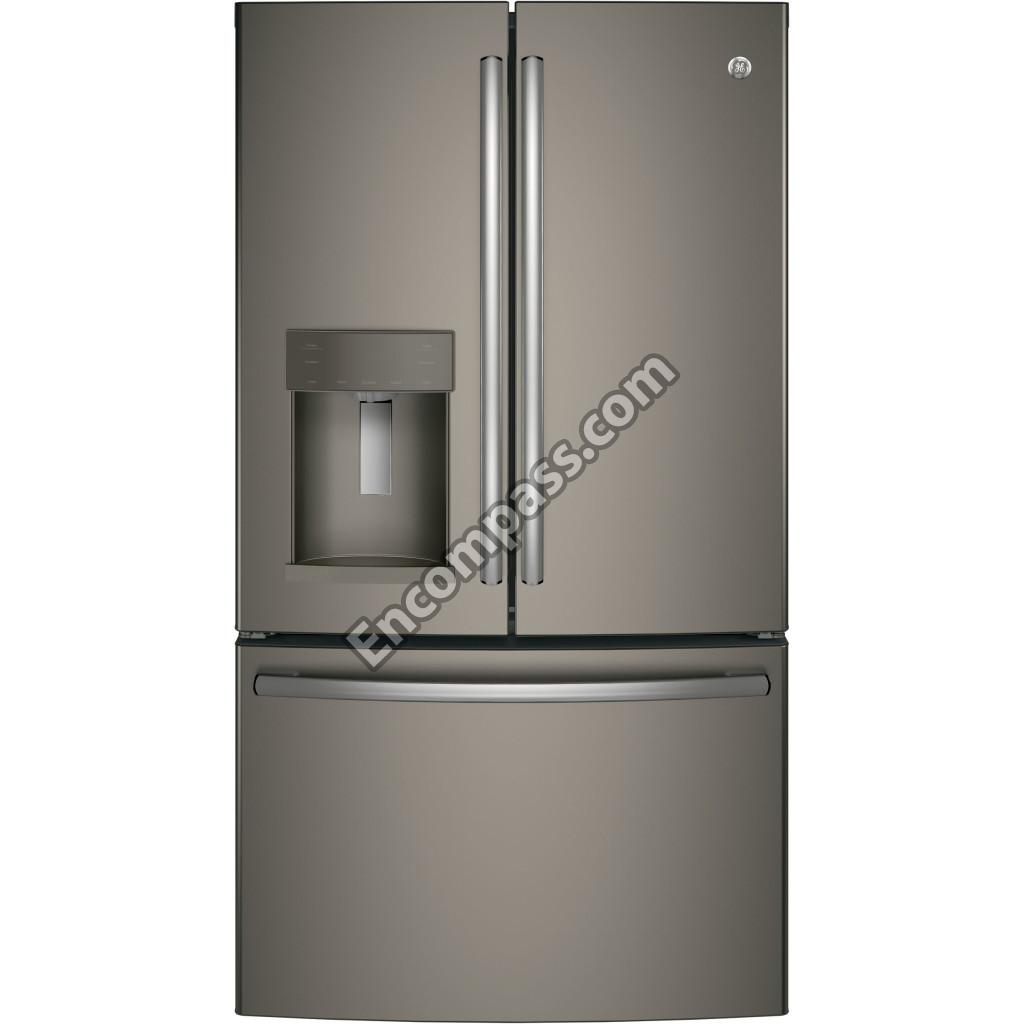

Model Image
Manufacturer

GE

Model Number

GFE26GMKBES

Description

Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WR12X23647 WR12X23647 GE ARC HANDLE ASSEMBLY FF
WR12X23646 WR12X23646 GE ARC HANDLE ASSEMBLY FZ
WR29X10110 WR29X10110 GE ARM FEELER IM
WR32X10892 WR32X10892 GE ART FRAME VP ASSEMBLY.
WR49X10322 WR49X10322 GE AUGER MOTOR ASSEMBLY
WR01X11008 WR01X11008 GE AXLE WHEEL
WR17X13045 WR17X13045 GE BAFFLE COND AIR
WR02X21803 WR02X21803 GE BAR REINFORCEMENT
WR21X10251 WR21X10251 GE BASKET BOTTOM ASSEMBLY
WR32X26452 WR32X26452 GE BASKET UPPER ASM FW
WR71X11050 WR71X11050 GE BIN COND RH FF ASSEMBLY
WR71X11052 WR71X11052 GE BIN GAL RH FF ASSEMBLY
WR71X11046 WR71X11046 GE BIN ICE DOOR MID LH
WR71X11045 WR71X11045 GE BIN ICE DOOR TOP LH
WR02X13725 WR02X13725 GE BLOCK EVAPORATOR SEAL
WR55X46805 WR55X46805 GE BOARD ASM MAIN REFLASHED
WR02X13622 WR02X13622 GE BRACKET CONDENSER
WR02X36886 WR02X36886 GE BRACKET DOOR FZ LH
WR02X25185 WR02X25185 GE BRACKET DOOR FZ RH
WR17X13069 WR17X13069 GE BRACKET FILTER MANIFOLD
WR02X13627 WR02X13627 GE CAM VERT ADJUSTMENT
WR02X13759 WR02X13759 GE CAP CASE CORNER ASSEMBLY DGY
WR17X26324 WR17X26324 GE CAP TOUCH STD SLATE
WR02X10522 WR02X10522 GE CLAMP TUBE
WR02X10879 WR02X10879 GE CLIP EVAPORATOR THERMISTOR
WR01X11064 WR01X11064 GE CLIP PHGL
WR11X23034 WR11X23034 GE CLOSURE DOOR ASSEMBLY LH
WR11X23035 WR11X23035 GE CLOSURE DOOR ASSEMBLY RH
WR02X13647 WR02X13647 GE CLUTCH COUPLING AM
WR14X25124 WR14X25124 GE COLLAR PORT
WR84X10115 WR84X10115 GE CONDENSER ASSEMBLY FORMED
WR02X13737 WR02X13737 GE CONNECTOR 90 DEG 5/16
WR02X13631 WR02X13631 GE CONNNECTOR GEAR PINION
WR82X37208 WR82X37208 GE COVER ACCESS
WR17X32870 WR17X32870 GE COVER AM IM HARNESS
WR17X13048 WR17X13048 GE COVER CONNECTOR FF FAN
WR17X35246 WR17X35246 GE COVER FAN FZ
WR02X23748 WR02X23748 GE COVER FILTER RFID
WR02X23032 WR02X23032 GE COVER LATCH
WR55X25754 WR55X25754 GE COVER LED FF ASSEMBLY WW
WR55X30604 WR55X30604 GE COVER LED FZ ASSEMBLY
WR02X25126 WR02X25126 GE COVER MAINBOARD
WR32X24374 WR32X24374 GE COVER MP TOP FRONT
WR17X13060 WR17X13060 GE COVER PADDLE ASSEMBLY SS
WR13X24981 WR13X24981 GE COVER VALVE AND TANK
WR02X26526 WR02X26526 GE COVER WATER FILTER ASSEMBLY
WR02X13708 WR02X13708 GE CROSSBAR PINION
WR17X24925 WR17X24925 GE DAMPER VEGETABLE PAN
WR72X31329 WR72X31329 GE DELI PAN TOP REAR COVER
WD02X10129 WD02X10129 GE DISHWASHER 6-19X1/4 TORX PAN HEAD SCREW
WR17X13243 WR17X13243 GE DIVERTER AND BADGE ASSEMBLY
WR02X13705 WR02X13705 GE DIVIDER BASKET UPPER FZ
WR02X13703 WR02X13703 GE DIVIDER BOTTOM BASKET
WR78X37442 WR78X37442 GE DOOR DISP FOAM FF LH ASM
WR78X37408 WR78X37408 GE DOOR FOAM ASM FZ BOWED S
WR78X26428 WR78X26428 GE DOOR FOAM FF RH ASM ES
WR78X26087 WR78X26087 GE DOOR ICEBOX FOAM ASSEMBLY
WR17X13240 WR17X13240 GE DORIAN GRAY ARTICULATING MULLION
WR17X34470 WR17X34470 GE DRIP TRAY SLATE
WR86X25269 WR86X25269 GE DRYER FILTER
WR17X13241 WR17X13241 GE DUCT DOOR ASSEMBLY
WR17X22149 WR17X22149 GE DUCT TOWER ASSEMBLY FF
WR02X13648 WR02X13648 GE E CLIP
WR17X35667 WR17X35667 GE EVAP COVER ASM FZ
WR87X36103 WR87X36103 GE EVAPORATOR AND TUBE ASSEMBLY FF
WR87X36102 WR87X36102 GE EVAPORATOR AND TUBE ASSEMBLY FZ
WR17X27084 WR17X27084 GE EVAPORATOR COVER FF
WR60X23363 WR60X23363 GE FAN GASKET ASSEMBLY
WR60X26866 WR60X26866 GE FAN MOTOR DC FF EVAP
WR60X25858 WR60X25858 GE FAN MOTOR DC FZ EVAP
WR60X36825 WR60X36825 GE FAN MOTOR IM ASSEMBLY / SENSOR
WR49X31524 WR49X31524 GE FD REFRIGERATOR ICE MAKER FOR DOOR
WR02X13684 WR02X13684 GE FILTER MANIFOLD
WR02X28554 WR02X28554 GE FRIDGE DEFROST DRAIN TUBE CHECK VALVE
WR49X10268 WR49X10268 GE FRONT/REAR WHEEL AND AXLE
WR60X10352 WR60X10352 GE FZ FAN AND FELT ASSEMBLY
WR14X10384 WR14X10384 GE GASKET DUCT FAN IM
WR14X29300 WR14X29300 GE GASKET FF DGY
WR02X13731 WR02X13731 GE GASKET FF FAN FRONT
WR14X36194 WR14X36194 GE GASKET FZ DGY ES
WR04X10181 WR04X10181 GE GE BADGE
WR02X13630 WR02X13630 GE GEAR LWR DRW LH
WR02X13629 WR02X13629 GE GEAR LWR DRW RH
WR32X10893 WR32X10893 GE GLASS VEGETABLE PAN
WR02X13729 WR02X13729 GE GRILLE THERMISTOR
WR02X13719 WR02X13719 GE GROMMET COMPRESSOR
WR14X10055 WR14X10055 GE GROMMET TUBING SLIT.
WR72X10444 WR72X10444 GE GUIDE ROLLER VEGETABLE PAN
WR23X10777 WR23X10777 GE HARNESS DOOR CASE
WR23X10776 WR23X10776 GE HARNESS DOOR SWITCH AC
WR23X10748 WR23X10748 GE HARNESS GROUND
WR23X24389 WR23X24389 GE HARNESS POWER CORD
WR55X26283 WR55X26283 GE HARNESS SINGLE SPEED
WR51X10133 WR51X10133 GE HEATER CONDUCTION FF
WR51X10134 WR51X10134 GE HEATER CONDUCTION FZ
WR51X10132 WR51X10132 GE HEATER DEF ASSEMBLY FF
WR51X10131 WR51X10131 GE HEATER DEF ASSEMBLY FZ
WR23X23626 WR23X23626 GE HEATER HARNESS FF
WR23X10745 WR23X10745 GE HEATER HARNESS FZ W/TCO
WR02X13739 WR02X13739 GE HINGE CAP
WR13X10982 WR13X10982 GE HINGE CENTER ASSEMBLY LH
WR13X10976 WR13X10976 GE HINGE CENTER ASSEMBLY RH
WR13X10984 WR13X10984 GE HINGE CENTER MULLION
WR17X20164 WR17X20164 GE HINGE ENDCAP ASSEMBLY DGY (2PK)
WR13X10985 WR13X10985 GE HINGE MULLION
WR13X10972 WR13X10972 GE HINGE TOP DOOR ICEBOX
WR13X25911 WR13X25911 GE HINGE TOP PIN ASSEMBLY LH
WR13X25910 WR13X25910 GE HINGE TOP PIN ASSEMBLY RH
WR02X10518 WR02X10518 GE HOLDER ELEMENT
WR02X13678 WR02X13678 GE HOLDER ELEMENT ASSEMBLY
WR72X20644 WR72X20644 GE HOLDER SLIDE FZ LH
WR72X20645 WR72X20645 GE HOLDER SLIDE FZ RH
WR13X25912 WR13X25912 GE HOUSING TRAY VALVE TANK
WD1X1459 WD1X1459 GE HSNG INSUL.
WR30X10174 WR30X10174 GE ICE BUCKET AND CRUSHER.
WR30X28731 WR30X28731 GE ICEMAKER
WR17X30495 WR17X30495 GE INSERT FUNNEL
WD01X1459 WD01X1459 GE INSULATOR HSNG TERM
WR84X23630 WR84X23630 GE JUMPER COMP DISCHARGE
WR11X10031 WR11X10031 GE LATCH ICEBOX DOOR
WR02X13623 WR02X13623 GE LOUVER DUCT IM RETURN FZ
WR02X13724 WR02X13724 GE MASTIC SOUND DEADENING
WR60X10344 WR60X10344 GE MOTOR DUCT DOOR
WR07X10131 WR07X10131 GE OVERLOAD PTCR COMBO
WR32X10890 WR32X10890 GE PAN MEAT ASM
WR32X10897 WR32X10897 GE PAN VEGETABLE ASSEMBLY
WR55X44126 WR55X44126 GE PCB ASM DOOR CONTROL
WR55X45225 WR55X45225 GE PCB ASM LED ICON UI
WR55X24585 WR55X24585 GE PCB ASSEMBLY HUMIDITY BOARD
WR17X13205 WR17X13205 GE PCB COVER ASSEMBLY DGY
WR01X11023 WR01X11023 GE PIN CROSS BAR
31-51932 31-51932 GE PM MINI MANUAL SERVICE
49-60714 49-60714 GE PM QUICK USE & CARE
WR14X10364 WR14X10364 GE PORT GASKET
WR01X11040 WR01X11040 GE QUICK CLIP CONN 5/16
WR01X11041 WR01X11041 GE QUICK CLIP CONNECTOR 1/4
WR55X24064 WR55X24064 GE REFRIGERATOR CAPACITOR
WR87X23410 WR87X23410 GE REFRIGERATOR COMPRESSOR
WR01X11007 WR01X11007 GE REFRIGERATOR DOOR HANDLE FASTENER
WR71X24976 WR71X24976 GE REFRIGERATOR DOOR ICE BIN
WR24X27948 WR24X27948 GE REFRIGERATOR FRESH FOOD FAN BOOT
WR23X37285 WR23X37285 GE REFRIGERATOR LIGHT SWITCH
WR55X10025 WR55X10025 GE REFRIGERATOR TEMPERATURE SENSOR
WR02X13738 WR02X13738 GE REFRIGERATOR UNION CONNECTOR - 1/4-INCH
WR01X29059 WR01X29059 GE REFRIGERATOR WATER FILTER BYPASS PLUG
WR55X11128 WR55X11128 GE REFRIGERATOR WATER INLET VALVE
WR55X35905 WR55X35905 GE RFID WATER FILTER BOARD
WR02X13658 WR02X13658 GE ROLLER ASSEMBLY
WR01X11010 WR01X11010 GE SCR 1/4-20 GX TRT 7/8 S
WR01X11049 WR01X11049 GE SCR 1/4-20 HXW 7/8 S
WR01X11013 WR01X11013 GE SCR 10-18 FLT20 3/4 S
WR01X11032 WR01X11032 GE SCR 10-24 AB RNT 20 5/8
WR01X23749 WR01X23749 GE SCR 10-32 AB HXW 1/2 S
WR01X11044 WR01X11044 GE SCR 10-32 B RNS .353 S
WR01X10897 WR01X10897 GE SCR 12-24TT BHT20 .700 S
WR01X10649 WR01X10649 GE SCR 8-10 PL PNP 1/2 S
WD02X10104 WD02X10104 GE SCR 8-10 PL TRP 1/2 S
WR01X11065 WR01X11065 GE SCR 8-18 AB FLP 3/4 S ZN
WR01X1804 WR01X1804 GE SCR 8-18 AB HXW 3/4 WH
WR01X11012 WR01X11012 GE SCR 8-18 AB HXW 9/16 S
WR01X11060 WR01X11060 GE SCR 8-18 AB HXWP 9/16S
WR01X10593 WR01X10593 GE SCR 8-18 AB IHXW 3/4 S
WR01X10588 WR01X10588 GE SCR 8-18 AB IHXW 9/16 S
WR01X11054 WR01X11054 GE SCR 8-18 FLP 1/2 S
WR01X11028 WR01X11028 GE SCR 8-18 FLP 1/2 S
WR01X11061 WR01X11061 GE SCR 8-18 HI/LO HWX 3/4
WR01X1757 WR01X1757 GE SCR 8-18 HXW 1 1/4S
WR01X10618 WR01X10618 GE SCR 8-18 TPT 1/4
WR01X10602 WR01X10602 GE SCR 8-32 AB IHWS 3/8 S
WR01X10635 WR01X10635 GE SCR 8-32 CA IHXW .625 S
WR01X26257 WR01X26257 GE SCR 8-32 HXW 3/4 S
WR01X10626 WR01X10626 GE SCR HXW 11/4
WR01X10606 WR01X10606 GE SCREW
WR1X1786 WR1X1786 GE SCREW
WB01X5364 WB01X5364 GE SCREW (CR)
WR01X11011 WR01X11011 GE SCREW 1/4-20 HXW 3/4S
WD02X10067 WD02X10067 GE SCREW 8-16 HXW 1/2 SS
WR01X10196 WR01X10196 GE SCREW 8-18 HI/LO 5/8
WR01X11016 WR01X11016 GE SCREW HINGE CTR ADJ
WR01X11046 WR01X11046 GE SCREW LEVELING ASSEMBLY
WB1X5364 WB1X5364 GE SCREW MTG
WR01X11036 WR01X11036 GE SCREW SET DOOR FZ
WZ5X158D WZ5X158D GE SCREW-PKG 12
WR01X11014 WR01X11014 GE SET SCREW
WR32X10887 WR32X10887 GE SHELF CANTILEVER ASSEMBLY
WR02X13655 WR02X13655 GE SHIELD LED LIGHT
WR01X11066 WR01X11066 GE SHUNT SENSOR
WR01X11053 WR01X11053 GE SLEEVE SPRING MULLION
WR17X13145 WR17X13145 GE SLIDE BRACKET ASSEMBLY LH
WR17X13144 WR17X13144 GE SLIDE BRACKET ASSEMBLY RH
WR72X10428 WR72X10428 GE SLIDE LOWER FZ LH
WR72X10427 WR72X10427 GE SLIDE LOWER FZ RH
WR02X13679 WR02X13679 GE SPACER TRACK
WR01X11027 WR01X11027 GE SPRING
WR02X13645 WR02X13645 GE SPRING CLUTCH AM
WR01X11017 WR01X11017 GE SPRING DUCT DOOR
WR01X11033 WR01X11033 GE SPRING FEELER ARM
WR01X11052 WR01X11052 GE SPRING HINGE MULLION
WR02X13634 WR02X13634 GE STOP DOOR RH/LH ASSEMBLY
WR02X13706 WR02X13706 GE STOPPER DIVIDER FZ UPPER
WR02X13632 WR02X13632 GE STRIKER LIGHT SWITCH
WR01X31733 WR01X31733 GE STRIKER TOP MULLION
WR01X20885 WR01X20885 GE STUD MTG COMPRESSOR
WR02X13668 WR02X13668 GE SUPPORT CONDENSER
WR72X24400 WR72X24400 GE SUPPORT SIDE LH
WR72X24401 WR72X24401 GE SUPPORT SIDE RH
WR02X13674 WR02X13674 GE SUPPORT SLIDE FZ
WR23X29170 WR23X29170 GE SWITCH LIGHT FF
WR17X27627 WR17X27627 GE TANK COLD WATER ASSEMBLY
WR02X13734 WR02X13734 GE TAPE FELT
WR50X10108 WR50X10108 GE THERMOSTAT DEFROST FZ
WR17X13226 WR17X13226 GE TOP COVER MIDDLE DGY
WR72X10429 WR72X10429 GE TRACK CENTER FF
WR72X21071 WR72X21071 GE TRACK SIDE FF
WR17X13091 WR17X13091 GE TROUGH DRAIN FF
WR17X13080 WR17X13080 GE TROUGH DRAIN FZ
WR84X10113 WR84X10113 GE TUBE FZ REPAIR ASSEMBLY
WR02X13774 WR02X13774 GE TUBE LEAD
WR02X32127 WR02X32127 GE TUBE PEX LH DOOR
WR87X23634 WR87X23634 GE TUBE SUCTION JUMPER
WR02X32126 WR02X32126 GE TUBING PEX 55.3 IN
WR02X48625 WR02X48625 GE TUBING PEX 55.3 IN
WR86X10094 WR86X10094 GE VALVE BODY ASSEMBLY
WR57X10098 WR57X10098 GE VALVE DUAL WATER
WR01X23746 WR01X23746 GE WASHER LOCK
RPWFE RPWFE GE WATER FILTER
WR02X13685 WR02X13685 GE WHEEL
WR02X13616 WR02X13616 GE WHEEL OVERMOLD ASM REAR
WZ4X416 WZ4X416 GE WZ04X0408
