HOTGFE26JSMKFSS
Model Image
Manufacturer

GE

Model Number

GFE26JSMKFSS

Description

Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WR17X25027 WR17X25027 GE ARTICULATING MULLION ASSEMBLY
WR60X24993 WR60X24993 GE AUGER MOTOR ASSEMBLY
WR60X24484 WR60X24484 GE BLADE CONF FAN ASSEMBLY
WR60X45065 WR60X45065 GE BLOWER ASSEMBLY
WR55X46945 WR55X46945 GE BOARD ASM MAIN CONTROL
WR55X24870 WR55X24870 GE BOARD LED LIGHT ASSEMBLY
WR55X30493 WR55X30493 GE BOARD MAIN COMBINED HMI
WR02X11863 WR02X11863 GE BRACKET COND FAN (MTG)
WR02X10593 WR02X10593 GE BRACKET COND FAN (REAR)
WR72X30560 WR72X30560 GE BRACKET DRAWER LH
WR72X30559 WR72X30559 GE BRACKET DRAWER RH
WR02X12870 WR02X12870 GE BRACKET SUPPORT
WR02X33365 WR02X33365 GE BUMPER DOOR DG
WR17X33825 WR17X33825 GE BYPASS FILTER PLUG
WR02X24998 WR02X24998 GE CAM CLOSURE FF DG
WR02X26735 WR02X26735 GE CLIP RETAINER MEI
WR14X25061 WR14X25061 GE COLLAR GASKET
WR87X10224 WR87X10224 GE COMPRESSOR EMBRACO
WR60X29573 WR60X29573 GE CONDENSER FAN AND HOUSING
WR55X30121 WR55X30121 GE CONTROL DISPLAY STAINLESS STEEL
WR82X22767 WR82X22767 GE COVER ACCESS ASSEMBLY
WR02X40125 WR02X40125 GE COVER CONECTOR
WR17X40007 WR17X40007 GE COVER EVAPORATOR FAN
WR13X24931 WR13X24931 GE COVER HINGE TOP LH DG
WR13X24930 WR13X24930 GE COVER HINGE TOP RH DG
WR13X38305 WR13X38305 GE COVER LED TOP
WR17X13124 WR17X13124 GE COVER WATER LINE
WR17X24996 WR17X24996 GE COVER WATER TANK
WR02X32247 WR02X32247 GE CROSS BAR PINION
WR17X12456 WR17X12456 GE DAMPER ASSEMBLY MOTORIZED
WR51X30141 WR51X30141 GE DEFROST HEATER
WR71X38293 WR71X38293 GE DISPENSER DOOR BIN
WR02X27906 WR02X27906 GE DIVIDER
WR02X24849 WR02X24849 GE DIVIDER BASKET LOWER FZ
WR02X24969 WR02X24969 GE DIVIDER PANTRY
WR17X25244 WR17X25244 GE DOOR ICE BOX ASSEMBLY
WR17X30140 WR17X30140 GE DRAIN TROUGH
WR02X30155 WR02X30155 GE DRAIN TUBE
WR17X30120 WR17X30120 GE DRIP TRAY
WR17X25006 WR17X25006 GE DUCT DOOR ASSEMBLY
WR87X30157 WR87X30157 GE EVAPORATOR
WR49X40248 WR49X40248 GE EVAPORATOR COVER
WR60X30922 WR60X30922 GE EVAPORATOR FAN BLADE
WR14X26408 WR14X26408 GE FF AIR TOWER ASSEMBLY 33
WR14X24804 WR14X24804 GE FOAM STRIP SE ADH
WR14X30142 WR14X30142 GE FREEZER DOOR GASKET DORIAN GRAY
WR71X30122 WR71X30122 GE FREEZER LOWER BASKET
WR71X30132 WR71X30132 GE FREEZER UPPER BASKET
WR14X30117 WR14X30117 GE FRENCH DOOR GASKET DORIAN GRAY
WR14X29199 WR14X29199 GE FRESH FOOD AIR TOWER GRILL
WR71X38309 WR71X38309 GE FRESH FOOD DOOR LOWER BIN
WR71X38307 WR71X38307 GE FRESH FOOD DOOR SHELF MODULE
WR71X42032 WR71X42032 GE FULL-WIDTH DRAWER COVER WITH G
WR17X25058 WR17X25058 GE FUNNEL ICE SS
WR14X25060 WR14X25060 GE GASKET PORT
WR14X24747 WR14X24747 GE GASKET TOWER FF
WR04X10181 WR04X10181 GE GE BADGE
WR02X13387 WR02X13387 GE GEAR PINION RH
WR71X30138 WR71X30138 GE GLASS SHELF LEFT H AND
WR71X30137 WR71X30137 GE GLASS SHELF RIGHT H AND
WR02X10647 WR02X10647 GE GRILLE SENSOR
WR02X22869 WR02X22869 GE GROMMET
WR02X10520 WR02X10520 GE GROMMET FAN MOTOR
WR55X28649 WR55X28649 GE HARNESS EVAPORATOR
WR55X30266 WR55X30266 GE HARNESS SWITCH
WR13X10973 WR13X10973 GE HINGE BOTTOM DOOR ICEBOX
WR02X24999 WR02X24999 GE HINGE BUSHING BB
WR02X24876 WR02X24876 GE HINGE BUSHING BB
WR02X24875 WR02X24875 GE HINGE BUSHING BB
WR13X29171 WR13X29171 GE HINGE CENTER
WR13X24929 WR13X24929 GE HINGE TOP ASSEMBLY LH GB
WR13X24928 WR13X24928 GE HINGE TOP ASSEMBLY RH GB
WR13X10972 WR13X10972 GE HINGE TOP DOOR ICEBOX
WR72X24768 WR72X24768 GE HOLDER SLIDE FZ LH
WR72X24767 WR72X24767 GE HOLDER SLIDE FZ RH
WR29X40206 WR29X40206 GE ICE BUCKET ASSEMBLY
WR30X35286 WR30X35286 GE ICEMAKER
WR29X25065 WR29X25065 GE IM COVER ACCESS
WR87X32326 WR87X32326 GE L-FIN AL CONDENSER 10 PASS
WR55X30124 WR55X30124 GE LIGHT HOUSING
WR23X39269 WR23X39269 GE LIGHT SWITCH
WR23X30131 WR23X30131 GE LOWER CABINET HARNESS
WR71X38313 WR71X38313 GE MEAT PAN
WR71X38292 WR71X38292 GE MIDDLE DISPENSER DOOR BIN
WR02X30159 WR02X30159 GE MOBILITY WHEEL
WR02X30160 WR02X30160 GE MOBILITY WHEEL PIN
WR60X10209 WR60X10209 GE MOTOR DC COND FAN
WR60X32614 WR60X32614 GE MOTOR DC EVAP FAN ASM
WR60X10344 WR60X10344 GE MOTOR DUCT DOOR
WR08X26736 WR08X26736 GE OVERLOAD PTCR COMBO
WR86X25269 WR86X25269 GE P/S DRYER KIT R134A
WR17X26164 WR17X26164 GE PADDLE AND SKIN ASSEMBLY
WR55X24585 WR55X24585 GE PCB ASSEMBLY HUMIDITY BOARD
31-1000396 31-1000396 GE PM MINI MANUAL AND WIRING
49-60803 49-60803 GE PM USE AND CARE MANUAL
WR71X30139 WR71X30139 GE QUICK SPACE SHELF
XWFE XWFE GE REFRIGERATION WATER FILTER
WR78X30119 WR78X30119 GE REFRIGERATOR - DISPENSER DOOR STAINLESS
WR78X30143 WR78X30143 GE REFRIGERATOR - FREEZER DOOR STAINLESS ST
WR78X30118 WR78X30118 GE REFRIGERATOR - FRESH FOOD DOOR STAINLESS
WR55X24064 WR55X24064 GE REFRIGERATOR CAPACITOR
WR2X8203 WR2X8203 GE REFRIGERATOR CLIP
WR01X39781 WR01X39781 GE REFRIGERATOR HANDLE FASTENER
WR02X12025 WR02X12025 GE REFRIGERATOR MAIN BOARD ENCLOSURE
WR55X10025 WR55X10025 GE REFRIGERATOR TEMPERATURE SENSOR
WR02X12149 WR02X12149 GE RING COMPRESSION
WR01X10843 WR01X10843 GE SCR 1/4 - 20 UNC -2A
WR01X10885 WR01X10885 GE SCR 1/4-20 RT FLAT 3/4 S
WR01X10939 WR01X10939 GE SCR 10-14 PL FLT20 3/4 S
WR01X25308 WR01X25308 GE SCR 10-16 B HXW 1/4 S
WR01X27994 WR01X27994 GE SCR 12-24 HXT20 .90 S
WR01X10606 WR01X10606 GE SCR 8-18 AB HXW 1/2 S
WR01X10626 WR01X10626 GE SCR 8-18 AB HXW 5/4 S
WR01X10844 WR01X10844 GE SCR 8-32 AB IHWS 3/8 S
WR01X10654 WR01X10654 GE SCREW 10-32 TT HXW 5/16 S
WR01X10652 WR01X10652 GE SCREW 8-18 AB IHW 5/8 S
WR01X10065 WR01X10065 GE SCREW 818 BA POR 5/8 SS
WR01X10379 WR01X10379 GE SCREW HINGE COVER
WR01X10850 WR01X10850 GE SCREW LEVELING
WR02X38285 WR02X38285 GE SHIELD LIGHT
WR02X10668 WR02X10668 GE SHUNT SENSOR
WR72X24815 WR72X24815 GE SLIDE BASKET LOWER FZ
WR72X24869 WR72X24869 GE SLIDE BASKET UPPER LH
WR72X24868 WR72X24868 GE SLIDE BASKET UPPER RH
WR02X13573 WR02X13573 GE SOUND DAMPER
WR02X25443 WR02X25443 GE SPRING CLUSRE
WR01X25007 WR01X25007 GE SPRING DUCT DOOR
WR01X25538 WR01X25538 GE SPRING PADDLE
WR02X13488 WR02X13488 GE SPRING WATER CONDUIT
WR12X34305 WR12X34305 GE SS DOOR H AND LE
WR12X34312 WR12X34312 GE SS FREEZER DOOR H AND LE
WR02X10663 WR02X10663 GE ST AND OFF

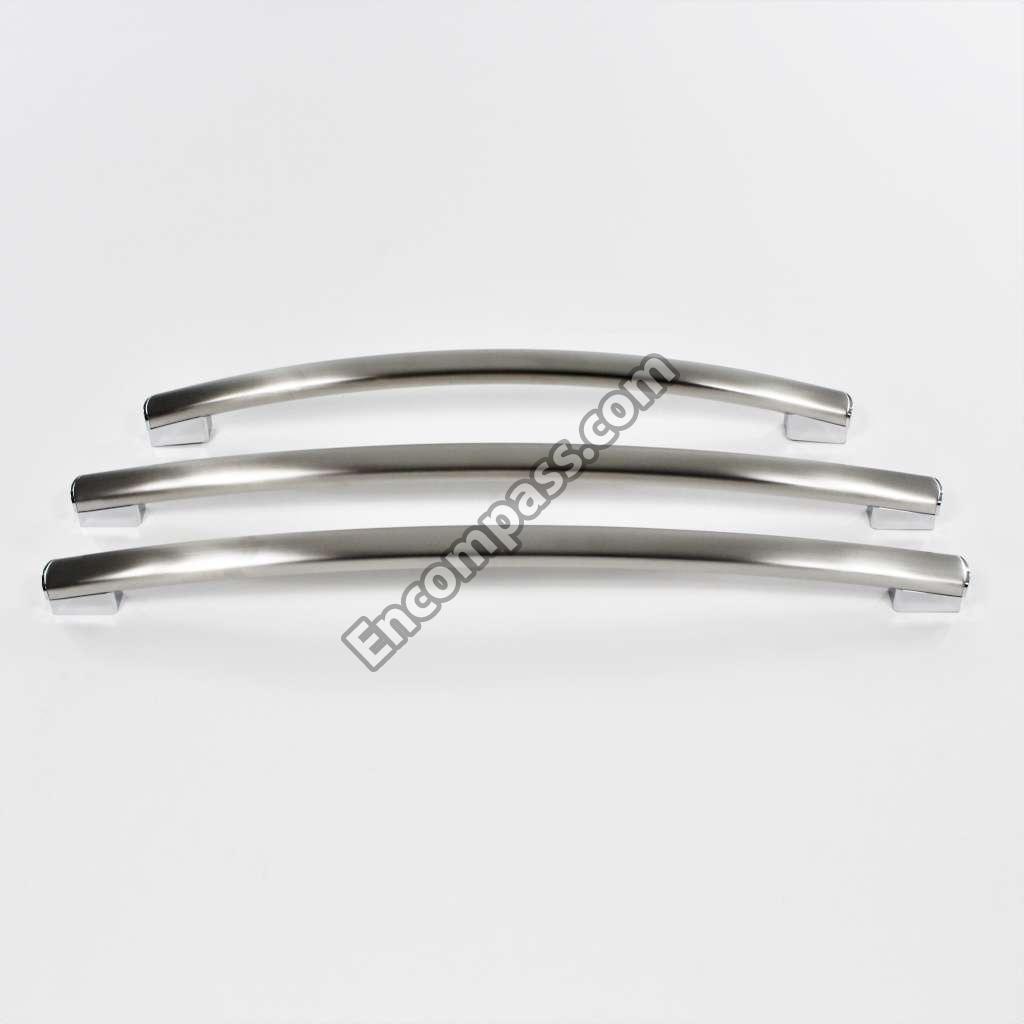

WR12X30126 WR12X30126 GE STAINLESS STEEL HANDLE
WR02X24905 WR02X24905 GE STEEL PIN HINGE
WR02X24874 WR02X24874 GE STOP DOOR
WR02X24944 WR02X24944 GE STRIKER TOP MULLION
WR1X1779 WR1X1779 GE STUD MTGCOMP
WR02X30289 WR02X30289 GE SUPPORT PIN
WR23X29170 WR23X29170 GE SWITCH LIGHT FF
WR14X25057 WR14X25057 GE SWITCH PADDLE ASSEMBLY
WR17X25028 WR17X25028 GE TANK COLD WATER
WR50X10069 WR50X10069 GE THERMOSTAT DEF
WR13X46709 WR13X46709 GE TOP INTERFACE DORIAN GREY
WR14X26167 WR14X26167 GE TRACK CENTER ASSEMBLY
WR02X13774 WR02X13774 GE TUBE LEAD
WR02X25048 WR02X25048 GE UNION CONNECTOR 1/4
WR57X26303 WR57X26303 GE VALVE AND GUARD ASSEMBLY
WR71X38311 WR71X38311 GE VEGETABLE DRAWER
WR71X42029 WR71X42029 GE VEGETABLE PAN COVER
WR57X25054 WR57X25054 GE WATER VALVE
WR17X30148 WR17X30148 GE XWF FILTER COVER
WR14X34687 WR14X34687 GE XWF MANIFOLD AND HOUSING
