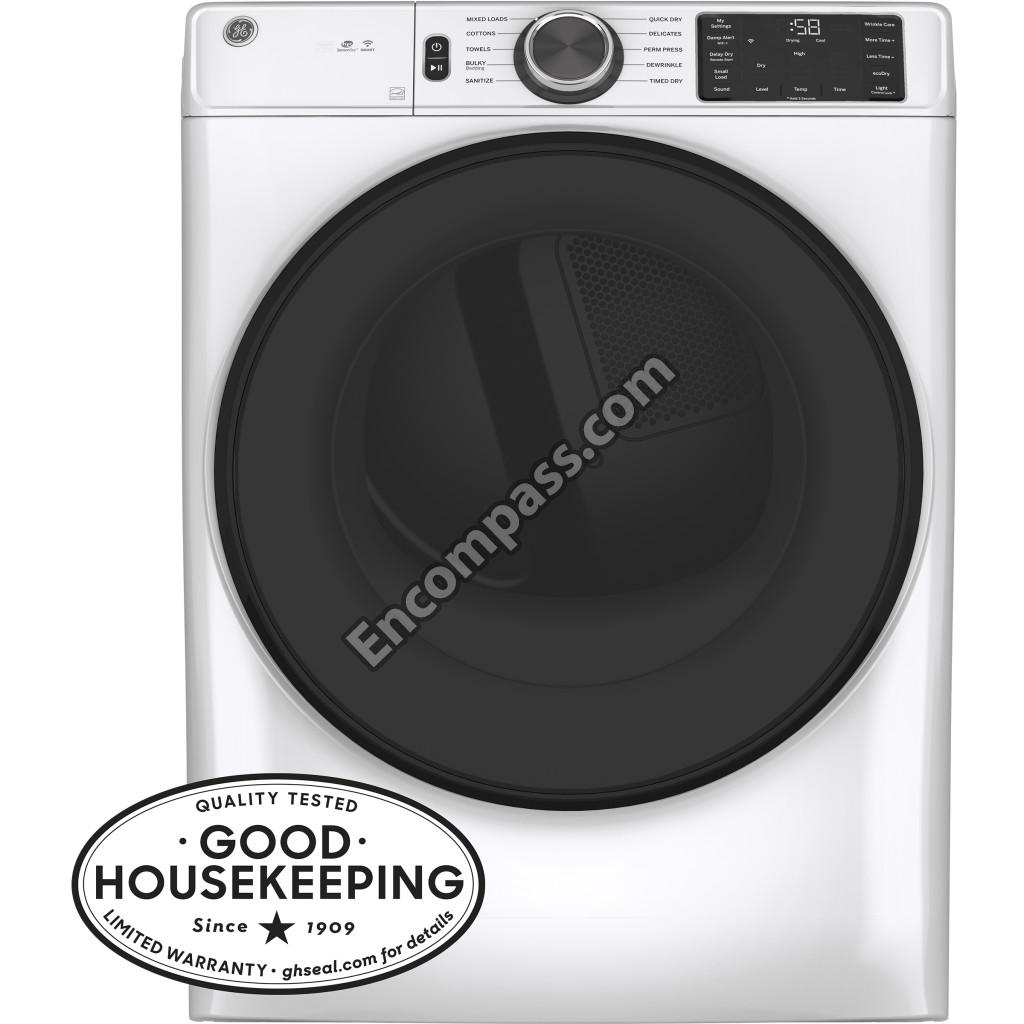

Model Image
Manufacturer

GE

Model Number

GFV55ESSN1WW

Description

Dryer Electric

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WE13X29699 WE13X29699 ACCESS PANEL
WE02X29717 WE02X29717 BELLEVILLE NUT
WE16X29713 WE16X29713 BLOWER HOUSING
WE16X33977 WE16X33977 BLOWER WHEEL
WE01X10376 WE01X10376 CLIP RESILIENT MOUNT
WE13X29585 WE13X29585 CONTROL PANEL FRONT BRACKET
WE13X29596 WE13X29596 CONTROL PANEL LE WHITE
WE10X29721 WE10X29721 DOOR COVER
WE01X29738 WE01X29738 DOOR DOOR LATCH
WE01X34017 WE01X34017 DOOR HINGE
WE13X29720 WE13X29720 DOOR PROTECT COVER
WE05X34278 WE05X34278 DOOR SEAL
WE01X34600 WE01X34600 DOOR STRIKER WHITE
WE04X34281 WE04X34281 DOOR SWITCH
WE03X29704 WE03X29704 DRIVE BELT
WE21X29724 WE21X29724 DRUM
WE13X29725 WE13X29725 DRUM BAFFLE
WE10X29718 WE10X29718 DRYER DOOR LE
WE16X38737 WE16X38737 DUCT TRAP
WE13X35877 WE13X35877 DUCT TRAP BRACKET
WE13X30590 WE13X30590 DUCT TRAP SHIELD
WE11X29790 WE11X29790 ELECTRIC HEATER
WE11X29734 WE11X29734 EXHAUST DUCT
WE09X10025 WE09X10025 FAN SEAL
WE13X29593 WE13X29593 FRONT DRUM SUPPORT
WE10X29591 WE10X29591 FRONT PANEL WHITE
WH01X29417 WH01X29417 GE BADGE
WE13X29598 WE13X29598 GRILLE HOUSING
WE04X29793 WE04X29793 HIGH LIMIT THERMOSTAT
WE03X30657 WE03X30657 IDLER ARM
WE03X29702 WE03X29702 IDLER SPRING
WE04X29792 WE04X29792 INLET BACKUP THERMOSTAT
WE13X29716 WE13X29716 INLET RING
WE01X29697 WE01X29697 LEVELING LEG
WE16X32537 WE16X32537 LINT FILTER
WE13X29701 WE13X29701 MAIN BOARD BRACKET
WE22X38277 WE22X38277 MAIN CONTROL BOARD W/INSTRUCTIONS
WE22X39117 WE22X39117 MAIN CONTROL BOARD W/INSTRUCTIONS
WE08X32439 WE08X32439 MAIN HARNESS ELECTRIC
WE03X29821 WE03X29821 MOTOR
WE13X29820 WE13X29820 MOTOR BRACKET LONG VENT
WH02X24417 WH02X24417 NUT PULLEY
WE04X29714 WE04X29714 OUTLET THERMISTOR
WE02X29690 WE02X29690 PANEL CLIP
WE01X29600 WE01X29600 PANEL CLIP
WE02X29732 WE02X29732 PIVOT SHOULDER BOLD+T
WE01X30137 WE01X30137 PLUG NON STEAM
31-3000220 31-3000220 PM MINI MANUAL AND WIRING
49-3000206 49-3000206 PM OWNERS AND INSTALL
31-3000216 31-3000216 PM QUICK INSTALL
WE13X29586 WE13X29586 POWER/START BUTTON BRACKET
WE13X29735 WE13X29735 REAR DRUM SUPPORT
WE13X30588 WE13X30588 REAR PANEL
WH01X30840 WH01X30840 RJ45 ACCESS PANEL WHITE
WE03X10016 WE03X10016 ROLLER ASM WHEEL
WH02X32237 WH02X32237 SCR 10-16 PL TRQ 3/8 S
WE02X30757 WE02X30757 SCR 10-18 PL
WH02X10139 WH02X10139 SCR 10-32 B TRT-25 5/8
WH02X31877 WH02X31877 SCR 10-32 GX HXW 7/16 S
WE02X10107 WE02X10107 SCR 10-32 GX HXW 7/16 S
WR01X11012 WR01X11012 SCR 8-18 AB HXW 9/16 S
WH02X10394 WH02X10394 SCR 8-18 AB TRQ 5/8 SS
WH2X930 WH2X930 SCREW
WH2X1217 WH2X1217 SCREW
WR01X10196 WR01X10196 SCREW 8-18 HI/LO 5/8
WH02X31377 WH02X31377 SCREW AND BUSH GUIDE
WE01X29590 WE01X29590 SCREW COVER WHITE
WE01X29707 WE01X29707 SELECTOR KNOB
WE08X29688 WE08X29688 SENSOR ROD HARNESS
WH02X30177 WH02X30177 SHOULDER SCREW M4
WE10X29743 WE10X29743 SIDE PANEL WHITE LEFT
WE10X29742 WE10X29742 SIDE PANEL WHITE RIGHT
WE02X35237 WE02X35237 STEEL WASHER
WE16X29789 WE16X29789 SUPPLY DUCT
WE04X31779 WE04X31779 TERMINAL BLOCK
WE13X29740 WE13X29740 TERMINAL BLOCK COVER
WE04X10190 WE04X10190 THERMOSTAT 2
WE10X30584 WE10X30584 TOP PANEL WHITE
WE08X32438 WE08X32438 TUB LIGHT
WE22X37717 WE22X37717 USER INTERFACE BOARD FL DRYER 55
WE01X20693 WE01X20693 WASHER BAFFLE
WH22X36577 WH22X36577 WIFI & BLUETOOTH BOARD W/INSTRUCTIONS
WE08X29733 WE08X29733 WIFI JUMPER HARNESS
WH01X10704 WH01X10704 WIRE TIE
