Manufacturer
GE
Model Number
GFW650SSN3WW
Description
Washer
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ACCELEROMETER |
|
|
BAFFLE |
|
|
BASKET |
|
|
BASKET BAFFLE SCREW |
|
|
BOOT GASKET CLAMP |
|
|
CLAMP ACCELEROMETER |
|
|
CONTROL BOARD COVER |
|
|
CONTROL BRACKET |
|
|
CONTROL PANEL WHITE |
|
|
COUNTERWEIGHT BOLT |
|
|
COUNTERWEIGHT FLANGE NUT |
|
|
CROSS BRACE |
|
|
DAMPER GASKET CLAMP FRONT |
|
|
DAMPER GASKET CLAMP REAR |
|
|
DAMPER PIN |
|
|
DAMPER PIN ACCESS COVER |
|
|
DAMPER VENT |
|
|
DISPENSER DRAWER |
|
|
DISPENSER DRAWER HANDLE |
|
|
DISPENSER FILL HOSE |
|
|
DISPENSER FILL HOSE NOZZLE |
|
|
DOOR DOOR LATCH HARNESS HOLDER |
|
|
DOOR GLASS HOSE |
|
|
DOOR HINGE |
|
|
DOOR HINGE COVER |
|
|
DOOR HINGE SCREW |
|
|
DOOR LATCH COVER WHITE |
|
|
DOOR LOCK |
|
|
DOOR LOCK HARNESS COVER |
|
|
DOOR LOCK SCREW ST4*12 |
|
|
DOOR REVERSAL/LOCK BAR |
|
|
DOOR STRIKE |
|
|
DOOR STRIKE SUPPORT |
|
|
DRAIN HOSE FIXING SCREW |
|
|
DRAIN HOSE SUPPORT |
|
|
DRAIN PUMP ACCESS DOOR |
|
|
DRAIN PUMP CLAMP |
|
|
DRAIN PUMP FUNNEL |
|
|
DRAIN PUMP HOUSING |
|
|
DRAIN PUMPS & FILTER |
|
|

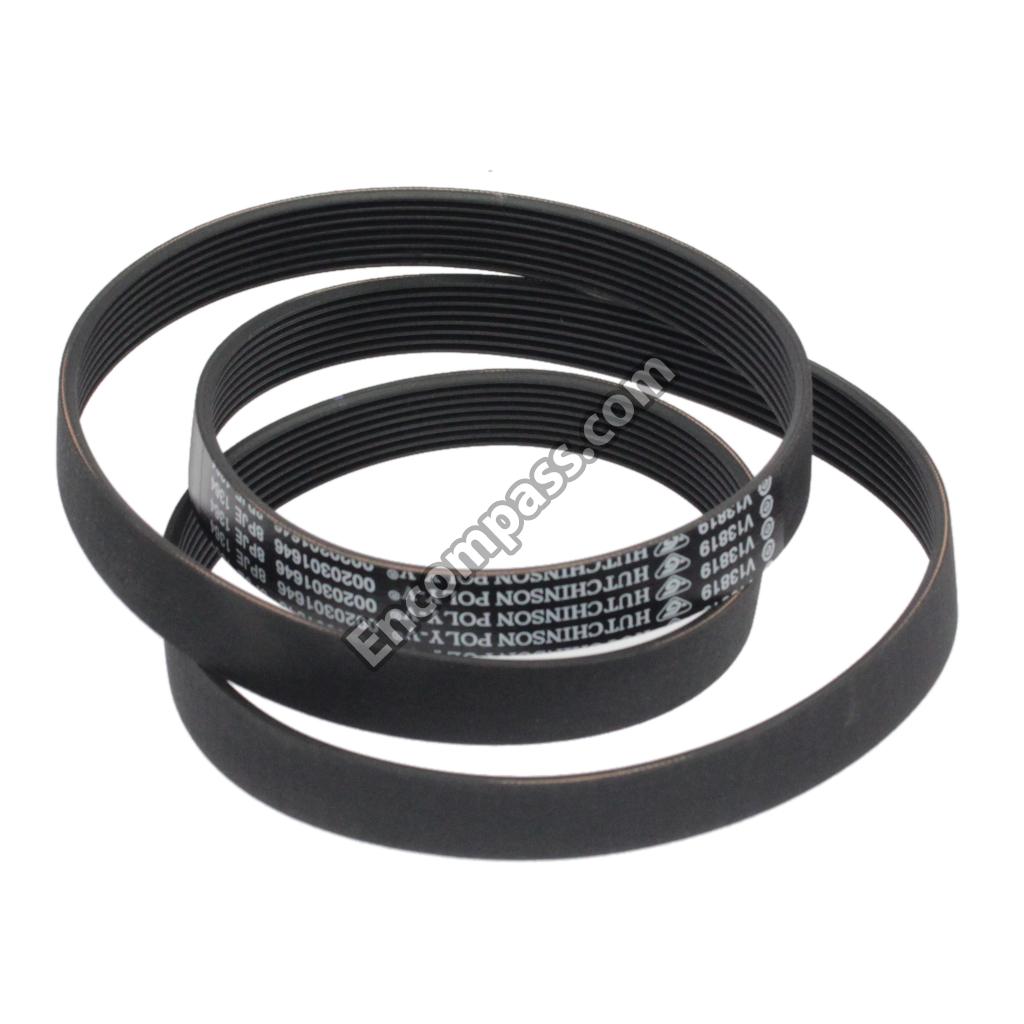

DRIVE BELT |
|
|
DRIVE MOTOR BOLT |
|
|
DRIVE MOTOR FLANGE NUT |
|
|
EXTERNAL DRAIN HOSE |
|
|
EXTERNAL DRAIN HOSE GUIDE |
|
|
EXTERNAL DRAIN HOSE INTERNAL SUPPORT |
|
|
EXTERNAL DRAIN HOSE SUPPORT |
|
|
EXTERNAL DRAIN HOSE SUPPORT |
|
|
FIXED-LINE CLIP |
|
|
FOAM PAD |
|
|
FOAM PAD (CROSSBRACE) |
|
|
FRONT DAMPER BRACKET |
|
|
FRONT PANEL SCREWS |
|
|
FRONT PANEL WHITE |
|
|
FRONT TUB |
|
|
GASKET |
|
|
GE BADGE |
|
|
GROUND HARNESS |
|
|
GROUND HARNESS CLAMP |
|
|
GROUND SCREW |
|
|
GROUND SCREW |
|
|
GROUND SCREW |
|
|
HARNESS SUPPORT BOTTOM |
|
|
HARNESS SUPPORT LEFT |
|
|
HARNESS SUPPORT LOWER RIGHT |
|
|
HARNESS SUPPORT UPPER RIGHT |
|
|
HEAT SHIELD |
|
|
HEATER |
|
|
HEATER BRACKET |
|
|
HEATER SHIELD |
|
|
HINGE BASE FASTENING SCREW |
|
|
HOSE GUIDE |
|
|
INNER GASKET CLAMP |
|
|
INTERNAL DRAIN HOSE TO AIR CHAMBER CLAMP |
|
|
INVERTER BOARD |
|
|
INVERTER BOARD |
|
|
INVERTER BOX COVER |
|
|
INVERTER COVER |
|
|
INVERTER HEAT SHIELD |
|
|
LARGE WIRE TIE |
|
|
LED LIGHT |
|
|
LEFT SPRING SHEATH |
|
|
LEVELING LEG |
|
|
LEVELING LEG WRENCH FL WASHER & COMBO |
|
|
LONG SHIPPING BOLT |
|
|
LOWER COUNTERWEIGHT |
|
|
M SCREW |
|
|
MAIN CONTROL BOARD FLW HE W/INSTRUCTIONS |
|
|
MAIN HARNESS |
|
|
MOTOR |
|
|
MOTOR SHIELD |
|
|
OVERNIGHT DRY FAN HOUSING |
|
|
OVERNIGHT DRY FILTER |
|
|
OVERNIGHT DRY HOSE |
|
|
OVERNIGHT DRY HOSE CLAMP |
|
|
PM MINI MANUAL AND WIRING |
|
|
PM OWNERS AND INSTALL |
|
|
POWER BUTTON SUPPORT |
|
|
POWER CORD |
|
|
PRESSURE CHAMBER |
|
|
PRESSURE HOSE |
|
|
PRESSURE HOSE CLAMP |
|
|
PULLEY |
|
|
PULLEY SCREW |
|
|
PUMP FILTER WITH SEAL |
|
|
REAR COUNTERWEIGHT |
|
|
REAR COVER |
|
|
REAR DAMPER BRACKET |
|
|
REAR TUB |
|
|
RIGHT SPRING SHEATH |
|
|
RJ45 COVER |
|
|
SCREW |
|
|
SCREW DOOR STRIKE |
|
|
SCREW M5 X 16 |
|
|
SELECTOR KNOB |
|
|
SHIPPING BOLT HOLE COVER |
|
|
SHIPPING BRACKET |
|
|
SHORT SHIPPING BOLT |
|
|
SHOULDER BOLT |
|
|
SPRAY NOZZLE TO GLASS |
|
|
SUSPENSION ROD KIT DAMPER |
|
|
SUSPENSION ROD KIT SPRING |
|
|
TAPPING SCREW |
|
|
TERMINAL BRACKET |
|
|
TOP PANEL |
|
|
TOP PANEL PIN |
|
|
TUB BOLT |
|
|
TUB FILL HOSE TO TUB CLAMP |
|
|
TUB SEAL |
|
|
TUB TO INTERNAL DRAIN HOSE CLAMP |
|
|
TUB TO PUMP HOSE |
|
|
TUB VENT HOSE CLAMP |
|
|
UI BOARD W/SUM & INSTRUCTIONS FL WASHER |
|
|
UPPER COUNTERWEIGHT |
|
|
UPPER PRESSURE HOSE CLAMP |
|
|
VENT COVER |
|
|
WASHER DOOR |
|
|
WATER VALVE |
|
|
WATER VALVE SCREWS |
|
|
WIFI & BLUETOOTH BOARD W/INSTRUCTIONS |
|
|
WIFI BRACKET |
|
|
WIRE TIE |
