Manufacturer
GE
Model Number
GFWN1000L0WW
Description

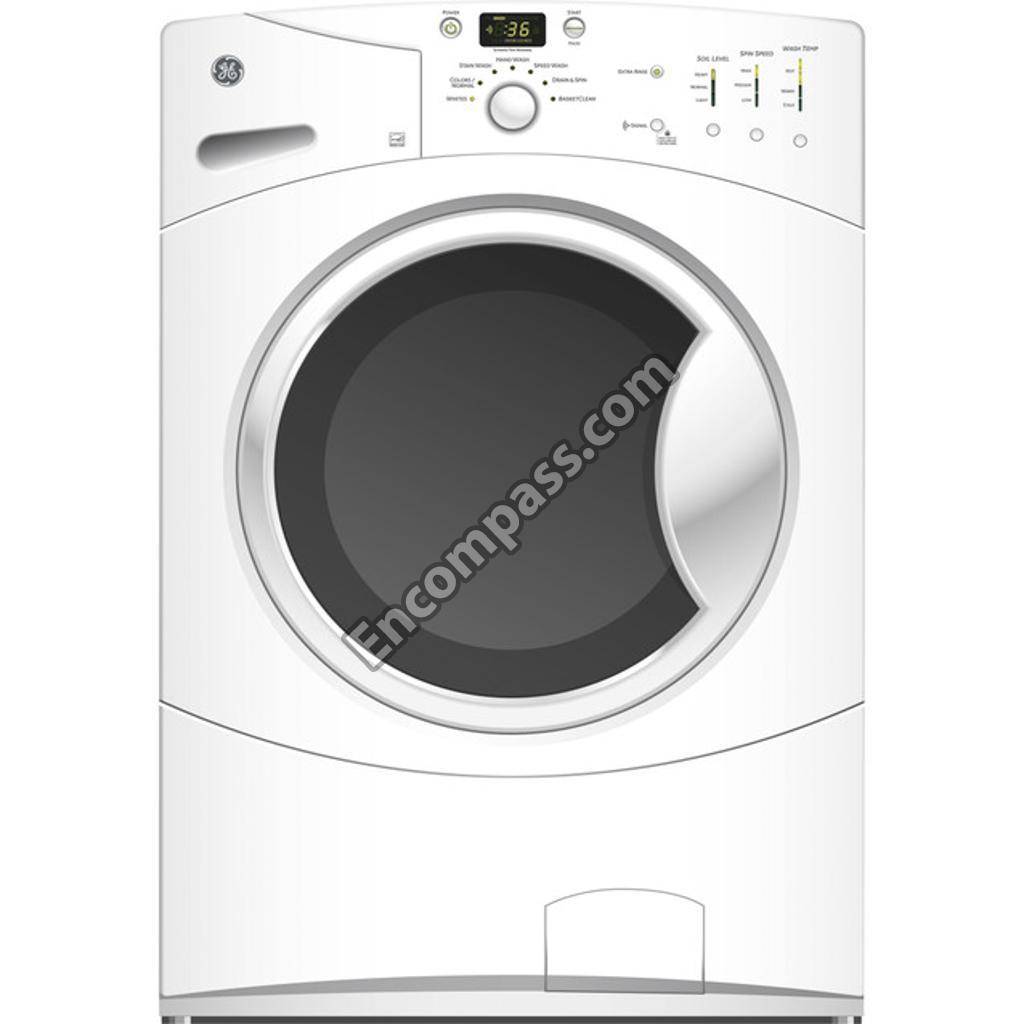

Washer
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
2 IN 3 OUT WATER VALVE |
|
|
AIR_CHAMBER |
|
|
BAFFLE ASM |
|
|
BASKET ASM |
|
|
BLEACH INLET WATER HOSE |
|
|
BOLT 8X58 |
|
|
BOLT M8 48 |
|
|
BOTTOM_VENT_HOSE_CLAMP |
|
|
CABINET_REAR_COVER |
|
|

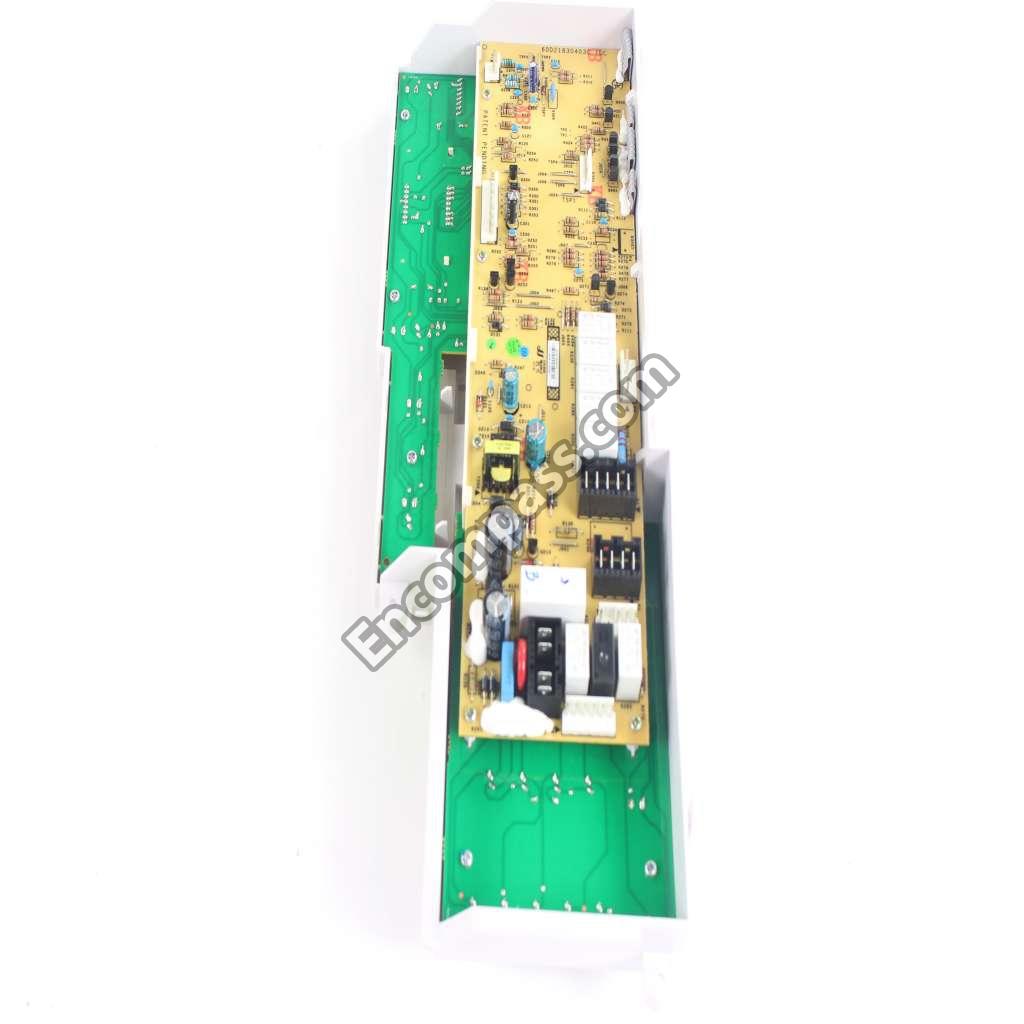

CONTROL BOARD ASM |
|
|
CONTROL PANEL ASSEMBLY WW |
|
|
CONTROL_REAR_COVER |
|
|
CORNER BRACKET |
|
|
COUNTERWEIGHT FRONT LOWER |
|
|
COUNTERWEIGHT FRONT UPPER |
|
|
COUNTERWEIGHT REAR |
|
|
COVER - THERMISTOR |
|
|
DAMPER-SHOCK |
|
|
DAMPER_PIN |
|
|
DISPENSER DWR FRONT WW |
|
|
DISPENSER_SEAL |
|
|
DISPENSER_VENT_HOSE |
|
|
DISPENSER_VENT_HOSE_CLAM |
|
|
DOOR COVER ASM |
|
|
DOOR FRAME OUTER ASM |
|
|
DOOR GLASS |
|
|

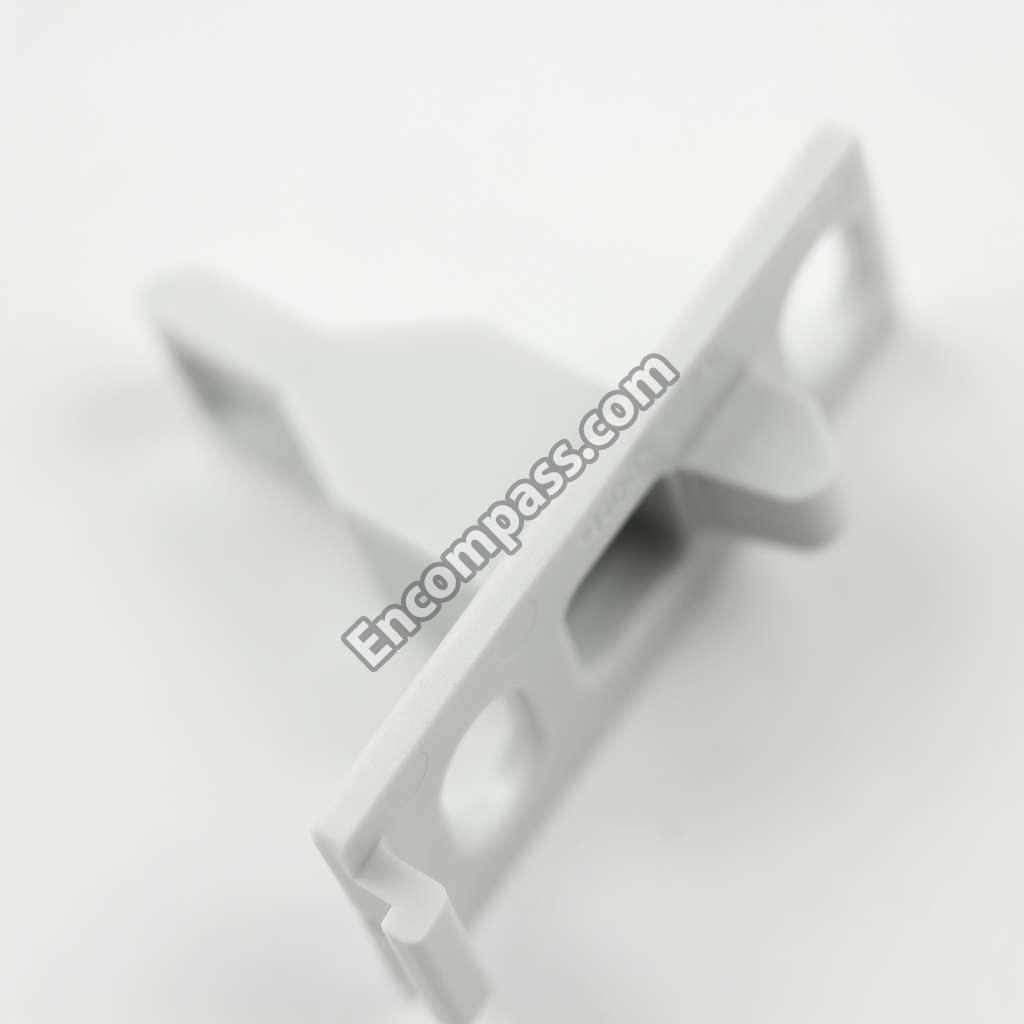

DOOR PLUNGER |
|
|
DOOR_LOCK |
|
|
DRAIN HOSE GUIDE U-SHAPE |
|
|
DRAIN_HOSE |
|
|
DRAIN_HOSE_CLAMP |
|
|
DRAIN_HOSE_COUPLING |
|
|
DRAWER DISPENSER |
|
|
DRAWER LATCH LEVEL |
|
|
DRIVE BELT |
|
|
DRIVE PULLEY KIT |
|
|
EMI_FILTER |
|
|
FLANGE_BOLT_M8 35 |
|
|
FRONT PANEL WW |
|
|
FRONT_PANEL_HANGER |
|
|
FRONT_PANEL_PIN |
|
|
FRONT_TOP_BRACKET |
|
|
FRONT_TUB |
|
|
GASKET |
|
|
GASKET INSIDE CLAMP |
|
|
GASKET OUTSIDE CLAMP |
|
|
GROUND WIRE |
|
|
HEATER THERMISTOR |
|
|
HINGE |
|
|
HINGE COVER |
|
|
HINGE DOOR PLATE |
|
|
HINGE DOOR SHORT PIN |
|
|
HOSE - PRESSURE SWITCH |
|
|
HOT INLET WATER HOSE |
|
|
INLET PIPE CLAMP |
|
|
INSIDE_DRAIN_HOSE |
|
|
INSIDE_DRAIN_HOSE_CATCH |
|
|
INVERTER |
|
|
INVERTER CONNECTORS SHIE |
|
|
KIT - SHIPPING BOLT |
|
|
KIT - STACKING WSH/DRY |
|
|
LEG |
|
|
LIQUID DETERGENT INSERT |
|
|
LOCK WASHER |
|
|
MAIN BOX DIVERTER ASM |
|
|
MAIN INLET WATER HOSE |
|
|
MAIN_WATER_HOSE_COLD |
|
|
MAIN_WATER_HOSE_HOT |
|
|
MOTOR ASM KIT |
|
|
MOTOR_SHIELD |
|
|
MOTOR_WASHER |
|
|
NUT_M16 |
|
|
NUT_M5 |
|
|
NUT_M8 |
|
|
OUTSIDE_DRAIN_HOSE |
|
|
OUTSIDE_DRAIN_HOSE_CATCH |
|
|
PM MINI MANUAL |
|
|
POWER BUTTON |
|
|
POWER_CORD |
|
|
PRESSURE SWITCH |
|
|
PRESSURE_HOSE_CLAMP |
|
|
PROTECT COVER & RING |
|
|
PUMP |
|
|
PUMP ACCESS DOOR WW |
|
|
PUMP ACCESS SHROUD |
|
|
PUMP DRAIN CHANNEL |
|
|
PUMP FILTER |
|
|
PUMP_CLAMP |
|
|
REAR_TUB |
|
|
RINSE BUTTON WH |
|
|
SCREW M4 17 |
|
|
SCREW M4 8 |
|
|
SCREW M5 12 |
|
|
SCREW ST4.2 11 |
|
|
SCREW ST4.4 9.5 |
|
|
SCREW ST4X11 |
|
|
SCREW ST8 45 |
|
|
SCREW_M5 12 |
|
|
SCREW_M5 12 |
|
|
SCREW_M5 6 |
|
|
SCREW_ST 4.2X14 |
|
|
SCREW_ST3.5 9.5 |
|
|
SCREW_ST3.5 X 11 |
|
|
SCREW_ST4 10 |
|
|
SCREW_ST4 13 |
|
|
SCREW_ST4 13 |
|
|
SCREW_ST4 20 |
|
|
SCREW_ST4 20 |
|
|
SCREW_ST4 25 |
|
|
SCREW_ST4.2 13 |
|
|
SCREW_ST4.2 13 |
|
|
SCREW_ST4.2 13 |
|
|
SCREW_ST6 35 |
|
|
SCREW_WASHER_ST4 25 |
|
|
SELECT CYCLE KNOB ASM WW |
|
|
SERVICE PANEL WW |
|
|
SHIPPING_SCREW_COVER |
|
|
SIPHON_PIPE |
|
|
SOFTENER BLEACH COVER |
|
|
SOIL SPEED TEMP BUTTON |
|
|
SPRING_HANGER |
|
|
START PAUSE BUTTON |
|
|
SUSPENSION_SPRING |
|
|
TOP DECOR COVER WW |
|
|
TOP PANEL ASM WW |
|
|
TOP_PANEL_PIN |
|
|
TUB DRAIN HOSE CLAMP |
|
|
TUB_SEAL |
|
|
USE & CARE MANUAL |
|
|
VENT_HOSE |
|
|
VENT_HOSE_CLAMP |
|
|
VENT_HOSE_COUPLING |
|
|
WASHER |
|
|
WASHER |
|
|
WATER_INLET_PIPE |
|
|
WIRE HARNESS |
|
|
WIRE_CATCH |
|
|
WIRE_CATCH |
|
|
WIRE_CATCH_1 |
|
|
WIRING_COVER |
