Manufacturer
GE
Model Number
GFWN1100H1WW
Description
Washer
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ACCESS DOOR |
|
|
BAFFLE |
|
|
BASKET ASSEMBLY |
|
|
BLEACH INLET WATER HOSE |
|
|
BOLT M8*45 |
|
|
BOLT M8*48 |
|
|
CABINET_REAR_COVER |
|
|
CONTROL PANEL ASSEMBLY WW |
|
|
CONTROL PANEL PIN |
|
|
CORNER BRACKET |
|
|
COUNTERWEIGHT - FRONT |
|
|
COUNTERWEIGHT - REAR |
|
|
COVER - SHIPPING SCREW |
|
|
COVER - THERMISTOR |
|
|
DAMPER_PIN |
|
|
DISPENSER DWR FRONT WW |
|
|
DISPLAY TRIM |
|
|
DOOR COVER SUB |
|
|
DOOR GLASS |
|
|
DOOR PLUNGER |
|
|
DR FRM HANDLE SUB |
|
|
DRAIN CHANNEL |
|
|
DRAIN HOSE GUIDE U-SHAPE |
|
|
DRAIN_HOSE_CLAMP |
|
|
DRAIN_HOSE_COUPLING |
|
|
DRAWER |
|
|
DRAWER LATCH LEVEL |
|
|
DRIVE PULLEY KIT |
|
|
DRIVING BELT |
|
|
EMI FILTER |
|
|
FENDER BOARD |
|
|
FLAME RESISTANT FLAP |
|
|
FLANGE_BOLT_M8*35 |
|
|
FRONT PANEL PIN |
|
|
FRONT PANEL WW |
|
|
FRONT TOP BRACKET |
|
|
FRONT TOP COUNTER WT |
|
|
FRONT_TUB |
|
|
GASKET |
|
|
GASKET INSIDE CLAMP |
|
|
GASKET OUTSIDE CLAMP |
|
|
HARNESS COVER |
|
|
HEATER THERMISTOR |
|
|
HINGE ASSEMBLY |
|
|
HINGE BRACKET |
|
|
HOSE - VENT |
|
|
HOT INLET WATER HOSE |
|
|
INLET HOSE STRAINER |
|
|
INSIDE_DRAIN_HOSE |
|
|
INSIDE_DRAIN_HOSE_CATCH |
|
|
LIQUID DETERGENT INSERT |
|
|
LOCK WASHER |
|
|
MAIN BOX SUB |
|
|
MAIN INLET WATER HOSE |
|
|
MAIN_WATER_HOSE_COLD |
|
|
MOTOR SHIELD |
|
|
MOTOR_WASHER |
|
|
NUT_M16 |
|
|
NUT_M5 |
|
|
NUT_M8 |
|
|
OUTSIDE_DRAIN_HOSE |
|
|
OUTSIDE_DRAIN_HOSE_CATCH |
|
|
PLASTIC WASHER |
|
|
PM OWNERS & INSTALL |
|
|
POWER_CORD |
|
|
PRESSURE SWITCH |
|
|
PRESSURE_HOSE_CLAMP |
|
|
PUMP |
|
|
PUMP |
|
|
PUMP & FILTER SERVICE KIT |
|
|
PUMP FILTER |
|
|
PUMP FILTER |
|
|
PUMP_CLAMP |
|
|
REAR COUNTERWEIGHT WASHE |
|
|
REAR TUB ASSEMBLY |
|
|
SCREW M4 X 8 |
|
|
SCREW M5 X 16 |
|
|
SCREW M5*12 |
|
|
SCREW ST 4*20 |
|
|
SCREW ST3.2*8 |
|
|
SCREW ST4 8X13 |
|
|
SCREW ST4*16 |
|
|
SCREW ST4.2 X 13 |
|
|
SCREW ST4.2*11 |
|
|
SCREW ST4.4*9.5 |
|
|
SCREW ST8*45 |
|
|
SCREW_ST 4.2X14 |
|
|
SCREW_ST3.5 X 11 |
|
|
SCREW_ST4*10 |
|
|
SCREW_ST4*25 |
|
|
SCREW_ST4.2*13 |
|
|
SCREW_ST4.2*13 |
|
|
SCREW_ST4.2*13 |
|
|
SCREW_ST4.2*13 |
|
|
SCREW_ST6*35 |
|
|
SCREW_WASHER_ST4*25 |
|
|
SEAL VENT PIPE |
|
|
SELECT CYCLE KNOB |
|
|
SHIPPING BOLT |
|
|
SIPHON_PIPE |
|
|
SOFTENER BLEACH COVER |
|
|
SPRING_HANGER |
|
|
SUSPENSION SPRING |
|
|
TOP PANEL SUB |
|
|
TOP_PANEL_PIN |
|
|
TUB DRAIN HOSE CLAMP |
|
|
TUB DRAIN HOSE SUB |
|
|
TUB_SEAL |
|
|
UI BOARD |
|
|
VENT_HOSE_COUPLING |
|
|
WASHER |
|
|
WASHER |
|
|
WASHER/DRYER STACKING KIT - 27-INCH |
|
|
WASHING MACHINE 2-IN/3-OUT WATER VALVE |
|
|
WASHING MACHINE DAMPER |
|
|

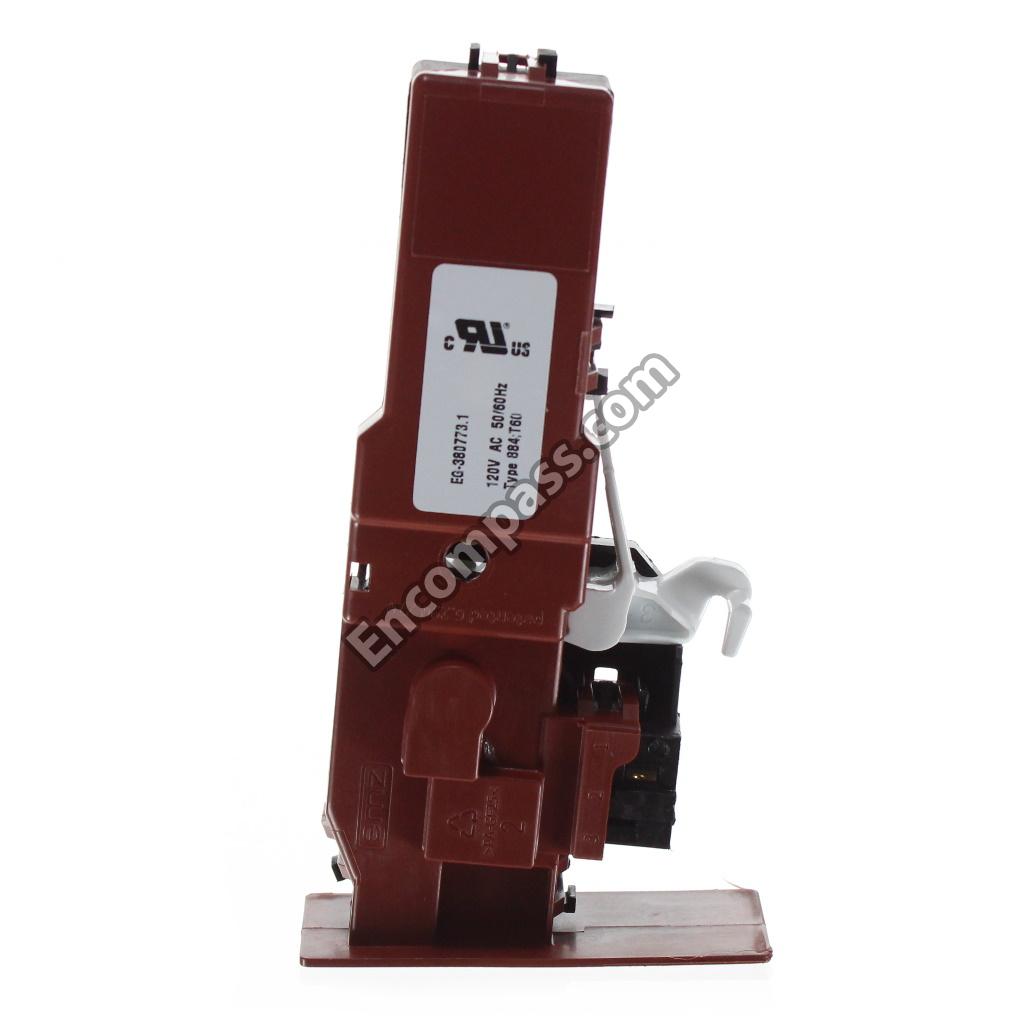

WASHING MACHINE DOOR LOCK |
|
|
WASHING MACHINE FRONT PANEL HANGER |
|
|
WASHING MACHINE LEVELING LEG |
|
|
WASHING MACHINE MOTOR |
|
|
WASHING MACHINE REAR CONTROL COVER |
|
|
WASHING MACHINE WATER INLET HOSE CLAMP |
|
|
WASHING MACHINE WATER INLET HOSE CLAMP |
|
|
WASHING MACHINE WATER INLET HOSE CLAMP |
|
|
WATER INLET PIPE |
|
|
WIRE HARNESS |
|
|
WIRE_CATCH |
|
|
WIRE_CATCH |
|
|
WIRE_CATCH_1 |
