Model Image
Manufacturer

GE

Model Number

GFWS2505F0MC

Description

Washer

Interactive Exploded View

Parts List

Part Number Description
WH41X10353 WH41X10353 AIR CHAMBER
WE19M10949 WE19M10949 BADGE GE

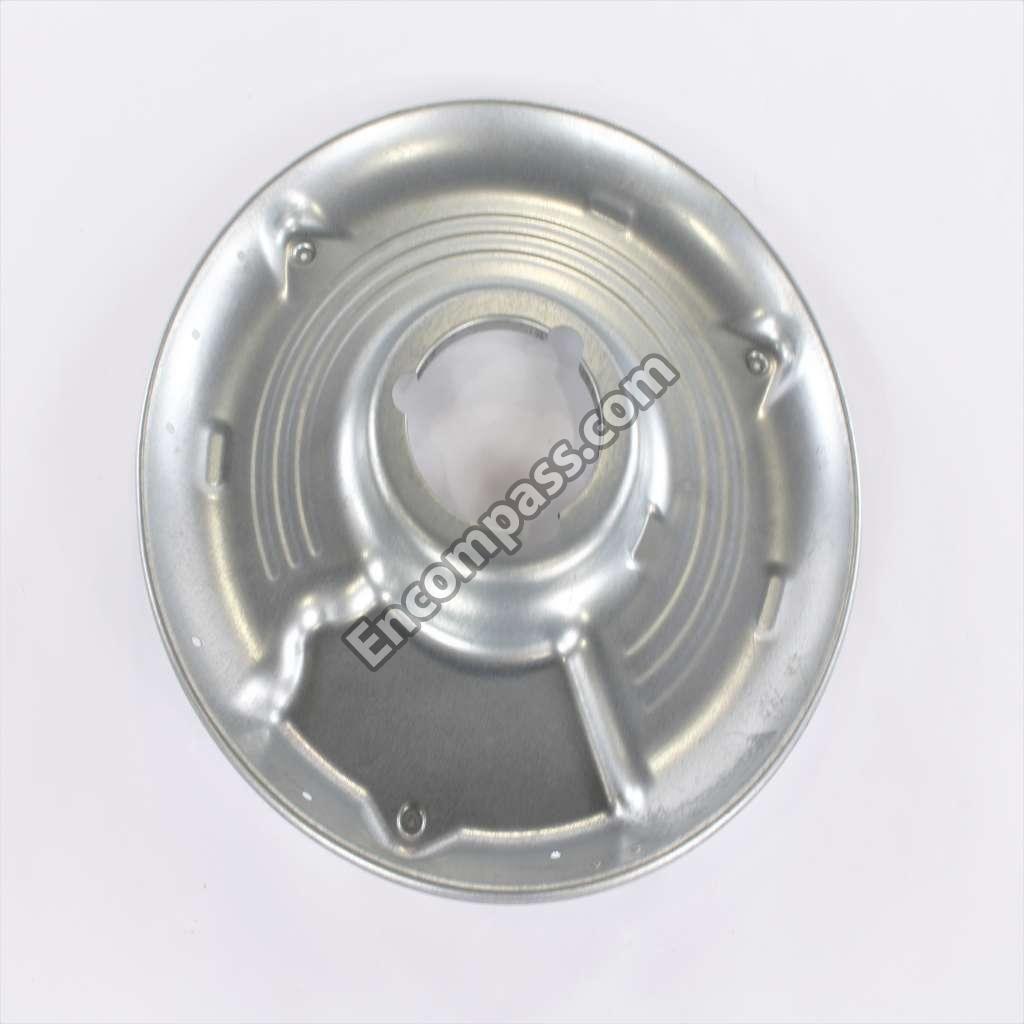

WH16X10187 WH16X10187 BAFFLE
WH16X10191 WH16X10191 BASE CLINCH NUT ASM
WH45X10137 WH45X10137 BASKET AND TRUNNION ASM
WH41X10360 WH41X10360 BODY FILTER
WH10X10014 WH10X10014 BRACKET BRIDGE CONTROL
WH10X10013 WH10X10013 BRACKET CONTROL
WH16X10188 WH16X10188 BRACKET HEATER SUPPORT
WH10X10021 WH10X10021 BRACKET SHIPPING
WH10X10023 WH10X10023 BRACKET SUPPORT SIDE
WH10X10022 WH10X10022 BRACKET TOP

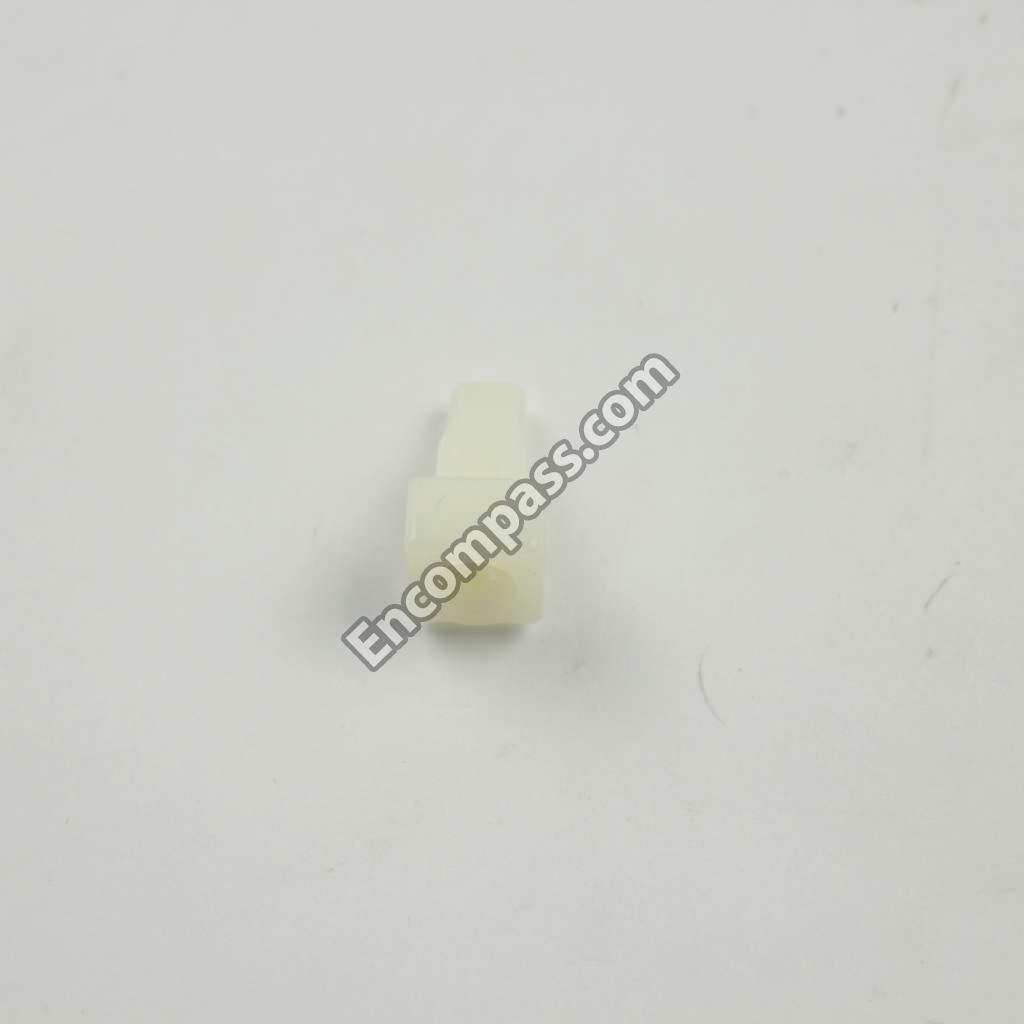

WH01X10735 WH01X10735 BUSH GUIDE PIN
WH01X10722 WH01X10722 BUSHING HINGE

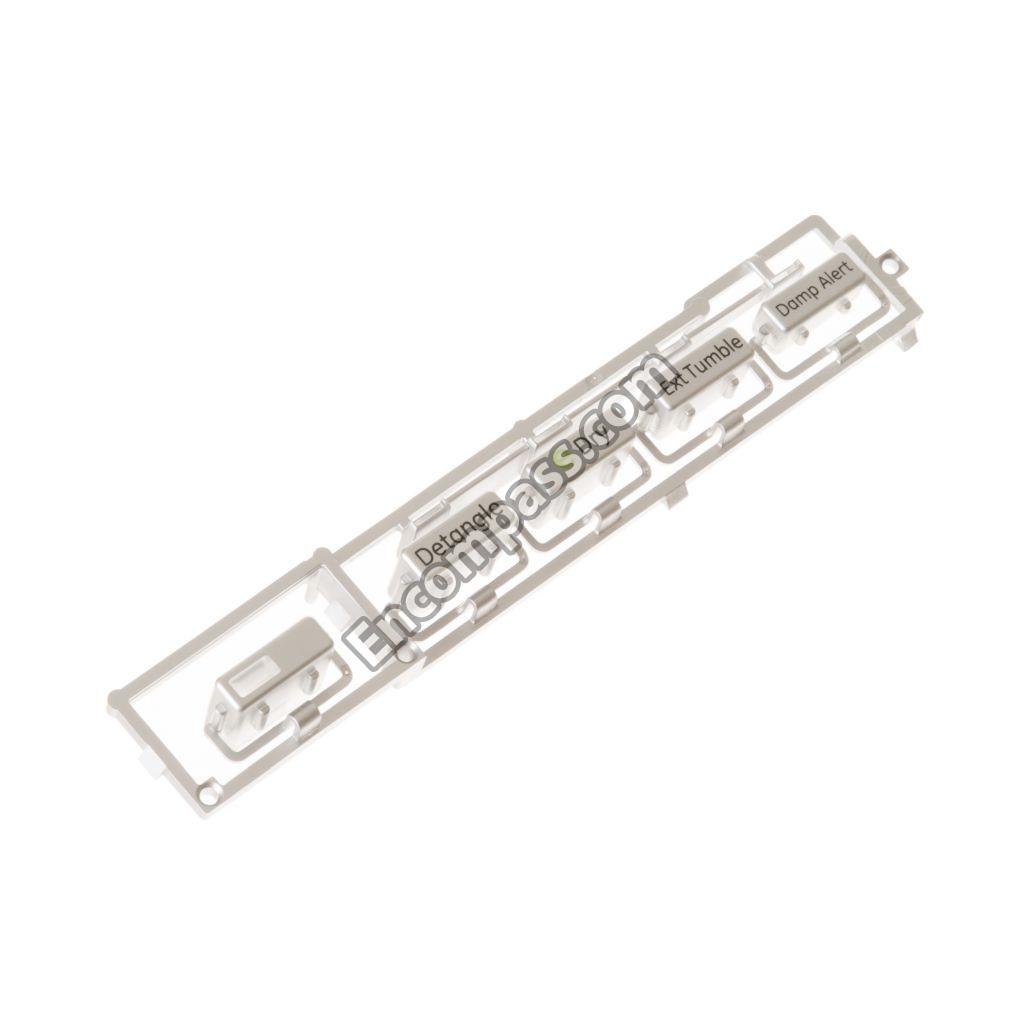

WH42X10983 WH42X10983 BUTTON TREE ASM
WH42X11006 WH42X11006 BUTTON TREE ASM DELAY
WH42X11001 WH42X11001 BUTTON TREE ASM EWASH
WH42X11000 WH42X11000 BUTTON TREE ASM SOIL
WH42X11002 WH42X11002 BUTTON TREE ASM START
WH41X10343 WH41X10343 CAP FILTER
WH47X20146 WH47X20146 CAP SIPHON
WH41X10355 WH41X10355 CHANNEL Y
WH01X10739 WH01X10739 CLAMP
WH01X10746 WH01X10746 CLAMP
WH01X10740 WH01X10740 CLAMP
WH01X10710 WH01X10710 CLAMP
WH01X10747 WH01X10747 CLAMP
WH01X10742 WH01X10742 CLAMP GASKET
WH01X10744 WH01X10744 CLAMP GASKET
WH01X10734 WH01X10734 CLIP
WH19X10126 WH19X10126 CORD POWER
WH01X10717 WH01X10717 COUNTER WEIGHT
WH46X10284 WH46X10284 COVER DOOR
WH01X10751 WH01X10751 COVER IMC
WH47X20147 WH47X20147 CUP DETERGENT
WH47X10036 WH47X10036 CUP SIPHON DETERGENT
WH01X10727 WH01X10727 DAMPER ASSEMBLY
WH47X10040 WH47X10040 DIVERTER DRIVE ASM
WH46X10285 WH46X10285 DOOR ASM MIDLINE
WH47X10047 WH47X10047 DOOR DISPENSER ASM
WH01X23494 WH01X23494 DOOR LOCK MODULE
WH47X10033 WH47X10033 DRAWER BODY DISPENSER
WH01X10753 WH01X10753 ENCLOSURE PUMP HOUSING
WH41X10358 WH41X10358 FILTER PUMP ASM
WH46X10287 WH46X10287 FRAME DOOR
WH01X10754 WH01X10754 FUNNEL CLEANOUT

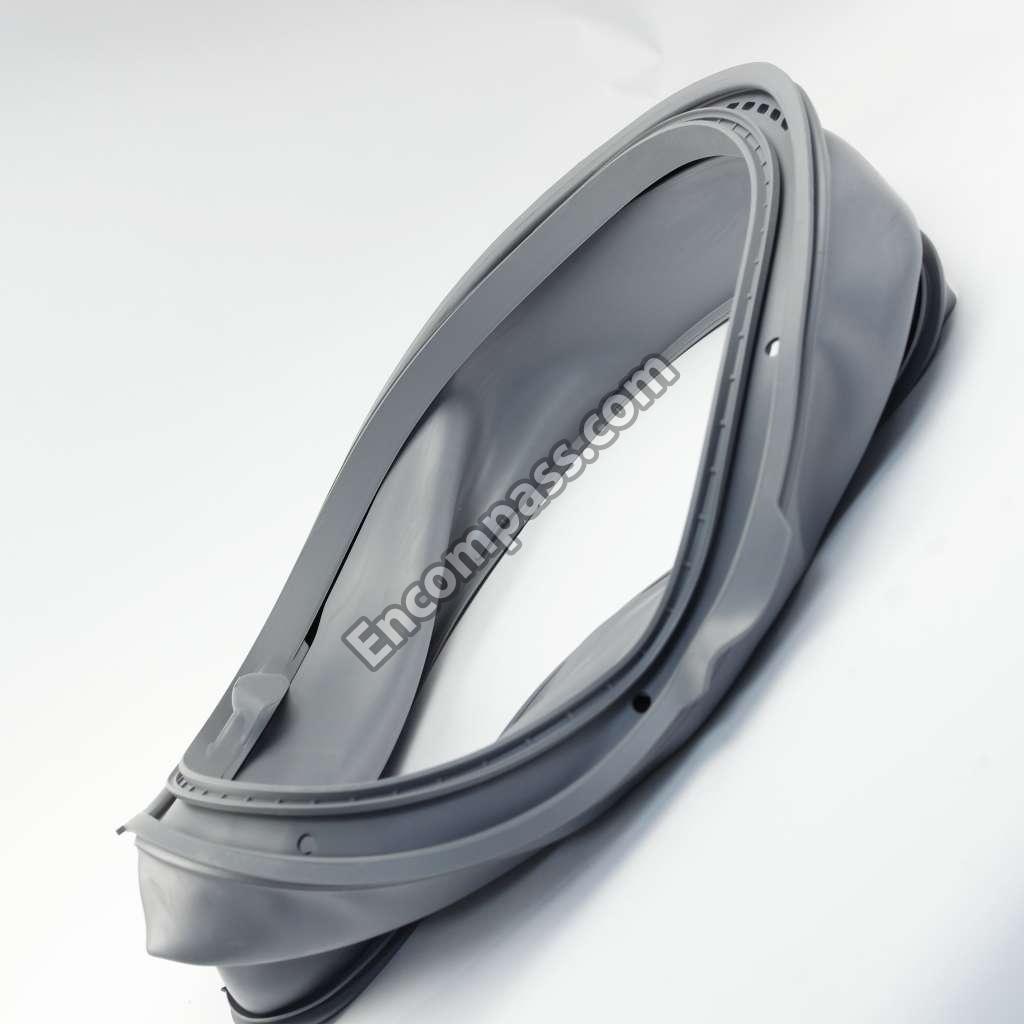

WH08X22619 WH08X22619 GASKET MAIN
WH46X25561 WH46X25561 GLASS DOOR
WH46X10286 WH46X10286 GLASS DOOR
WH01X10755 WH01X10755 GROMMET ISOLATION
WH01X10737 WH01X10737 GROMMET ISOLATION
WH02X10395 WH02X10395 GROMMET SCR CLOSED

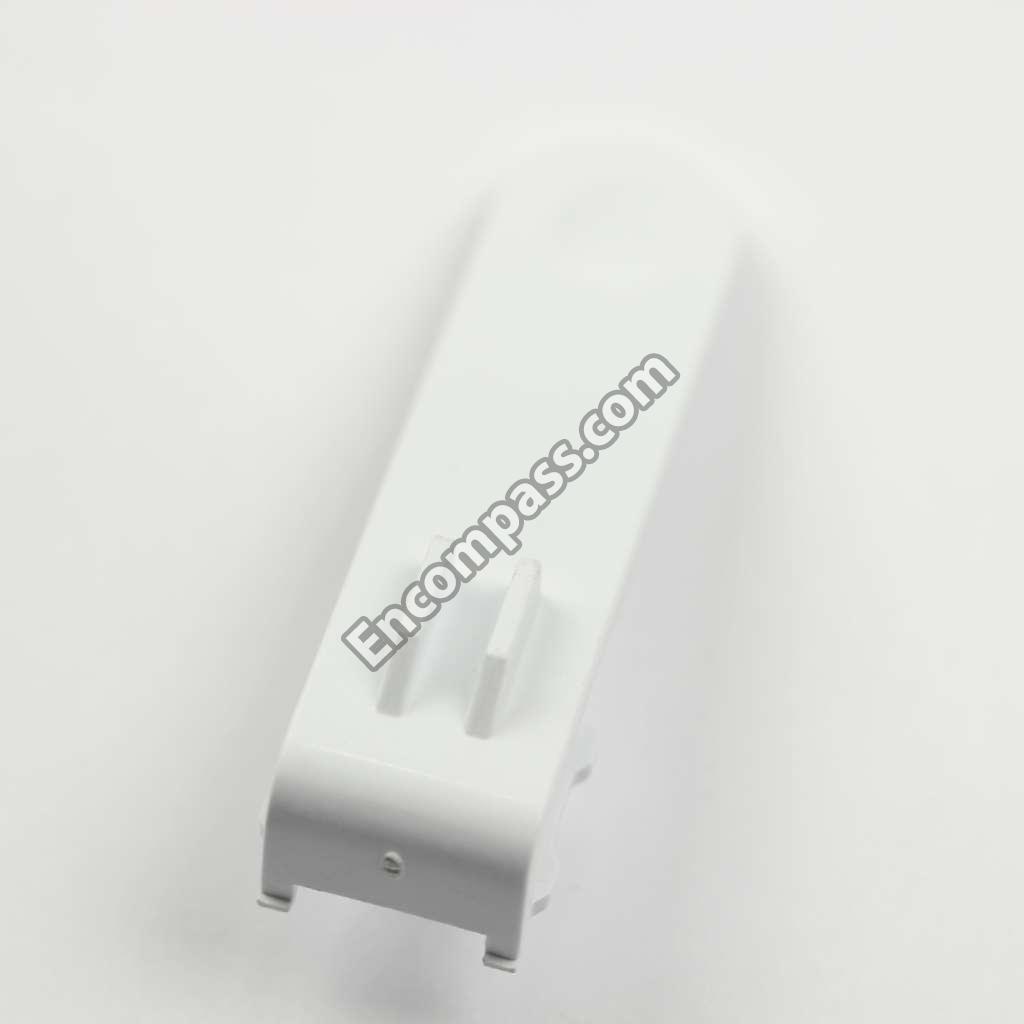

WH41X10352 WH41X10352 GUIDE DRAIN HOSE
WH12X23995 WH12X23995 HALL SENSOR

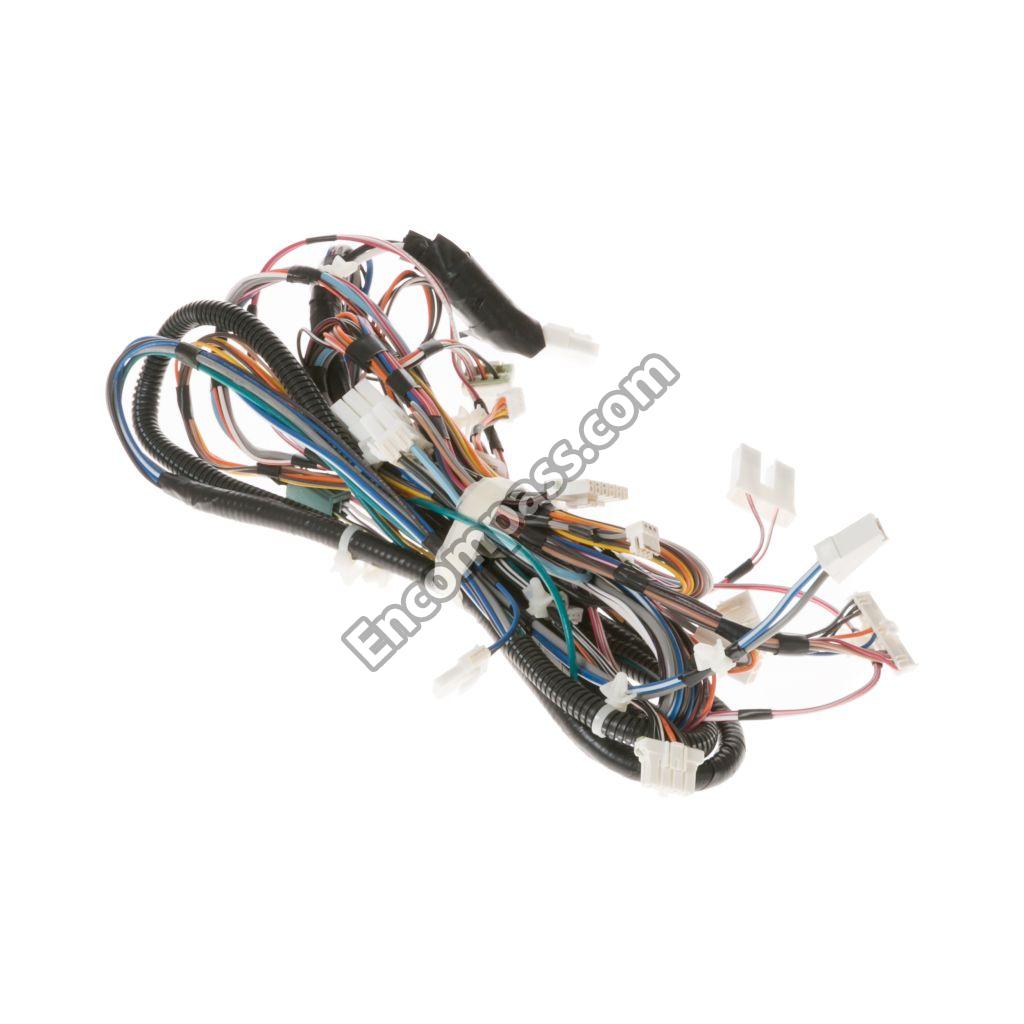

WH19X10131 WH19X10131 HARNESS MAIN
WH19X25934 WH19X25934 HARNESS MOTOR
WH12X10589 WH12X10589 HEATER ASM
WH01X10723 WH01X10723 HINGE
WH01X10724 WH01X10724 HINGE PLATE

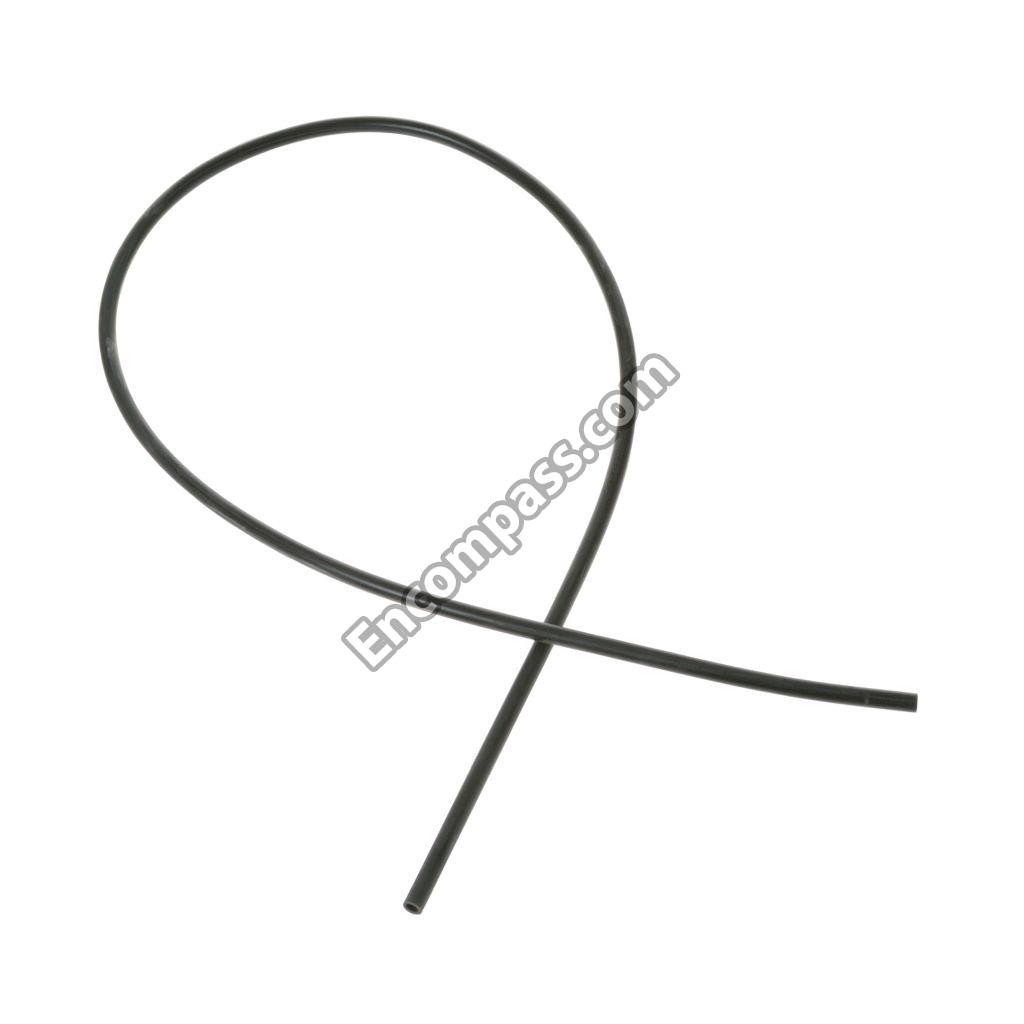

WH41X10339 WH41X10339 HOSE
WH41X10338 WH41X10338 HOSE
WH41X20509 WH41X20509 HOSE DRAIN.
WH41X10337 WH41X10337 HOSE FILL SUBWASHER
WH41X10351 WH41X10351 HOSE GLASS CLEAN
WH41X10348 WH41X10348 HOSE PRESSURE
WH41X10340 WH41X10340 HOSE SUMP
WH41X10359 WH41X10359 HOUSING COMBINATION PUMP
WH44X10325 WH44X10325 HOUSING IMC
WH46X10292 WH46X10292 INSULATION LID
WE01X10415 WE01X10415 KNOB
WH02X10401 WH02X10401 LEVELING LEG ASM
WH47X20507 WH47X20507 MANUAL DISPENSE BODY ASM
49-90469 49-90469 MANUAL USE & CARE
WH01X10728 WH01X10728 MOUNT DAMPER

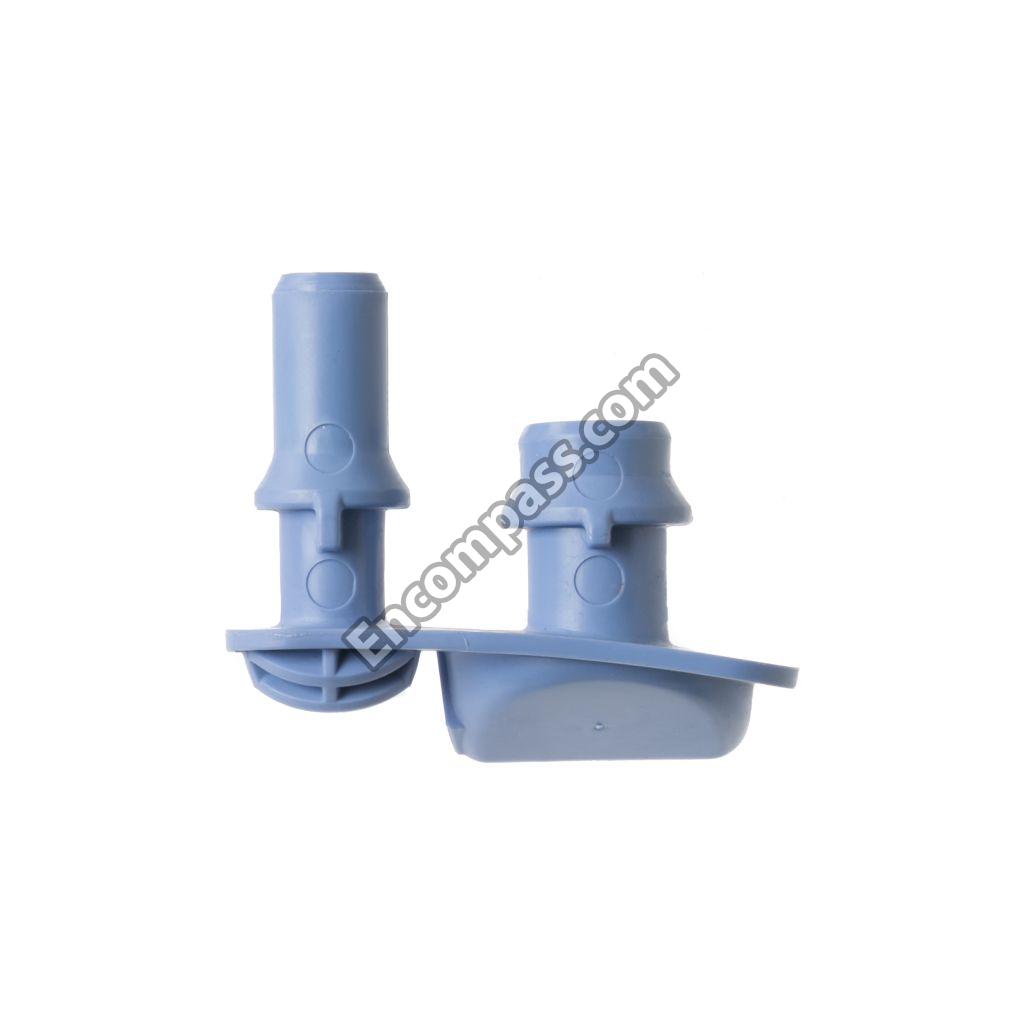

WH01X10738 WH01X10738 NOZZLE DISPENSER INLET
WH01X10762 WH01X10762 NOZZLE GASKET
WH01X10718 WH01X10718 NUT 5/16182B HXW S
WH01X10741 WH01X10741 ORING
WH01X10677 WH01X10677 ORING THERMISTOR
WH42X11007 WH42X11007 PANEL ASM CONTROL
WH44X25836 WH44X25836 PANEL FRONT ASM MC

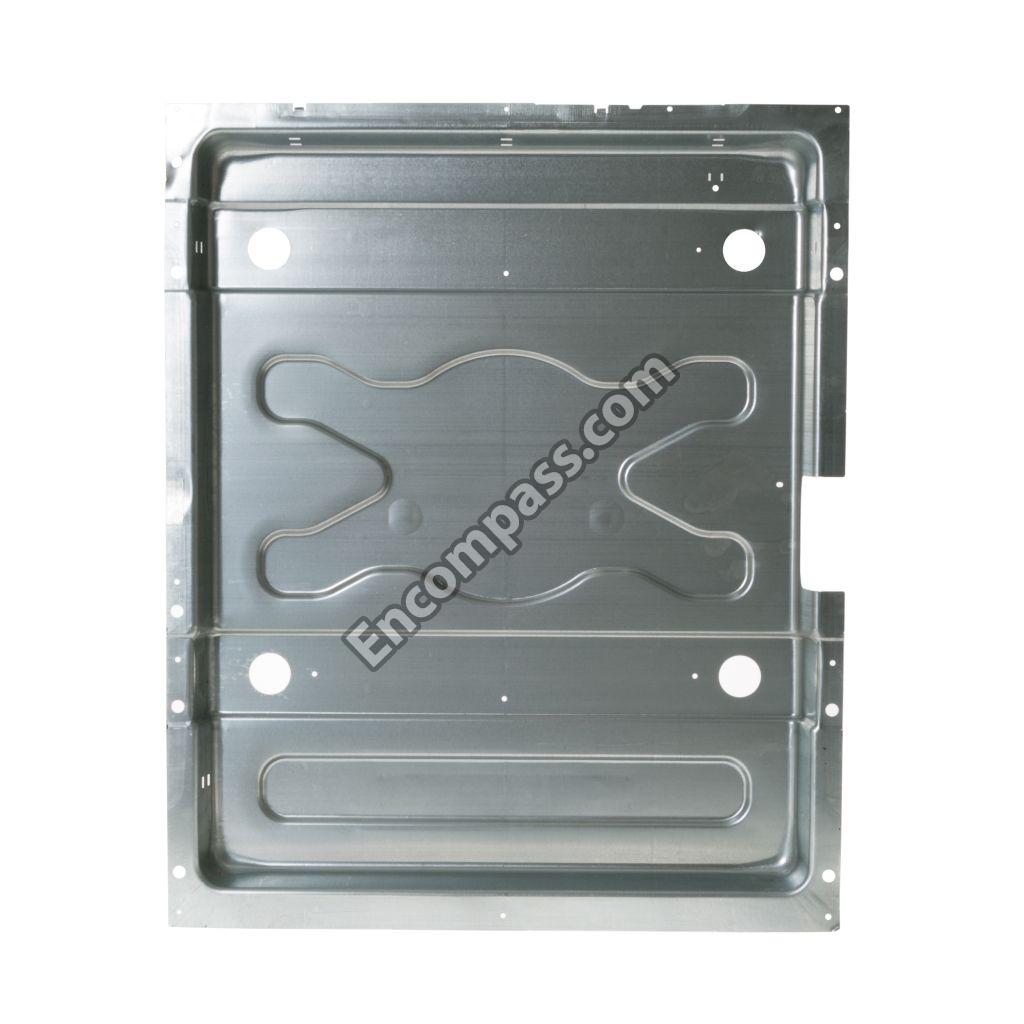

WH44X20120 WH44X20120 PANEL REAR BOTTOM

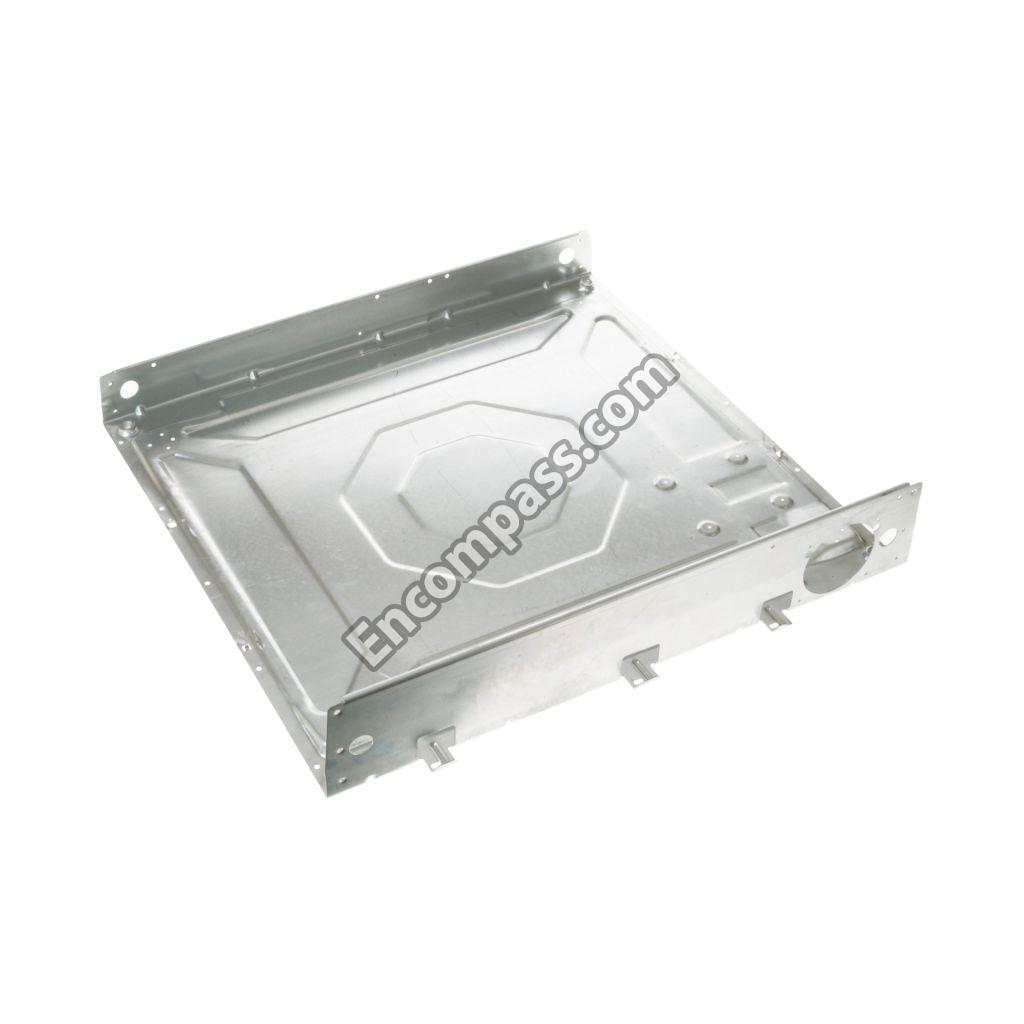

WH44X10323 WH44X10323 PANEL REAR BOTTOM
WH10X10024 WH10X10024 PANEL REAR TOP
WH10X10026 WH10X10026 PANEL SIDE MC
WH12X26034 WH12X26034 PCB IMC ASM AND S/W
WH12X25837 WH12X25837 PCB UI ASM
WH01X10726 WH01X10726 PIN DAMPER
WH01X10733 WH01X10733 PIN SUPPORT FRONT
31-16858 31-16858 PM MANUAL MINI
WH44X21159 WH44X21159 PROTECT COVER DOOR
WH23X10051 WH23X10051 PUMP DRAIN

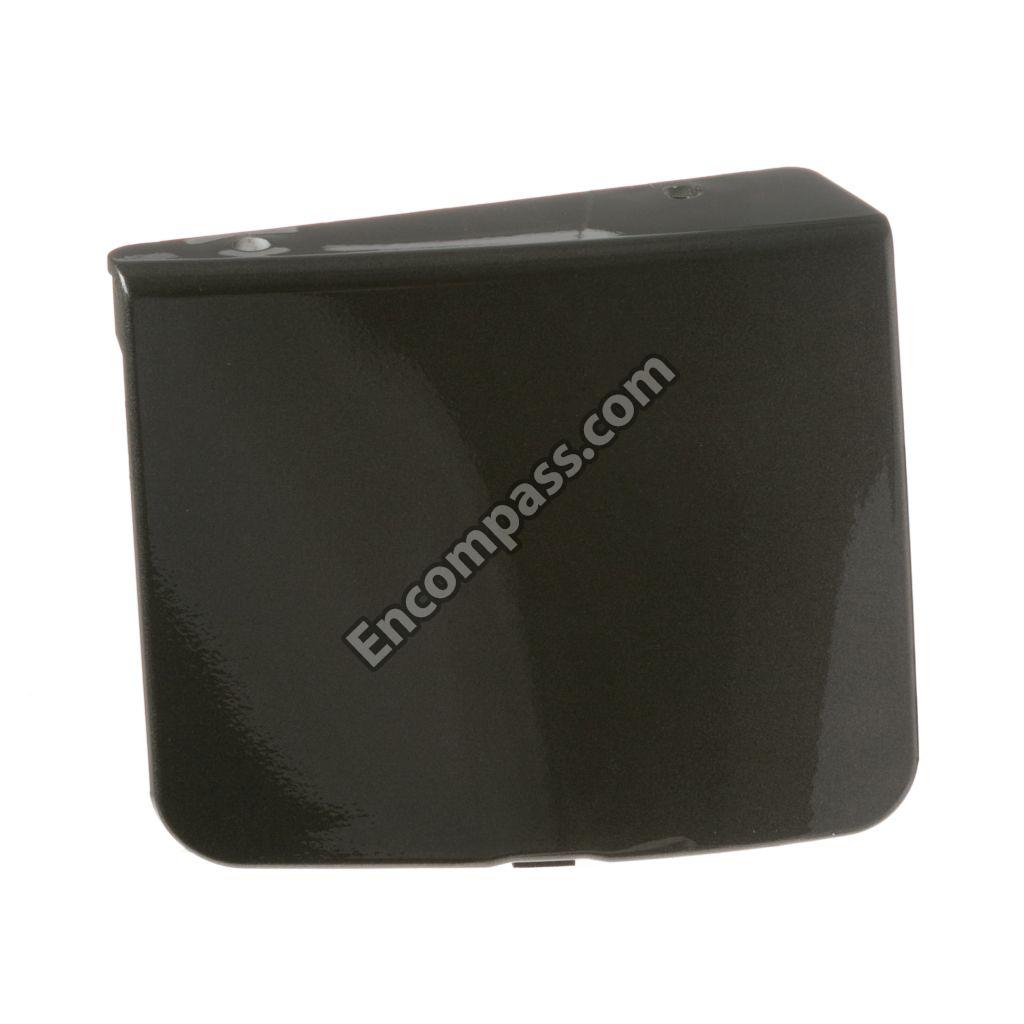

WH44X10332 WH44X10332 PUMP HOUSING COVER MC
31-16698 31-16698 QUICK INSTALL GUIDE
WH47X10035 WH47X10035 RETAINER DRAWER DISP
WH01X10743 WH01X10743 RETAINER KNOB
WH45X10138 WH45X10138 RING BALANCE ASM
WH12X28437 WH12X28437 RJ45 BOARD ASM
WH39X10014 WH39X10014 ROTOR
WH19X25495 WH19X25495 RPS HARNESS
WH02X10393 WH02X10393 SCR 1/4 PL HXW 1 1/4 S
WR01X10619 WR01X10619 SCR 10-18 HI/LO HXW 1/2
WH02X10139 WH02X10139 SCR 10-32 B TRT-25 5/8
WH02X10392 WH02X10392 SCR 1014 AB FLP 5/8S
WH02X10396 WH02X10396 SCR 1016 B HXW 3/8 S
WH02X10412 WH02X10412 SCR 4-24 AB PN 5/16 SZN
WH02X10404 WH02X10404 SCR 5/16-18 HXW 1 1/4S
WH02X10409 WH02X10409 SCR 5/1624 HXW 1 S
WH02X10400 WH02X10400 SCR 6-19 B HXWP 1S
WH02X10402 WH02X10402 SCR 8-16 B HXWT 19/20 S
WH02X1217 WH02X1217 SCR 8-18 AB IHW 7/16 SN
WH02X10403 WH02X10403 SCR 8-18 AB PNP 1-1/4 S
WH02X10408 WH02X10408 SCR 8-18 AB PNP 2-1/8 S
WH02X10399 WH02X10399 SCR 818
WH2X1217 WH2X1217 SCREW
WH02X10398 WH02X10398 SCREW 10-16 SHLDR TYPE A
WD02X10067 WD02X10067 SCREW 8-16 HXW 1/2 SS
WZ5X158D WZ5X158D SCREW-PKG 12
WH01X21994 WH01X21994 SEAL ORING
WH08X10068 WH08X10068 SEAL PUMP
WH12X10595 WH12X10595 SENSOR PRESSURE
WH10X10010 WH10X10010 SHIELD HEATER
WH10X10019 WH10X10019 SHIELD MOTOR
WH02X10413 WH02X10413 SHIPPING BOLT LONG ASM
WH02X10414 WH02X10414 SHIPPING BOLT SHORT ASM
WH01X10756 WH01X10756 SLEEVE POWER CORD
WH01X10730 WH01X10730 SPRING SUSPENSION
WH39X10013 WH39X10013 STATOR
WH10X10020 WH10X10020 STIFFENER HINGE
WH01X10731 WH01X10731 STRIKER DOOR
WH01X10721 WH01X10721 STUD PLATE
WH01X10732 WH01X10732 SUPPORT SPRING
WH12X10597 WH12X10597 THERMISTOR
WH45X10136 WH45X10136 TUB ASM REAR
WH45X10141 WH45X10141 TUB FRONT
WH01X10749 WH01X10749 TUBE AIR VENT
WH13X10066 WH13X10066 VALVE WATER ASM
WH01X10719 WH01X10719 WASHER FLAT
WH01X10704 WH01X10704 WIRE TIE
WH01X10750 WH01X10750 WIRE TIE STANDOFF
