Model Image
Manufacturer

GE

Model Number

GFWS3505L0MS

Description

Washer

Interactive Exploded View

Parts List

Part Number Description
WH41X10110 WH41X10110 3_WAY_PIPE
WH01X10244 WH01X10244 3_WAY_PIPE_CLAMP
WH01X10243 WH01X10243 3_WAY_PIPE_CLAMP
WH41X10190 WH41X10190 AIR CHAMBER ASM
WH01X10397 WH01X10397 AIR CHAMBER RING
WH16X10128 WH16X10128 BAFFLE
WH45X10144 WH45X10144 BASKET ASM 4.9 CU FT
WH02X10333 WH02X10333 BOLT M8 38 - FRNT CNTRWG
WH02X10207 WH02X10207 BOLT M8 48
WH46X10237 WH46X10237 CABINET REAR COVER
WH16X10130 WH16X10130 CENTER BRACE
WH01X10379 WH01X10379 CLAMP - WATER INLET PIPE
WH01X10377 WH01X10377 CLAMP - WATER INLET PIPE
WH12X10485 WH12X10485 CONTROL BOARD ASM
WH42X10859 WH42X10859 CONTROL PANEL ASM BB
WH42X10860 WH42X10860 CONTROL PANEL ASM MS
WH42X10861 WH42X10861 CONTROL PANEL ASM MV
WH42X10863 WH42X10863 CONTROL PANEL ASM WW
WH01X10555 WH01X10555 CONTROL PANEL PIN
WH16X10138 WH16X10138 CONTROL REAR COVER
WH16X10077 WH16X10077 CORNER BRACKET
WH01X10556 WH01X10556 COUNTERWEIGHT - FRNT
WH01X10519 WH01X10519 COUNTERWEIGHT-FRNT/BTM
WH01X10521 WH01X10521 COUNTERWEIGHT-REAR
WH44X10206 WH44X10206 COVER - SHIPPING SCREW
WH44X10264 WH44X10264 COVER - TUB HEATER
WH01X10385 WH01X10385 DAMPER - SHOCK
WH01X10261 WH01X10261 DAMPER_PIN
WH01X10557 WH01X10557 DELAY BUTTON
WH41X10255 WH41X10255 DISPENSER DWR FRONT MS
WH41X10254 WH41X10254 DISPENSER DWR FRONT MV
WH41X10252 WH41X10252 DISPENSER DWR FRONT WW
WH01X10249 WH01X10249 DISPENSER_CLAMP
WH41X10121 WH41X10121 DISPENSER_INLET
WH41X10122 WH41X10122 DISPENSER_VENT_HOSE
WH01X10250 WH01X10250 DISPENSER_VENT_HOSE_CLAM
WH43X10059 WH43X10059 DIVERTER
WH01X10376 WH01X10376 DIVERTER LEVER PLATE
WH01X10247 WH01X10247 DIVERTER_INDICATOR
WH46X10257 WH46X10257 DOOR COVER ASM
WH46X10258 WH46X10258 DOOR FRAME-OUTER ASSEMBLY
WH01X10356 WH01X10356 DOOR PLUNGER
WH10X10006 WH10X10006 DOOR_LOCK
WH41X10250 WH41X10250 DRAIN HOSE
WH41X10133 WH41X10133 DRAIN HOSE GUIDE U-SHAPE
WH01X10265 WH01X10265 DRAIN_HOSE_CLAMP
WH01X10266 WH01X10266 DRAIN_HOSE_COUPLING
WH41X10185 WH41X10185 DRAWER DISPENSER
WH07X10022 WH07X10022 DRIVE PULLEY KIT
WH08X10050 WH08X10050 DRIVING BELT
WH41X10301 WH41X10301 EMI_FILTER
WH02X10334 WH02X10334 FLANGE BOLT M12 25
WH02X10213 WH02X10213 FLANGE_BOLT_M8 35
WH46X10240 WH46X10240 FRONT BRACKET TOP
WH46X10248 WH46X10248 FRONT PANEL MG
WH46X10250 WH46X10250 FRONT PANEL MS
WH46X10249 WH46X10249 FRONT PANEL MV
WH46X10247 WH46X10247 FRONT PANEL WW
WH16X10073 WH16X10073 FRONT_PANEL_HANGER
WH01X10253 WH01X10253 FRONT_PANEL_PIN

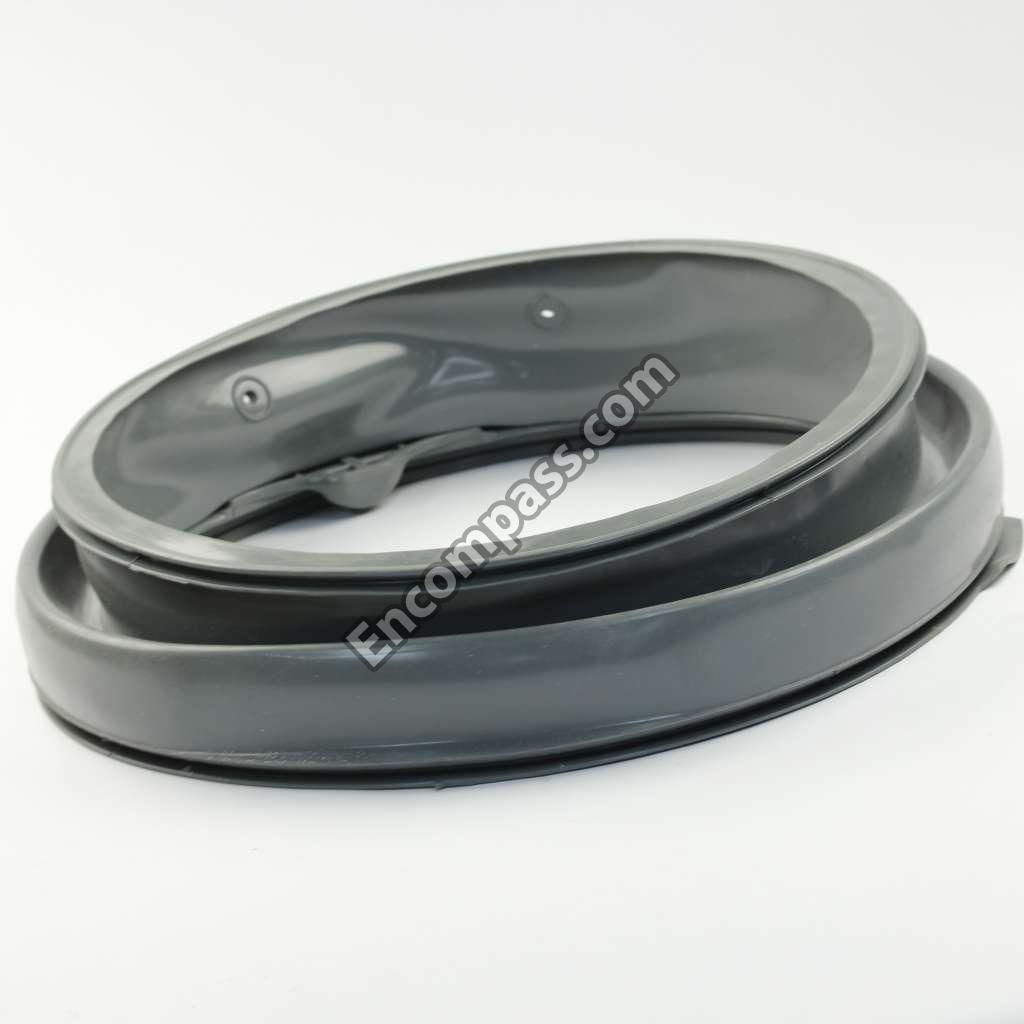

WH08X10059 WH08X10059 GASKET
WH08X10055 WH08X10055 GASKET INSIDE CLAMP
WH08X10056 WH08X10056 GASKET OUTSIDE CLAMP
WH08X10021 WH08X10021 GASKET_NOZZLE
WH02X10206 WH02X10206 GASKET_NOZZLE_WASHER
WH46X10286 WH46X10286 GLASS - DOOR
WH46X25561 WH46X25561 GLASS DOOR
WH19X10078 WH19X10078 GROUND WIRE
WH19X10070 WH19X10070 HARNESS - MOTOR
WH12X10309 WH12X10309 HEATER
WH16X10081 WH16X10081 HEATER SUPPORT
WH12X10351 WH12X10351 HEATER THERMISTOR
WH12X10310 WH12X10310 HEATER THERMISTOR

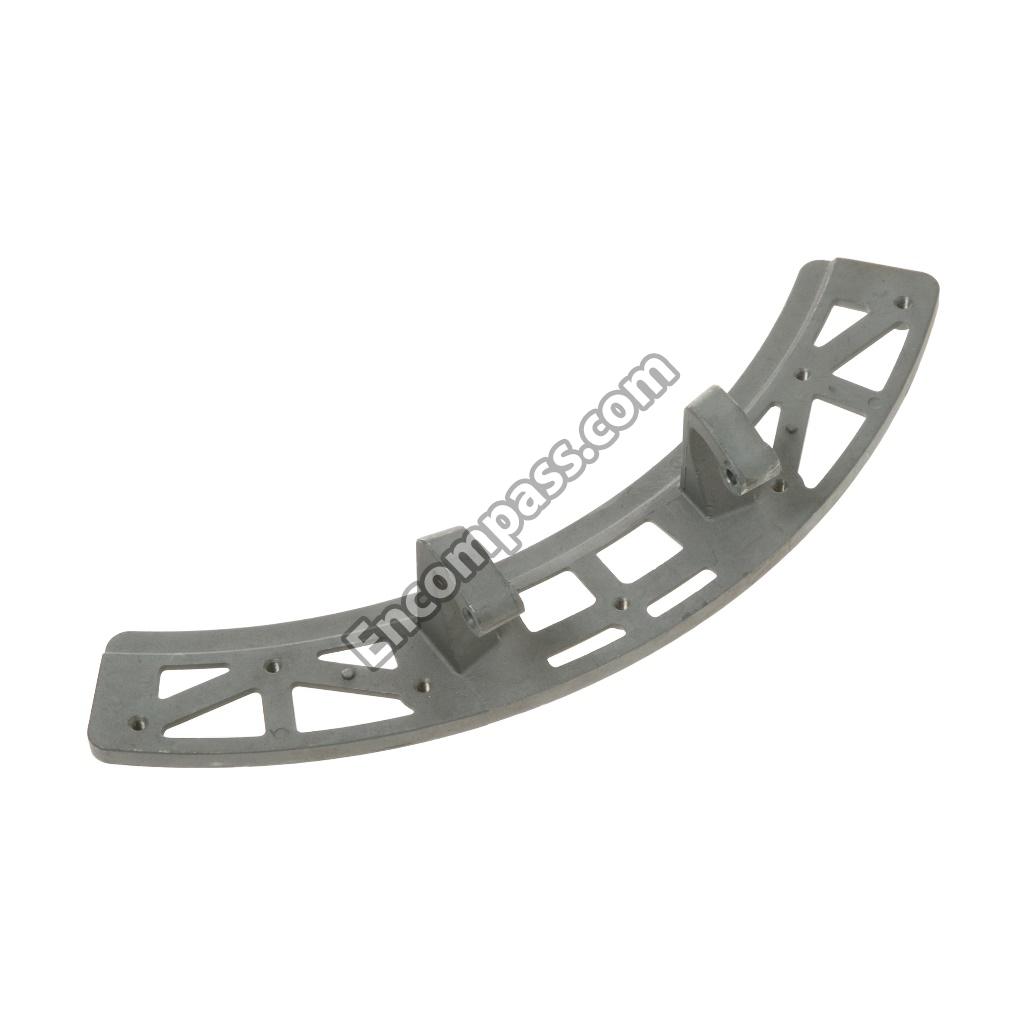

WH01X10559 WH01X10559 HINGE
WH44X10248 WH44X10248 HINGE COVER
WH01X10560 WH01X10560 HINGE DOOR PIN
WH01X10561 WH01X10561 HINGE DOOR PLATE
WH41X10258 WH41X10258 HOSE INLET (STM GEN)
WH41X10249 WH41X10249 HOSE-VENT
WH41X10111 WH41X10111 INLET_WATER_HOSE
WH41X10108 WH41X10108 INLET_WATER_HOSE_1
WH01X10562 WH01X10562 INNER RING - DOOR
WH41X10127 WH41X10127 INSIDE_DRAIN_HOSE
WH01X10263 WH01X10263 INSIDE_DRAIN_HOSE_CATCH
WH49X10081 WH49X10081 KIT - SHIPPING BOLT
WE25X10028 WE25X10028 KIT - STACKING WSH/DRY

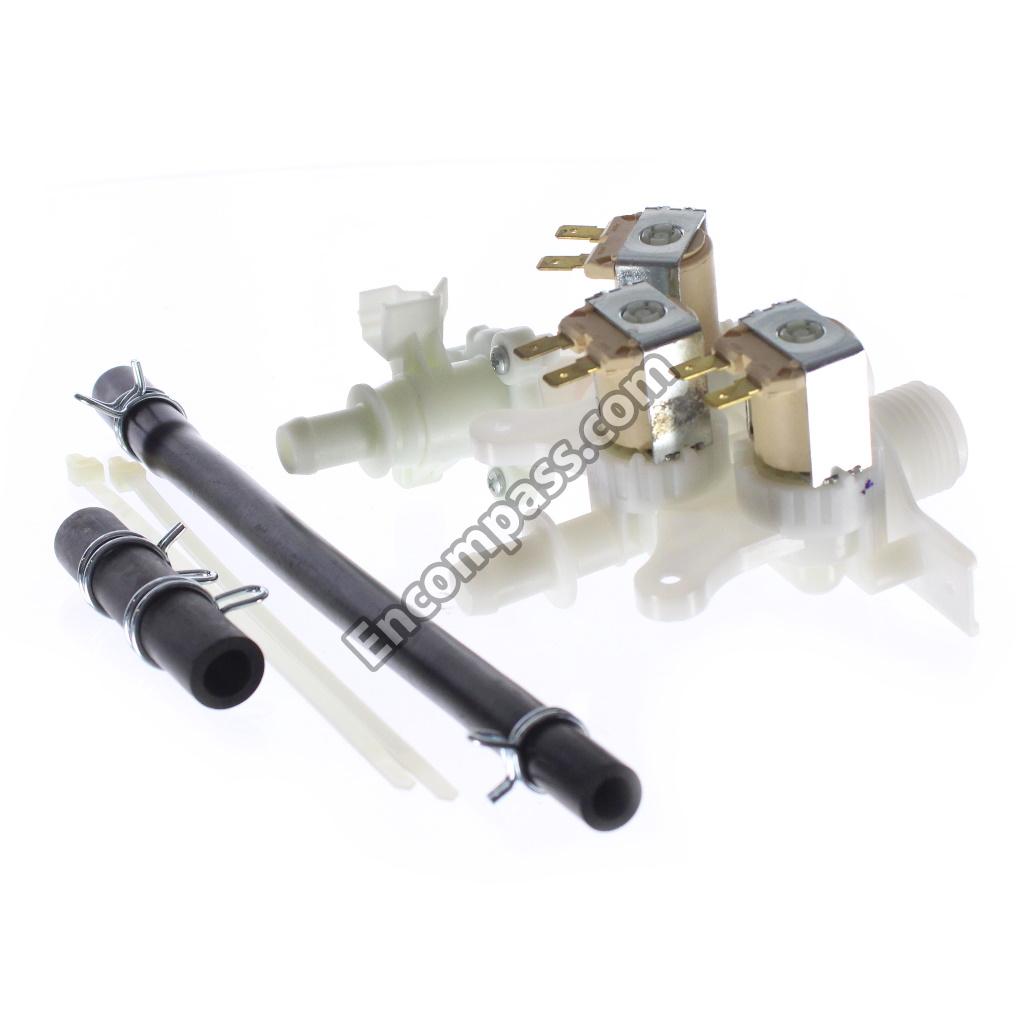

WH49X26074 WH49X26074 LCHA WATER VALVE KIT
WH46X10243 WH46X10243 LEG ASSEMBLY
WH41X10264 WH41X10264 LIQUID DETERGENT INSERT
WH02X10218 WH02X10218 LOCK WASHER
WH41X10204 WH41X10204 MAIN BOX DIVERTER ASM
WH41X10215 WH41X10215 MAIN_WATER_HOSE_COLD
WH41X10216 WH41X10216 MAIN_WATER_HOSE_HOT
31-30623 31-30623 MINI MANUAL
WH01X10436 WH01X10436 MODEL SELECT PLUG W/BULK
WH20X10078 WH20X10078 MOTOR ASM KIT
WH16X10131 WH16X10131 MOTOR SHIELD
WH02X10212 WH02X10212 MOTOR_WASHER
WH01X10564 WH01X10564 MY CYCLE BUTTON
WH01X10427 WH01X10427 NOZZLE - STEAM
WH02X10199 WH02X10199 NUT_M5
WH02X10204 WH02X10204 NUT_M8
WH41X10126 WH41X10126 OUTSIDE_DRAIN_HOSE
WH01X10262 WH01X10262 OUTSIDE_DRAIN_HOSE_CATCH
WH12X10484 WH12X10484 POWER BOARD ASSEMBLY
WH01X10565 WH01X10565 POWER BUTTON
WH19X10071 WH19X10071 POWER CORD
WH12X10390 WH12X10390 PRESSURE SWITCH
WH01X10273 WH01X10273 PRESSURE_HOSE_CLAMP
WH46X10259 WH46X10259 PROTECT COVER AND RING

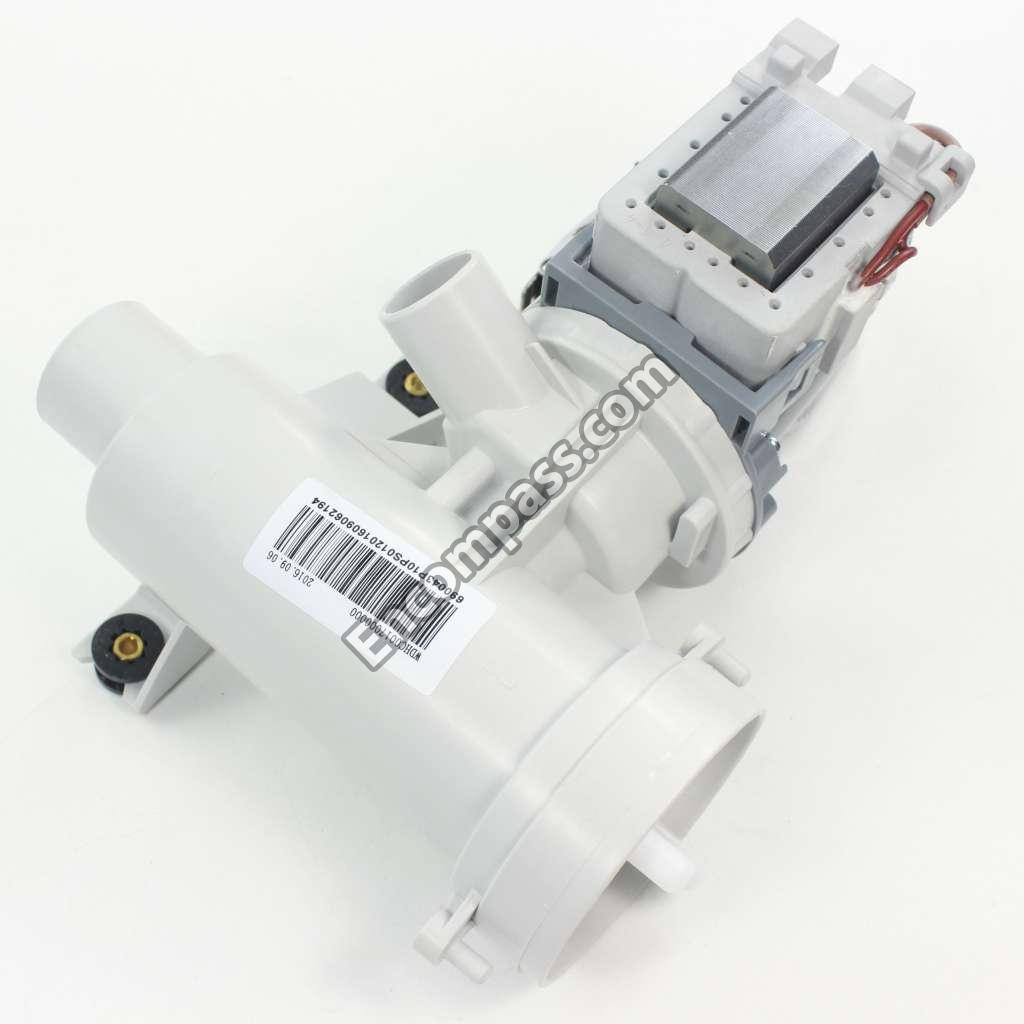

WH23X25461 WH23X25461 PUMP
WH11X34740 WH11X34740 PUMP

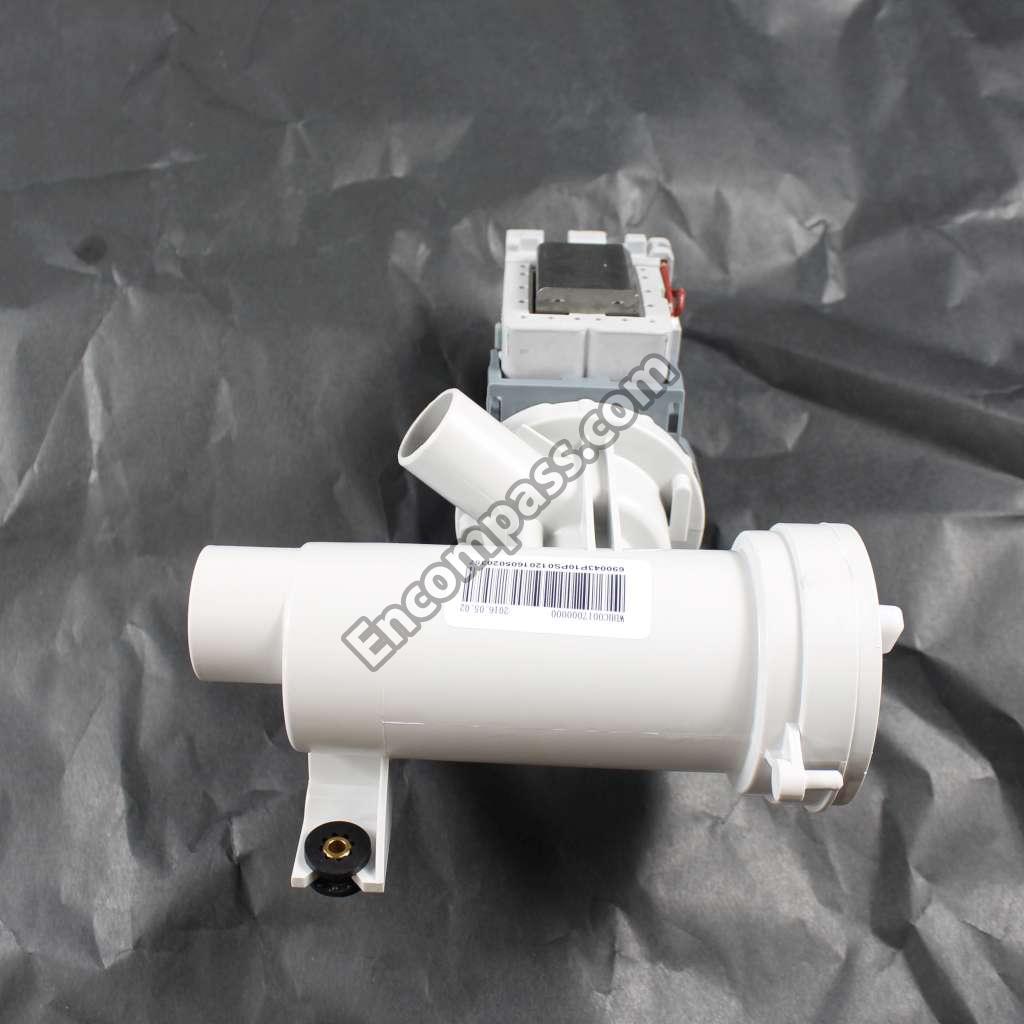

WH23X25518 WH23X25518 PUMP
WH01X10577 WH01X10577 PUMP ACCESS DOOR MS
WH01X10576 WH01X10576 PUMP ACCESS DOOR MV
WH01X10566 WH01X10566 PUMP ACCESS DOOR WW
WH01X10567 WH01X10567 PUMP ACCESS SHROUD
WH01X10568 WH01X10568 PUMP DRAIN CHANNEL
WH11X34741 WH11X34741 PUMP FILTER
WH01X10275 WH01X10275 PUMP_CLAMP
WH45X22914 WH45X22914 REAR TUB ASSEMBLY
WH02X10234 WH02X10234 SCREW M5 12
WH02X10270 WH02X10270 SCREW M5 16
WH02X10186 WH02X10186 SCREW ST 4 20
WH02X10222 WH02X10222 SCREW ST4 16
WH02X10203 WH02X10203 SCREW ST4.2 11
WH02X10197 WH02X10197 SCREW ST4.4 9.5
WH02X10188 WH02X10188 SCREW ST4X11
WH02X10198 WH02X10198 SCREW_M5 12
WH02X10194 WH02X10194 SCREW_M5 12
WH02X10187 WH02X10187 SCREW_ST 4.2X14
WH02X10181 WH02X10181 SCREW_ST3.5 X 11
WH02X10219 WH02X10219 SCREW_ST4 10
WH02X10189 WH02X10189 SCREW_ST4 13
WH02X10183 WH02X10183 SCREW_ST4 13
WH02X10191 WH02X10191 SCREW_ST4 20
WH02X10185 WH02X10185 SCREW_ST4 25
WH02X10220 WH02X10220 SCREW_ST4.2 13
WH02X10182 WH02X10182 SCREW_ST4.2 13
WH02X10184 WH02X10184 SCREW_ST4.2 13
WH02X10201 WH02X10201 SCREW_ST4.2 13
WH02X10200 WH02X10200 SCREW_WASHER_ST4 25
WH08X10052 WH08X10052 SEAL VENT PIPE
WH11X10059 WH11X10059 SELECT CYCLE KNOB ASM
WH46X10255 WH46X10255 SERVICE PANEL MS
WH46X10254 WH46X10254 SERVICE PANEL MV
WH46X10252 WH46X10252 SERVICE PANEL WW
WH16X10075 WH16X10075 SIDE_BRACKET
WH41X10179 WH41X10179 SIPHON PIPE
WH01X10579 WH01X10579 SMART BUTTON
WH41X10181 WH41X10181 SOFTENER BLEACH COVER
WH41X10109 WH41X10109 SPRAY_HOSE
WH05X10012 WH05X10012 SPRING - SUSPENSION
WH01X10251 WH01X10251 SPRING_HANGER
WH01X10570 WH01X10570 START BUTTON

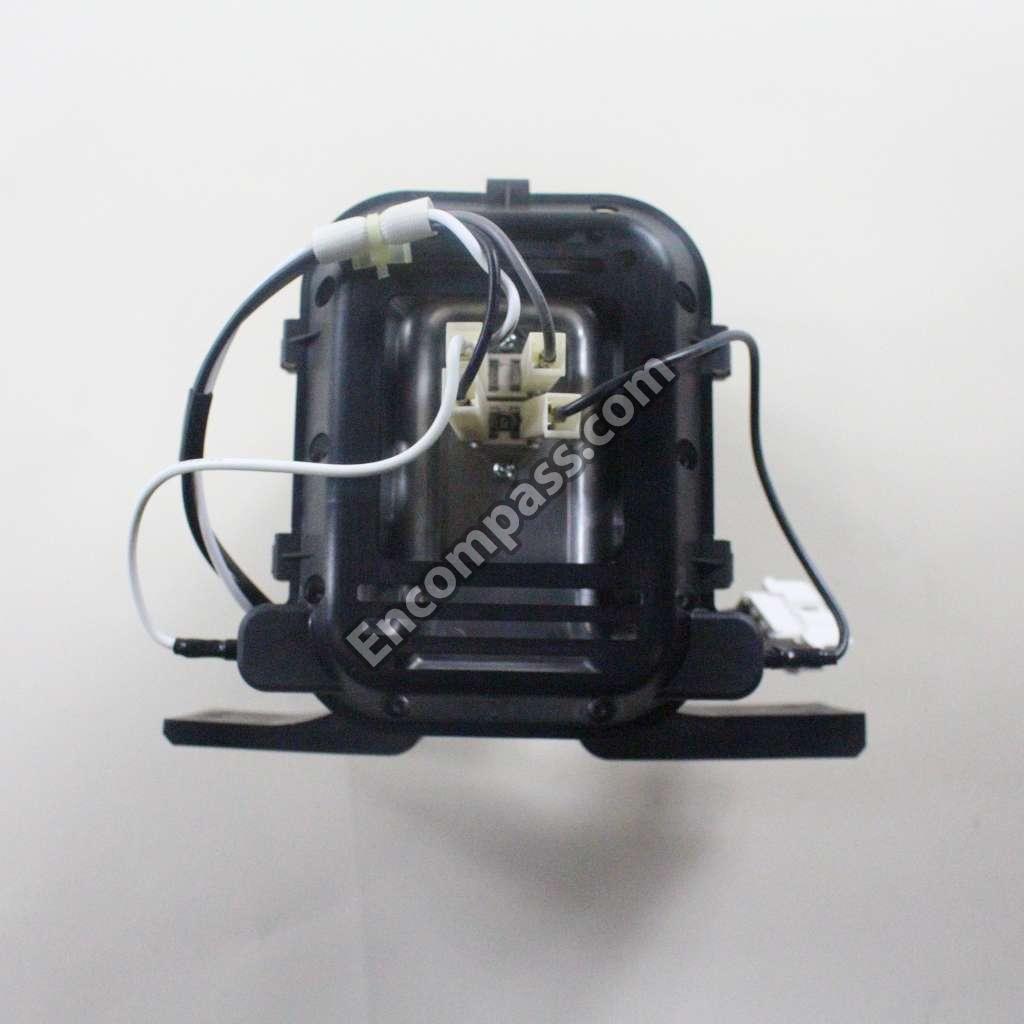

WH01X10528 WH01X10528 STEAM GENERATOR
WH41X10259 WH41X10259 STEAM HOSE
WH01X10396 WH01X10396 SUPPORT- PRESSURE HOSE
WH01X10573 WH01X10573 TOP DECOR COVER MS
WH01X10572 WH01X10572 TOP DECOR COVER MV
WH01X10558 WH01X10558 TOP DECOR COVER WW
WH44X10252 WH44X10252 TOP PANEL ASM MG
WH44X10250 WH44X10250 TOP PANEL ASM MS
WH44X10251 WH44X10251 TOP PANEL ASM MV
WH44X10173 WH44X10173 TOP PANEL ASM WW
WH01X10252 WH01X10252 TOP_PANEL_PIN
WH45X10097 WH45X10097 TUB - FRONT
WH01X10276 WH01X10276 TUB DRAIN HOSE CLAMP
WH08X10054 WH08X10054 TUB SEAL
49-90390-1 49-90390-1 USE & CARE MANUAL
WH01X10527 WH01X10527 VENT HOSE COUPLING
WH02X10205 WH02X10205 WASHER
WH02X10337 WH02X10337 WASHER 34X12.5X3.5 MM
WH12X10470 WH12X10470 WASHING MACHINE INVERTER
WH41X10257 WH41X10257 WATER INLET PIPE
WH02X10341 WH02X10341 WATER INLET PIPE CLAMP
WH19X10075 WH19X10075 WIRE HARNESS
WH16X10076 WH16X10076 WIRE_CATCH
WH16X10074 WH16X10074 WIRE_CATCH
WH16X10078 WH16X10078 WIRE_CATCH_1
