Model Image
Manufacturer

GE

Model Number

GHD5015F00AA

Description

Dishwasher

Interactive Exploded View

Parts List

Part Number Description
WD02X0295 WD02X0295 #10X1\2 PH SMS
WD12X0383 WD12X0383 4-RLR & STD ASM UPR RACK
WR02X4039 WR02X4039 ADHESIVE CLIP
WD14X10007 WD14X10007 ARM HINGE COMPLETE LH
WD14X10008 WD14X10008 ARM HINGE COMPLETE RH
WD01X1316 WD01X1316 ARMATURE LINK ASSEMBLY
WD1X1316 WD1X1316 ARMATURE&LNK
WD8X228 WD8X228 BAFFLE LH
WD8X227 WD8X227 BAFFLE RH
WD08X0228 WD08X0228 BAFFLE TUB CORNER LH
WD08X0227 WD08X0227 BAFFLE TUB CORNER RH
WD28X10051 WD28X10051 BASKET LID
WD28X10177 WD28X10177 BASKET SILVERWARE LONG.
WD12X10025 WD12X10025 BEARING HINGE ARM
WD01X10018 WD01X10018 BLADE AND SHAFT

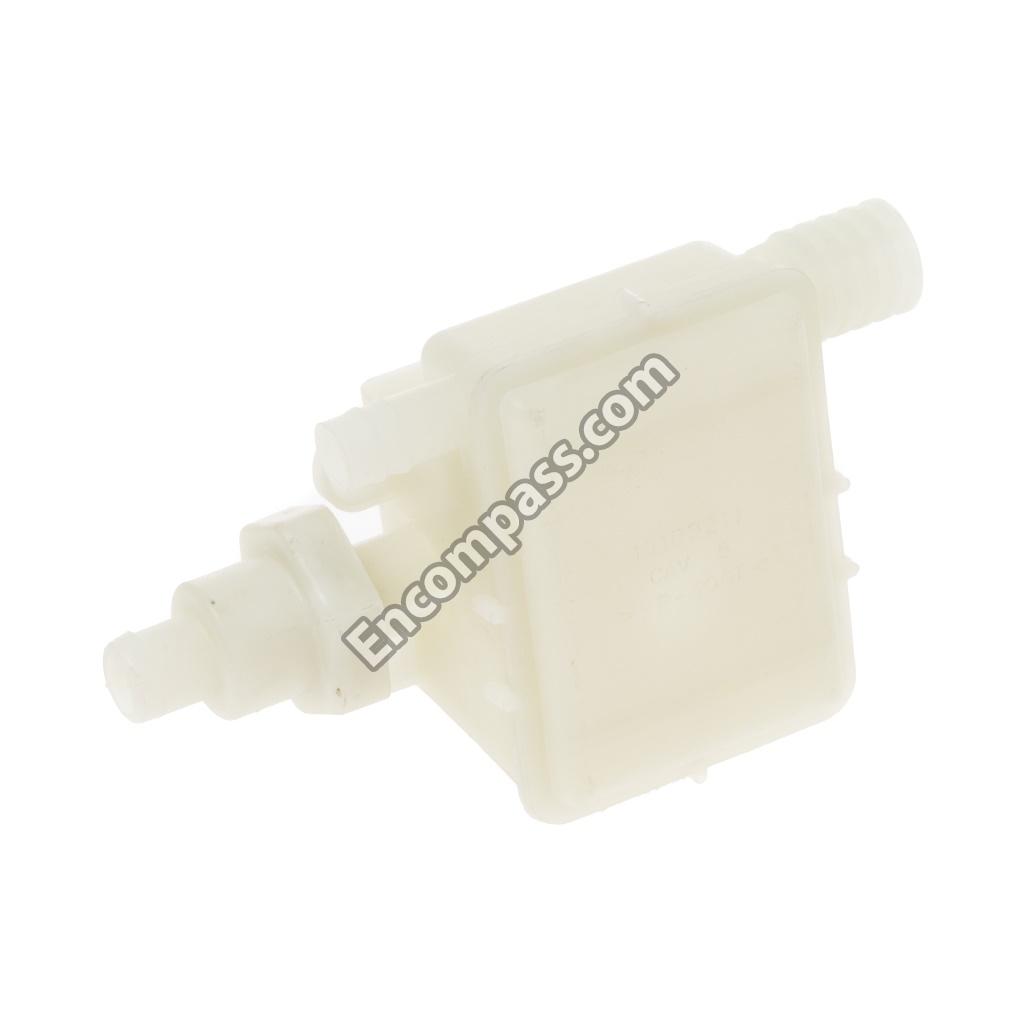

WD22X10018 WD22X10018 BODY VALVE & CHECK ASM
WD35X0200 WD35X0200 BRACKET COUNTER
WD12X10023 WD12X10023 BRACKET FLOOD SWITCH
WD12X447 WD12X447 BRACKET J-BOX
WD12X10284 WD12X10284 CAP FILL
WD1X1497 WD1X1497 CLAMP
WD1X1376 WD1X1376 CLAMP
WR2X4039 WR2X4039 CLAMP
WD01X1376 WD01X1376 CLAMP (PUMP CONNECTOR)
WD01X1497 WD01X1497 CLAMP DUAL PUMP
WD01X10338 WD01X10338 CLAMP HOSE
WD01X10065 WD01X10065 CLAMP HOSE
WD28X10046 WD28X10046 COMB FLEX 15 TINE
WD18X214 WD18X214 CONNECT PUMP
WD18X0214 WD18X0214 CONNECTOR PUMP ASM
WD21X10100 WD21X10100 CONTROL ASSEMBLY
WD12X377 WD12X377 COVER
WD12X0377 WD12X0377 COVER BRACKET
WD16X0297 WD16X0297 COVER DET CUP
WD12X10040 WD12X10040 COVER INLET
WD12X448 WD12X448 COVER JUCTION BOX
WD27X10074 WD27X10074 COVER PANEL - LONG CT
WD22X10020 WD22X10020 COVER SUMP
WD1X1469 WD1X1469 DAMPER NOISE
WD01X1469 WD01X1469 DAMPER SOUND
WD16X297 WD16X297 DET CUP COVR
WD03X0764 WD03X0764 DETERGENT TRIP SPRING
WD35X21038 WD35X21038 DISHWASHER LOWER RACK KIT 8 PK
WD26X10013 WD26X10013 DISHWASHER MOTOR AND PUMP ASSEMBLY
WD24X10018 WD24X10018 DISHWASHER PISTON AND NUT ASSEMBLY
WD12X332 WD12X332 DISHWASHER ROLLER BUSHING STUD
WD3X749 WD3X749 DISHWASHER TIMER LEVER SPRING
WD31X312 WD31X312 DOOR EXT
WD31X0312 WD31X0312 DOOR EXTENSION
WD31X10004 WD31X10004 DOOR INNER
WD27X10048 WD27X10048 DOOR PANEL COVER ALMOND
WD12X0338 WD12X0338 DRIP SHIELD
WD05X0070 WD05X0070 ELEMENT HEATING ASM D&D
WD34X10036 WD34X10036 ESCUTCHEON
WD34X10031 WD34X10031 ESCUTCHEON
WD34X10490 WD34X10490 ESCUTCHEON & INSERT A
WD34X10492 WD34X10492 ESCUTCHEON AND INSERT ASSEMBLY
WD18X202 WD18X202 FILL HOSE
WD22X149 WD22X149 FILTER FRAME
WD22X0149 WD22X0149 FILTER FRAME ASM
WD22X10043 WD22X10043 FILTER GASKET ASSEMBLY
WD22X10021 WD22X10021 FILTER SUMP
WD12X334 WD12X334 FLOAT
WD12X0445 WD12X0445 FLOAT DOME
WD12X445 WD12X445 FLOAT DOME
WD12X0335 WD12X0335 FLOAT STEM
WD12X335 WD12X335 FLOAT STEM
WD12X0334 WD12X0334 FLOOD FLOAT
WD08X10057 WD08X10057 GASKET
WD08X10015 WD08X10015 GASKET INSERT
WD08X0219 WD08X0219 GASKET VALVE BODY
WD8X219 WD8X219 GASKET VALVE BODY
WD08X0181 WD08X0181 GATE SHAFT SEAL
WD35X0192 WD35X0192 GATE VALVE ARM KIT
WD08X0225 WD08X0225 GROMMET HEATER
WD8X225 WD8X225 GROMMET HTR
WD01X10024 WD01X10024 HANGER DUAL PUMP
WD01X1482 WD01X1482 HANGER MECH
WD1X1482 WD1X1482 HANGER MECH
WD21X10025 WD21X10025 HARNESS
WD21X10068 WD21X10068 HARNESS CONTROL
WD01X1168 WD01X1168 HEATER WASHER
WD1X1168 WD1X1168 HEATER WASHR
WD05X26780 WD05X26780 HEATING ELEMENT ASM
WD24X10015 WD24X10015 HOSE CHAMBER
WD24X10014 WD24X10014 HOSE DRAIN
WD24X10006 WD24X10006 HOSE DUAL PUMP
WD24X0214 WD24X0214 HOSE POWER SHOWER
WD24X214 WD24X214 HOSE POWER SHR
WD19X10021 WD19X10021 HOUSING PUMP ASSEMBLY
WD01X1433 WD01X1433 HOUSING TERMINAL
WD01X1432 WD01X1432 HOUSING TERMINAL (BLACK)
WD1X1459 WD1X1459 HSNG INSUL.
WD1X1432 WD1X1432 HSNG TERM BK
WD1X1433 WD1X1433 HSNG TERM WH
WD19X10032 WD19X10032 IMPELLER ASSEMBLY
WD34X10487 WD34X10487 INSERT ESCUTCHEON
WD34X10491 WD34X10491 INSERT ESCUTCHEON
WD01X10019 WD01X10019 INSULATION
WD01X10023 WD01X10023 INSULATION
WD01X1499 WD01X1499 INSULATION TUB
WD01X10262 WD01X10262 INSULATION TUB BLANKET
WD01X1459 WD01X1459 INSULATOR HSNG TERM
WD13X0067 WD13X0067 KEEPER DOOR LATCH
WD21X10060 WD21X10060 KIT SOLENOID ASSEMBLY
WD09X0348 WD09X0348 KNOB DOOR LATCH HANDLE AD
WD9X348 WD9X348 KNOB LATCH HANDLE AD
WD13X10003 WD13X10003 LATCH ASM
WD16X10011 WD16X10011 LATCH DETERGENT CUP
WD13X67 WD13X67 LATCH KEEPER
WD2X320 WD2X320 LEVELING LEG
WD12X10019 WD12X10019 LEVER SWITCH
WD14X10009 WD14X10009 LINK HINGE ARM
WD01X10337 WD01X10337 MASTIC DOOR
WD35X200 WD35X200 MOUNTING KIT
WD12X10018 WD12X10018 NUT GRATER
WD02X0429 WD02X0429 NUT PUSH ON
WD01X10070 WD01X10070 NUT TOWER HEATER
WD27X10031 WD27X10031 PANEL ACCESS ASSEMBLY
WD31X10007 WD31X10007 PANEL FRONT
WD31X10023 WD31X10023 PANEL FRONT LONG ALMO
31-30515 31-30515 PM INSTRUCTION INSTAL
49-5891 49-5891 PM MANUAL USE & CARE
31-30349 31-30349 PM SHEET MINI MANUAL
WD03X0487 WD03X0487 PS RETAINER
WD19X10015 WD19X10015 PUMP
WR2X7054 WR2X7054 PUSH-ON NUT
WD01X10068 WD01X10068 PUSHNUT FASTENER
WD28X265 WD28X265 RACK LOWER & ROLLER ASM
WD28X10284 WD28X10284 RACK LOWER & ROLLER ASSEMBLY
WD28X31819 WD28X31819 RACK LOWER & ROLLER ASSEMBLY
WD12X271 WD12X271 RACK RLR ASM
WD30X0098 WD30X0098 RACK SLIDE
WD12X0344 WD12X0344 RACK SLIDE END CAP
WD12X10304 WD12X10304 RACK SLIDE END CAP
WD28X10049 WD28X10049 RACK UPPER & ROLLER ASM
WD3X487D WD3X487D RETNR-PKG 12
WD12X0398 WD12X0398 RINSE AID INJ ASM
WD12X10327 WD12X10327 ROLLER & STUD ASM - 4 PACK
WD12X0271 WD12X0271 ROLLER ASM LWR RACK FRNT
WD12X0272 WD12X0272 ROLLER ASM LWR RACK REAR
WD12X0332 WD12X0332 ROLLER STUD ASM
WD02X0425 WD02X0425 SCR 10-12X1/2 AC PNR S
WD02X10126 WD02X10126 SCR 10-16 HXW 3/8 S
WD02X5166 WD02X5166 SCR 10-16X1/2 AB HEXW S
WD02X10057 WD02X10057 SCR 10-16X1/2 AB HXW S
WZ04X0376 WZ04X0376 SCR 10-16X3/4 #8 HX SSTL
WZ02X0492 WZ02X0492 SCR 10-24X1/2 TT TRR S
WD02X0248 WD02X0248 SCR 10-24X3/8 TT HEX
WD02X0445 WD02X0445 SCR 10-32 T HEX .7 S
WZ05X0222 WZ05X0222 SCR 10-32 T HEX 7/16 S
WD02X10141 WD02X10141 SCR 10-32 TT HEX .575S
WH02X10002 WH02X10002 SCR 8-18 AB IHWP 7/8 S
WD02X0322 WD02X0322 SCR 8-18X7/8 BT
WD01X0550 WD01X0550 SCR 8-32 PNT 1/2 S
WD02X22736 WD02X22736 SCR10 16 AB HXW 3/4 SS
WD02X0444 WD02X0444 SCREW
WZ05X0219 WZ05X0219 SCREW
WZ5X222 WZ5X222 SCREW
WD2X295 WD2X295 SCREW
WD1X550 WD1X550 SCREW
WD2X425 WD2X425 SCREW
WD2X322 WD2X322 SCREW
WD2X296 WD2X296 SCREW
WD2X248 WD2X248 SCREW
WD2X5166 WD2X5166 SCREW
NCN NCN SCREW 8-16 B FLP 625 ZN
WD02X10061 WD02X10061 SCREW 8-18 PL HXW 3/8 SS
WD02X0434 WD02X0434 SCREW 8-18 X 5/16 AD
WD02X10056 WD02X10056 SCREW 8-32 X 5/16 SPH
WD02X10054 WD02X10054 SCREW 8-32 X 5/16 SPH
WD02X0296 WD02X0296 SCREW 8-32X5/8
WD2X444 WD2X444 SCREW MECH
WZ2X45D WZ2X45D SCREW-PKG 12
WZ2X492D WZ2X492D SCREW-PKG 12
WZ02X0045 WZ02X0045 SCREW-PKG 12
WZ5X219D WZ5X219D SCREW-PKG 12

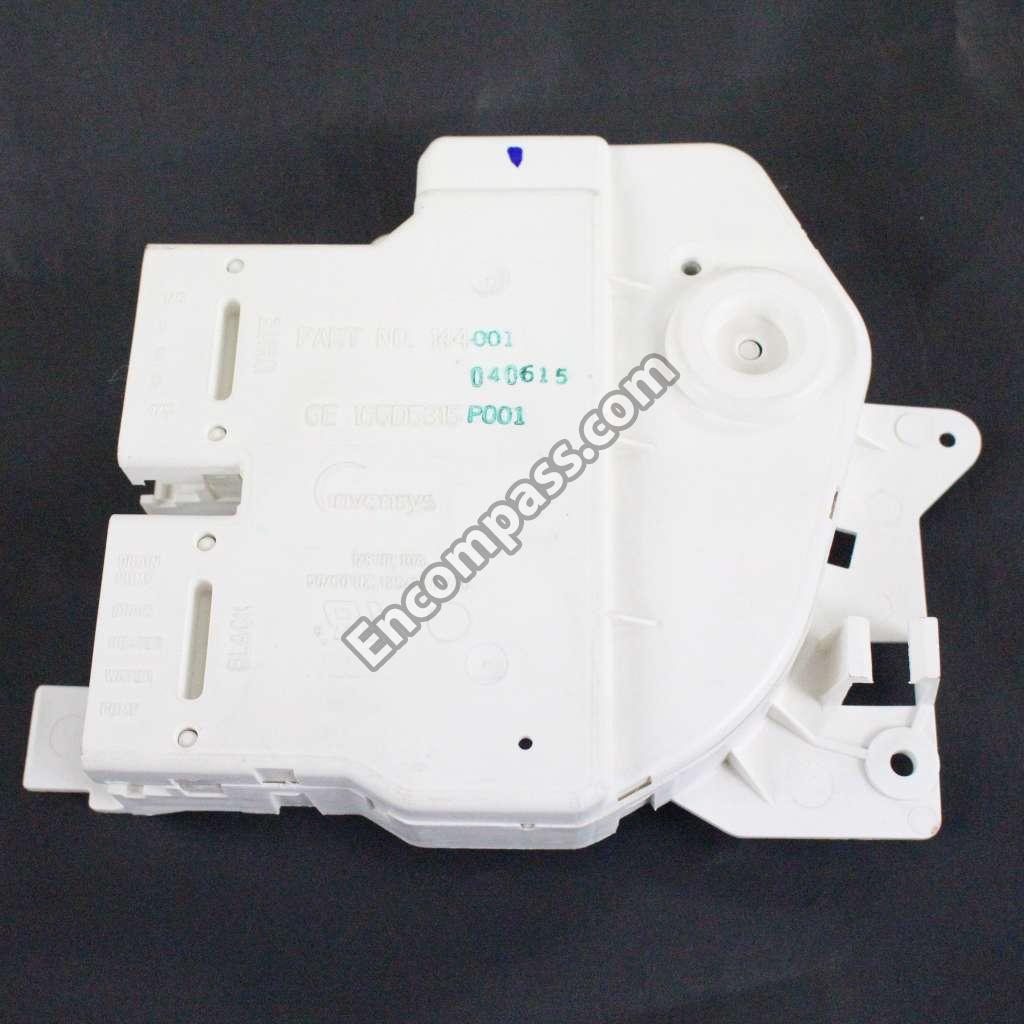

WD21X10018 WD21X10018 SEQUENCE SWITCH
WD22X10023 WD22X10023 SERVICE DOME COARSE FILTER
WD16X313 WD16X313 SHAFT DET CP
WD8X181 WD8X181 SHAFT SEAL
WD16X0313 WD16X0313 SHAFT/HANDLE DET CUP
WD28X0297 WD28X0297 SHELF CUP
WD28X297 WD28X297 SHELF CUP
WD12X338 WD12X338 SHLD&CLIP KT
WD30X98 WD30X98 SLIDE
WD21X10268 WD21X10268 SOLENOID & BRKT ASM
WD35X192 WD35X192 SPR PLATE KT
WD22X10017 WD22X10017 SPRAYARM ASM
WD22X10022 WD22X10022 SPRAYARM ASM MID LVL
WD28X10103 WD28X10103 SPRAYARM ASSEMBLY 3RD LEVEL
WD3X764 WD3X764 SPRING
WD03X10007 WD03X10007 SPRING DOOR PURPLE 21 LB
WD03X0721 WD03X0721 SPRING SET
WD3X721 WD3X721 SPRING SET
WD03X0749 WD03X0749 SPRING TIMER LEVER
WD1X1392 WD1X1392 SUMP CLAMP
WD18X0215 WD18X0215 SUMP INLET
WD18X215 WD18X215 SUMP INLET
WD01X1430 WD01X1430 SUPPORT ASM
WD01X1472 WD01X1472 SUPPORT HEATER
WD1X1472 WD1X1472 SUPT HEATER
WD1X1430 WD1X1430 SUPT HTR R
WD21X479 WD21X479 SWITCH
WD21X0479 WD21X0479 SWITCH FLOOD
WD06X10002 WD06X10002 SWITCH INTERLOCK ASM
WD35X10346 WD35X10346 TANK RINSE AID KIT
WD01X1434 WD01X1434 TERMINAL SPECIAL
WD1X1434D WD1X1434D TERMN-PKG 12
WD2X434 WD2X434 TRIM SCREW
WH1X2036 WH1X2036 UNIV CLAMP
WD01X1486 WD01X1486 VALVE FLAPPER
WD01X10175 WD01X10175 VALVE FLAPPER
WD15X10003 WD15X10003 VALVE WATER INLET
WD12X10026 WD12X10026 VENT
WD3X767 WD3X767 WASHER
WD03X0767 WD03X0767 WASHER ST STL
WD18X0202 WD18X0202 WATER INLET HOSE
WD27X10012 WD27X10012 WD27X10012
WD01X1341 WD01X1341 WEAR RING
WD12X0354 WD12X0354 WEAR RING BASE
