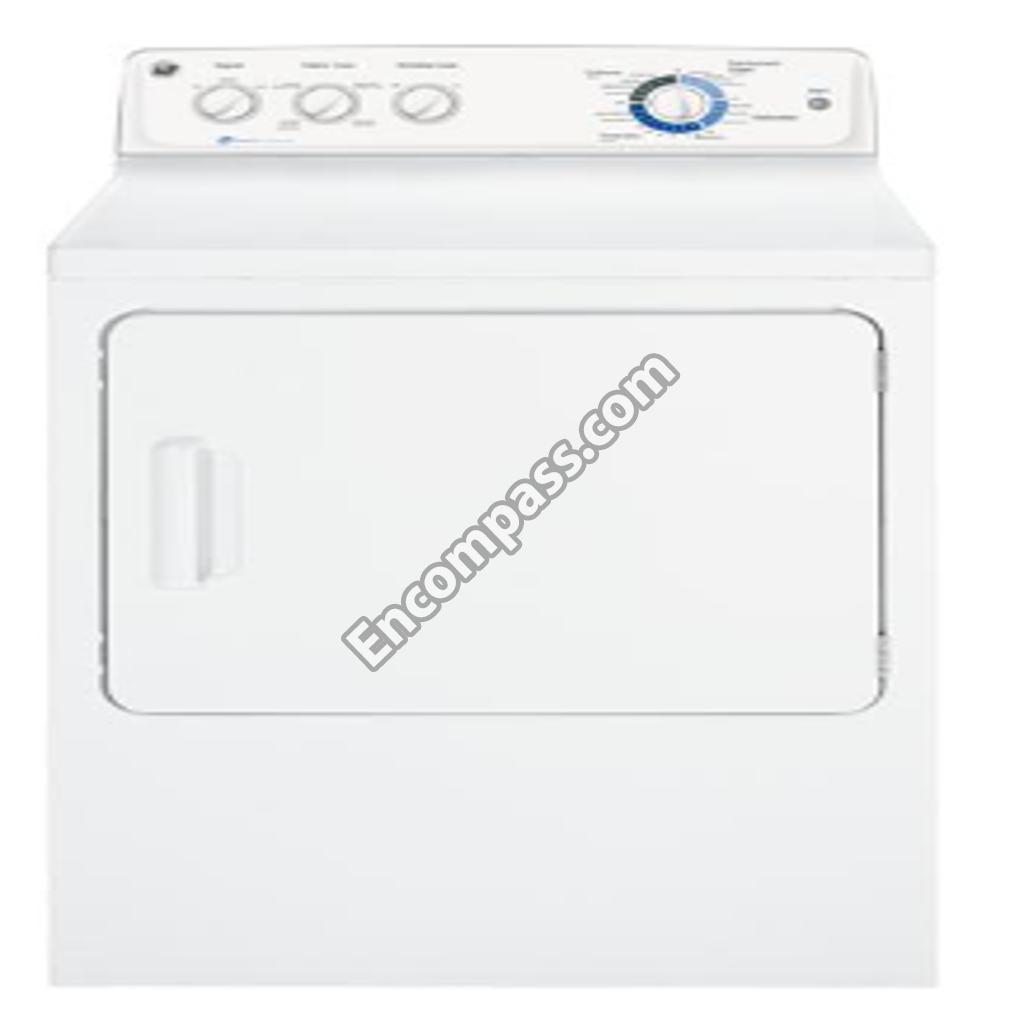

Model Image
Manufacturer

GE

Model Number

GHDP490EF2WW

Description

Dryer Electric

Interactive Exploded View

Parts List

Part Number Description
WE14X21334 WE14X21334 AIR DUCT ASSEMBLY
WE14X25080 WE14X25080 AIR DUCT ASSEMBLY
WE19X21075 WE19X21075 BACKSPLASH
WE14M75 WE14M75 BAFFLE
WE25M40 WE25M40 BEARING KIT
WE1M300 WE1M300 BEARING RETAINER
WE03X37317 WE03X37317 BEARING SLIDE
WE1M504 WE1M504 BEARING-SLIDE WHITE
WR02X8693 WR02X8693 BEAUTY BUTTON-WHT
WE09X27636 WE09X27636 BLOWER GASKET (EXHAUST)
WE14X20392 WE14X20392 BLOWER HOUSING ASSEMBLY
WE16X20393 WE16X20393 BLOWER WHEEL
WE20X20412 WE20X20412 BOTTOM COVER
WE1M1030 WE1M1030 BOTTOM COVER HEAT SHIELD
WE04X20556 WE04X20556 BUZZER VARIABLE
WE20X20391 WE20X20391 CHASSIS BASE
WH01X10106 WH01X10106 CLIP-KNOB
WE1M650 WE1M650 CONNECTOR MOTOR
WE01X20378 WE01X20378 CONTROL KNOB WHITE ASM
WE20X20417 WE20X20417 COVER WH
WE14X20408 WE14X20408 DEFLECTOR HEAT
WE11X29438 WE11X29438 DEFLECTOR HEAT
WE21X20566 WE21X20566 DRUM ASSEMBLY
WE1M1011 WE1M1011 DRYER DOOR LATCH
WE4M415 WE4M415 DRYER DOOR SWITCH
WE17X22217 WE17X22217 DRYER DRIVE MOTOR
WE03X29897 WE03X29897 DRYER DRUM DRIVE BELT
WE09X27634 WE09X27634 DRYER DUCT TRAP FELT
WE20X20559 WE20X20559 DRYER REAR PANEL
WE14X20421 WE14X20421 ELBOW EXHAUST
WE19X20467 WE19X20467 END CAP RH WH
WE09X20441 WE09X20441 FELT
WE18X25100 WE18X25100 FILTER & MESH ASM.
WE49X22295 WE49X22295 FRONT PANEL AND INNE
WE20X20322 WE20X20322 FRONT PANEL WHITE
WE1M1002 WE1M1002 FUSE CCMR 30 AMP 120V
WE00M169 WE00M169 GASKET (SEAL)
WE1M825 WE1M825 GASKET (SEAL) 39 INCH
WE1M966 WE1M966 GASKET SEAL
WE1M1015 WE1M1015 GROUND STRAP ASM
WE1M419 WE1M419 H EDGE CONNECTOR
WE01X20419 WE01X20419 HANDLE WHITE
WE11M10002 WE11M10002 HEATER HOUSING
WE1M1033 WE1M1033 HINGE
WE1M1003 WE1M1003 HOLDER FUSE
WE03X20434 WE03X20434 IDLER ARM
WE10X20582 WE10X20582 INNER DOOR ASM
31-16739 31-16739 INSTALLATION INSTRUCTION
WE49X22294 WE49X22294 KIT OF SERVICE END CAP
WE05X20431 WE05X20431 LAMP
WE01X29357 WE01X29357 LEVELLING LEG
WE1M418 WE1M418 LOCKING C B SUPPORT
WE11X20397 WE11X20397 MICA HEATER AND HSNG ASSEMBLY
WE11M10001 WE11M10001 MICA UNIT ASSEMBLY
WE13X20394 WE13X20394 MOTOR PLATE
WE1X921 WE1X921 MOTOR STRAP
WE13M39 WE13M39 MOTOR SUPPORT
WE1M461 WE1M461 O RING
WE10X20468 WE10X20468 OUTER DOOR WH
WE04X10103 WE04X10103 PC BOARD - NO BUZZER
WR01X21159 WR01X21159 PLUG DOOR
31-16330 31-16330 PM WIRING DIAGRAM
WE1M780 WE1M780 PROTECTION BRACKET
WE12X83 WE12X83 PULLEY IDLER
WE4M416 WE4M416 PUSH TO START SWITCH
WE1M659 WE1M659 PUSH/ START BUTTON GREY
WE4M399 WE4M399 R.SWITCH (XCARE) ON/OFF
WE1M723 WE1M723 REAR HEAT SHEILD
WE19M1481 WE19M1481 REAR PANEL
WE4M406 WE4M406 ROTARY SWITCH 4TEMP SENS
WE2M307 WE2M307 SCR 10-16 X 1/2 AB
WE2M308 WE2M308 SCR 815 X 7/16 AB
WE1M280 WE1M280 SCREW
WR2X9260 WR2X9260 SCREW
WE2M173 WE2M173 SCREW
WE2M189 WE2M189 SCREW
WE2M202 WE2M202 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WE2M196 WE2M196 SCREW #8
WE2M160 WE2M160 SCREW #8
WD02X10057 WD02X10057 SCREW 10-16X1/2 AB HXW S
WE02X20422 WE02X20422 SCREW 8-18X7 16
WE2M200 WE2M200 SCREW GROUND
WD21M131 WD21M131 SCREW GROUND FRONT
WE2M228 WE2M228 SCREW NO.8 ( GROUND )
WZ4X241D WZ4X241D SCREW-PKG 12
WE20X20406 WE20X20406 SIDE PANEL WHITE
WE1M462 WE1M462 SLEEVE DRUM
WE5M48 WE5M48 SOCKET ASM
WE01X20423 WE01X20423 STRAIN RELIEF BRACKET
WE13X200 WE13X200 STRAP MOTOR
WE1X1192 WE1X1192 STRIKE DOOR
WE1M569 WE1M569 STRIKE PLATE
WE1M570 WE1M570 STRIKE PLATE W/STRK HOLE
WD21X10261 WD21X10261 SWITCH INTERLOCK
WE4M525 WE4M525 TERM BLK & GRND STRAP
WE1M1102 WE1M1102 TERM BLOCK COVER
WE4M181 WE4M181 THERMOSTAT BIAS CTR INLT
WE4M216 WE4M216 THERMOSTAT BIAS DRUM OUT
WE4M137 WE4M137 THERMOSTAT HI-LIMIT
WE4M160 WE4M160 THERMOSTAT SAFETY LEFT
WE4M527 WE4M527 TIMER
WE3M26 WE3M26 TOP BEARING
49-90505 49-90505 USE & CARE
WE4M368 WE4M368 VARIABLE BUZZER
WE2M96 WE2M96 WE2X329
WZ5X158D WZ5X158D WZ5X158D
