Model Image
Manufacturer

GE

Model Number

GHDP490GF3WW

Description

Dryer Gas

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WE05X20431 WE05X20431 120V DRYER BULB - 10W
WE19X21075 WE19X21075 BACKSPLASH GRAPHIC ASSEMBLY
WE1M300 WE1M300 BEARING RETAINER
WE03X37320 WE03X37320 BEARING SLIDE
WE03X37319 WE03X37319 BEARING SLIDE
WE03X29897 WE03X29897 BELT DRIVE
WE09X27636 WE09X27636 BLOWER GASKET (EXHAUST)

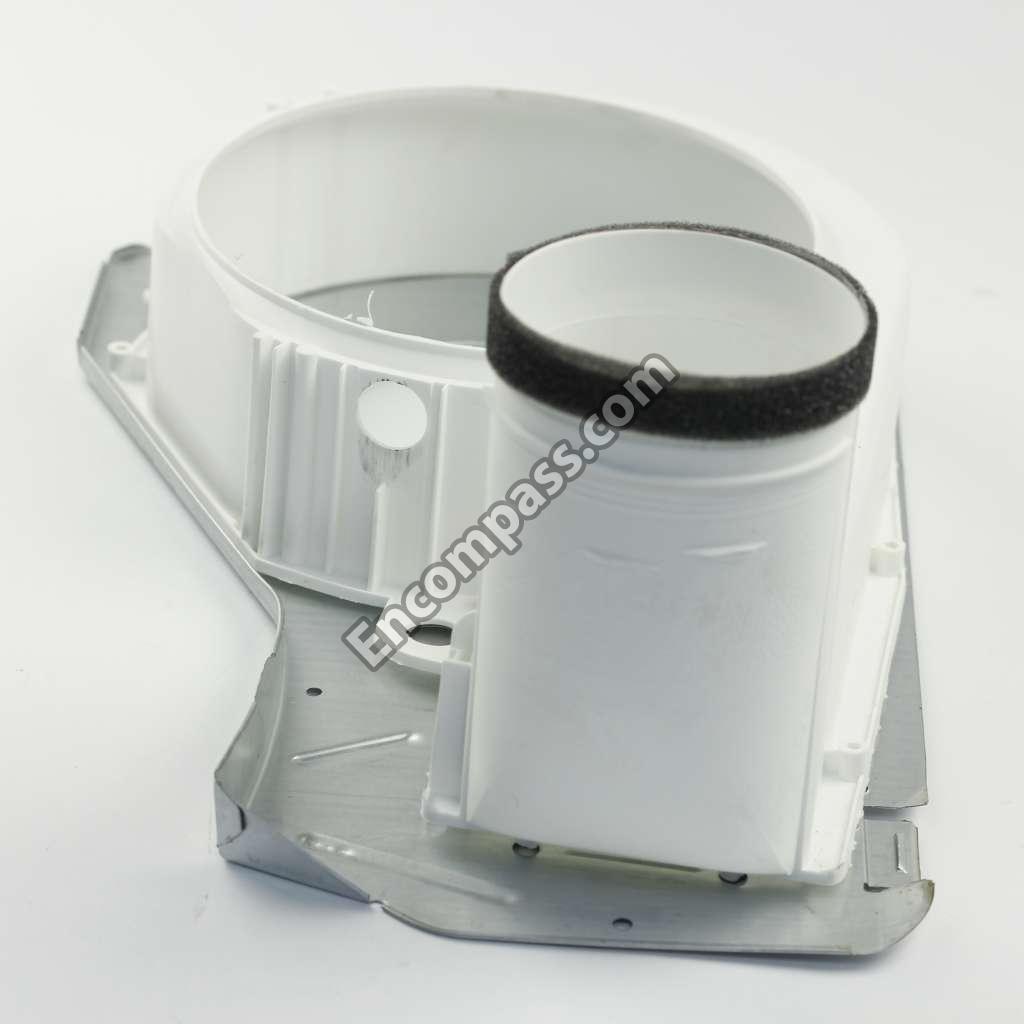

WE14X20392 WE14X20392 BLOWER HOUSING ASM
WE16X20393 WE16X20393 BLOWER WHEEL
WE20X20412 WE20X20412 BOTTOM COVER
WE14M104 WE14M104 BURNER ASM.
WE11X29440 WE11X29440 CHAMBER COMBUSTION
WE20X20391 WE20X20391 CHASSIS BASE
WE1M650 WE1M650 CONNECTOR MOTOR
WE01X20378 WE01X20378 CONTROL KNOB WHITE ASM
WE1M1007 WE1M1007 COVER FUSE TERMINAL
WE20X20417 WE20X20417 COVER WHITE
WE11X29438 WE11X29438 DIFFUSER
WE11X20712 WE11X20712 DIFFUSER GAS AND PLATE A

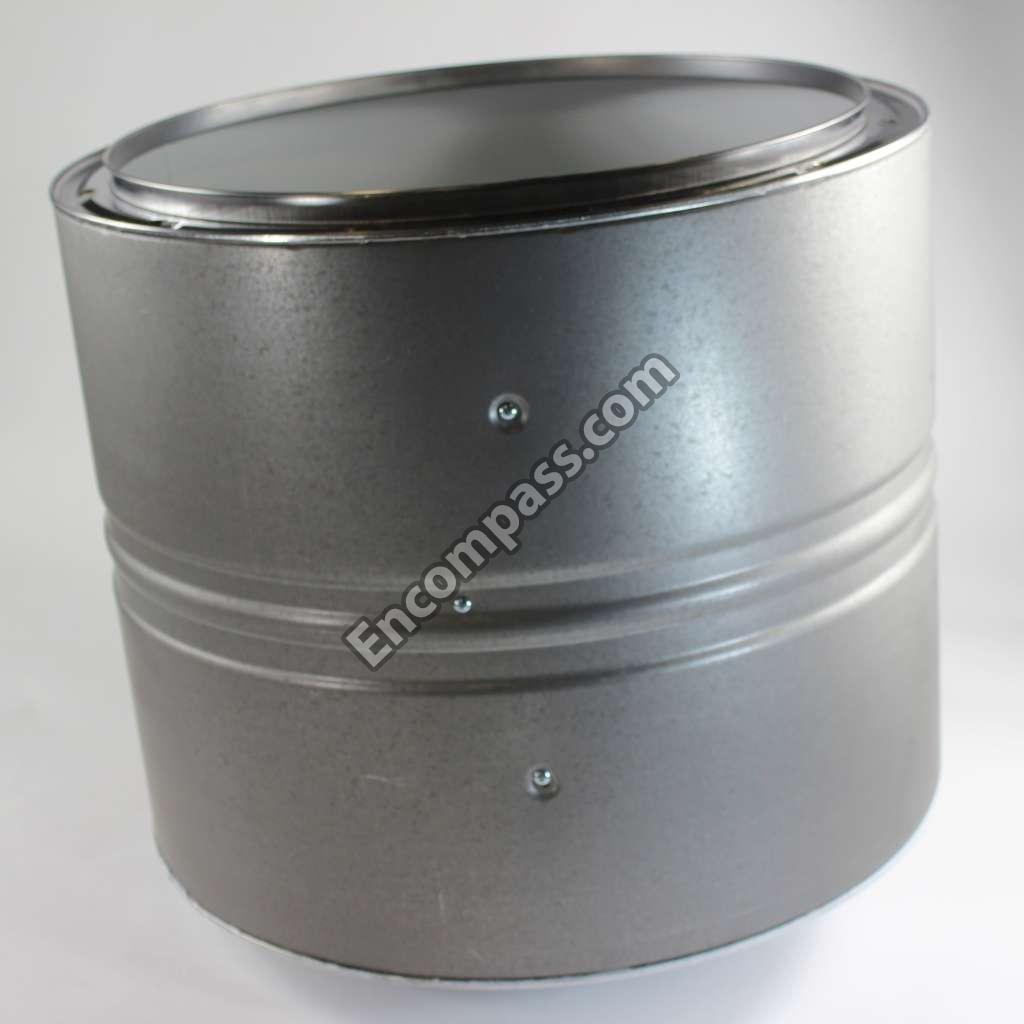

WE21X22675 WE21X22675 DRUM ASSEMBLY
WE14X20683 WE14X20683 DRYER BAFFLE
WE1M1011 WE1M1011 DRYER DOOR LATCH
WE4M415 WE4M415 DRYER DOOR SWITCH
WE17X22217 WE17X22217 DRYER DRIVE MOTOR
WE20X20559 WE20X20559 DRYER REAR PANEL
WE19X20467 WE19X20467 END CAP LH
WE19X20466 WE19X20466 END CAP RH
WE14X20421 WE14X20421 EXHAUST DUCT
WE09X27634 WE09X27634 FELT TRAP DUCT
WE18X25100 WE18X25100 FILTER & MESH ASM.
WE4X448 WE4X448 FLAME DETECTOR
WE49X22295 WE49X22295 FRONT PANEL AND INNE
WE2M188 WE2M188 FRONT STABILIZING LEGS
WE1M1002 WE1M1002 FUSE CCMR 30 AMP 120V

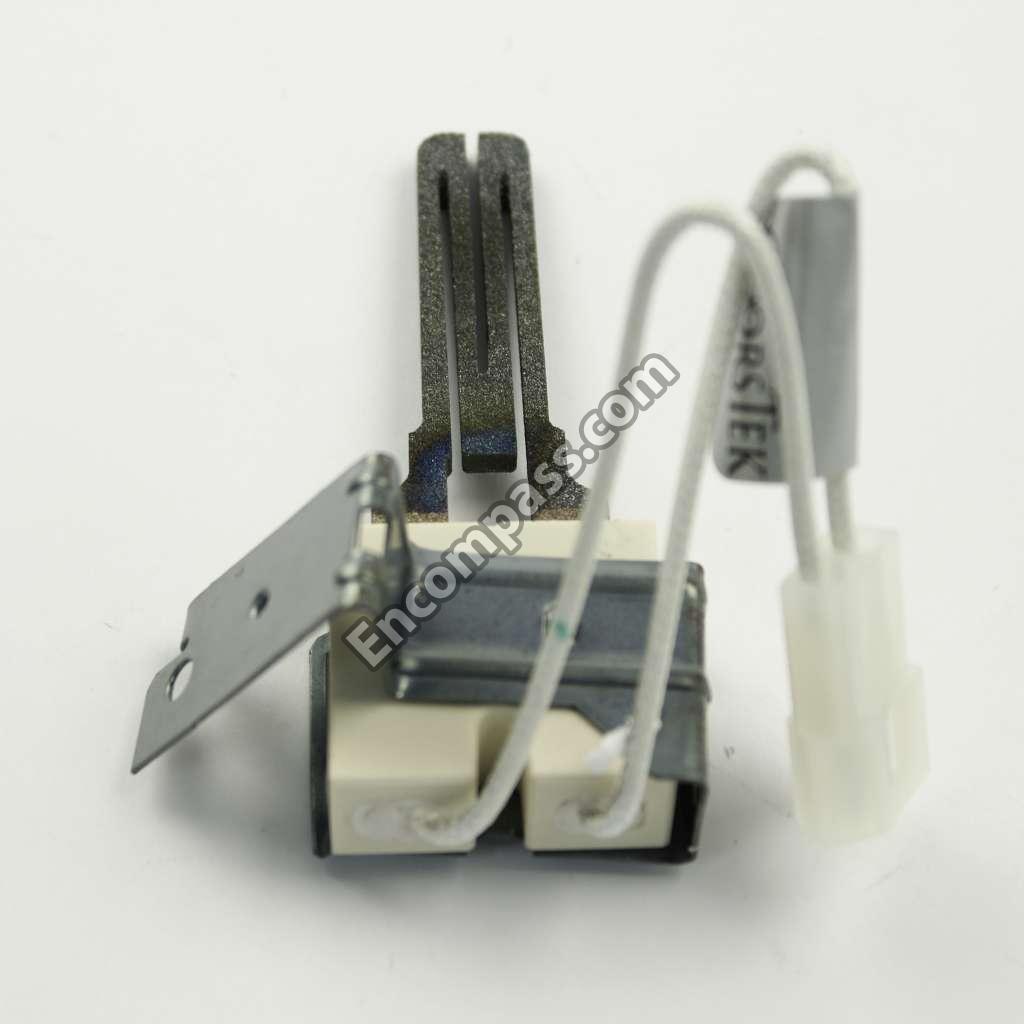

WE4M449 WE4M449 GAS IGNITER ASM

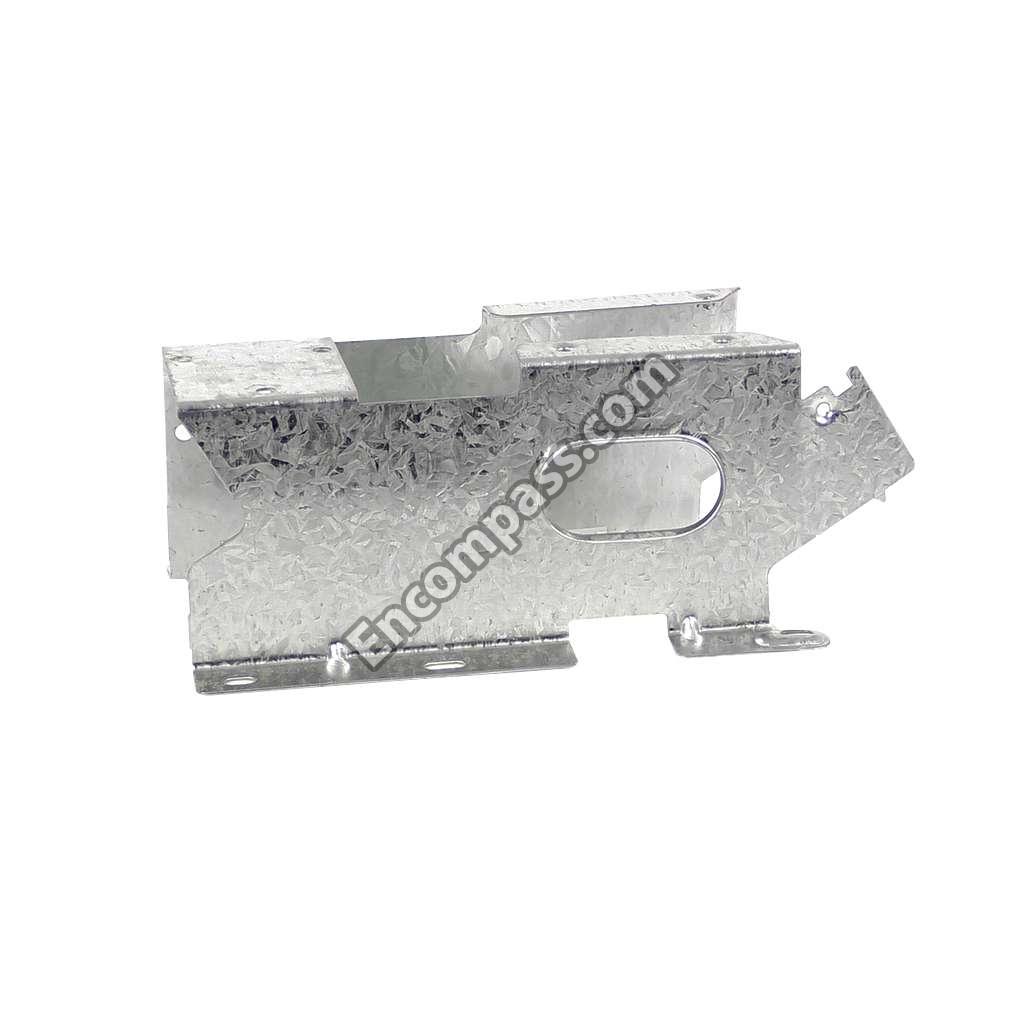

WE13X20405 WE13X20405 GAS VALVE BRACKET
WE1M825 WE1M825 GASKET (SEAL) 39 INCH
WE1M1015 WE1M1015 GROUND STRAP ASM
WE1M419 WE1M419 H EDGE CONNECTOR
WE01X20419 WE01X20419 HANDLE WHITE
WE1M1033 WE1M1033 HINGE
WE1M1003 WE1M1003 HOLDER FUSE
WE03X20434 WE03X20434 IDLER ARM
WE03X31620 WE03X31620 IDLER PULLEY
31-16735 31-16735 INSTALLATION INSTRUCTIO
WE01X29357 WE01X29357 LEVELLING LEG
WE1M418 WE1M418 LOCKING C B SUPPORT
WE13X20394 WE13X20394 MOTOR PLATE
WE1X921 WE1X921 MOTOR STRAP
WE13M39 WE13M39 MOTOR SUPPORT
WE1M461 WE1M461 O RING
WE10X20468 WE10X20468 OUTER DOOR WH
WE20X20758 WE20X20758 PANEL FRONT
WE04X10103 WE04X10103 PC BOARD - NO BUZZER
WE1M934 WE1M934 PLUG BUTTON WHITE
31-16331 31-16331 PM WIRING DIAGRAM
WE26M345 WE26M345 POWER CORD (120V GAS)
WE4M416 WE4M416 PUSH TO START SWITCH
WE1M659 WE1M659 PUSH/ START BUTTON GREY
WE4M399 WE4M399 R.SWITCH (XCARE) ON/OFF
WE19M1481 WE19M1481 REAR PANEL

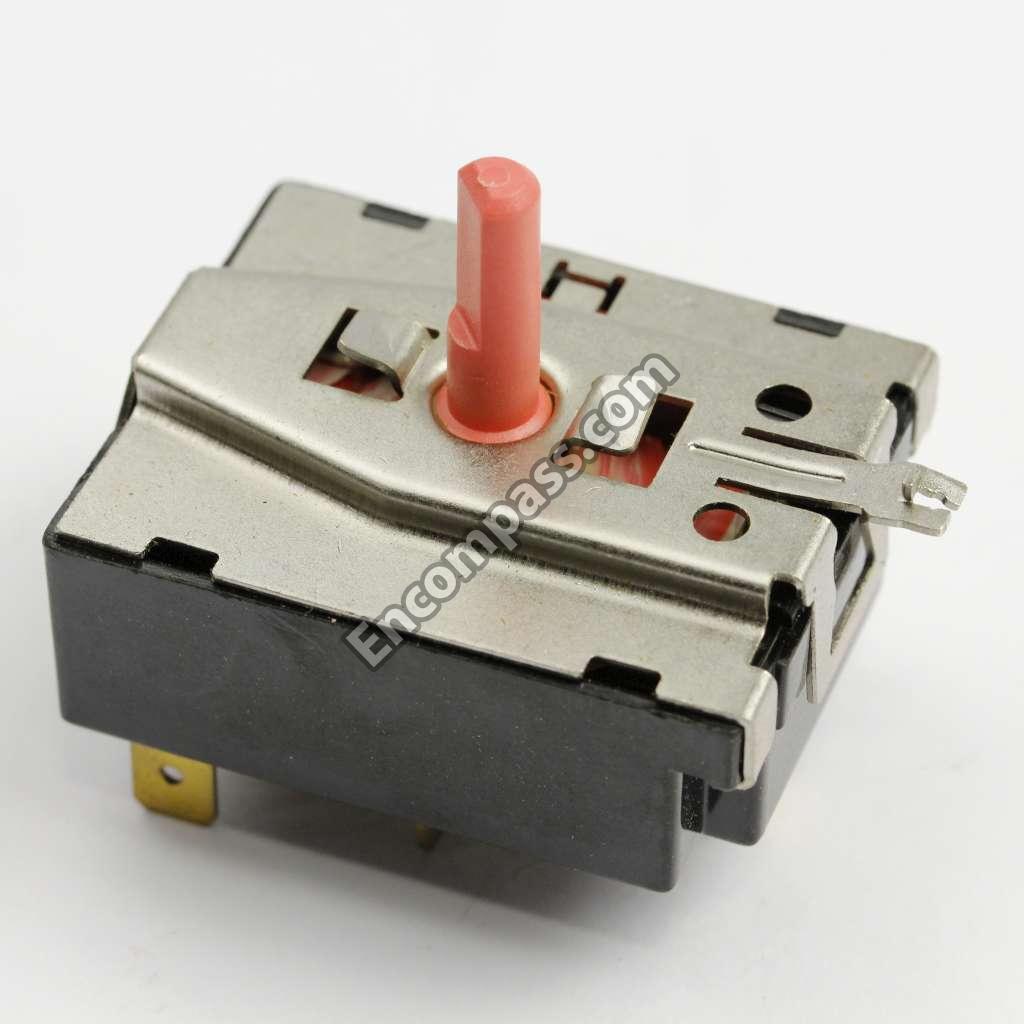

WE4M406 WE4M406 ROTARY SWITCH 4TEMP SENS
WE2M307 WE2M307 SCR 10-16 X 1/2 AB
WE02X20846 WE02X20846 SCR 30 X 20 IA PP
WD2M101 WD2M101 SCREW
WE2M180 WE2M180 SCREW
WE2M223 WE2M223 SCREW
WE2M173 WE2M173 SCREW
WR2X9260 WR2X9260 SCREW
WE2M202 WE2M202 SCREW
WE1M280 WE1M280 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WE2M160 WE2M160 SCREW #8
WE2M196 WE2M196 SCREW #8
WD02X10057 WD02X10057 SCREW 10-16X1/2 AB HXW S
WE2M200 WE2M200 SCREW GROUND
WZ5X158D WZ5X158D SCREW-PKG 12
WE00X181L WE00X181L SHAFT
WE1M486 WE1M486 SHUTTER
WE20X20406 WE20X20406 SIDE PANEL WHITE
WE1M462 WE1M462 SLEEVE DRUM
WE5M48 WE5M48 SOCKET ASM
WE01X20424 WE01X20424 STRAIN RELIEF BRACKET GA
WE13X200 WE13X200 STRAP MOTOR
WE1X1192 WE1X1192 STRIKE DOOR
WE1M569 WE1M569 STRIKE PLATE
WE1M570 WE1M570 STRIKE PLATE W/STRK HOLE
WD21X10261 WD21X10261 SWITCH INTERLOCK
WE4M181 WE4M181 THERMOSTAT BIAS CTR INLT
WE4M216 WE4M216 THERMOSTAT BIAS DRUM OUT
WE4M137 WE4M137 THERMOSTAT HI-LIMIT
WE4M80 WE4M80 THERMOSTAT SAFETY
WE4M182 WE4M182 THERMOSTAT TRIMMER

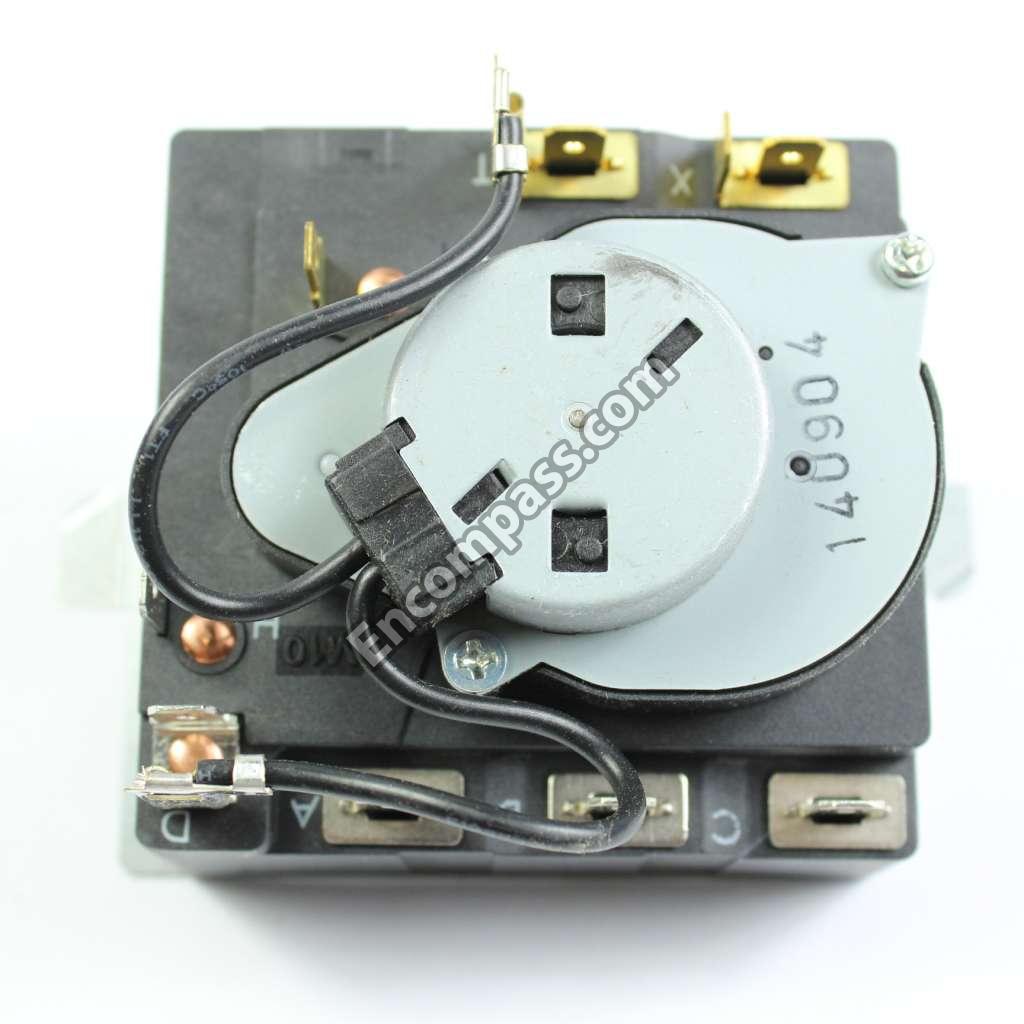

WE4M527 WE4M527 TIMER
WE03X27679 WE03X27679 TOP BEARING
WE03X25079 WE03X25079 TOP BEARING
WE11X29441 WE11X29441 TRANSITION DUCT
WE14X25080 WE14X25080 TRAP DUCT ASSEMBLY
49-90505 49-90505 USE & CARE

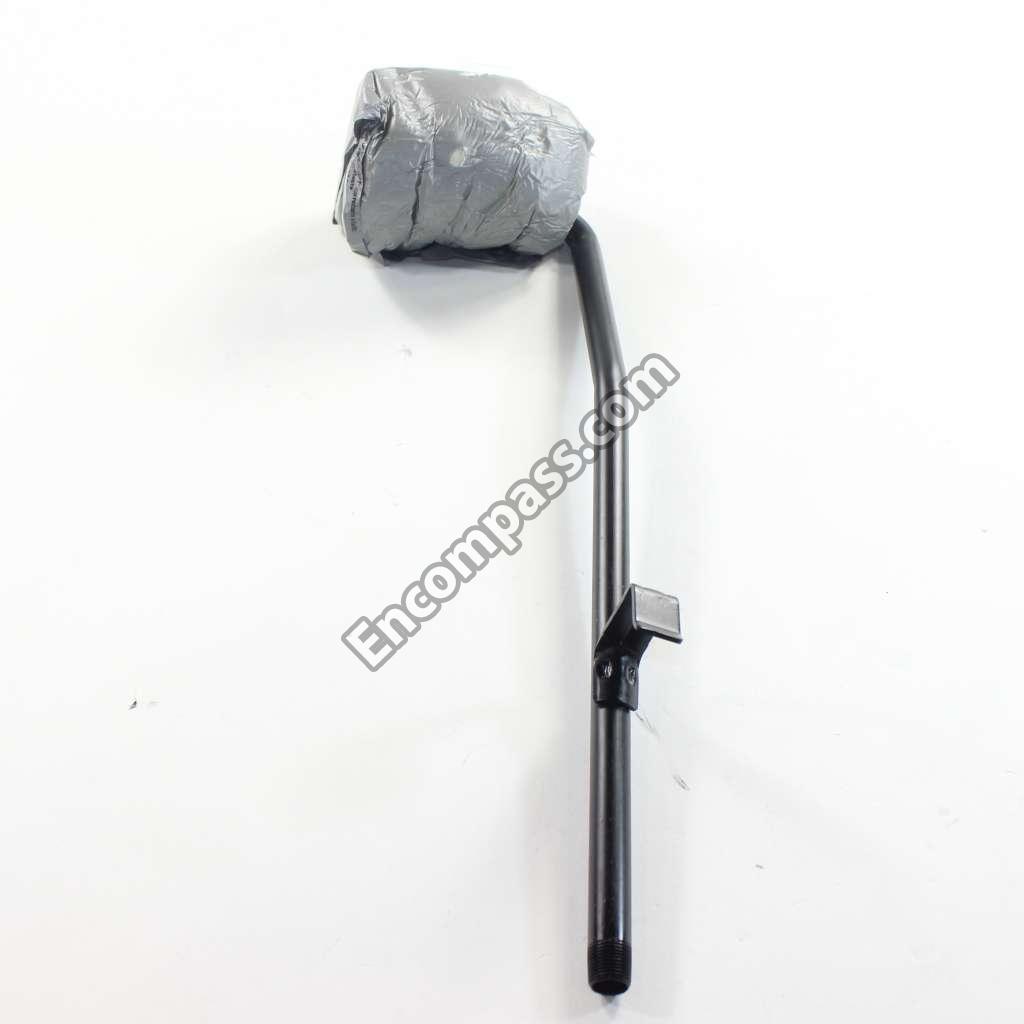

WE11X20711 WE11X20711 VALVE AND PIPE ASSEMBLY
WE4M368 WE4M368 VARIABLE BUZZER
WE1X1091 WE1X1091 WE1X1091
WE2M96 WE2M96 WE2X329
