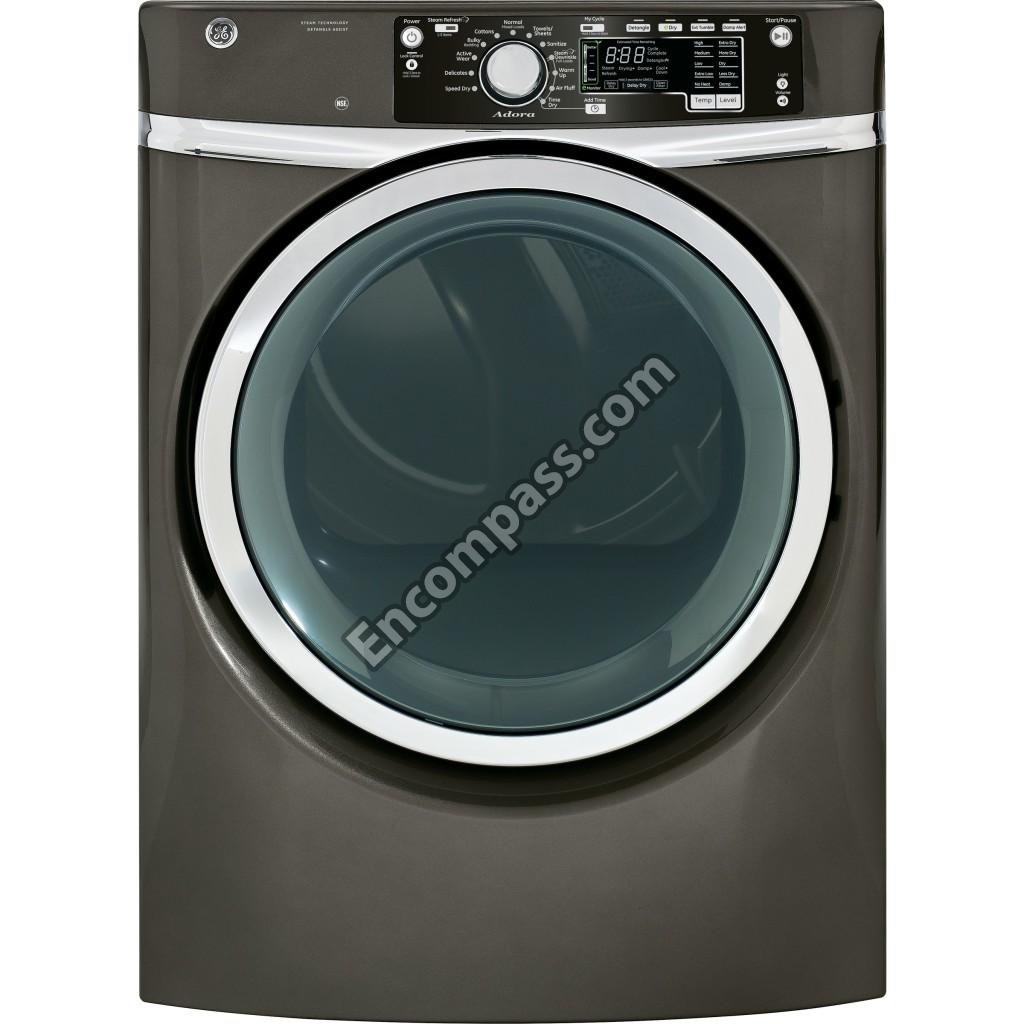

Model Image
Manufacturer

GE

Model Number

GHDS365GF0MC

Description

Ge 8.3 Cu. Ft. Capacity Front Load Gas Dryer With

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WE03X10016 WE03X10016 GE AXLE ROLLER
WE19M10949 WE19M10949 GE BADGE GE
WE14X10112 WE14X10112 GE BAFFLE
WE20X22234 WE20X22234 GE BASE ASSEMBLY
WE12X10020 WE12X10020 GE BELT DRIVE
WE13X10050 WE13X10050 GE BRACKET BURNER
WE13X10055 WE13X10055 GE BRACKET CHAMBER COMB.
WE13X10051 WE13X10051 GE BRACKET DRIVE MOTOR
WE13X21096 WE13X21096 GE BRACKET HINGE
WE13X10053 WE13X10053 GE BRACKET STRIKER
WE14X10110 WE14X10110 GE BURNER ASSEMBLY
WH01X10722 WH01X10722 GE BUSHING HINGE
WE01X10407 WE01X10407 GE BUSHING TOP PANEL
WE01X10389 WE01X10389 GE BUTTON TREE ASMEDRY
WE01X10387 WE01X10387 GE BUTTON TREE ASMPOWER
WE01X10391 WE01X10391 GE BUTTON TREE ASMTIME
WE01X10390 WE01X10390 GE BUTTON TREE ASSEMBLY-START
WE01X10388 WE01X10388 GE BUTTON TREE ASSEMBLY-TEMP
WE01X10402 WE01X10402 GE CAP GAS PIPE THREAD
WE14X10113 WE14X10113 GE CHAMBER ASSEMBLY
WE01X10376 WE01X10376 GE CLIP RESILIENT MOUNT
WE08X10083 WE08X10083 GE CORD POWER GAS
WH46X10284 WH46X10284 GE COVER DOOR
WE01X10396 WE01X10396 GE COVER NOZZLE
WE01X10392 WE01X10392 GE COVER UIMC
WE10X10030 WE10X10030 GE DOOR ASM
WE10X10029 WE10X10029 GE DOOR FRAME GLASS ASM
WE01X10417 WE01X10417 GE DOOR GUIDE - GREY
WE21X10026 WE21X10026 GE DRUM ASSEMBLY
WE14X10111 WE14X10111 GE DUCT EXHAUST
WE14X10108 WE14X10108 GE DUCT SUPPLY SUB ASM
WE01X10395 WE01X10395 GE ELBOW STEAM
WE14X20691 WE14X20691 GE FAN SCROLL SUB ASSEMBLY
WE09X10032 WE09X10032 GE FAN SEAL
WE09X10031 WE09X10031 GE FAN SEAL
WE09X10029 WE09X10029 GE FAN SEAL
WE09X10025 WE09X10025 GE FAN SEAL
WE13X10049 WE13X10049 GE FRONT CONTROL ASM BRKT
WE14X10109 WE14X10109 GE GAS VALVE
WE18X10021 WE18X10021 GE GRILL ASSEMBLY
WE01X10403 WE01X10403 GE GROMMET
WR2X8349 WR2X8349 GE GROMMET SCR CLOSED
WH01X10725 WH01X10725 GE HANDLE DOOR
WE08X10084 WE08X10084 GE HARNESS MAIN GAS
WE08X10087 WE08X10087 GE HARNESS ROD SENSOR
WE08X10085 WE08X10085 GE HARNESS SWITCH DOOR
WE04X10187 WE04X10187 GE HIGH LIMIT T-STAT
WH01X10723 WH01X10723 GE HINGE
WH01X10724 WH01X10724 GE HINGE PLATE
WE01X10408 WE01X10408 GE HOLDER TOP PANEL
WH41X10357 WH41X10357 GE HOSE INTAKE ASM
WH41X10356 WH41X10356 GE HOSE INTAKE ASM
WE12X10018 WE12X10018 GE IDLER ASM LH
WE12X10019 WE12X10019 GE IDLER ASM RH
WE04X10183 WE04X10183 GE IGNITER FLAT
WE14X10107 WE14X10107 GE INLET RING ASSEMBLY
WE04X10188 WE04X10188 GE INLET THERMOSTAT
WE25X10033 WE25X10033 GE KITCONV LP TO NAT GAS
WE25X10032 WE25X10032 GE KITCONV NAT TO LP GAS
WH01X10748 WH01X10748 GE KNOB RUBBER ASM
WE01X10409 WE01X10409 GE LATCH DOOR
WE02X20399 WE02X20399 GE LEG LEVELING
WE18X20428 WE18X20428 GE LINT SCREEN ASM
WE10X10031 WE10X10031 GE MASK DOOR
WE17X25555 WE17X25555 GE MOTOR DRIVE
WE01X10394 WE01X10394 GE NOZZLE MIST

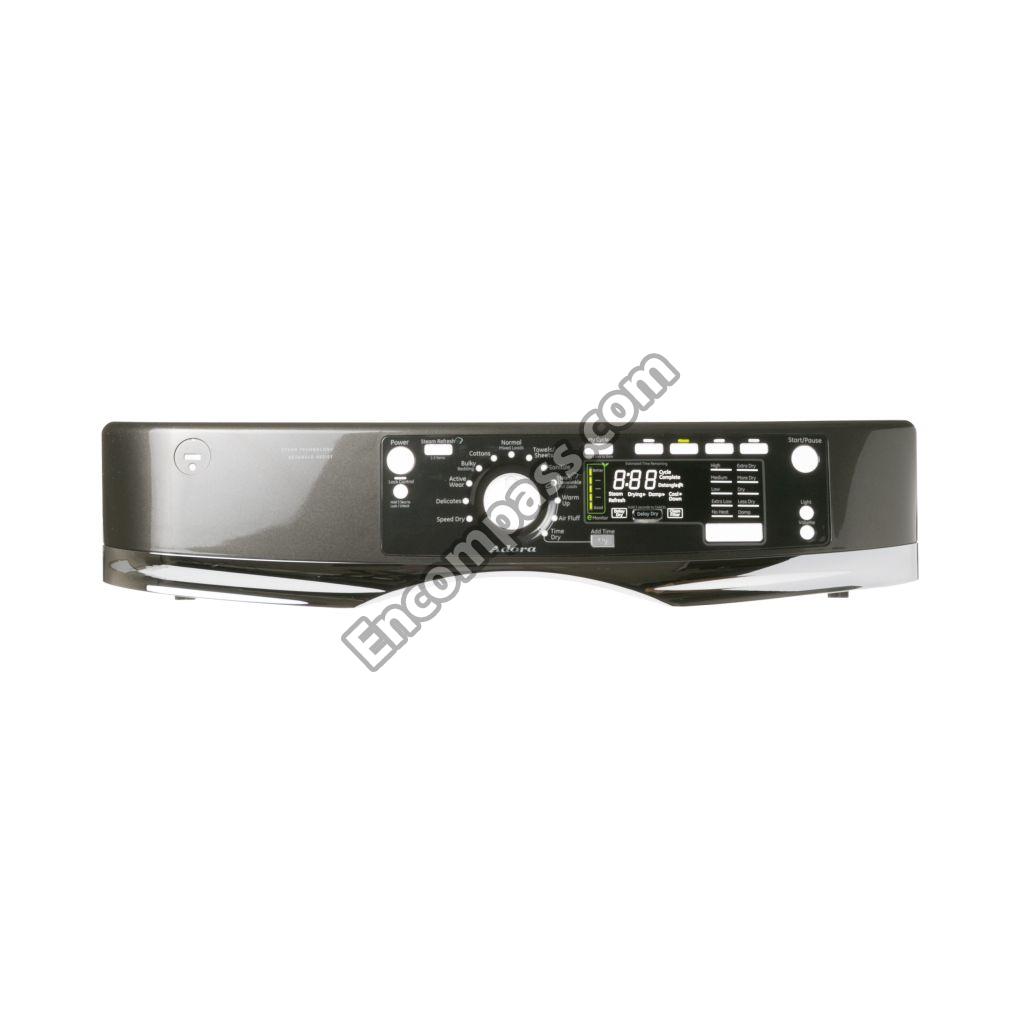

WE19X10090 WE19X10090 GE PANEL ASSEMBLY CONTROL
WE20X26095 WE20X26095 GE PANEL FRONT ASM MC
WE20X10148 WE20X10148 GE PANEL REAR

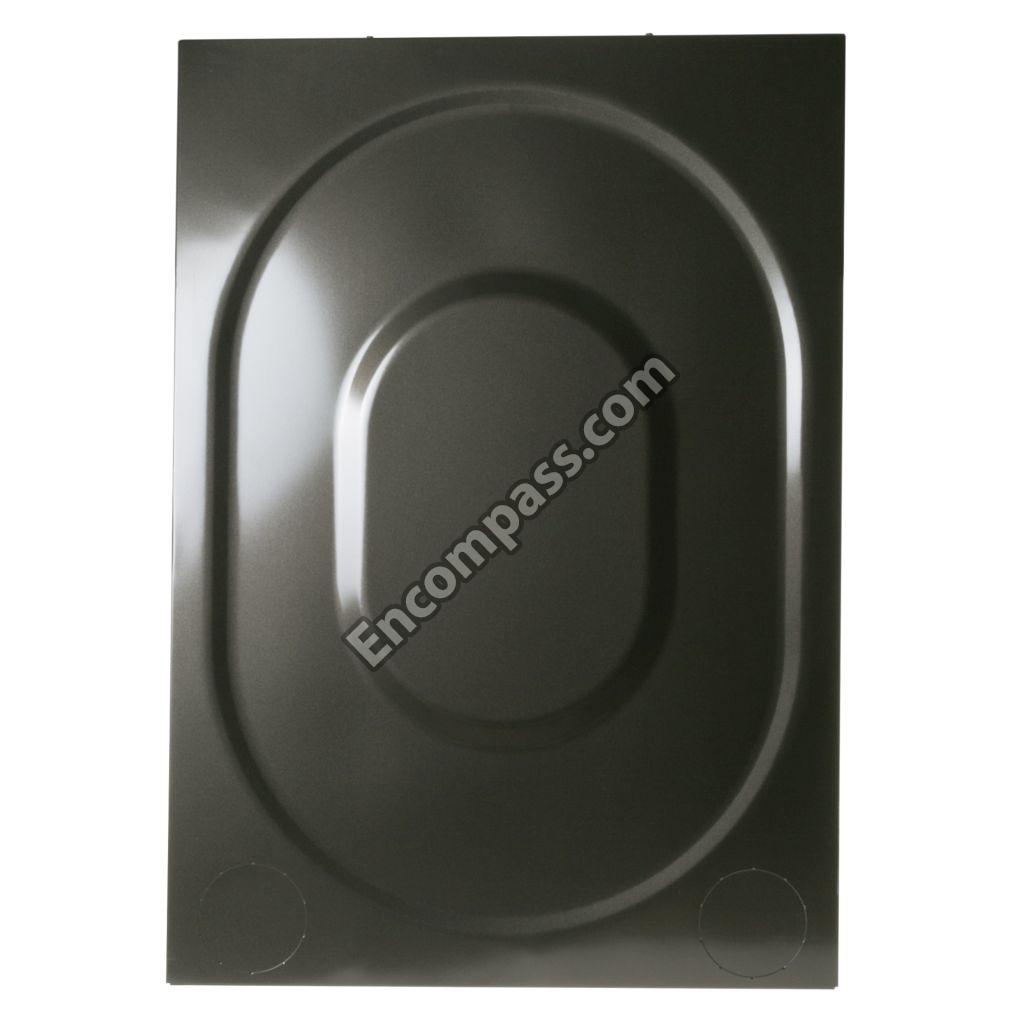

WE20X10159 WE20X10159 GE PANEL SIDE MC

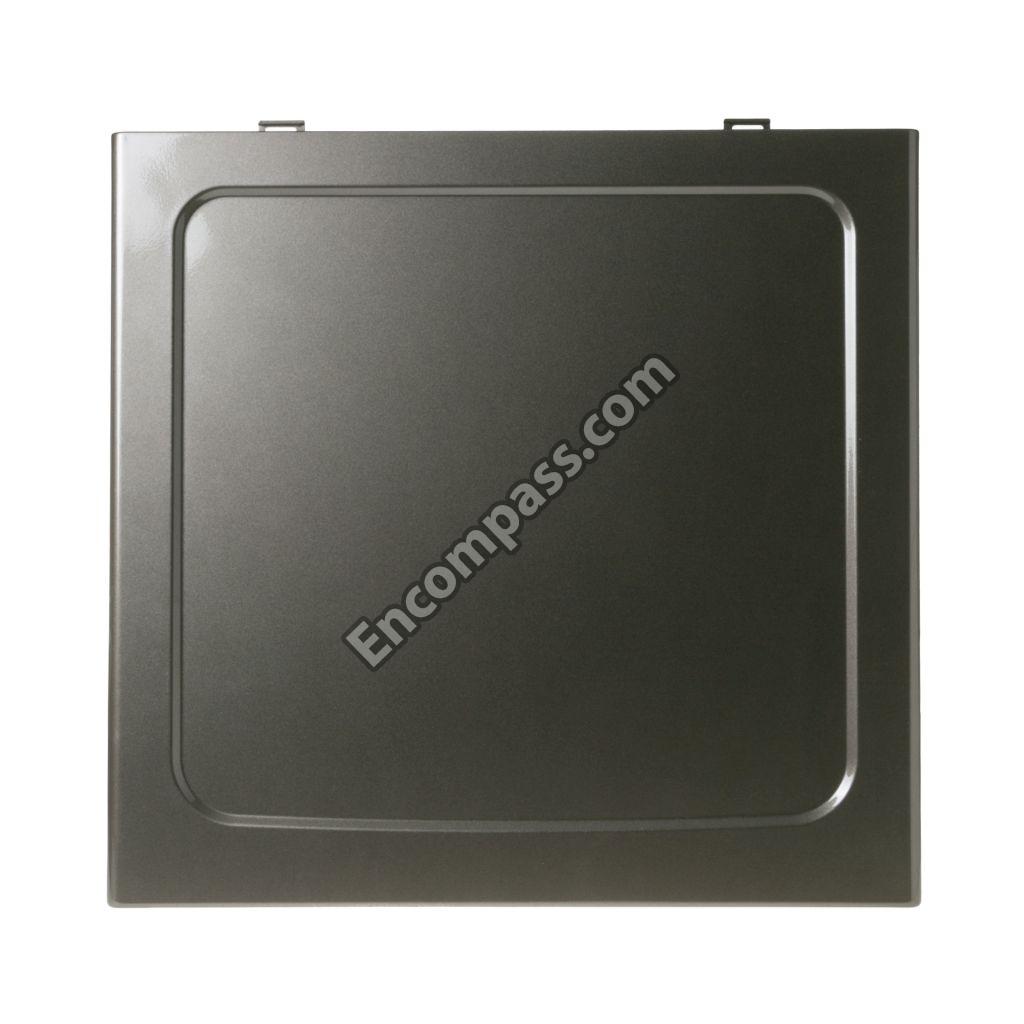

WH44X20003 WH44X20003 GE PANEL TOP ASM MC
WE04X23220 WE04X23220 GE PCB ASSEMBLY UI-MC AND SW
WH01X10733 WH01X10733 GE PIN SUPPORT FRONT
WE01X10373 WE01X10373 GE PIPE GAS ASSEMBLY
WE01X10375 WE01X10375 GE PIVOT SHOULDER BOLT
WE01X10416 WE01X10416 GE PLUG PANEL - GREY
31-16707 31-16707 GE PM GUIDE QUICK START
49-90470P 49-90470P GE PM OWNERS MANUAL
31-16859 31-16859 GE PM SHEET MINI MANUAL
WH44X21159 WH44X21159 GE PROTECT COVER DOOR
WE01X10398 WE01X10398 GE RETAINER COVER NOZZLE
WH01X10743 WH01X10743 GE RETAINER KNOB
WH12X28437 WH12X28437 GE RJ 45 ASSEMBLY
WE01X22114 WE01X22114 GE ROD SENSOR
WE01X22074 WE01X22074 GE ROD SENSOR
WD02X10151 WD02X10151 GE SCR 10-16 AB 43WHEX 5/8
WR01X10619 WR01X10619 GE SCR 10-18 HI/LO HXW 1/2
WH02X10139 WH02X10139 GE SCR 10-32 B TRT-25 5/8
WE02X10107 WE02X10107 GE SCR 10-32 GX HXW 7/16 S
WE02X10105 WE02X10105 GE SCR 4-24 AB PNP .682 SS
WB01T10115 WB01T10115 GE SCR 8-18 AB HW 1/2 S
WD02X10166 WD02X10166 GE SCR 8-18 AB HW 1/2 SS
WE02X10106 WE02X10106 GE SCR 8-18 AB HXW 3/8 S
WH02X1217 WH02X1217 GE SCR 8-18 AB IHW 7/16 SN
WH02X10408 WH02X10408 GE SCR 8-18 AB PNP 2-1/8 S
WE02X20373 WE02X20373 GE SCR 8-18 AB PNT-15 1/2 S
WH02X10394 WH02X10394 GE SCR 8-18 AB TRQ 5/8 SS
WH2X1205 WH2X1205 GE SCR 8-18 B
WH02X1205 WH02X1205 GE SCR 8-18 B 1/2 HXW P
WH2X1194 WH2X1194 GE SCREW
WH2X930 WH2X930 GE SCREW
WH2X1217 WH2X1217 GE SCREW
WE02X30757 WE02X30757 GE SCREW
WH02X10398 WH02X10398 GE SCREW 10-16 SHLDR TYPE A
WR01X10379 WR01X10379 GE SCREW HINGE COVER
WB1K5157 WB1K5157 GE SCREW-BLK
WZ5X158D WZ5X158D GE SCREW-PKG 12
WE09X10030 WE09X10030 GE SEAL - TRAP DUCT ASSEMBLY
WE09X10026 WE09X10026 GE SEAL BLOWER
WE09X23434 WE09X23434 GE SEAL DOOR
WE09X10027 WE09X10027 GE SEAL FRONT PANEL
WE04X10189 WE04X10189 GE SENSOR RADIENT
WE02X20690 WE02X20690 GE SHIELD THERMOSTAT
WE01X10383 WE01X10383 GE SHIELD WATER VALVE
WE01X10381 WE01X10381 GE SPACER DOOR
WE01X10374 WE01X10374 GE SPRING IDLER
WE01X10393 WE01X10393 GE STEEL HEX NUT
WE01X10372 WE01X10372 GE STEEL HEX NUT
WE01X10379 WE01X10379 GE STEEL WASHER
WE13X20233 WE13X20233 GE STIFFENER HINGE
WE13X20689 WE13X20689 GE STRAP MOTOR BRACKET
WE01X10377 WE01X10377 GE STRIKER DOOR
WE20X10150 WE20X10150 GE SUPPORT DRUM FRONT
WE20X10154 WE20X10154 GE SUPPORT DRUM REAR
WE04X10180 WE04X10180 GE SWITCH DOOR
WE04X10184 WE04X10184 GE SWITCH IDLER
WE04X20252 WE04X20252 GE THERMISTOR INLET
WE04X22054 WE04X22054 GE THERMISTOR OUTLET
WE04X10190 WE04X10190 GE THERMOSTAT 2
WE18X10022 WE18X10022 GE TRAP DUCT ASM
WH12X10574 WH12X10574 GE TUB LIGHT
WE01X10397 WE01X10397 GE TUBE STEAM
WE04X10186 WE04X10186 GE VALVE STEAM
WE01X20693 WE01X20693 GE WASHER BAFFLE
WE16X33977 WE16X33977 GE WHEEL BLOWER ASM
WH01X10704 WH01X10704 GE WIRE TIE
WE01X10401 WE01X10401 GE Y ADAPTER
