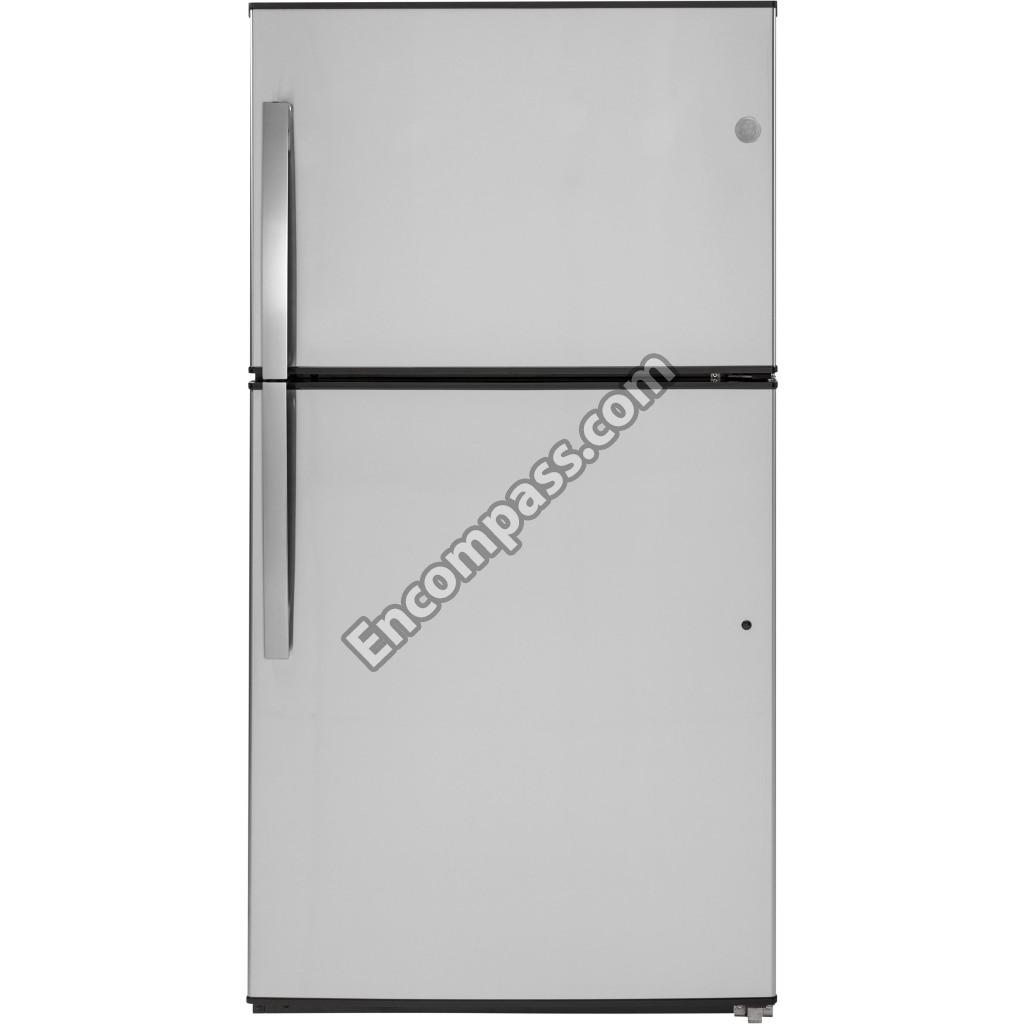

Model Image
Manufacturer

GE

Model Number

GIE21GSHHSS

Description

Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WR97X10137 WR97X10137 4MM X 4MM LOKRING
WR97X10085 WR97X10085 6MM X 1.8MM LOKRING
WR97X10033 WR97X10033 6MM X 4MM LOKRING
WR97X10031 WR97X10031 6MM X 6MM LOKRING
WR97X30615 WR97X30615 6MM X 6MM LOKRING AL
WR97X10036 WR97X10036 8MM X 6MM LOKRING
WR02X4039 WR02X4039 ADHESIVE CLIP
WR04X10222 WR04X10222 BADGE ASM GE
WR60X25785 WR60X25785 BLADE FAN EVAP ASM
WR13X22734 WR13X22734 BOTTOM HINGE
WR30X30034 WR30X30034 BUCKET ICE
WR55X31704 WR55X31704 CAPACITOR
WR13X22736 WR13X22736 CENTER HINGE
WR02X11437 WR02X11437 CLAMP
WR01X10182 WR01X10182 CLIP U
WR87X40645 WR87X40645 COMPRESSOR
WR87X27262 WR87X27262 COND AUX ASM
WR14X27592 WR14X27592 COND AUX DRAIN TRAY
WR13X25788 WR13X25788 COVER EVAP ASM
WR29X10082 WR29X10082 COVER ICEMAKER
WR02X11123 WR02X11123 COVER IM RECEPTACLE
WR13X25789 WR13X25789 COVER TOP HINGE LH DG
WR13X25791 WR13X25791 COVER TOP HINGE RH DG
WR29X10092 WR29X10092 CUP FILL IM
WR01X25792 WR01X25792 DAIRY BIN ASM
WR02X22674 WR02X22674 DEFROST DRAIN TRAY
WR09X22737 WR09X22737 DEFROST TIMER
WR23X20371 WR23X20371 DOOR SWITCH
WR87X25797 WR87X25797 EVAPORATOR & DEFROST HEATER
WR02X33785 WR02X33785 EVAPORATOR COVER PLUG
WR60X25798 WR60X25798 FAN EVAP ASM
WR01X25799 WR01X25799 FASTENER DOOR HANDLE
WR13X22738 WR13X22738 FF AIR CHANNEL COVER
WR02X25800 WR02X25800 FF AIR DUCT FOAM ASM
WR71X22755 WR71X22755 FF COND SHELF
WR71X22756 WR71X22756 FF GAL SHELF
WR71X22904 WR71X22904 FF GLASS SHELF
WR71X22723 WR71X22723 FF SHELF ASM
WR01X22740 WR01X22740 FIXED CLAMP
WR02X22741 WR02X22741 FOOT WHEEL
WR78X46765 WR78X46765 FREEZER DOOR - STAINLESS STEEL
WR71X22780 WR71X22780 FZ SHELF
WR71X22724 WR71X22724 FZ WIRE SHELF
WR02X9223 WR02X9223 GASKET DONUT
WR14X25801 WR14X25801 GASKET DOOR FZ DG
WR09X24623 WR09X24623 HEATER DEF ASM
WR13X25803 WR13X25803 HINGE COVER RVSBL DG
WR02X22725 WR02X22725 HUMIDITY CONTROL CLAMP
WR30X40986 WR30X40986 ICEMAKER
WR02X25804 WR02X25804 KNOB CONTROL
WR02X22743 WR02X22743 LAMP
WR01X29548 WR01X29548 LAMP COVER
WR01X22744 WR01X22744 LAMP COVER
WR72X22726 WR72X22726 LEFT SLIDE
WR13X22745 WR13X22745 LEFT TOP HINGE
WR71X22727 WR71X22727 LEFT VEG PAN
WR71X22728 WR71X22728 MEAT PAN
WR02X22746 WR02X22746 MIDDLE HINGE WASHER
WR01X22823 WR01X22823 PAINTED SCREW
WR01X26081 WR01X26081 PLUG BUTTON THIMBLE DG
WR01X25807 WR01X25807 PLUG DOOR RVSBL DG
WR01X25809 WR01X25809 PLUG RVSBL BOTTOM DG
WR01X25810 WR01X25810 PLUG RVSBL MIDDLE DG
31-51909-2 31-51909-2 PM MINI MANUAL
49-60726-3 49-60726-3 PM OWNERS MANUAL
WR55X42867 WR55X42867 POWER CORD
WR55X31710 WR55X31710 PTC STARTER
WR87X30875 WR87X30875 R600 DRIER W/ RED CAP
WR87X30876 WR87X30876 R600 PROCESS VALVE W/ RED CAP
WR98X70 WR98X70 R600A CHARGE CAN 70 GRAMS
WR13X32327 WR13X32327 REAR ACCESS COVER KIT
WR78X46766 WR78X46766 REFRIGERATOR DOOR - STAINLESS STEEL
WR14X42866 WR14X42866 REFRIGERATOR GASKET - DORIAN GRAY
WR72X22729 WR72X22729 RIGHT SLIDE
WR13X22747 WR13X22747 RIGHT TOP HINGE
WR71X22730 WR71X22730 RIGHT VEG PAN
WR1K1 WR1K1 SCR 8-36 T
WR01X42868 WR01X42868 SCREW
WR01X25813 WR01X25813 SCREW
WR01X25812 WR01X25812 SCREW
WR01X25811 WR01X25811 SCREW
WR01X22731 WR01X22731 SCREW
WR01X22680 WR01X22680 SCREW
WR01X22673 WR01X22673 SCREW
WR01X20385 WR01X20385 SCREW
WR01X22758 WR01X22758 SCREW
WZ5X158D WZ5X158D SCREW-PKG 12
WR02X22749 WR02X22749 SOCKET
WR12X36947 WR12X36947 STAINLESS STEEL HANDLE ASM PK
WR01X25815 WR01X25815 STOP DOOR DG
WR02X3736 WR02X3736 STR RELIEF
WR29X10083 WR29X10083 STRIPPER IM
WR09X40985 WR09X40985 TEMPERATURE CONTROL & HARNESS
WR09X27095 WR09X27095 THERMAL PROTECTOR OLP
WR50X24624 WR50X24624 THERMOSTAT DEF
WR01X40748 WR01X40748 TIMER HOUSING
WR13X40749 WR13X40749 TIMER HOUSING COVER
WR02X22732 WR02X22732 TONE WET-PLATE SLIDER
WR14X25816 WR14X25816 TOWER AIR
WR17X11349 WR17X11349 TUBE PLASTIC
WR57X32213 WR57X32213 WATER VALVE
WR02X25817 WR02X25817 WHEEL ADJ FOOT
WR02X10967 WR02X10967 WR2X9161
