Manufacturer
GE
Model Number
GIE22JTNBRBB
Description

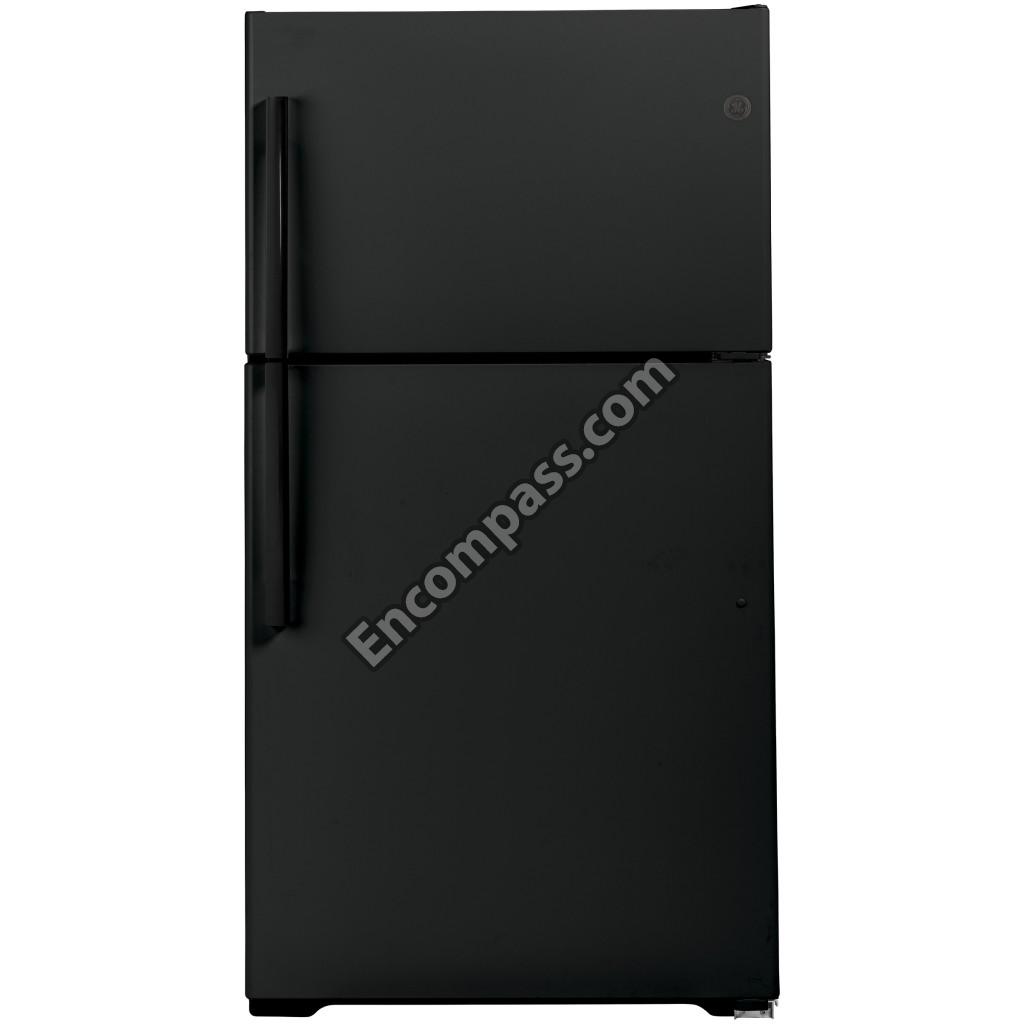

Refrigerator
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
10 UF CAPACITOR |
|
|
6MM X 2MM LOKRING |
|
|
6MM X 4MM LOKRING |
|
|
6MM X 5MM LOKRING |
|
|
6MM X 6MM LOKRING |
|
|
7MM X 5MM LOKRING |
|
|
8911201P328 |
|
|
8MM X 6MM LOKRING |
|
|
8MM X 8MM LOKRING |
|
|
ADHESIVE CLIP |
|
|
ADJUSTABLE DAMPER |
|
|
AIR TOWER |
|
|
BASEPLATE W/ COMPRESSOR STUDS |
|
|
BLACK FREEZER DOOR 22 |
|
|
BLACK FRESH FOOD DOOR 22 |
|
|
BLACK GE BADGE |
|
|
BLACK H AND LE |
|
|
BLADE COND FAN ASSEMBLY |
|
|
BLADE EVAPORATOR FAN ASSEMBLY. |
|
|
BUCKET ICE |
|
|
BUMPER |
|
|
CAN SHELF 22 |
|
|
CLAMP |
|
|
CLAMP |
|
|
CLIP RETAINER MEI |
|
|
COMPRESSOR |
|
|
COMPRESSOR MOUNTING CLIP |
|
|
CONDENSER |
|
|
CONDENSER BAFFLE |
|
|
CONDENSER FAN AND HOUSING |
|
|
CONDENSER STRAP |
|
|
CONDENSER SUPPORT |
|
|
CONTROL KNOB |
|
|
CONTROL SHIELD |
|
|
CUP FILL IM |
|
|

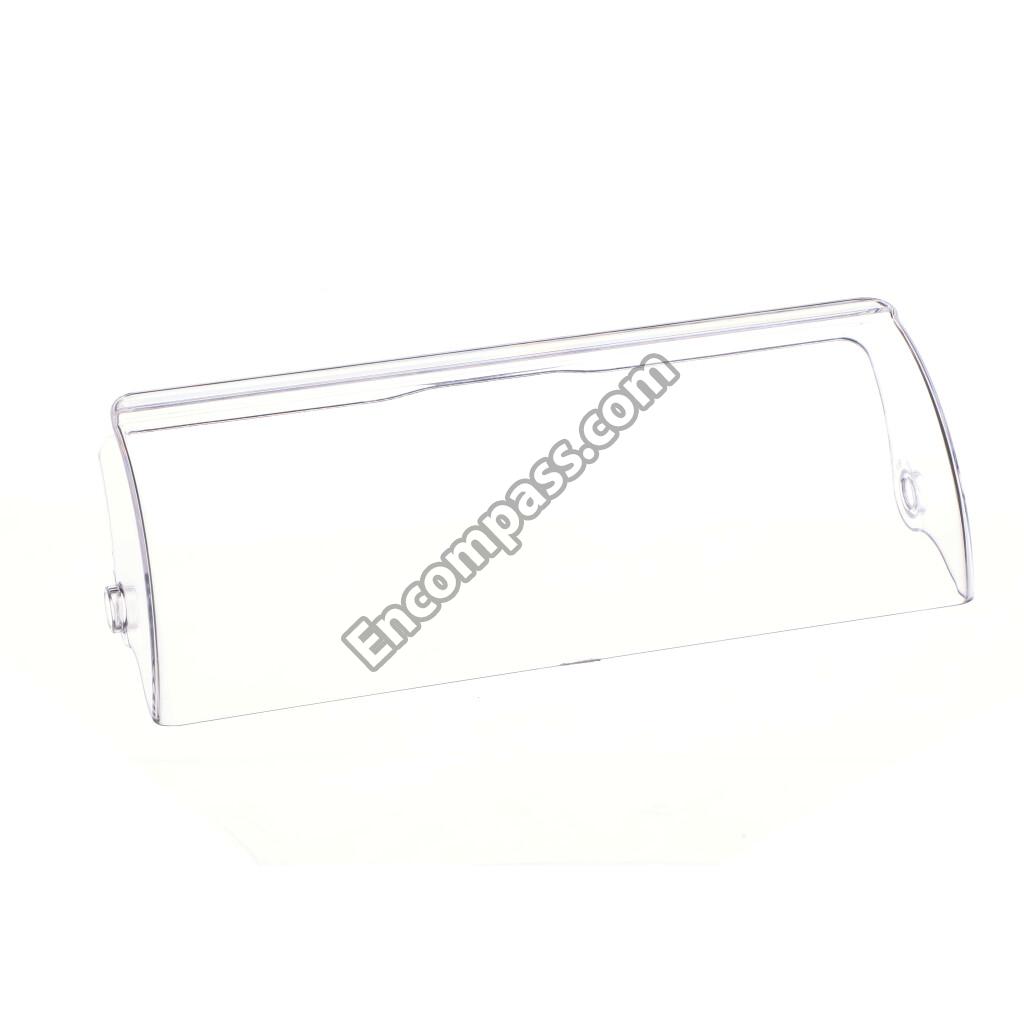

DAIRY DOOR 33 |
|
|
DEFROST HEATER AND HARNESS |
|
|
DOOR BIN |
|
|
DOOR HINGE WASHER |
|
|
DORIAN GRAY FREEZER DOOR GASKET 22 |
|
|
DORIAN GRAY FRESH FOOD DOOR GASKET 22 |
|
|
DRAIN TROUGH |
|
|
EVAPORATOR |
|
|
EVAPORATOR |
|
|
EVAPORATOR CLIP |
|
|
EVAPORATOR COVER 22 |
|
|
EVAPORATOR FAN FRONT BRACKET |
|
|
EVAPORATOR FAN MOTOR |
|
|
EVAPORATOR FAN REAR BRACKET |
|
|
FASTENER DOOR H AND LE |
|
|
FIXED DAMPER |
|
|
FIXED DAMPER |
|
|
FOAM SUPPLY NOZZLE |
|
|
FREEZER DOOR STOP BLACK |
|
|
FREEZER WIRE SHELF 22 |
|
|
FRESH FOOD DOOR SHELF 22 |
|
|
FRESH FOOD GLASS SHELF 22 |
|
|
FRESH FOOD GLASS SHELF 22 |
|
|
FRONT CONTROL HOUSING |
|
|
GASKET DONUT |
|
|
GASKET SUPPLY FOAM |
|
|
GE BADGE BLACK |
|
|
GROMMET |
|
|
GROMMET AND GASKET ASSEMBLY |
|
|
GROMMET EVAPORATOR FAN |
|
|
HINGE BOTTOM |
|
|
HINGE CENTER |
|
|
HINGE TOP AND PIN ASSEMBLY |
|
|
ICEMAKER REPLACEMENT KIT |
|
|
LED COVER |
|
|
LEFT FRONT WHEEL ASSEMBLY |
|
|
LEFT FRONT WHEEL ASSEMBLY |
|
|
MACHINE COMPARTMENT HARNESS AND POWER CO |
|
|
OL PTCR COMBO |
|
|
PIN HINGE BOTTOM |
|
|
PIN HINGE CTR |
|
|
PLUG BUTTON THIMBLE |
|
|
PLUG DOOR RVSBL |
|
|
PM MINI MANUAL AND WIRING |
|
|
R600 DRIER W/ RED CAP |
|
|
R600A CHARGE CAN 45 GRAMS |
|
|
REAR ACCESS COVER 33 |
|
|
REAR CONTROL HOUSING |
|
|
REFRIGERATOR DOOR LIGHT SWITCH |
|
|
REFRIGERATOR DOOR STOP BLACK |
|
|
REFRIGERATOR MAIN CONTROL BOARD |
|
|
RIGHT FRONT WHEEL ASSEMBLY |
|
|
RIGHT FRONT WHEEL ASSEMBLY |
|
|
SCR 10-16 AB 43WHEX 5/8 |
|
|
SCR 10-16 AB HXW 1/2 |
|
|
SCR 10-16 AB TRP 3/4 NBS |
|
|
SCR 12-24 TT PNPSD .785 |
|
|
SCR 8-15 AB IHXW 1/2 S |
|
|
SCR 8-32 CA HXW 1/2 NS |
|
|
SCR 8-32 TT HXW 3/8 S |
|
|
SCREW |
|
|
SCREW 8-32 CA HXW 1/2 |
|
|
SLIDER ADJ |
|
|
SNACK PAN 28 30 33 |
|
|
SNACK PAN RAIL |
|
|
STUD MTGCOMP |
|
|
THERMAL FUSE CLIP |
|
|
TUBE PLASTIC |
|
|
VEGETABLE PAN 33 |
|
|
VEGETABLE PAN COVER 33 |
|
|
WATER VALVE |
