Model Image
Manufacturer

GE

Model Number

GLD4100MC

Description

Ge Dishwasher Model Gld4100mc Parts

Interactive Exploded View

Parts List

Part Number Description
GPF10L GPF10L GE 10DW CONN KIT-LG DRN PORT
WD02X10129 WD02X10129 GE 6-19 X 1/4 TORX PAN HEAD
WD13X10045 WD13X10045 GE ACTUATOR HANDLE
WD12X10189 WD12X10189 GE ADAPTOR PUMP ASM
WD12X10288 WD12X10288 GE AIR DIVERTER ASM
WD22X10047 WD22X10047 GE ARM SPRAY LOW ASM
WD22X10046 WD22X10046 GE ARM SPRAY MID ASM
WD22X10084 WD22X10084 GE ARM SPRAY UPPER ASM
WD01X10107 WD01X10107 GE BEARING SPRAY ARM LOW
WD01X10410 WD01X10410 GE BEARING SPRAY ARM UP
WD34X11623 WD34X11623 GE BRACE ESCUTCHEON
WD12X10146 WD12X10146 GE BRACKET RINSE MODULE
WD12X10198 WD12X10198 GE BRACKET SPRAY ARM MID
WD28X265 WD28X265 GE BSKT SILV TI
WD01X10099 WD01X10099 GE CABLE PULLEY ASSEMBLY
WD01X10279 WD01X10279 GE CLAMP
WD01X10105 WD01X10105 GE CLAMP
WD01X10103 WD01X10103 GE CLAMP
WD12X10197 WD12X10197 GE CONDUIT CARRIER MID
WD12X10057 WD12X10057 GE CONDUIT MAIN
WD12X10052 WD12X10052 GE CONDUIT SPRAY ARM MID
WD18X10010 WD18X10010 GE CONNECTOR PUMP ASSEMBLY
WD12X10401 WD12X10401 GE COVER INTERLOCK
WD12X448 WD12X448 GE COVER JUNCTION BOX
WD35X21038 WD35X21038 GE DISHWASHER LOWER RACK KIT 8 PK
WD35X21035 WD35X21035 GE DISHWASHER UPPER RACK KIT 4 PA
WD12X10051 WD12X10051 GE DOME FLOAT
WD31X10083 WD31X10083 GE DOOR INNER PUNCHED
WD26X22719 WD26X22719 GE DRAIN PUMP KIT

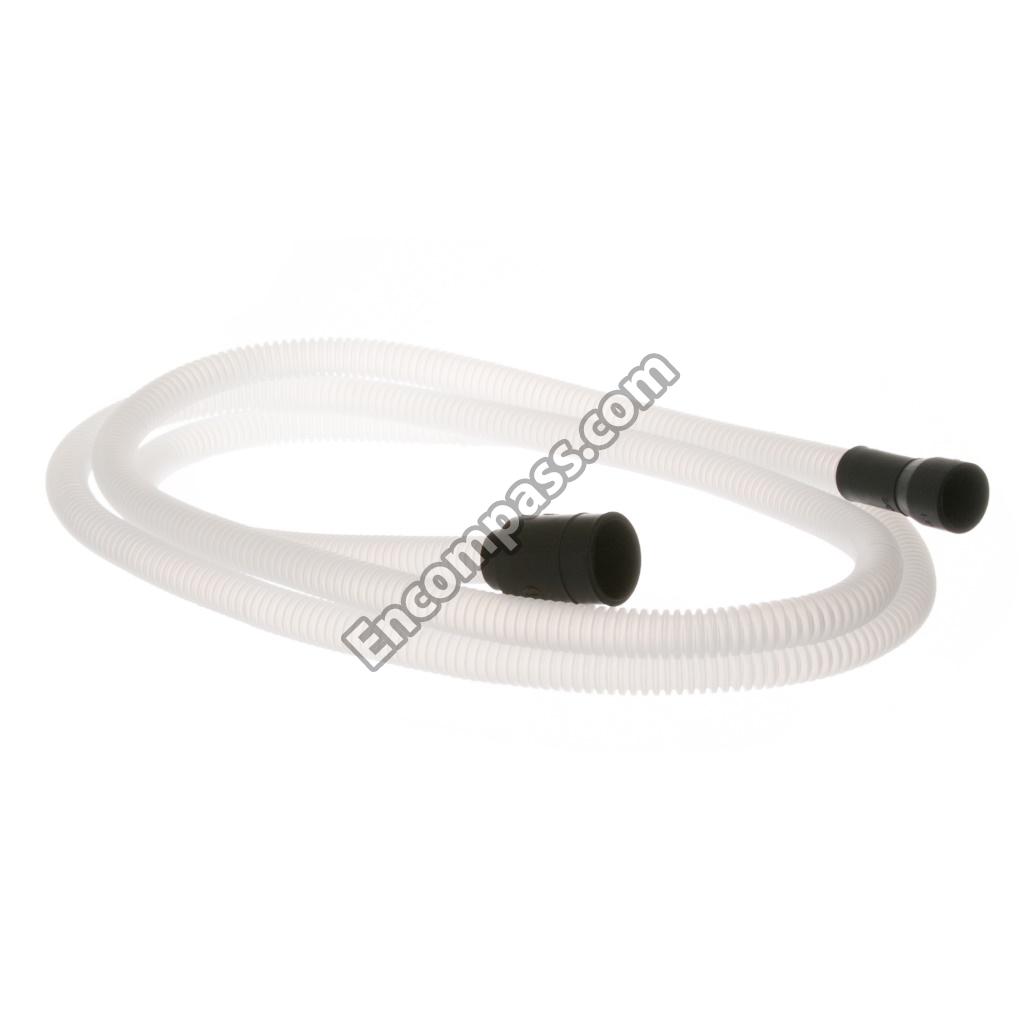

WD24X10045 WD24X10045 GE DRAIN TUBE ASM
WD05X10010 WD05X10010 GE ELEMENT HEATING ASM
WD22X10029 WD22X10029 GE FILTER COARSE
WD12X10109 WD12X10109 GE FILTER FINE ASM
WD22X10077 WD22X10077 GE FILTER SUMP & COVER ASM
WD12X10047 WD12X10047 GE FLOAT
WD12X22722 WD12X22722 GE FUNNEL FILL
WD08X10020 WD08X10020 GE GASKET FUNNEL FILL
WD08X10018 WD08X10018 GE GASKET TUB
WD01X10269 WD01X10269 GE GROMMET
WD01X10094 WD01X10094 GE GROMMET HEATER
WD01X10292 WD01X10292 GE HANGER DRAIN PUMP
WD01X10297 WD01X10297 GE HANGER MOTOR
WD14X10024 WD14X10024 GE HINGE ARM ASM LH
WD14X10025 WD14X10025 GE HINGE ARM ASM RH
WD24X10026 WD24X10026 GE HOSE FILL
WD21X10355 WD21X10355 GE HSNG SPECIAL-WATER VALVE
WD12X10354 WD12X10354 GE HUB SPRAY AR
WD13X10066 WD13X10066 GE KEEPER LATCH ASM
WD19X10038 WD19X10038 GE KIT - IMPELLER ASM
WD35X10056 WD35X10056 GE KIT XL-DW TOP MNTG
WD21X10247 WD21X10247 GE KIT-MAIN & TACTILE BOARD
WD2X320 WD2X320 GE LEVELING LEG
WD28X10170 WD28X10170 GE LID BASKET
WD14X10009 WD14X10009 GE LINK HINGE ARM
WD26X10053 WD26X10053 GE MECHANISM ASSEMBLY
WD12X10163 WD12X10163 GE MODULE RINSE AND CAP ASM
WD12X10061 WD12X10061 GE NUT HUB FINE FILTER
WD01X10097 WD01X10097 GE NUT TOWER HEATER
WD21X10233 WD21X10233 GE PLUG ASM MODEL SELECTOR
WD16X10009 WD16X10009 GE PULLEY BRACKET ASSEMBLY
WD28X10385 WD28X10385 GE RACK LOWER ROLL ASM
WD12X10304 WD12X10304 GE RACK SLIDE END CAP
WD35X10381 WD35X10381 GE RACK UPPER ROLL ASM
WD13X10017 WD13X10017 GE RETAINER HANDLE
WD12X10060 WD12X10060 GE RING SUCTION
WD01X10106 WD01X10106 GE RING SUMP
WD12X332 WD12X332 GE RL/BSHG STUD
WD02X10150 WD02X10150 GE SCR 10-32 GX FLT25.615 S
WD02X10104 WD02X10104 GE SCR 8-10 PL TRP 1/2 S
WR01X10652 WR01X10652 GE SCR 8-18 AB IHW 5/8 S
WR01X10623 WR01X10623 GE SCR 8-18 AB IHXW 9/16 S
WH23X10028 WH23X10028 GE SCR 8-18 AB TR 7/8S
WD02X10169 WD02X10169 GE SCR B-16 HXW 1/2 SS
WD02X22736 WD02X22736 GE SCR10 16 AB HXW 3/4 SS
WD1X550 WD1X550 GE SCREW
WD2X5166 WD2X5166 GE SCREW
WD02X10066 WD02X10066 GE SCREW 10-24X1/2 TT TRR S
WR01X10065 WR01X10065 GE SCREW 10-32 GXTT FLP 595 S
WD02X10068 WD02X10068 GE SCREW 8-16 B HXW 1 08 SS
WD2X444 WD2X444 GE SCREW MECH
WZ5X219D WZ5X219D GE SCREW-PKG 12
WD2X248D WD2X248D GE SCREW-PKG 12 *NLA*
WZ5X222D WZ5X222D GE SCREWPKG 12
WD08X10059 WD08X10059 GE SEAL SHORT BOTTOM DOOR
WD01X10176 WD01X10176 GE SEAT CHECK VALVE
WD12X10203 WD12X10203 GE SHIELD MAIN BOARD
WD30X98 WD30X98 GE SLIDE
WD03X10014 WD03X10014 GE SPRING
WD03X10026 WD03X10026 GE SPRING PLUNGER
WR02X10585 WR02X10585 GE SPRING RECESS DOOR
WD12X10048 WD12X10048 GE STEM FLOAT
WD18X10034 WD18X10034 GE SUMP INLET
WD01X10098 WD01X10098 GE SUPPORT HEATER
WD12X10151 WD12X10151 GE SWITCH FLOOD ASM
WD21X10224 WD21X10224 GE SWITCH INTERLOCK
WD30X28658 WD30X28658 GE TUB INSULATION BLANKET
WD01X10175 WD01X10175 GE VALVE FLAPPER
WD12X10192 WD12X10192 GE VENT
WD3X767 WD3X767 GE WASHER
WH1X2036 WH1X2036 GE WASHER HOSE CLAMP KIT
WD15X10003 WD15X10003 GE WATER VALVE INLET
