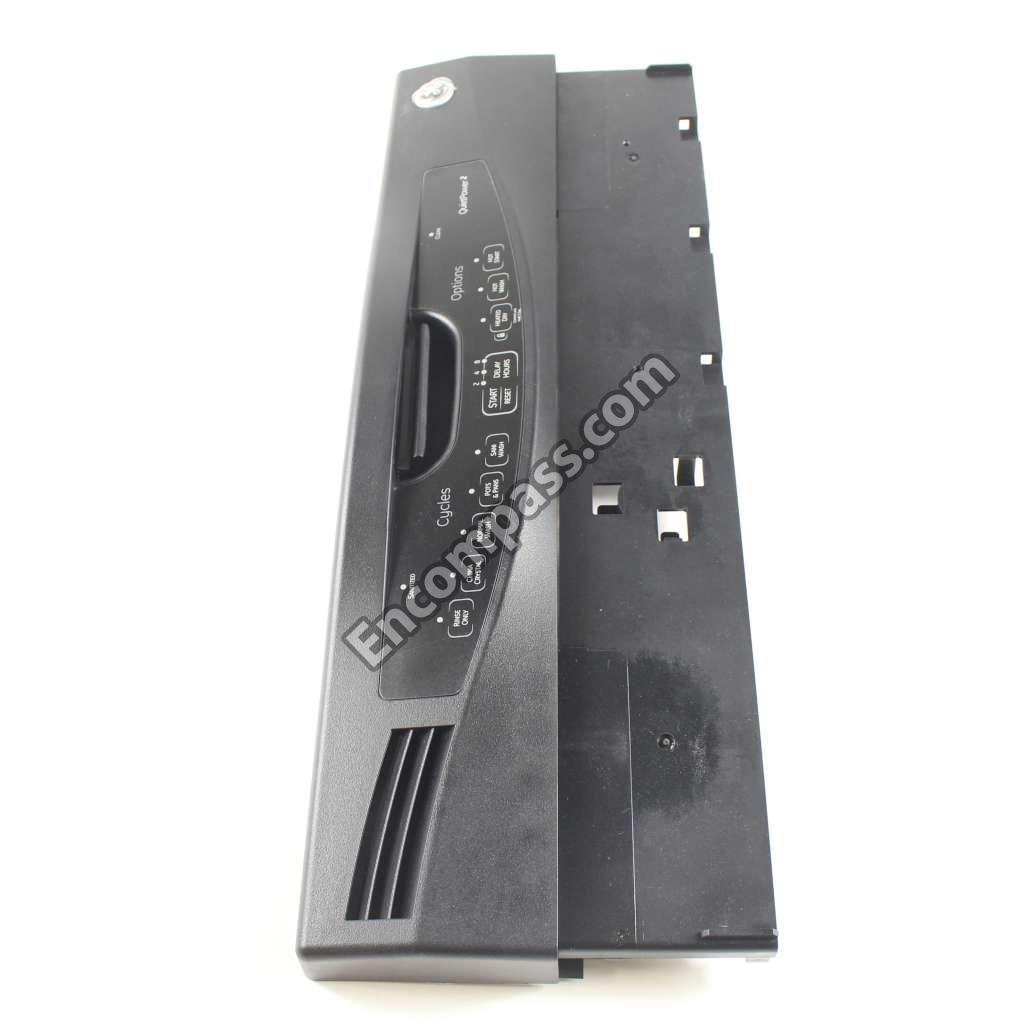

Model Image
Manufacturer

GE

Model Number

GLD5560L00SS

Description

Dishwasher

Interactive Exploded View

Parts List

Part Number Description
WD02X10129 WD02X10129 GE 6-19 X 1/4 TORX PAN HEAD
WD13X10045 WD13X10045 GE ACTUATOR HANDLE
WD12X10189 WD12X10189 GE ADAPTOR PUMP ASM
WD22X10047 WD22X10047 GE ARM SPRAY LOW ASM
WD22X10046 WD22X10046 GE ARM SPRAY MID ASM
WD22X10084 WD22X10084 GE ARM SPRAY UPPER ASM
WD34X11493 WD34X11493 GE BADGE
WD28X10177 WD28X10177 GE BASKET SILVERWARE ASM
WD01X10107 WD01X10107 GE BEARING SPRAY ARM LOW
WD01X10384 WD01X10384 GE BEARING SPRAY ARM MID
WD02X10169 WD02X10169 GE BEARING SPRAY ARM MID
WD01X10410 WD01X10410 GE BEARING SPRAY ARM UP
WD01X10344 WD01X10344 GE BLANKET SPACER FOAM
WD34X11623 WD34X11623 GE BRACE ESCUTCHEON
WD12X10146 WD12X10146 GE BRACKET RINSE MODULE
WD12X10198 WD12X10198 GE BRACKET SPRAY ARM MID
WD01X10099 WD01X10099 GE CABLE PULLEY ASSEMBLY
WD12X10206 WD12X10206 GE CAP RINSE ASM
WD01X10279 WD01X10279 GE CLAMP
WD01X10105 WD01X10105 GE CLAMP
WD01X10103 WD01X10103 GE CLAMP
WD01X10065 WD01X10065 GE CLAMP HOSE
WD01X10296 WD01X10296 GE CLIP SENSOR
WD12X10197 WD12X10197 GE CONDUIT CARRIER MID
WD12X10057 WD12X10057 GE CONDUIT MAIN
WD12X10052 WD12X10052 GE CONDUIT SPRAY ARM MID
WD18X10010 WD18X10010 GE CONNECTOR PUMP ASM
WD12X10401 WD12X10401 GE COVER
WD27X10211 WD27X10211 GE COVER FRONT - S/STL
WD12X448 WD12X448 GE COVER JUCTION BOX
WD12X10288 WD12X10288 GE DISHWASHER AIR DIVERTER
WD12X10271 WD12X10271 GE DISHWASHER DOOR STRIKE
WD28X10384 WD28X10384 GE DISHWASHER LOWER RACK ASSEMBLY
WD12X10163 WD12X10163 GE DISHWASHER RINSE AND CAP ASSEMBLY
WD12X332 WD12X332 GE DISHWASHER ROLLER BUSHING STUD
WD28X10399 WD28X10399 GE DISHWASHER UPPER RACK ASSEMBLY
WD12X10051 WD12X10051 GE DOME FLOAT
WD31X10083 WD31X10083 GE DOOR INNER PUNCHED
WD26X22719 WD26X22719 GE DRAIN PUMP ASM
WD24X10045 WD24X10045 GE DRAIN TUBE ASM
WD05X10010 WD05X10010 GE ELEMENT HEATING ASM
WD34X11121 WD34X11121 GE ESCUTCHEON ASM
WD22X10029 WD22X10029 GE FILTER COARSE
WD12X10109 WD12X10109 GE FILTER FINE ASM
WD22X10077 WD22X10077 GE FILTER SUMP AND COVER ASSEMBLY
WD12X10047 WD12X10047 GE FLOAT
WD12X22722 WD12X22722 GE FUNNEL FILL
WD08X10020 WD08X10020 GE GASKET FUNNEL FILL.
WD08X10018 WD08X10018 GE GASKET TUB
WD01X10269 WD01X10269 GE GROMMET
WD01X10094 WD01X10094 GE GROMMET HEATER
WD13X10007 WD13X10007 GE HANDLE LATCH BK
WD01X10292 WD01X10292 GE HANGER DRAIN PUMP
WD01X10297 WD01X10297 GE HANGER MOTOR
WD14X10024 WD14X10024 GE HINGE ARM ASM LH
WD14X10025 WD14X10025 GE HINGE ARM ASM RH
WD24X10026 WD24X10026 GE HOSE FILL
WD21X10355 WD21X10355 GE HOUSING TERMINAL
WD12X10354 WD12X10354 GE HUB SPRAY ARM MID
WD30X28658 WD30X28658 GE INSULATION TUB
WD01X10419 WD01X10419 GE INSULATION TUB BLANKET
WD13X10066 WD13X10066 GE KEEPER LATCH ASSEMBLY
WD19X10038 WD19X10038 GE KIT - IMPELLER ASM
WD35X10056 WD35X10056 GE KIT XL-DW TOP MNTG
WD21X10247 WD21X10247 GE KIT-MAIN AND TACTILE BOARD
WD35X10061 WD35X10061 GE KIT-PANEL SUPPORT CLIP
WD2X320 WD2X320 GE LEVELING LEG
WD28X10235 WD28X10235 GE LID BASKET
WD14X10009 WD14X10009 GE LINK HINGE ARM
WD26X10053 WD26X10053 GE MECHANISM ASM
WD12X10061 WD12X10061 GE NUT HUB FINE FILTER
WD01X10097 WD01X10097 GE NUT TOWER HEATER
WD35X20103 WD35X20103 GE PANEL FRONT SS
WD21X10225 WD21X10225 GE PLUG ASM MODEL SELECTOR
31-30590 31-30590 GE PM INSTRUCTION INSTALL
49-55019 49-55019 GE PM MANUAL USE & CARE
31-30477 31-30477 GE PM SHEET MINI MANUAL
WD16X10009 WD16X10009 GE PULLEY BRACKET ASSEMBLY
WD30X0098 WD30X0098 GE RACK SLIDE
WD12X0344 WD12X0344 GE RACK SLIDE END CAP
WD12X10304 WD12X10304 GE RACK SLIDE END CAP
WD13X10017 WD13X10017 GE RETAINER H AND LE
WD12X10060 WD12X10060 GE RING SUCTION
WD01X10106 WD01X10106 GE RING SUMP
WD35X21035 WD35X21035 GE ROLLER AND STUD ASSEMBLY
WD12X0272 WD12X0272 GE ROLLER ASM LWR RACK REAR
WD35X21038 WD35X21038 GE ROLLER LOWER RACK
WD12X0332 WD12X0332 GE ROLLER STUD ASM
WD02X5166 WD02X5166 GE SCR 10-16X1/2 AB HEXW S
WD02X0248 WD02X0248 GE SCR 10-24X3/8 TT HEX
WD02X10150 WD02X10150 GE SCR 10-32 GX FLT25.615 S.
WZ05X0222 WZ05X0222 GE SCR 10-32 T HEX 7/16 S
WD02X10104 WD02X10104 GE SCR 8-10 PL TRP 1/2 S
WD02X10067 WD02X10067 GE SCR 8-16 HXW 1/2 SS
WR01X1554 WR01X1554 GE SCR 8-18 AB IHXW 1/2 S
WD02X10106 WD02X10106 GE SCR 8-18 AB TR 7/8S
WH23X10028 WH23X10028 GE SCR 8-18 AB TR 7/8S
WR01X10065 WR01X10065 GE SCR 8-18 BA POR 5/8 SS
WD01X0550 WD01X0550 GE SCR 8-32 PNT 1/2 S
WD02X0444 WD02X0444 GE SCREW
WZ05X0219 WZ05X0219 GE SCREW
WD1X550 WD1X550 GE SCREW
WD2X430 WD2X430 GE SCREW
WZ5X222 WZ5X222 GE SCREW
WD2X248 WD2X248 GE SCREW
WD2X5166 WD2X5166 GE SCREW
WD02X22736 WD02X22736 GE SCREW #8-3/4 L HX HD SS
WD02X10066 WD02X10066 GE SCREW 10-24X1/2 TT TRR S
WD02X10068 WD02X10068 GE SCREW 8-16 B HXW 1 08 SS
WD02X0430 WD02X0430 GE SCREW 8-18 5/16 PH
WR01X10652 WR01X10652 GE SCREW 8-18 AB IHW 5/8 S
WD02X0320 WD02X0320 GE SCREW LEVEL
WD2X444 WD2X444 GE SCREW MECH
WZ5X219D WZ5X219D GE SCREW-PKG 12
WD08X10059 WD08X10059 GE SEAL SHORT BOTTOM DOOR
WD01X10176 WD01X10176 GE SEAT CHECK VALVE
WD28X10176 WD28X10176 GE SHELF CUP
WD12X10203 WD12X10203 GE SHIELD MAIN BOARD
WR01X10623 WR01X10623 GE SHOULDER SCR
WD30X98 WD30X98 GE SLIDE
WD03X10014 WD03X10014 GE SPRING
WD03X10026 WD03X10026 GE SPRING PLUNGER
WR02X10585 WR02X10585 GE SPRING RECESS DOOR
WD12X10048 WD12X10048 GE STEM FLOAT
WD1X1392 WD1X1392 GE SUMP CLAMP
WD18X10034 WD18X10034 GE SUMP INLET
WD01X10098 WD01X10098 GE SUPPORT HEATER
WD12X10151 WD12X10151 GE SWITCH FLOOD ASM
WD21X10224 WD21X10224 GE SWITCH INTERLOCK
WD21X10023 WD21X10023 GE THERMISTOR
WD27X10219 WD27X10219 GE TOEKICK ASSEMBLY
WH1X2036 WH1X2036 GE UNIV CLAMP
WD01X10175 WD01X10175 GE VALVE FLAPPER
WD15X10003 WD15X10003 GE VALVE WATER INLET
WD12X10192 WD12X10192 GE VENT
WD3X767 WD3X767 GE WASHER
WD03X0767 WD03X0767 GE WASHER ST STL
WD02X10093 WD02X10093 GE WD02X10093
