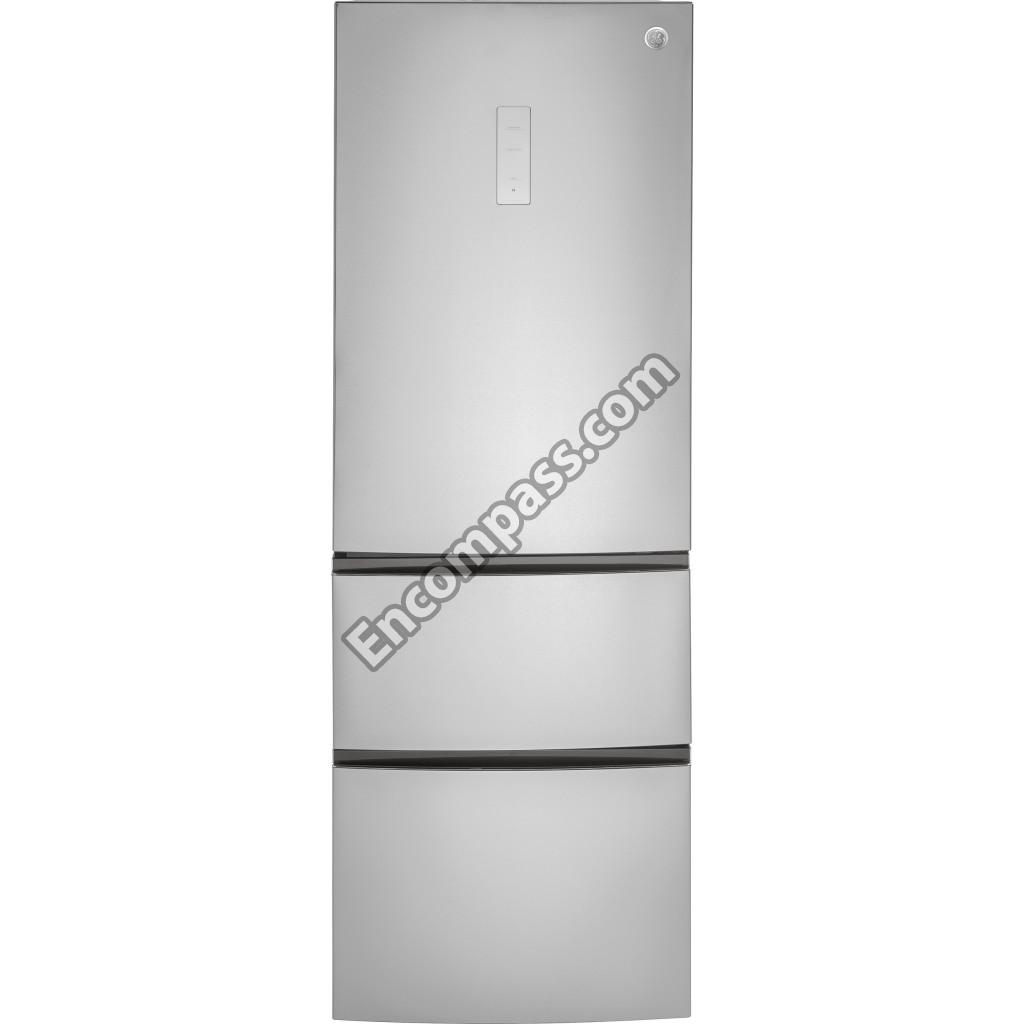

Model Image
Manufacturer

GE

Model Number

GLE12HSLBRSS

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WR97X32332 WR97X32332 3MM X 1.8MM LOKRING
WR97X10075 WR97X10075 5MM X 4MM LOKRING
WR97X10030 WR97X10030 5MM X 5MM LOKRING
WR01X28354 WR01X28354 60226033
WR01X28345 WR01X28345 60600097
WR01X28373 WR01X28373 60703849
WR97X10085 WR97X10085 6MM X 1.8MM LOKRING
WR97X10033 WR97X10033 6MM X 4MM LOKRING
WR97X25268 WR97X25268 7MM X 5MM LOKRING
WR97X10036 WR97X10036 8MM X 6MM LOKRING
WR97X10021 WR97X10021 8MM X 8MM LOKRING
WR02X4039 WR02X4039 ADHESIVE CLIP
WR01X28530 WR01X28530 ADJUSTABLE LEVELING LEG
WR14X28350 WR14X28350 AUXILIARY CONDENSER DRAIN PAN
WR30X30034 WR30X30034 BUCKET ICE
WR02X11437 WR02X11437 CLAMP
WR2X4039 WR2X4039 CLAMP
WR01X10182 WR01X10182 CLIP U
WR87X31725 WR87X31725 COMPRESSOR
WR01X28351 WR01X28351 COMPRESSOR CLIP
WR01X28353 WR01X28353 COMPRESSOR GROMMET
WR87X28624 WR87X28624 CONDENSER
WR60X34125 WR60X34125 CONDENSER FAN
WR29X10082 WR29X10082 COVER ICEMAKER
WR29X10092 WR29X10092 CUP FILL IM
WR14X28326 WR14X28326 DAMPER GASKET
WR14X28382 WR14X28382 DAMPER GASKET
WR14X28388 WR14X28388 DAMPER GASKET
WR87X28340 WR87X28340 DEFROST HEATER
WR87X28553 WR87X28553 DISCHARGE TUBE
WR14X28371 WR14X28371 DRAIN PAN
WR87X28356 WR87X28356 EVAPORATOR
WR14X28327 WR14X28327 EVAPORATOR COVER
WR55X28338 WR55X28338 EVAPORATOR THERMISTOR
WR60X29549 WR60X29549 FREEZER FAN
WR55X29550 WR55X29550 FREEZER LED LIGHT
WR14X28372 WR14X28372 FREEZER MULLION LOWER GASKET
WR14X28377 WR14X28377 FREEZER MULLION UPPER GASKET
WR72X31588 WR72X31588 FREEZER RAIL LEFT
WR72X31589 WR72X31589 FREEZER RAIL RIGHT
WR72X28378 WR72X28378 FREEZER RAIL SUPPORT LEFT
WR72X28397 WR72X28397 FREEZER RAIL SUPPORT RIGHT
WR55X28347 WR55X28347 FREEZER THERMISTOR
WR14X28342 WR14X28342 FREEZER TRANSITION GASKET
WR14X28393 WR14X28393 FRESH FOOD AIR RETURN DUCT COVER
WR14X28334 WR14X28334 FRESH FOOD AIR TOWER
WR14X28336 WR14X28336 FRESH FOOD AIR TOWER GASKET
WR55X28332 WR55X28332 FRESH FOOD THERMISTOR LOWER
WR55X28330 WR55X28330 FRESH FOOD THERMISTOR UPPER
WR01X28364 WR01X28364 FRONT CAP HINGE INSERT
WR01X28367 WR01X28367 FRONT CAP INSERT
WR02X9223 WR02X9223 GASKET DONUT
WR2X9223 WR2X9223 GASKET DONUT
WR04X29375 WR04X29375 GEA BADGE FLAT CHROME
WR71X28385 WR71X28385 GLASS SHELF FULL
WR71X35946 WR71X35946 GLASS SHELF WITH WINE RACK
WR02X10967 WR02X10967 GROMMET AND GASKET ASSEMBLY
WR13X28381 WR13X28381 HARNESS COVER
WR02X44465 WR02X44465 HEAT PROBE
WR13X28399 WR13X28399 HINGE COVER LEFT
WR30X30972 WR30X30972 ICEMAKER REPLACEMENT KIT
WR29X35947 WR29X35947 ICEMAKER SUPPORT
WR55X30490 WR55X30490 INVERTER
WR55X28346 WR55X28346 LED BOARD
WR13X28341 WR13X28341 LED LIGHT COVER
WR72X28376 WR72X28376 LEFT H AND VEGETABLE RAIL
WR13X30970 WR13X30970 LEFT MIDDLE HINGE
WR13X30971 WR13X30971 LEFT TOP HINGE AND PIN
WR71X28386 WR71X28386 LOWER FREEZER BASKET
WR71X28383 WR71X28383 LOWER FREEZER BASKET TRAY
WR71X28331 WR71X28331 LOWER FRESH FOOD DOOR BIN
WR01X29720 WR01X29720 MAGNET
WR55X28366 WR55X28366 MAGNETIC REED SWITCH
WR55X33809 WR55X33809 MAIN BOARD
WR13X28389 WR13X28389 MAIN BOARD COVER
WR13X28384 WR13X28384 MAINBOARD ENCLOSURE
WR01X28360 WR01X28360 PLUG BUTTON WHITE
31-1000388 31-1000388 PM MINI MANUAL AND WIRING
49-60769 49-60769 PM OWNERS & INSTALL
31-49136 31-49136 PM QUICK INSTALL
WR55X28528 WR55X28528 POWER CORD
WR55X33545 WR55X33545 POWER SUPPLY BOARD
WR71X28344 WR71X28344 QUICK SPACE SHELF
WR86X25269 WR86X25269 R134 DRIER
WR87X30875 WR87X30875 R600 DRIER W/ RED CAP
WR87X30876 WR87X30876 R600 PROCESS VALVE W/ RED CAP
WR98X60 WR98X60 R600A CHARGE CAN 60 GRAMS
WR14X28355 WR14X28355 REAR ACCESS COVER
WR55X31994 WR55X31994 REED SWITCH
WR78X28333 WR78X28333 REFRIGERATOR - FREEZER LOWER DOOR STAINL
WR14X28328 WR14X28328 REFRIGERATOR - FREEZER LOWER GASKET STAI
WR78X28358 WR78X28358 REFRIGERATOR - FREEZER UPPER DOOR STAINL
WR14X28337 WR14X28337 REFRIGERATOR - FREEZER UPPER GASKET STAI
WR78X28335 WR78X28335 REFRIGERATOR - FRESH FOOD DOOR STAINLESS
WR14X28339 WR14X28339 REFRIGERATOR - FRESH FOOD GASKET STAINLE
WR30X10093 WR30X10093 REFRIGERATOR ICE MAKER KIT
WR57X39965 WR57X39965 REFRIGERATOR VALVE AND TUBE ASSEMBLY
WR13X28365 WR13X28365 RIGHT H AND TOP HINGE COVER
WR72X28374 WR72X28374 RIGHT H AND VEGETABLE RAIL
WR13X36165 WR13X36165 RIGHT MIDDLE HINGE
WR1K1 WR1K1 SCR 8-36 T
WR01X28394 WR01X28394 SCREW AIR TOWER
WR01X28349 WR01X28349 SCREW M4 X 8
WR01X28375 WR01X28375 SCREW M5 X 16
WR01X27789 WR01X27789 SCREW ST3.5 X 9.5
WR01X28395 WR01X28395 SCREW ST3.9 X 12
WR01X28343 WR01X28343 SCREW Y-HEAD
WR02X3736 WR02X3736 STR RELIEF
WR1X5278 WR1X5278 STR RELIEF
WR29X10083 WR29X10083 STRIPPER IM
WR01X28362 WR01X28362 TAPPING SCREW ST9 X 13
WR71X31065 WR71X31065 TEMPERATURE ZONE PAN
WR55X31726 WR55X31726 THERMAL FUSE
WR01X28369 WR01X28369 TOP FRONT CAP
WR13X28363 WR13X28363 TOP HINGE AND PIN
WR17X11349 WR17X11349 TUBE PLASTIC
WR55X28359 WR55X28359 UI DISPLAY
WR71X28391 WR71X28391 UPPER FREEZER BASKET
WR71X28329 WR71X28329 UPPER FRESH FOOD DOOR BIN
WR55X36765 WR55X36765 USER INTERFACE BOARD & OVERLAY
WR71X31073 WR71X31073 VEGETABLE PAN
WR71X28390 WR71X28390 VEGETABLE PAN COVER
