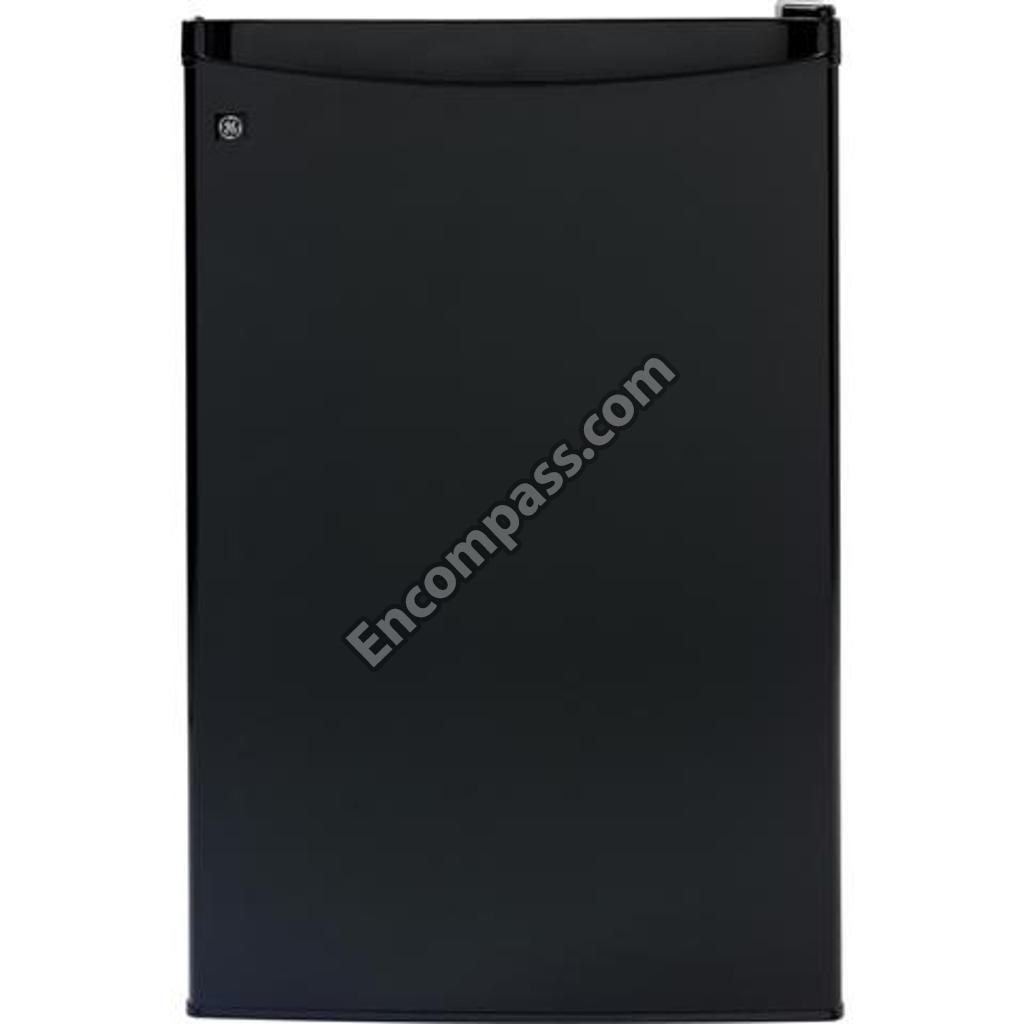

Model Image
Manufacturer

GE

Model Number

GMR04BANEBB

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WR02X20024 WR02X20024 ADJUSTABLE FOOT
WR37X10017 WR37X10017 ASSEMBLY DOOR
WR13X10908 WR13X10908 BOTTOM HINGE
WR13X10266 WR13X10266 BOTTOM HINGE
WR02X11345 WR02X11345 BOTTOM HINGE PIN SLEEVE
WR71X10984 WR71X10984 BOTTOM SHELF
WR71X10983 WR71X10983 CASE SHELF
WR87X10134 WR87X10134 COMPRESSOR
WR01X10406 WR01X10406 COMPRESSOR SCREW BOLT
WR02X11346 WR02X11346 CONTROL KNOB
WR78X12713 WR78X12713 DOOR
WR78X11897 WR78X11897 DOOR
WR78X11896 WR78X11896 DOOR
WR02X11271 WR02X11271 DOOR BTM GIRDER LINING
WR24X10254 WR24X10254 DOOR GASKET
WR13X10267 WR13X10267 DOOR HINGE
WR77X10093 WR77X10093 DOOR LINER
WR77X10046 WR77X10046 DOOR LINER
WR17X12947 WR17X12947 DOOR SHELF BAR
WR17X11355 WR17X11355 DOOR SHELF BAR
WR17X11356 WR17X11356 DOOR SHELF BAR
WR17X12952 WR17X12952 DOOR SHELF BAR
WR31X10026 WR31X10026 DRIP TRAY
WR23X10702 WR23X10702 ELECTRIC WIRE
WR85X10137 WR85X10137 EVAPORATOR ASSEMBLY
WR01X10675 WR01X10675 FIXING SCREW

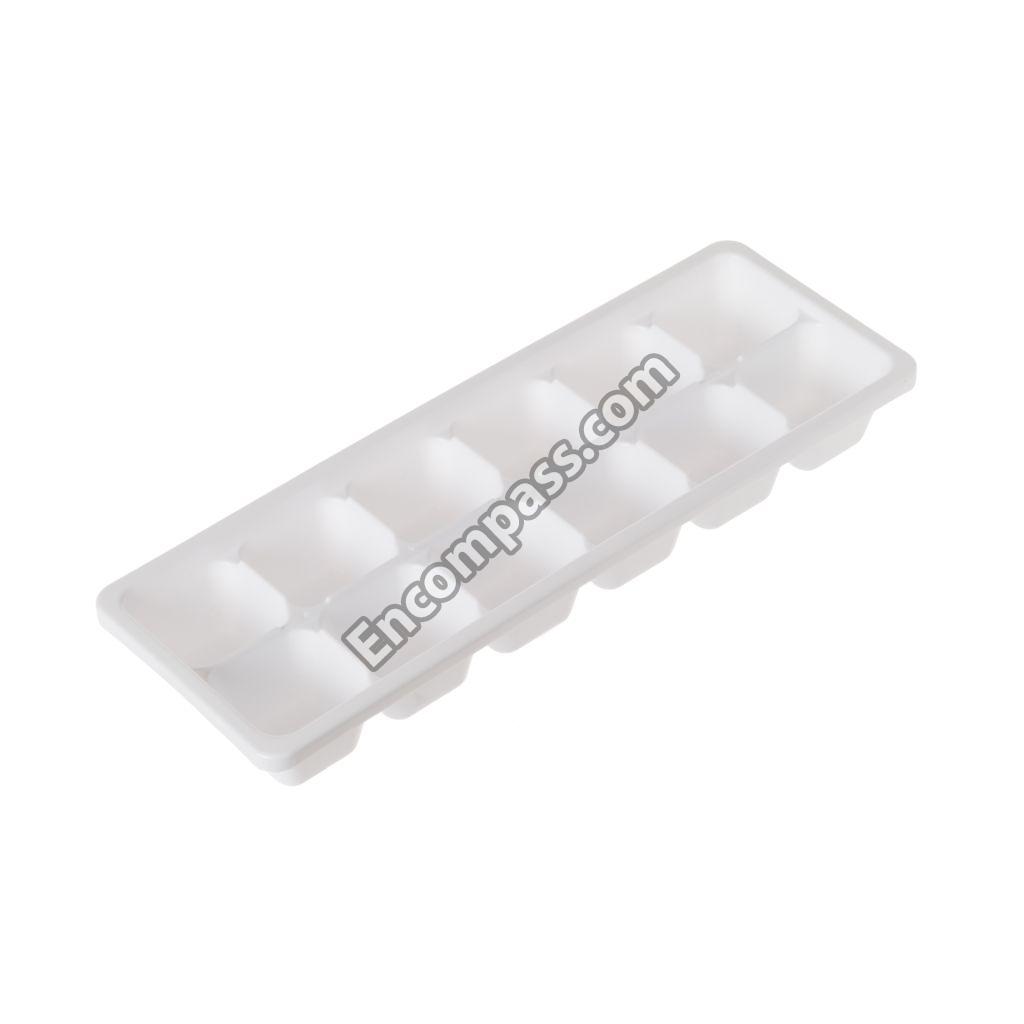

WR30X10151 WR30X10151 ICE CUBE TRAYS
WR02X12236 WR02X12236 OVER LOAD PROTECTOR
WR01X10971 WR01X10971 PLUG
WR01X10409 WR01X10409 PLUG
WR01X10410 WR01X10410 PLUG
WR23X10270 WR23X10270 POWER SUPPLY CORD
WR55X20061 WR55X20061 PTC THERMISTOR
WR02X12235 WR02X12235 RELAY COVER
WR01X10405 WR01X10405 SCREW
WR01X10404 WR01X10404 SCREW
WR01X20028 WR01X20028 SCREW
WR02X11545 WR02X11545 SELF TOPPING SCREW
WR02X12237 WR02X12237 SLEEVE
WSD0600030 WSD0600030 SPRING LOCK WASHER 2
WR09X10197 WR09X10197 THERMOSTAT
WR17X12949 WR17X12949 THERMOSTAT BOX
WR17X11294 WR17X11294 THERMOSTAT BOX
WR02X13446 WR02X13446 THERMOSTAT MNTG SHEET
WR02X11238 WR02X11238 UPPER HINGE COVER
WR02X13445 WR02X13445 UPPER HINGE COVER
49-60439 49-60439 USE & CARE MANUAL
WR17X11295 WR17X11295 X LOWER DOOR SHELF BAR
