Model Image
Manufacturer

GE

Model Number

GMR04BARABS

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WR02X20024 WR02X20024 ADJUSTABLE FOOT
WR13X10908 WR13X10908 BOTTOM HINGE
WR13X10266 WR13X10266 BOTTOM HINGE
WR02X11345 WR02X11345 BOTTOM HINGE PIN SLEEVE
WR71X10984 WR71X10984 BOTTOM SHELF
WR01X20029 WR01X20029 BUSHING
WR71X10983 WR71X10983 CASE SHELF
WR87X10092 WR87X10092 COMPRESSOR
WR01X10406 WR01X10406 COMPRESSOR SCREW BOLT
WR02X11346 WR02X11346 CONTROL KNOB
WR78X10621 WR78X10621 DOOR
WR78X11595 WR78X11595 DOOR ASM SS
WR02X11271 WR02X11271 DOOR BTM GIRDER LINING
WR24X10254 WR24X10254 DOOR GASKET
WR13X10267 WR13X10267 DOOR HINGE
WR02X11272 WR02X11272 DOOR HINGE COVER
WR77X10093 WR77X10093 DOOR LINER
WR77X10046 WR77X10046 DOOR LINER
WR17X11355 WR17X11355 DOOR SHELF BAR
WR17X11356 WR17X11356 DOOR SHELF BAR
WR17X12947 WR17X12947 DOOR SHELF BAR
WR17X12952 WR17X12952 DOOR SHELF BAR
WR31X10026 WR31X10026 DRIP TRAY
WR23X10702 WR23X10702 ELECTRIC WIRE
WR85X10137 WR85X10137 EVAPORATOR ASSEMBLY
WR37X10017 WR37X10017 EVAPORATOR ASSEMBLY DOOR
WR30X10151 WR30X10151 ICE CUBE TRAYS

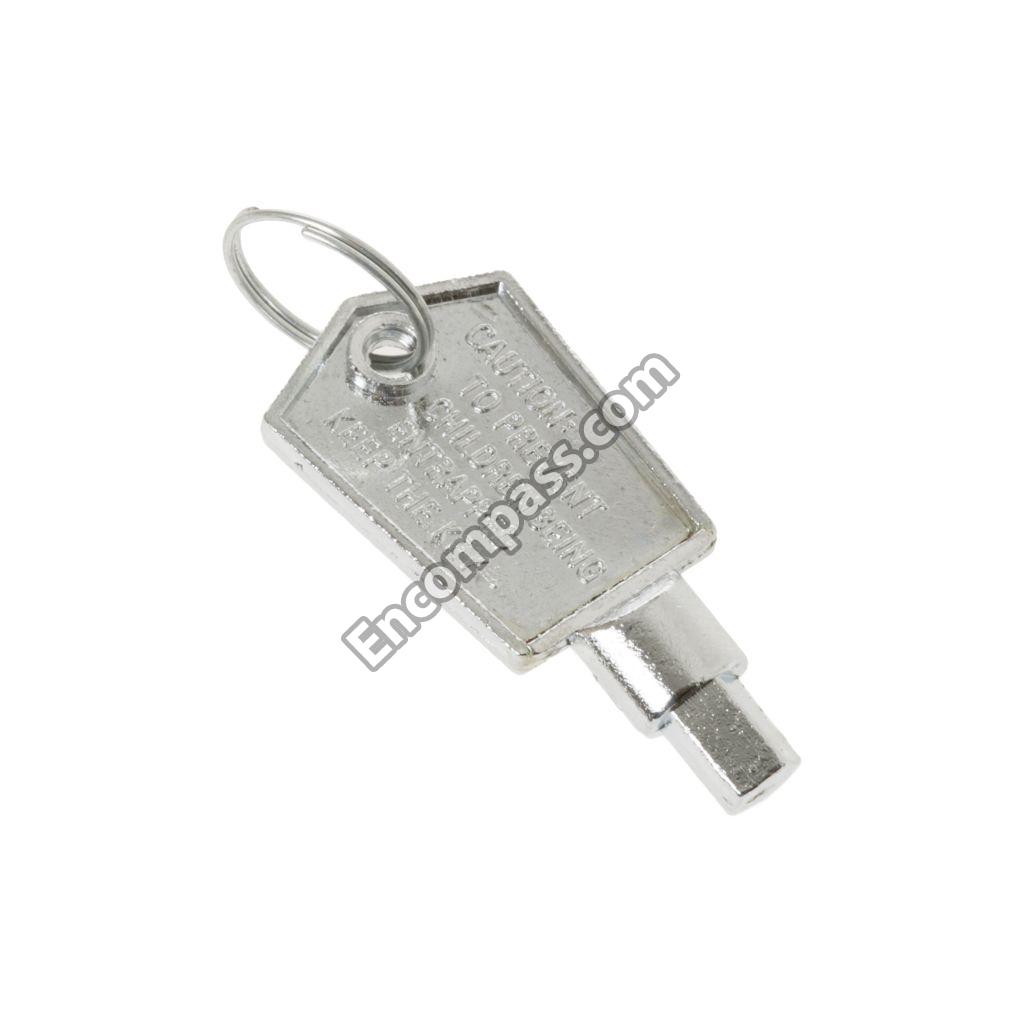

WR05X10006 WR05X10006 KEY
WR05X10017 WR05X10017 LOCK
WR02X11991 WR02X11991 LOCK CATCH TAB
WR05X10034 WR05X10034 LOCK KEY
WR02X11542 WR02X11542 MOTOR PROTECTOR
WR01X10971 WR01X10971 PLUG
WR01X10409 WR01X10409 PLUG
WR23X10270 WR23X10270 POWER SUPPLY CORD
WR50X10037 WR50X10037 PTC THERMISTOR
WR02X11862 WR02X11862 PUSH BUTTON
WR02X11538 WR02X11538 RELAY COVER
WR01X10404 WR01X10404 SCREW
WR01X10405 WR01X10405 SCREW
WR02X11545 WR02X11545 SELF TOPPING SCREW
WR02X11540 WR02X11540 SLEEVE
WR09X10120 WR09X10120 THERMOSTAT
WR17X12949 WR17X12949 THERMOSTAT BOX
WR17X11294 WR17X11294 THERMOSTAT BOX
WR02X13446 WR02X13446 THERMOSTAT MNTG SHEET
WR17X11295 WR17X11295 X LOWER DOOR SHELF BAR
