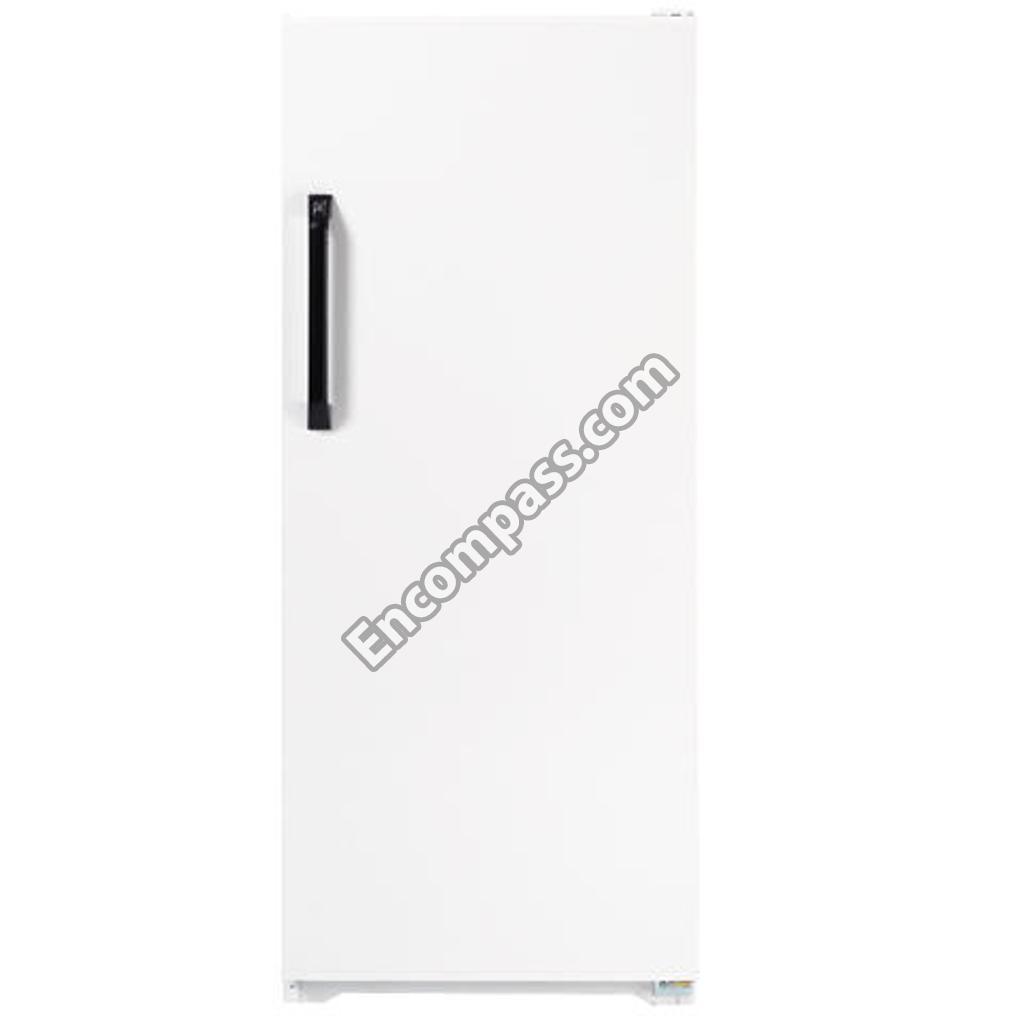

Model Image
Manufacturer

GE

Model Number

GMS10AAMALWW

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WR17X6465 WR17X6465 BARRIER
WR2X9123 WR2X9123 BUSHING
WR02K10012 WR02K10012 BUSHING COMPRESSOR
WR02X9123 WR02X9123 BUSHING DOOR
WR02K0026 WR02K0026 BUSHING HEYNCO
WR1X5278 WR1X5278 CABLE CLAMP
WR23K10001 WR23K10001 CABLE GROUND
WR2X9125 WR2X9125 CAP CORNER
WR02X9125 WR02X9125 CAP CORNER WH
WR62K10001 WR62K10001 CAPACITOR
WR23K10009 WR23K10009 CAPACITOR HARNESS
WR02X8272 WR02X8272 CLAMP
WR2X8272 WR2X8272 CLAMP
WR01X5278 WR01X5278 CLAMP CABLE
WR2X8274 WR2X8274 CLAMP SUPT
WR02X7903 WR02X7903 CLIP HANDLE
WR2X7903 WR2X7903 CLIP HDLE
WR2X9124 WR2X9124 CLIP HINGE
WR02K0055 WR02K0055 CLIP PTC COVER
WR87K0011 WR87K0011 COMPRESSOR ASM.
WR87X10154 WR87X10154 COMPRESSOR RPL KIT
WR84K0003 WR84K0003 CONDENSER
WR84K3 WR84K3 CONDENSER
WR9X527 WR9X527 CONTROL
WR09X0527 WR09X0527 CONTROL TEMP
WR23K10007 WR23K10007 CORD POWER & HARNESS
WR17X6464 WR17X6464 COVER CTL **NLA*
WR02K0037 WR02K0037 COVER PTC
WR2K37 WR2K37 COVER RELAY
WR02X8710 WR02X8710 COVER TOP HINGE WH
WR32X5373 WR32X5373 COVER VEGETABLE PAN
WR17X6463 WR17X6463 COVER-EVAPORATOR
WR02X9227 WR02X9227 DIAL TEMP CONTROL
WR78K10007 WR78K10007 DOOR ASSEMBLY - LH
WR78K10006 WR78K10006 DOOR ASSEMBLY - RH
WR22X5100 WR22X5100 DOOR BUTTER
WR37X5044 WR37X5044 DOOR EVAP ASSEMBLY
WR13X5241 WR13X5241 DOOR EVAP HINGE TOP
WR1X5775 WR1X5775 DOOR STOP
WR2X8290 WR2X8290 DOOR STOP
WR02X8290 WR02X8290 DOOR STOP-LH
WR86K0001 WR86K0001 DRYER
WR86K1 WR86K1 DRYER
WR37X5046 WR37X5046 EVAP DOOR LH
WR85K2 WR85K2 EVAPORATOR
WR85K0002 WR85K0002 EVAPORATOR ASM
WR02K10006 WR02K10006 GROMMET COMP
WR12X0627 WR12X0627 HANDLE DOOR
WR23K10008 WR23K10008 HARNESS-CONTROL
WR12X627 WR12X627 HDLE R
WR2X8710 WR2X8710 HGE CVR WH
WR13X0674 WR13X0674 HINGE BOTTOM LH
WR13X674 WR13X674 HINGE BTM LH
WR13X5236 WR13X5236 HINGE EVAPORATOR DOOR BTM
WR13X0652 WR13X0652 HINGE TOP
WR2K31 WR2K31 HOSE INSULAT
WR02K0031 WR02K0031 HOSE INSULATING
WR2X9227 WR2X9227 INSERT COVER
WR12K0001 WR12K0001 INSERT HANDLE
WR02K10031 WR02K10031 INSULATOR CONDENSER
WR49K10007 WR49K10007 KIT REPLACEMENT GASKET
WR2X9226 WR2X9226 KNOB CONTROL
WR02X9226 WR02X9226 KNOB TEMP CONTROL
WR2X8054 WR2X8054 LEVEL SCREW
WR12K1 WR12K1 N/L/A 07/18/06
WR04X0221 WR04X0221 NAMEPLATE
WR4X221 WR4X221 NAMEPLATE
WR02X9124 WR02X9124 NUTSTRIP HINGE BTM
WR8K5 WR8K5 OVERLOAD
WR08X0162 WR08X0162 OVERLOAD 265RHBYY 53
WR32X5372 WR32X5372 PAN VEG
31-51112 31-51112 PM MINIMANUAL WIRING
WR07K0002 WR07K0002 PTC STARTER
WR7K2 WR7K2 PTC STARTER
WR01X5774 WR01X5774 SCREW
WR01X5760 WR01X5760 SCREW
WR01X1857 WR01X1857 SCREW
WR01X5759 WR01X5759 SCREW
WR01X5757 WR01X5757 SCREW
WR1X5773 WR1X5773 SCREW
WR1X1750 WR1X1750 SCREW
WR1X5759 WR1X5759 SCREW
WR1X5705 WR1X5705 SCREW
WR1X1814 WR1X1814 SCREW
WR01K10021 WR01K10021 SCREW
WR01K10013 WR01K10013 SCREW
WR01K0013 WR01K0013 SCREW ""T""
WR01K0017 WR01K0017 SCREW & NUT
WR1K17 WR1K17 SCREW & NUT
WR01K10004 WR01K10004 SCREW & NUT
WR01K10001 WR01K10001 SCREW AB
WR01X1999 WR01X1999 SCREW BOTTOM HINGE
WR01X5773 WR01X5773 SCREW DOOR STOP
WR02X8054 WR02X8054 SCREW LEVELING
WR1K13 WR1K13 SCREW T
WR71X6099 WR71X6099 SHELF
WR1X1974 WR1X1974 SHIM
WR01X1974 WR01X1974 SHIM HINGE BTM
WR2X8287 WR2X8287 SHIM T HINGE
WR02X8287 WR02X8287 SHIM TOP HINGE
WR23X5178 WR23X5178 SOCKET
WR01X5775 WR01X5775 STOP EVAP DOOR LH
WR01X2007 WR01X2007 STRIATE WASHER
WR17K10015 WR17K10015 SUPPORT COMPRESSOR
WR02X8274 WR02X8274 SUPPORT CONTROL BULB
WR2X8273 WR2X8273 SUPPORT EVAP
WR02K10020 WR02K10020 SUPPORT EVAP
WR2X8286 WR2X8286 SUPPORT SCKT
WR02X8273 WR02X8273 SUPPORT-EVAPORATOR
WR02X8286 WR02X8286 SUPPORT-SOCKET
WR23X5174 WR23X5174 SWITCH
WR23K10005 WR23K10005 SWITCH LIGHT
31-51318 31-51318 TECHNICAL DATA SHEET
WR13X652 WR13X652 TOP HINGE
WR31X5034 WR31X5034 TRAY CHILLER
WR30X5122 WR30X5122 TRAY ICE
49-60106 49-60106 USE AND CARE GUIDE
WR01X5753 WR01X5753 WASHER
WR1X5702 WR1X5702 WASHER
