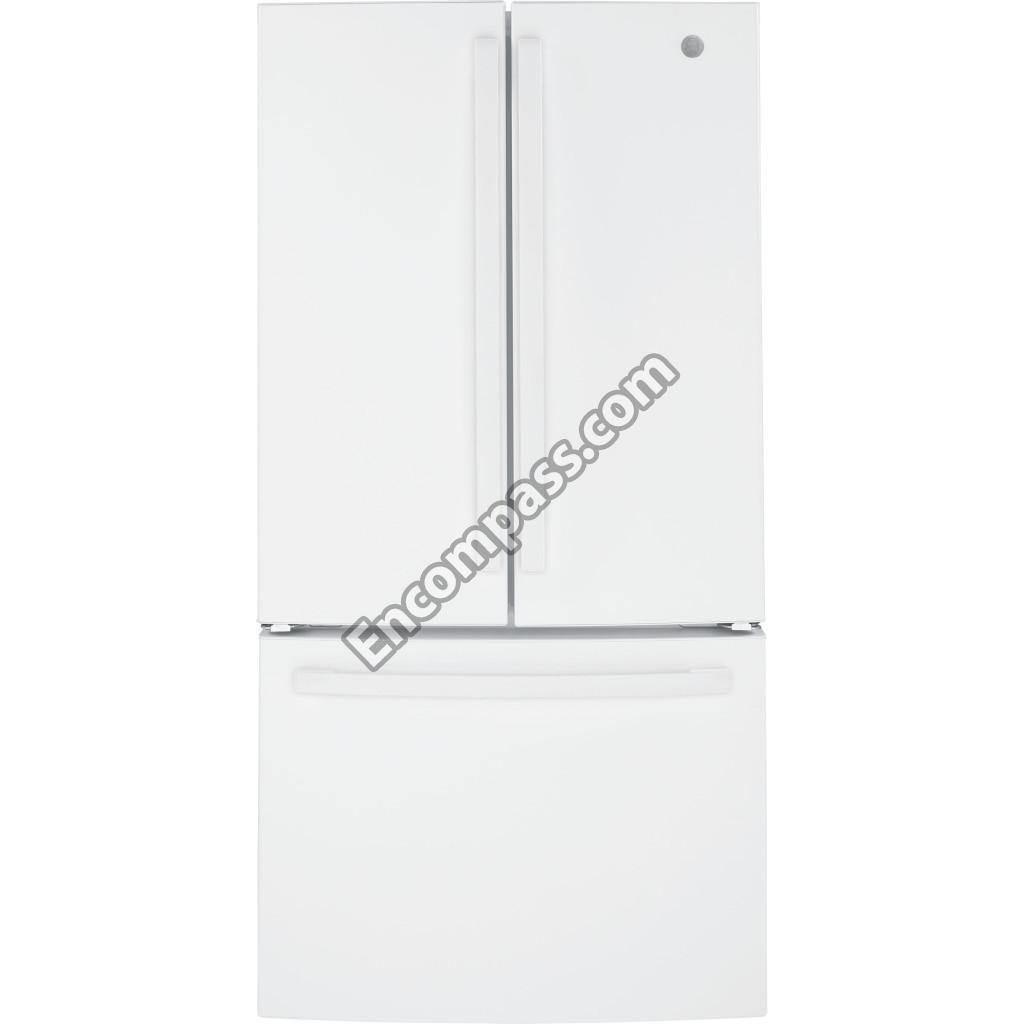

Model Image
Manufacturer

GE

Model Number

GNE25JGKBFWW

Description

Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WR17X25613 WR17X25613 ARTICULATING
WR55X24870 WR55X24870 BOARD LED LI
WR72X30560 WR72X30560 BRACKET DRAW
WR72X30559 WR72X30559 BRACKET DRAW
WR55X24064 WR55X24064 CAPACITOR
WR02X8203 WR02X8203 CLIP COMPRESSOR MOUNT
WR60X25869 WR60X25869 COND FAN & H
WR02X40125 WR02X40125 CONNECTOR COVER
WR49X40249 WR49X40249 COVER EVAP A
WR13X38305 WR13X38305 COVER LED
WR02X25127 WR02X25127 COVER MAIN BEARING ASSEMBLY
WR71X42026 WR71X42026 COVER PANTRY
WR71X42025 WR71X42025 COVER VEG PA
WR02X24923 WR02X24923 CROSS BAR PI
WR29X24823 WR29X24823 CUP FILL IM
WR02X27906 WR02X27906 DIVIDER
WR02X24849 WR02X24849 DIVIDER BASKET
WR78X25614 WR78X25614 DOOR FOAM
WR78X25637 WR78X25637 DOOR FOAM
WR78X25615 WR78X25615 DOOR FOAM FZ
WR17X24814 WR17X24814 DRAIN TROUGH ASSEMBLY
WR86X25269 WR86X25269 DRYER
WR55X28649 WR55X28649 EVAPORATOR HARNESS
WR14X26408 WR14X26408 FF AIR TOWER
WR17X26568 WR17X26568 FILTER & INS
WR14X24804 WR14X24804 FOAM STRIP S
WR02X13384 WR02X13384 GEAR PINION LH
WR14X26156 WR14X26156 GRILL AIR TOWER ASSEMBLY
WR02X10647 WR02X10647 GRILLE SENSOR
WR02X22869 WR02X22869 GROMMET
WR02X10520 WR02X10520 GROMMET EVAPORATOR
49-60603 49-60603 GUIDE OWNER
WR12X25618 WR12X25618 HANDLE KIT
WR23X10736 WR23X10736 HARNESS ADAPTER HUM SEN
WR55X25394 WR55X25394 HARNESS BOARD INDIV
WR51X10108 WR51X10108 HEATER DEF A
WR30X30260 WR30X30260 ICE BUCKET
WR02X24817 WR02X24817 ICE MAKER SUPPORT
WR30X35287 WR30X35287 ICEMAKER
WR02X13774 WR02X13774 LEAD TUBE
WR87X25363 WR87X25363 LOW SIDE ASM
WR23X30131 WR23X30131 LOWER CABINET HARNESS
WR71X38302 WR71X38302 LOWER DOOR
WR60X10209 WR60X10209 MOTOR DC COND FAN
WR60X32614 WR60X32614 MOTOR DC EVAPORATOR FAN
WR60X10185 WR60X10185 MOTOR EVAP DC
WR71X25306 WR71X25306 PANTRY ASSEMBLY
WR02X24969 WR02X24969 PANTRY DIVIDER
31-51943 31-51943 PM MINI MANUAL WIRING
WR23X0108 WR23X0108 POWER CORD
WR71X24967 WR71X24967 QUICK SHELF
WR82X10103 WR82X10103 REFRIGERATOR ACCESS COVER ASSEMBLY
WR04X10223 WR04X10223 REFRIGERATOR BADGE
WR71X25283 WR71X25283 REFRIGERATOR BASKET
WR72X24869 WR72X24869 REFRIGERATOR BASKET
WR72X24868 WR72X24868 REFRIGERATOR BASKET
WR71X24744 WR71X24744 REFRIGERATOR BASKET
WR02X12870 WR02X12870 REFRIGERATOR BRACKET SUPPORT
WR01X10684 WR01X10684 REFRIGERATOR CABLE CLAMP
WR02X25611 WR02X25611 REFRIGERATOR CAM CLOSURE
WR87X10224 WR87X10224 REFRIGERATOR COMPRESSOR KIT
WR2X8203 WR2X8203 REFRIGERATOR COMPRESSOR MOUNTING CLIP
WR1X1779 WR1X1779 REFRIGERATOR COMPRESSOR MOUNTING POST
WR87X24809 WR87X24809 REFRIGERATOR CONDENSER ASSEMBLY
WR01X10654 WR01X10654 REFRIGERATOR CONDENSER COILS MOUNTING SCREW
WR60X24484 WR60X24484 REFRIGERATOR CONDENSER FAN
WR02X11863 WR02X11863 REFRIGERATOR CONDENSER FAN MOTOR BRACKET
WR02X10593 WR02X10593 REFRIGERATOR CONDENSER FAN MOTOR BRACKET, REAR
WR13X25607 WR13X25607 REFRIGERATOR COVER
WR13X25606 WR13X25606 REFRIGERATOR COVER
WR02X13504 WR02X13504 REFRIGERATOR CRISPER PAN SHELF SUPPORT PIN
WR60X27396 WR60X27396 REFRIGERATOR DAMPER ASSEMBLY
WR50X10069 WR50X10069 REFRIGERATOR DEFROST BI-METAL THERMOSTAT
WR17X25225 WR17X25225 REFRIGERATOR DISPENSER
WR71X38291 WR71X38291 REFRIGERATOR DOOR BIN
WR02X25610 WR02X25610 REFRIGERATOR DOOR BUMPER
WR14X40083 WR14X40083 REFRIGERATOR DOOR GASKET - WHI
WR01X10379 WR01X10379 REFRIGERATOR DOOR HINGE SCREW, #8-32 X 7/16-IN
WR02X24874 WR02X24874 REFRIGERATOR DOOR STOP
WR02X11426 WR02X11426 REFRIGERATOR DRAIN TUBE
WR55X26586 WR55X26586 REFRIGERATOR ELECTRONIC CONTROL BOARD
WR02X10663 WR02X10663 REFRIGERATOR ELECTRONIC CONTROL BOARD POST
WR17X40007 WR17X40007 REFRIGERATOR EVAPORATOR COVER
WR60X30922 WR60X30922 REFRIGERATOR EVAPORATOR FAN BLADE
WR01X10652 WR01X10652 REFRIGERATOR EVAPORATOR FAN MOTOR MOUNTING SCREW
WR01X39781 WR01X39781 REFRIGERATOR FASTENER HANDLE
WR14X24747 WR14X24747 REFRIGERATOR GASKET
WR14X40077 WR14X40077 REFRIGERATOR GASKET
WR29X24766 WR29X24766 REFRIGERATOR GROMMET AND TUBE ASSEMBLY
WR55X24897 WR55X24897 REFRIGERATOR HARNESS
WR13X24864 WR13X24864 REFRIGERATOR HINGE
WR02X24876 WR02X24876 REFRIGERATOR HINGE BUSHING
WR02X24999 WR02X24999 REFRIGERATOR HINGE BUSHING
WR02X24875 WR02X24875 REFRIGERATOR HINGE BUSHING
WR72X24768 WR72X24768 REFRIGERATOR HOLDER
WR72X24767 WR72X24767 REFRIGERATOR HOLDER
WR02X12711 WR02X12711 REFRIGERATOR HUMIDITY SENSOR
WR30X35285 WR30X35285 REFRIGERATOR ICE MAKER ASSEMBLY

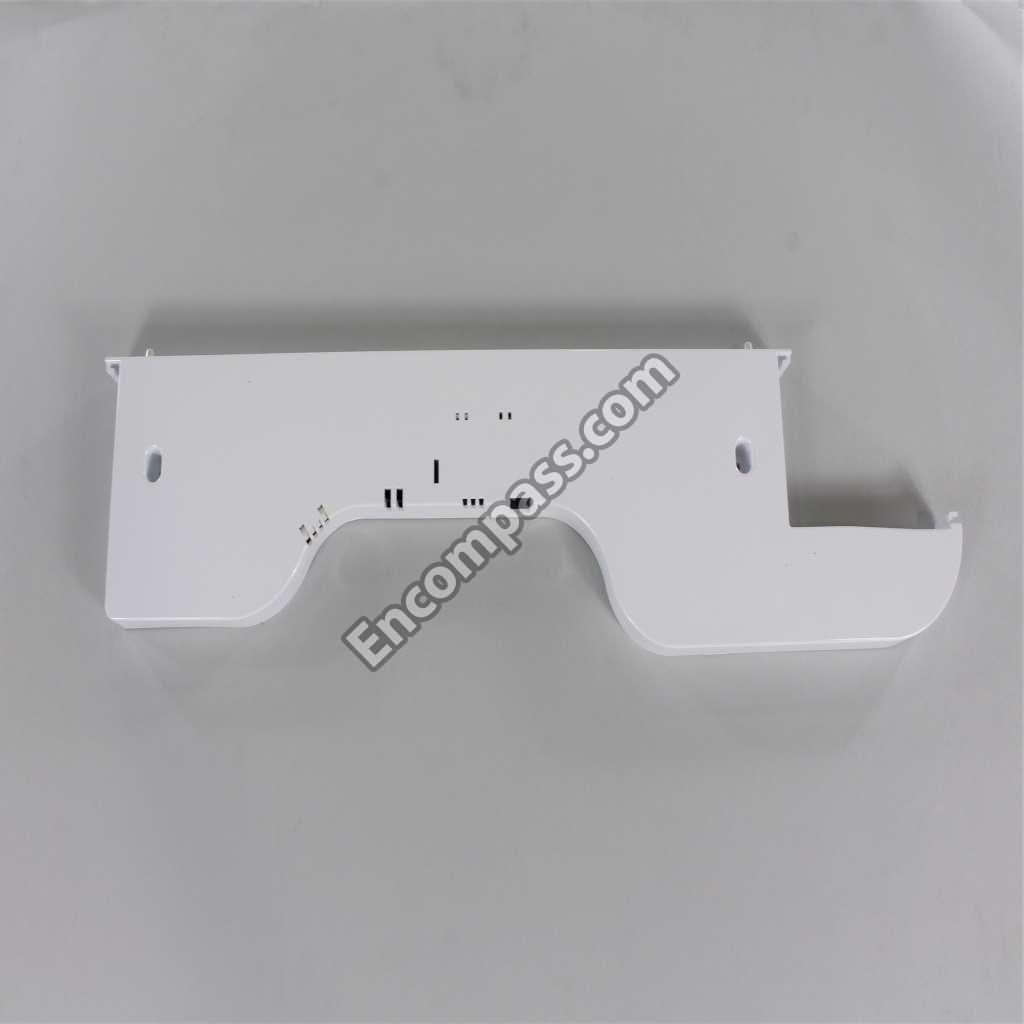

WR55X28665 WR55X28665 REFRIGERATOR INTERFACE
WR01X10850 WR01X10850 REFRIGERATOR LEVELING SCREW
WR02X24927 WR02X24927 REFRIGERATOR LIGHT HOUSING ASSEMBLY
WR02X38285 WR02X38285 REFRIGERATOR LIGHT SHIELD
WR23X29170 WR23X29170 REFRIGERATOR LIGHT SWITCH
WR23X37285 WR23X37285 REFRIGERATOR LIGHT SWITCH
WR02X24943 WR02X24943 REFRIGERATOR MOBILITY
WR72X25330 WR72X25330 REFRIGERATOR PANTRY
WR72X25329 WR72X25329 REFRIGERATOR PANTRY
WR02X13387 WR02X13387 REFRIGERATOR PINION GEAR
WR23X10300 WR23X10300 REFRIGERATOR POWER CORD
WR1X1786 WR1X1786 REFRIGERATOR SCREW
WR01X10939 WR01X10939 REFRIGERATOR SCREW
WR01X10065 WR01X10065 REFRIGERATOR SCREW
WR01X10602 WR01X10602 REFRIGERATOR SCREW
WR01X10885 WR01X10885 REFRIGERATOR SCREW
WR72X24815 WR72X24815 REFRIGERATOR SLIDE BASKET
WR02X25443 WR02X25443 REFRIGERATOR SPRING
WR02X24944 WR02X24944 REFRIGERATOR STRIKER
WR55X24933 WR55X24933 REFRIGERATOR SWITCH HARNESS
WR55X10025 WR55X10025 REFRIGERATOR TEMPERATURE SENSOR
WR02X10668 WR02X10668 REFRIGERATOR TEMPERATURE SENSOR SHUNT
WR71X25307 WR71X25307 REFRIGERATOR VEGETABLE PAN ASSEMBLY
MWFP MWFP REFRIGERATOR WATER FILTER
WR17X22070 WR17X22070 REFRIGERATOR WATER FILTER BYPASS
WR17X28086 WR17X28086 REFRIGERATOR WATER FILTER COVER
WR01X10606 WR01X10606 REFRIGERATOR WATER FILTER HEAD MOUNTING SCREW
WR17X13124 WR17X13124 REFRIGERATOR WATER LINE COVER
WR02X22564 WR02X22564 RETAINER CLIP
WR01X10843 WR01X10843 SCR 1/4 - 20
WR01X25308 WR01X25308 SCR 10-16 B
WR01X10690 WR01X10690 SCR 12-24 TT
WR01X10626 WR01X10626 SCR 8-18 AB
WR71X24966 WR71X24966 SHELF CANTIL
WR71X24965 WR71X24965 SHELF HALF A
WR02X13573 WR02X13573 SOUND DAMPER
WR02X24905 WR02X24905 STEEL PIN HI
WR55X26867 WR55X26867 SWITCH ACTUA
WR17X25212 WR17X25212 TANK COLD WRAP ASSEMBLY
WR14X26167 WR14X26167 TRACK CENTER ASM
WR08X21100 WR08X21100 TSD COMBO
WR13X25617 WR13X25617 UPPER HINGE ASSEMBLY
WR13X25616 WR13X25616 UPPER HINGE ASSEMBLY
WR57X30890 WR57X30890 VALVE ISOLAT
WR02X24816 WR02X24816 WATER SPACER
WR12X34229 WR12X34229 WHITE DOOR H AND LE
WR12X34231 WR12X34231 WHITE FREEZER DOOR H AND LE
