Manufacturer
GE
Model Number
GNE25JYKBFFS
Description

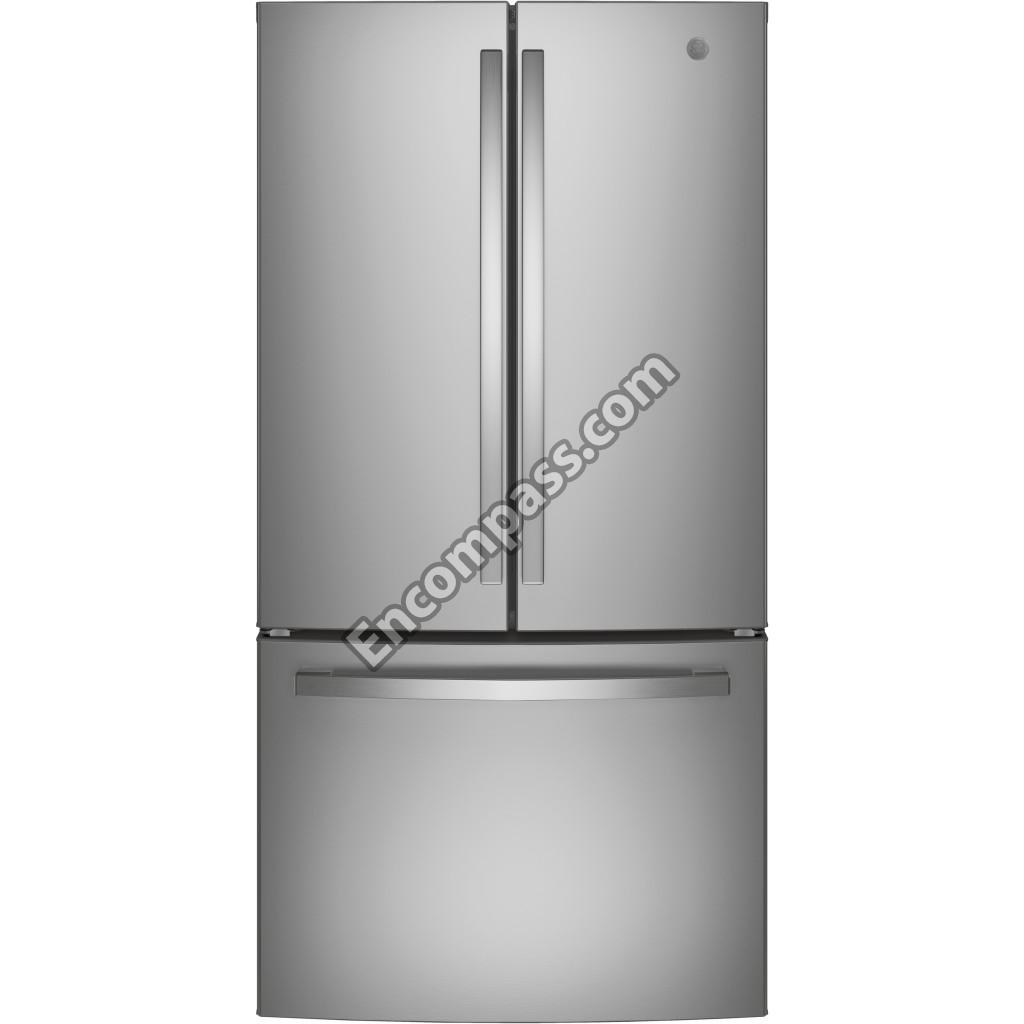

Refrigerator
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ACCESS COVER |
|
|
ARTICULATING MULLION ASM |
|
|
BASKET BOTTOM ASM FZ |
|
|
BASKET UPPER ASM FZ |
|
|
BLADE CONF FAN ASM |
|
|
BOARD LED LIGHT ASM |
|
|
BRACKET COND FAN (MTG) |
|
|
BRACKET COND FAN (REAR) |
|
|
BRACKET DRAWER |
|
|
BRACKET DRAWER |
|
|
BRACKET SUPPORT |
|
|
BUMPER DOOR BB |
|
|
BUMPER DOOR DG |
|
|
BYPASS FILTER PLUG |
|
|
CAM CLOSURE FF DG |
|
|
CAPACITOR 12 UF |
|
|
CLIP |
|
|
CLIP RETAINER COMBO |
|
|
COMPRESSOR EMBRACO |
|
|
CONDENSER FAN & HOUSING |
|
|
COVER CONECTOR |
|
|
COVER EVAP ASM 33 |
|
|
COVER EVAP FAN |
|
|
COVER HINGE TOP LH DG |
|
|
COVER HINGE TOP RH DG |
|
|
COVER PANTRY ASM |
|
|
COVER VEG PAN ASM |
|
|
COVER WATER LINE |
|
|
CROSS BAR PINION |
|
|
CUP FILL IM |
|
|
DAMPER ASM |
|
|
DISPENSER INTERNAL ASM |
|
|
DIVIDER |
|
|
DIVIDER BASKET LOWER FZ |
|
|
DIVIDER PANTRY |
|
|
DUCT AIR TOWER FF ASM |
|
|
EVAPORATOR FAN BLADE |
|
|
FASTENER |
|
|
FOAM STRIP SE ADH |
|
|
FREEZER DRAWER FRONT - FPR STAINLESS STE |
|
|
FREEZER ICE BUCKET |
|
|
FRESH FOOD AIR TOWER GRILL |
|
|
FRESH FOOD DOOR LIGHT SWITCH PAIR |
|
|
FULL-WIDTH DRAWER |
|
|
GASKET DOOR FRENCH DG |
|
|
GASKET DOOR FZ DG |
|
|
GASKET TOWER FF |
|
|
GEA BADGE FLAT CHROME |
|
|
GEAR PINION RH |
|
|
GRILLE SENSOR |
|
|
GROMMET |
|
|
GROMMET AND TUBE IM ASM |
|
|
GROMMET FAN MOTOR |
|
|
HARNESS BOARD INDIV |
|
|
HARNESS EVAP |
|
|
HARNESS INTERFACE |
|
|
HARNESS SWITCH |
|
|
HEATER DEF ASM |
|
|
HINGE BUSHING BB |
|
|
HINGE BUSHING BB |
|
|
HINGE BUSHING BB |
|
|
HINGE CENTER |
|
|
HINGE TOP ASM LH GB |
|
|
HINGE TOP ASM RH GB |
|
|
HOLDER SLIDE FZ LH |
|
|
HOLDER SLIDE FZ RH |
|
|
ICEMAKER |
|
|
INTERFACE TOP ASM SLATE |
|
|
L-FIN AL CONDENSER 10 PASS |
|
|
LIGHT HOUSING |
|
|
LIGHT SWITCH |
|
|
LOW SIDE ASM |
|
|
LOWER DOOR BIN RH |
|
|
MAIN BOARD ENCLOSURE ASM |
|
|
MAIN CONTROL BOARD |
|
|
MOBILITY BACK ASM |
|
|
MOTOR DC COND FAN |
|
|
MOTOR DC EVAP FAN ASM |
|
|
P/S DRYER KIT R134A |
|
|
PCB NEXTGEN RFID |
|
|
PM MINI MANUAL AND WIRING |
|
|
PM QUICK OWNERS MANUAL |
|
|
POWER CORD |
|
|
REFRIGERATOR DOOR - LEFT HAND FPR STAINL |
|
|
REFRIGERATOR DOOR - RIGHT HAND FPR STAIN |
|
|
RFID COVER & FCC LABEL |
|
|
RING COMPRESSION |
|
|
SCR 1/4 - 20 UNC -2A |
|
|
SCR 1/4-20 RT FLAT 3/4 S |
|
|
SCR 10-14 PL FLT20 3/4 S |
|
|
SCR 10-16 B HXW 1/4 S |
|
|
SCR 10-32 TR 1/2 |
|
|
SCR 10-32 TT HXW 5/16 S |
|
|
SCR 12-24 HXT20 .90 S |
|
|
SCR 8-18 AB HXW 5/4 S |
|
|
SCR 8-18 AB IHW 5/8 S |
|
|
SCR 8-18 CA HX 1/2 S |
|
|
SCR 8-32 AB IHWS 3/8 S |
|
|
SCREW 10-32 GXTT FLP 595 |
|
|
SCREW 8-18 HI/LO 5/8 |
|
|
SCREW HINGE COVER |
|
|
SCREW LEVELING |
|
|
SHELF CANTILEVER ASM |
|
|
SHELF DOOR MODULE RH |
|
|
SHELF HALF ASM |
|
|
SHELF QUICK SPACE ASM |
|
|
SHIELD LIGHT |
|
|
SHROUD CONDENSER |
|
|
SHUNT SENSOR |
|
|
SLIDE BASKET LOWER FZ |
|
|
SLIDE BASKET UPPER LH |
|
|
SLIDE BASKET UPPER RH |
|
|
SLIDE PANTRY LH ASM |
|
|
SLIDE PANTRY RH ASM |
|
|
SOUND DAMPER |
|
|
SPRING CLUSRE |
|
|
STAINLESS FREEZER HANDLE |
|
|
STAINLESS REFRIGERATOR HANDLE |
|
|
STAND OFF |
|
|
STEEL PIN HINGE |
|
|
STOP DOOR |
|
|
STRIKER TOP MULLION |
|
|
STUD MTG COMPR |
|
|
SUPPORT IM |
|
|
SUPPORT VEG PAN ASM |
|
|
SWITCH ACTUATOR |
|
|
TANK COLD WATER |
|
|
TEMPERATUR SENSOR FF |
|
|
THERMOSTAT DEF |
|
|
TOP LED COVER |
|
|
TRACK CENTER ASM |
|
|
TROUGH DRAIN ASM |
|
|
TSD COMBO |
|
|
TUBE DRAIN |
|
|
TUBE LEAD |
|
|
VALVE ISOLATION ASM |
|
|
VEGETABLE DRAWER |
|
|
XWFE FILTER COVER |
|
|
XWFE MANIFOLD & HOUSING |
|
|
XWFE RETAIL FILTER |
